Geko G02032 Low Profile 2.5 Ton Garage Jack Instruction Manual

1. บทนำ

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Geko G02032 Low Profile 2.5 Ton Garage Jack. Please read and understand all instructions and safety warnings before using this product. Proper use and maintenance will ensure long-lasting performance and user safety.

2. ข้อมูลด้านความปลอดภัย

Always prioritize safety when operating hydraulic lifting equipment. Failure to follow these instructions may result in property damage, personal injury, or death.

• อ่านคู่มือ: Understand all operating procedures and warnings before use.
• ความจุที่กำหนด: Never exceed the jack's rated capacity of 2.5 tons.
• Use on Hard, Level Surface: Always operate the jack on a hard, level surface capable of supporting the load. Avoid soft or uneven ground.
• การใช้ขาตั้งแม่แรง: After lifting a vehicle, immediately support it with appropriate jack stands. The hydraulic jack is a lifting device only, not a vehicle support device.
• Center the Load: Ensure the load is centered on the jack saddle. Off-center loads can cause instability.
• พื้นที่ทำงานที่ชัดเจน: Keep the work area clean and well-lit. Keep bystanders away from the vehicle and jack during operation.
• ตรวจสอบก่อนใช้งาน: Before each use, inspect the jack for any damage, leaks, or loose parts. Do not use if damaged.
• Proper Lowering: Lower the load slowly and in a controlled manner.
• อุปกรณ์ป้องกันภัยส่วนบุคคล: Wear appropriate safety gear, such as safety glasses and gloves.
• หลีกเลี่ยงการดัดแปลง: Do not modify the jack or use it for purposes other than its intended design.

3. ส่วนประกอบผลิตภัณฑ์

Familiarize yourself with the main components of your Geko G02032 garage jack.

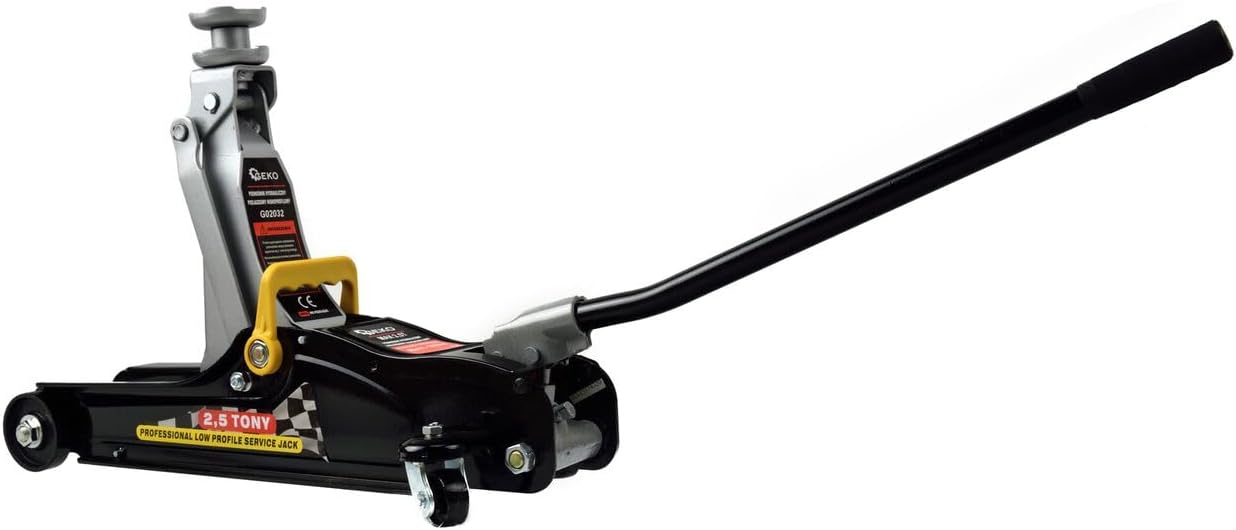

ภาพที่ 3.1: The Geko G02032 Low Profile 2.5 Ton Garage Jack, showcasing its full assembly with the handle attached. This image provides an overall view of the product's design and key features, including the low-profile chassis, lifting arm, saddle, and wheels.

ภาพที่ 3.2: The Geko G02032 garage jack with its operating handle detached, illustrating the two main components. This view helps in understanding the assembly process and the compact nature of the jack when stored.

ภาพที่ 3.3: ภาพระยะใกล้ view of the jack's saddle and the product label. The label displays important information such as the brand 'Geko', model 'G02032', and safety warnings, while the saddle is the contact point for lifting the vehicle.

ภาพที่ 3.4: A detailed shot of the product label on the Geko G02032 jack, highlighting the maximum lift capacity of 2.5 tons and the lifting height range of 80mm to 360mm. This information is crucial for safe operation.

ภาพที่ 3.5: A close-up of the handle attachment point on the Geko G02032 jack. This shows the mechanism where the two-piece handle connects to the hydraulic pump, enabling lifting and lowering operations.

ภาพที่ 3.6: รายละเอียด view of one of the swivel caster wheels on the Geko G02032 jack. These wheels allow for easy maneuverability and positioning of the jack under a vehicle.

ภาพที่ 3.7: A close-up of one of the fixed wheels located at the front of the Geko G02032 jack. These wheels provide stability and support during lifting operations.

ภาพที่ 3.8: รายละเอียด view of the hydraulic release valve mechanism on the Geko G02032 jack. This component is crucial for controlling the lowering speed of the jack.

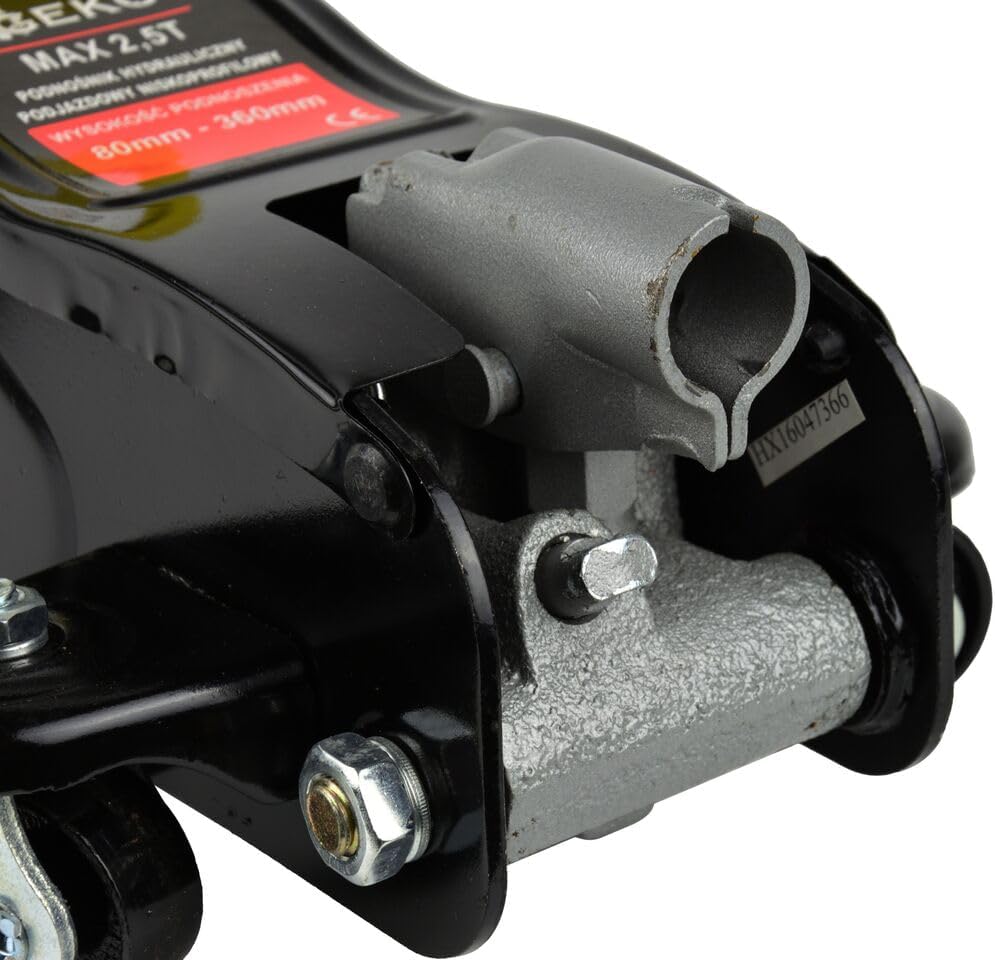

ภาพที่ 3.9: An alternative close-up perspective of the hydraulic mechanism and pivot points of the Geko G02032 jack, showing the robust construction and connection points for the lifting arm.

4. การตั้งค่า

4.1 การประกอบเบื้องต้น

1. ติดที่จับ: Insert the lower handle section into the handle socket on the jack. Align the holes and secure it with the provided pin or bolt. Then, attach the upper handle section to the lower section, ensuring it is firmly connected.

4.2 Bleeding the Hydraulic System

Air can become trapped in the hydraulic system during shipping or storage, affecting performance. Bleed the system before first use:

1. Turn the handle counter-clockwise to fully open the release valve.
2. Pump the handle vigorously 10-15 times to force any trapped air out of the system.
3. หมุนที่จับตามเข็มนาฬิกาเพื่อปิดวาล์วปล่อย
4. Test the jack by lifting it to its full height and then lowering it. Repeat if necessary until the jack operates smoothly.

5. คู่มือการใช้งาน

5.1 การยกยานพาหนะ

1. เตรียมยานพาหนะ: จอดรถบนพื้นแข็งและเรียบ ดึงเบรกมือและใช้ไม้ค้ำล้อที่ยังคงอยู่บนพื้น
2. ตำแหน่งแม่แรง: Locate the manufacturer-recommended lifting points on the vehicle chassis. Position the jack so the saddle is directly under the lifting point.
3. Close Release Valve: Turn the handle clockwise until the release valve is fully closed.
4. ยกตัวรถขึ้น: Pump the handle up and down to raise the vehicle to the desired height.
5. Install Jack Stands: Immediately place appropriately rated jack stands under the vehicle's designated support points.
6. Lower onto Stands: Slowly turn the handle counter-clockwise to open the release valve and lower the vehicle onto the jack stands. Once the vehicle is securely resting on the stands, remove the hydraulic jack.

5.2 การลดระดับความสูงของรถ

1. Raise Slightly: If the vehicle is on jack stands, position the jack under the lifting point and pump the handle a few times to slightly raise the vehicle off the jack stands.
2. Remove Jack Stands: Carefully remove the jack stands from under the vehicle.
3. ส่วนล่างของรถ: Slowly turn the handle counter-clockwise to open the release valve. The vehicle will begin to lower. Control the lowering speed by adjusting how much you open the valve.
4. ถอดแจ็คออก: Once the vehicle is fully lowered and resting on its wheels, remove the jack.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your jack.

• การหล่อลื่น: Periodically lubricate all moving parts, pivot points, and wheels with light machine oil.
• น้ำมันไฮดรอลิก: Check the hydraulic fluid level every three months. To check, lower the jack completely, remove the oil filler plug, and ensure the fluid is level with the bottom of the filler hole. Use only high-quality hydraulic jack oil. Do not use brake fluid or motor oil.
• การทำความสะอาด: Keep the jack clean and free of dirt, grease, and corrosive materials.
• พื้นที่จัดเก็บ: Store the jack in a dry, clean area with the ram fully retracted to prevent corrosion and extend seal life.
• การตรวจสอบ: Regularly inspect for damage, wear, or leaks. Any damaged parts should be replaced by qualified personnel.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

9. ข้อมูลการรับประกัน

This Geko G02032 Low Profile 2.5 Ton Garage Jack is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, duration, and claim procedures, please refer to the warranty card included with your product or contact Geko customer support. Keep your proof of purchase for warranty claims.

10. การสนับสนุนลูกค้า

For technical assistance, parts replacement, or any questions regarding your Geko G02032 garage jack, please contact Geko customer support. Refer to the product packaging or the official Geko webเว็บไซต์สำหรับข้อมูลการติดต่อล่าสุด
