คู่มือการใช้งานรางติดอุปกรณ์เสริม SmallRig Mini NATO Rail 2172

1. สินค้าหมดview

The SmallRig Mini NATO Rail 2172 is a compact and lightweight accessory designed to provide quick attachment and release for various camera rig components. It is compatible with standard NATO accessories such as clamps, handles, and monitor mounts, enhancing the versatility and efficiency of your camera setup. Its anti-off design ensures secure attachment, preventing accidental detachment of accessories.

Figure 1: SmallRig Mini NATO Rail 2172 product view.

2. คุณสมบัติหลัก

• เข้ากันได้สากล: Works with standard NATO accessories for quick release functionality.
• ขนาดกะทัดรัดและน้ำหนักเบา: Measures 48mm (1.89 inches) in length and 6mm (0.23 inches) in thickness, weighing only 10g (0.35oz).
• Anti-Off Design: Features safety pins on each side to prevent NATO clamps from sliding off.
• การแนบที่ปลอดภัย: Attaches via two 1/4"-20 screws to devices with corresponding threaded holes.

Figure 2: The Mini NATO Rail demonstrating universal usage with various compatible accessories like side handles, top handles, magic arms, and monitor supports.

3. การตั้งค่าและการติดตั้ง

3.1 Attaching the NATO Rail to Your Device

1. Identify two 1/4"-20 threaded holes on your camera cage, camera, monitor, or other compatible accessory where you wish to mount the NATO rail.
2. Align the SmallRig Mini NATO Rail 2172 with these holes.
3. Insert the two included 1/4"-20 screws through the rail and into the threaded holes of your device.
4. Tighten the screws securely using the provided Allen wrench until the rail is firmly attached. Ensure not to overtighten.

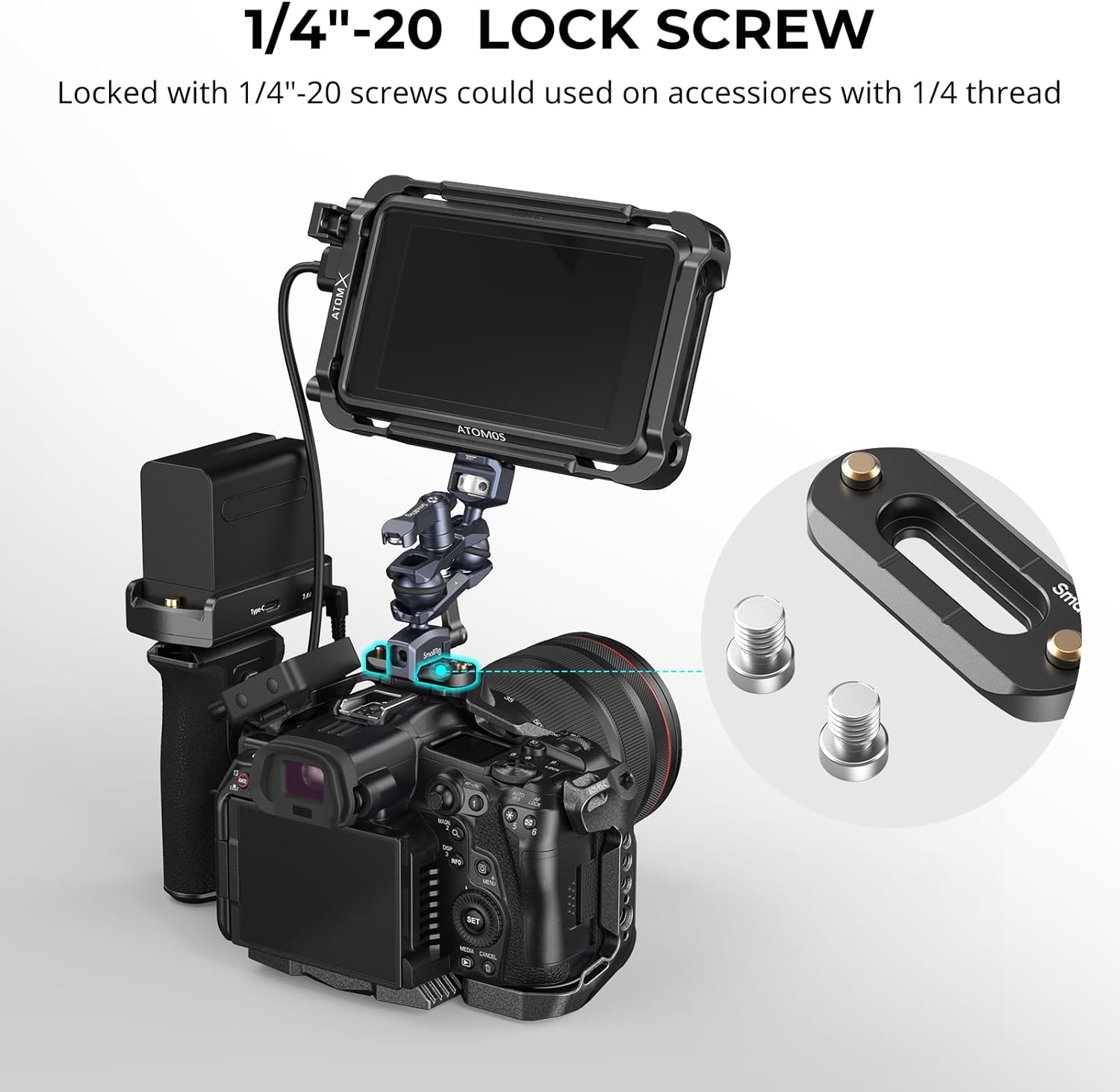

Figure 3: Illustration of attaching the NATO rail to a camera cage using 1/4"-20 lock screws.

3.2 Attaching NATO Clampและอุปกรณ์เสริม

1. Ensure your NATO clamp accessory is open and ready for attachment.
2. Slide the NATO clamp onto the SmallRig Mini NATO Rail.
3. Once positioned, tighten the locking mechanism on your NATO clamp accessory to secure it to the rail.
4. The safety pins at both ends of the NATO rail prevent the clamp from accidentally sliding off. To remove the clamp, you may need to press the anti-slip keys (safety pins) while sliding the clamp ปิด.

รูปที่ 4: ระยะใกล้ view of the anti-slip keys at both ends of the NATO rail, designed to prevent accessories from sliding off.

3.3 วิดีโอสาธิตการตั้งค่า

4. คู่มือการใช้งาน

Once the SmallRig Mini NATO Rail is securely installed and your NATO-compatible accessories are attached, you can quickly adjust or remove them as needed. The quick-release design allows for efficient changes to your camera setup, optimizing workflow during shoots.

• ออกอย่างรวดเร็ว: To quickly detach an accessory, disengage the locking lever on the NATO clamp and, if necessary, press the anti-slip keys on the NATO rail to slide the accessory off.
• การวางตำแหน่ง: Slide the NATO clamp along the rail to achieve the desired position for your handle, monitor, or other accessory. Secure the clamp once the optimal position is found.

5. การบำรุงรักษา

• Regularly inspect all screws and connections to ensure they remain tight.
• Clean the NATO rail and accessories with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals.
• Store the rail in a dry environment to prevent corrosion.

6 การแก้ไขปัญหา

• Accessory not securing: Ensure the 1/4"-20 screws are fully tightened and the NATO clamp's locking mechanism is engaged. Check for any obstructions on the rail or clamp.
• Accessory sliding off: Verify that the anti-slip keys are functioning correctly and that the NATO clamp is properly engaged.

7. ข้อมูลจำเพาะ

Figure 5: Visual comparison of various NATO rail lengths, highlighting the compact size of Model 2172.

Figure 6: Package contents including the NATO Rail and Allen wrench, along with detailed product specifications.

8. การรับประกันและการสนับสนุน

For warranty information, technical support, or any inquiries regarding your SmallRig Mini NATO Rail 2172, please refer to the official SmallRig webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง เก็บใบเสร็จรับเงินไว้เพื่อใช้ในการเคลมประกัน

เป็นทางการ Webเว็บไซต์: www.smallrig.com
