คู่มือการใช้งานเครื่องป้อนลวดแบบพัลส์ Telwin Electromig 330 WAVE

1. บทนำ

This manual provides essential information for the proper use and maintenance of the Telwin Wire Feed Roller for the Electromig 330 WAVE Pulse welding machine. This roller is a crucial component of the 4-roll wire feeder system, ensuring smooth and consistent wire delivery during welding operations.

The specific roller covered in this manual is designed for steel wire with a diameter of 0.6/0.8 mm. Understanding its function and proper installation is key to achieving optimal welding performance.

2. สินค้าหมดview

The Telwin Electromig 330 WAVE Pulse welding machine utilizes various wire feed rollers, each suited for specific wire types and diameters. The roller discussed here is part of a range of available options to ensure compatibility with different welding requirements.

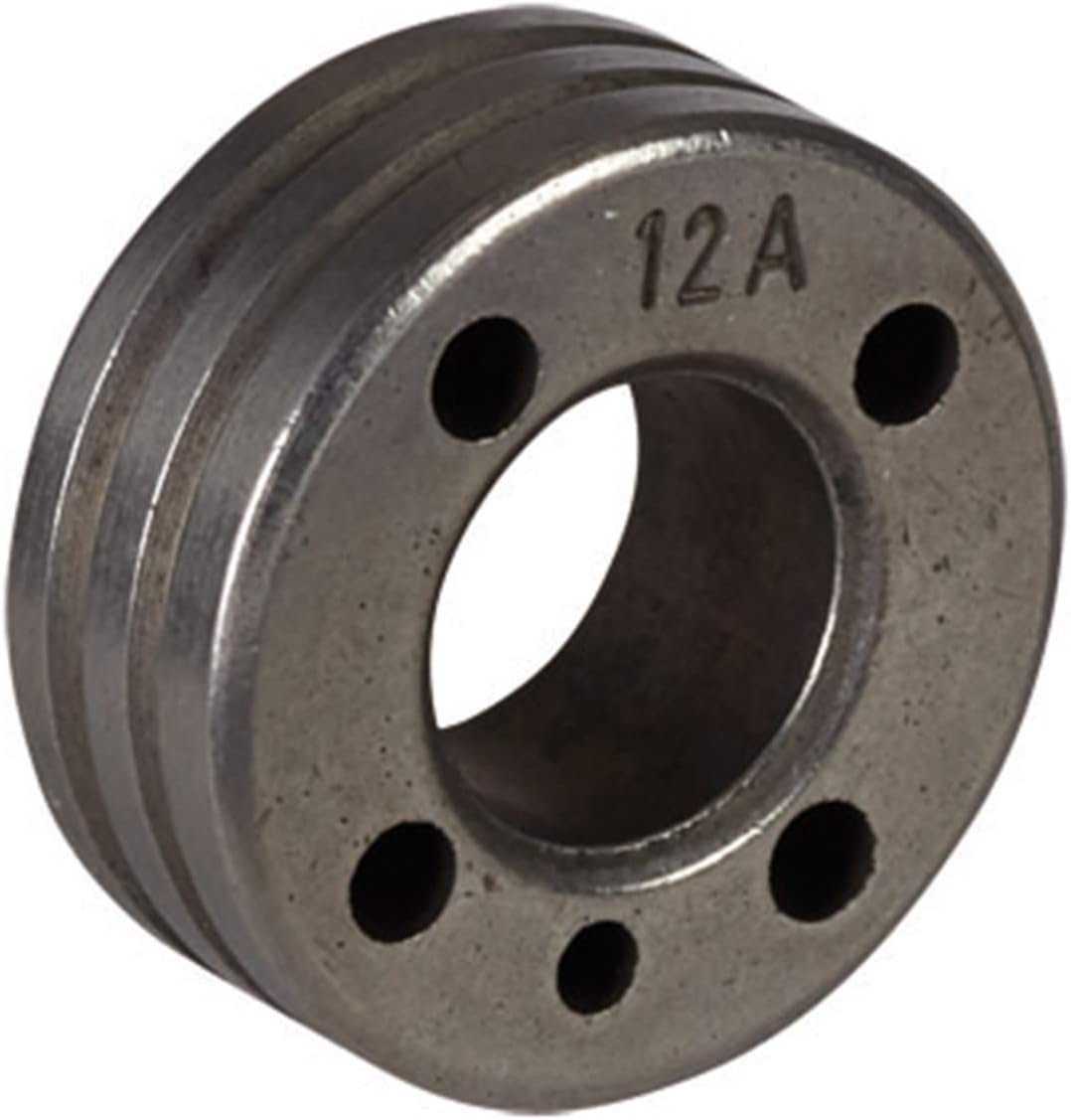

Figure 1: A single Telwin wire feed roller, showing its grooved surface for wire guidance.

2.1 Available Wire Feed Roller Types

The 4-roll wire feeder of the Telwin Electromig 330 WAVE Pulse requires suitable wire feed rollers depending on the wire and wire diameter used. The following types are available:

• Steel Wire Feed Roller:
  • 0.6 / 0.8 mm diameter (This product)
  • 1.0 / 1.2 mm diameter
• Aluminum Wire Feed Roller:
  • 0.8 / 1.0 mm diameter
  • 1.0 / 1.2 mm diameter
• Flux-Cored Wire Feed Roller:
  • 1.0 / 1.2 mm diameter

Figure 2: Two different Telwin wire feed rollers, illustrating variations in groove profiles for different wire types and sizes.

3. การตั้งค่าและการติดตั้ง

Proper installation of the wire feed roller is critical for consistent wire feeding and optimal welding results. Always ensure the welding machine is powered off and disconnected from the main power supply before performing any installation or maintenance.

3.1 ข้อควรระวังเพื่อความปลอดภัย

• Always disconnect the welding machine from the power supply before opening the wire feeder compartment.
• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม เช่น ถุงมือ เพื่อป้องกันการบาดเจ็บ
• Refer to the main Telwin Electromig 330 WAVE Pulse welding machine manual for detailed safety guidelines.

3.2 ขั้นตอนการติดตั้ง

1. Access the Wire Feeder: Open the wire feeder compartment of your Telwin Electromig 330 WAVE Pulse welding machine.
2. Remove Existing Roller (if applicable): If a roller is already installed, carefully remove it by releasing any retaining clips or screws as per your welding machine's design.
3. Select Correct Roller: Ensure you are using the correct wire feed roller for your wire type and diameter (e.g., Steel 0.6/0.8 mm for this product). The roller typically has markings indicating its compatibility.
4. ติดตั้งลูกกลิ้งใหม่: Place the new wire feed roller onto the spindle in the wire feeder mechanism. Ensure it is seated correctly and securely. The grooves on the roller should align with the wire path.
5. ลูกกลิ้งที่ปลอดภัย: Re-engage any retaining clips or tighten screws to secure the roller in place.
6. ปิดช่อง: Close the wire feeder compartment securely.
7. Test Wire Feed: After installation, thread the welding wire through the feeder and perform a brief test feed (without welding) to ensure smooth operation and proper engagement with the roller.

4. การดำเนินการ

The wire feed roller is an integral part of the wire feeding system, which is responsible for delivering the welding wire to the torch at a consistent speed. Once installed, the roller works in conjunction with the drive motor and pressure roller to grip and push the wire.

4.1 Wire Compatibility

This specific wire feed roller is designed for steel wire with diameters of 0.6 mm and 0.8 mm. Using the correct roller for your wire type and size is crucial to prevent wire slippage, inconsistent feeding, and premature wear of the roller or wire.

4.2 Adjusting Wire Feed Pressure

While the roller itself is a passive component, its effectiveness depends on the correct wire feed pressure. Refer to your Telwin Electromig 330 WAVE Pulse welding machine manual for instructions on how to adjust the pressure on the wire feed rollers. Too little pressure can cause slippage, while too much can deform the wire or cause excessive wear on the roller and motor.

5. การบำรุงรักษา

Regular maintenance of the wire feed roller ensures its longevity and consistent performance. A clean and properly functioning roller is essential for reliable wire feeding.

5.1 Cleaning the Roller

• ความถี่: Inspect and clean the roller regularly, especially after extended periods of use or if you notice issues with wire feeding.
• ขั้นตอน:
  1. Disconnect the welding machine from power.
  2. Open the wire feeder compartment and remove the roller.
  3. Use a stiff brush (e.g., a wire brush) to remove any accumulated wire dust, debris, or metal shavings from the grooves of the roller.
  4. Ensure the grooves are clear and free of obstructions.
  5. Wipe the roller with a clean, dry cloth. Do not use solvents that could damage the roller material.
  6. Reinstall the clean roller.

5.2 Inspection for Wear

Periodically inspect the roller for signs of wear, such as:

• Flattened Grooves: The grooves should maintain their original profile. Flattened or worn grooves can lead to wire slippage.
• Cracks or Damage: Check for any physical damage to the roller.
• การเล่นมากเกินไป: Ensure the roller fits snugly on its spindle without excessive wobble.

If significant wear or damage is observed, replace the wire feed roller to maintain optimal performance and prevent damage to the welding wire or feeder mechanism.

6 การแก้ไขปัญหา

Issues with wire feeding are often related to the wire feed roller. Here are some common problems and their potential solutions:

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

For information regarding warranty coverage, technical support, or replacement parts for your Telwin wire feed roller or Electromig 330 WAVE Pulse welding machine, please refer to the official Telwin website or contact your authorized Telwin dealer.

Always ensure you have your product model number and ASIN (B07DHRXDHZ) ready when contacting support for efficient service.
