Sangean HDR-14

Sangean HDR-14 HD Radio Portable Receiver User Manual

รุ่น : HDR-14

การแนะนำ

Welcome to your new Sangean HDR-14 HD Radio portable receiver. This manual provides comprehensive instructions for setting up, operating, and maintaining your device. The HDR-14 offers digital and analog AM/FM stereo reception, allowing access to additional content and improved sound quality where available.

คุณสมบัติหลัก

เนื้อหาแพ็คเกจ

สินค้าเกินview

การควบคุมและการแสดงผลที่แผงด้านหน้า

The front panel features the speaker, LCD display, and control buttons.

Sangean HDR-14 front view พร้อมระบบควบคุม

This image shows the front of the Sangean HDR-14 HD Radio, highlighting the speaker grille on the left, the LCD display in the center, and various control buttons below and to the right of the display. Buttons include "BAND", "INFO/MENU", "HD SEEK/APS", "PAGE", and numbered preset buttons (1-5), along with up/down tuning buttons and a power button.

แผงด้านหลังและช่องเชื่อมต่อ

The rear panel includes the battery compartment, antenna, and power input.

Sangean HDR-14 rear view with battery compartment and antenna

This image displays the rear of the Sangean HDR-14 HD Radio, showing the extendable telescopic antenna at the top, the battery compartment cover in the middle, and the DC 5V power input jack at the bottom right. Frequency range and battery specifications are printed on the back.

ขนาด

The compact design of the HDR-14 makes it highly portable.

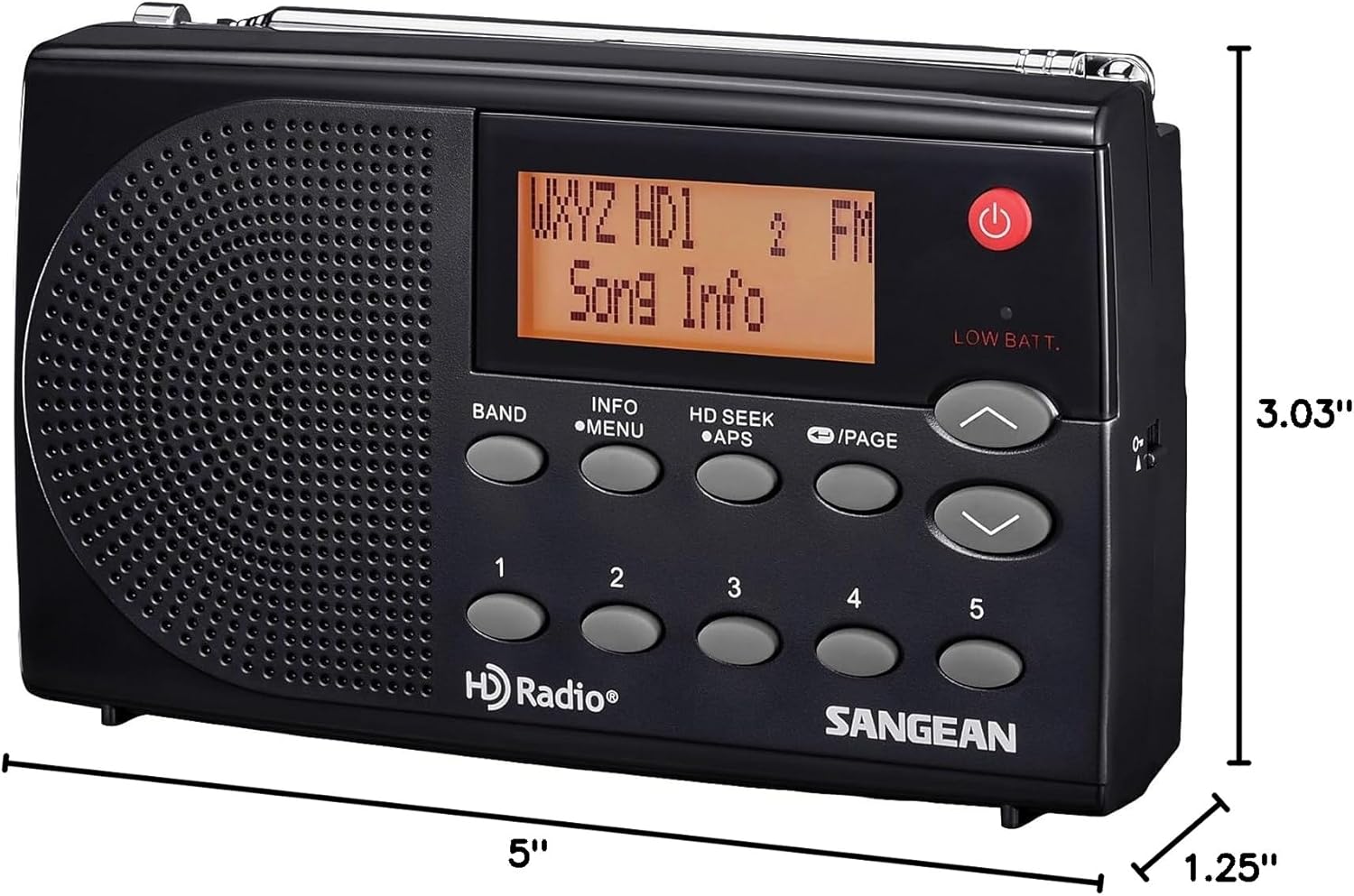

Sangean HDR-14 dimensions

This image illustrates the dimensions of the Sangean HDR-14 HD Radio, indicating a length of 5 inches, a width of 1.25 inches, and a height of 3.03 inches.

การตั้งค่า

การเปิดเครื่องวิทยุ

The HDR-14 can be powered by batteries or the included AC adapter.

การติดตั้งแบตเตอรี่

  1. เปิดฝาช่องใส่แบตเตอรี่ด้านหลังวิทยุ
  2. Insert 3 x 1.5V AA/UM-3/R6 batteries, ensuring correct polarity (+/-).
  3. ปิดฝาช่องใส่แบตเตอรี่ให้แน่น

การเชื่อมต่ออะแดปเตอร์ AC

  1. Connect the AC adapter to the DC 5V input jack on the rear of the radio.
  2. เสียบอะแดปเตอร์ AC เข้ากับเต้ารับไฟฟ้ามาตรฐาน

การปรับเสาอากาศ

For optimal FM and HD Radio reception, fully extend the telescopic antenna. For AM reception, the radio has a built-in AM antenna; rotate the radio for best reception.

คำแนะนำการใช้งาน

การเปิด/ปิด

กดปุ่ม พลัง button (red button) to turn the radio on or off.

Selecting Band (AM/FM/HD)

กดปุ่ม วงดนตรี button to switch between FM and AM bands. When an HD Radio signal is detected on FM, the display will indicate "HD1" or "HD2" for sub-channels.

การปรับหาสถานี

ใช้ UP และ ลง arrow buttons to manually tune to frequencies.

HD Seek Tuning

กดปุ่ม HD SEEK/APS button to automatically scan for the next available HD Radio station.

การจัดเก็บและการเรียกค่าที่ตั้งไว้ล่วงหน้า

The radio supports 40 memory presets (20 FM, 20 AM).

การจัดเก็บพรีเซ็ต

  1. ปรับไปยังสถานีที่ต้องการ
  2. Press and hold one of the numbered preset buttons (1-5) until the display confirms the station is saved.
  3. To access additional preset pages, press the หน้าหนังสือ button, then select a numbered preset.

การเรียกคืนค่าที่ตั้งไว้ล่วงหน้า

Briefly press one of the numbered preset buttons (1-5) to recall a saved station. Use the หน้าหนังสือ button to cycle through preset pages.

Program Associated Data (PAD)

When tuned to an HD Radio station, the display may show Program Associated Data (PAD) such as song title, artist, and station information. Press the ข้อมูล/เมนู button to cycle through available information.

การซ่อมบำรุง

การทำความสะอาด

เช็ดวิทยุด้วยผ้านุ่มdamp ผ้า ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย

การดูแลแบตเตอรี่

ถอดแบตเตอรี่ออกหากจะไม่ได้ใช้งานวิทยุเป็นเวลานานเพื่อป้องกันการรั่วไหล

การแก้ไขปัญหา

ปัญหาสารละลาย
ไม่มีไฟฟ้าCheck battery installation or AC adapter connection. Ensure batteries are not depleted.
Poor reception (FM/HD)ยืดเสาอากาศแบบยืดหดได้ออกจนสุด ลองขยับตำแหน่งวิทยุดู
Poor reception (AM)Rotate the radio for best reception. AM signals are directional.
No HD signalHD Radio signals may not be available in all areas or for all stations. Ensure you are within range of an HD broadcast.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information or technical support, please contact Sangean America, Inc. directly. Refer to the official Sangean website or the packaging for contact details.

ข้อมูลด้านความปลอดภัยที่สำคัญ

คำเตือน: ผลิตภัณฑ์นี้มีสารเคมีที่รัฐแคลิฟอร์เนียรู้จักว่าก่อให้เกิดมะเร็งและความพิการ แต่กำเนิดหรือเป็นอันตรายต่อระบบสืบพันธุ์อื่น ๆ
