คู่มือการใช้งาน+

ดูคาติ 416171064

Ducati Permanent Capacitor 6.3 MF 450V for Washing Machine - Model 416171064

1. บทนำ

This instruction manual provides essential information for the safe and correct handling, installation, and understanding of the Ducati Permanent Capacitor, model 416171064. This component is designed for use in washing machines and other compatible appliances to facilitate motor starting and continuous operation.

2. ข้อมูลด้านความปลอดภัย

คำเตือน: Electrical components can be dangerous. Improper installation or handling can result in electric shock, injury, or damage to the appliance. Always observe the following safety precautions:

3. สินค้าหมดview

The Ducati Permanent Capacitor (Model 416171064) is a critical electrical component used in various household appliances, particularly washing machines. Its primary function is to provide the necessary phase shift for the motor's auxiliary winding, enabling efficient starting and continuous operation. This capacitor is a sealed unit, designed for reliability and long service life under specified operating conditions.

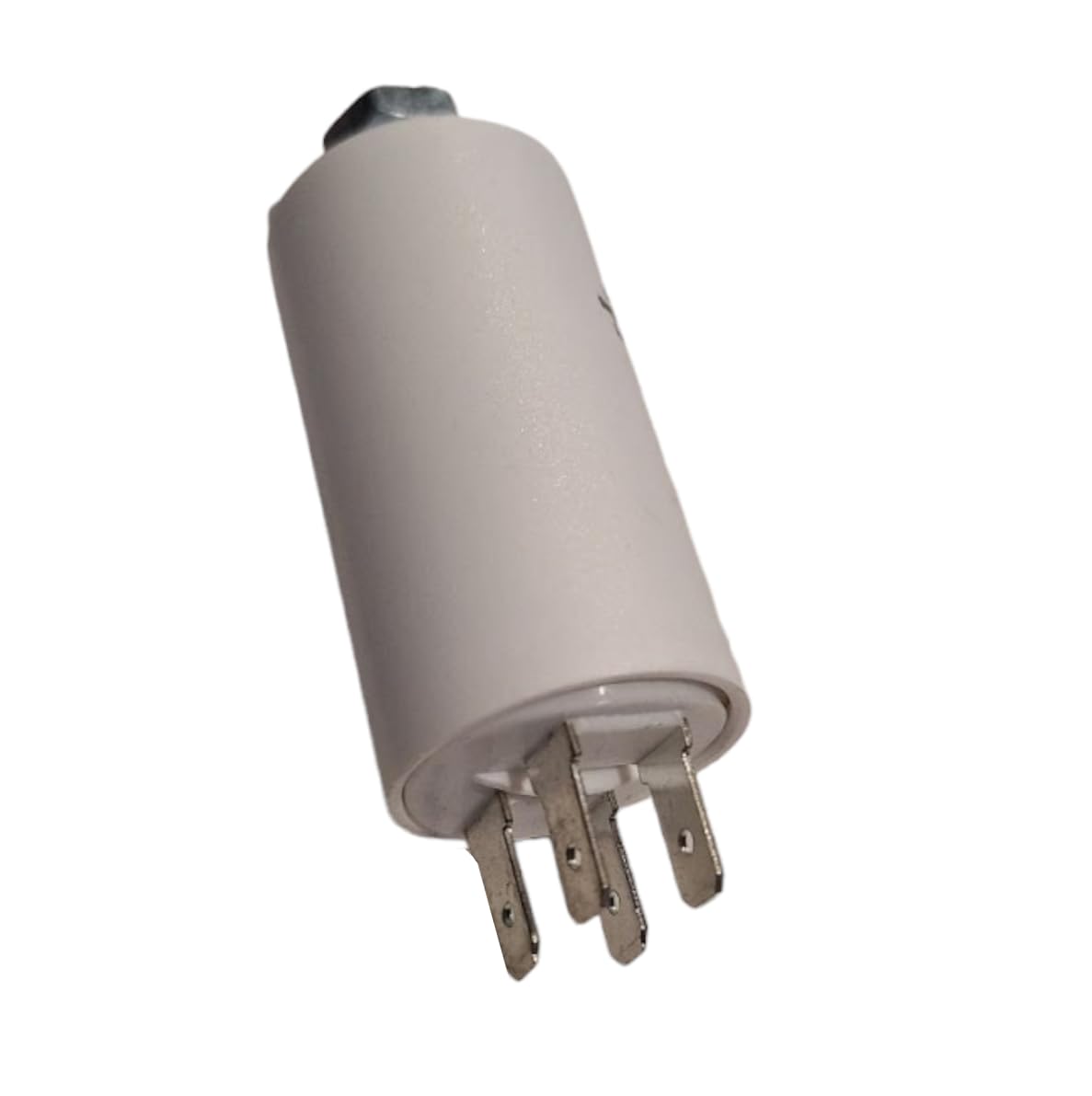

Ducati Permanent Capacitor 6.3 MF 450V

Image showing the Ducati Permanent Capacitor, model 416171064. The capacitor is cylindrical with two terminals, designed for motor starting applications in washing machines.

4. ข้อมูลจำเพาะ

5. การตั้งค่าและการติดตั้ง

Installation of this capacitor requires electrical knowledge and should be performed by a qualified technician. The following steps are general guidelines and do not replace specific instructions for your appliance model.

  1. การตัดการเชื่อมต่อไฟฟ้า: Ensure the appliance is unplugged from the wall outlet.
  2. Access the Capacitor: Locate and access the existing capacitor within the appliance, typically near the motor. This may involve removing panels or covers.
  3. คายประจุตัวเก็บประจุเก่า: Safely discharge the old capacitor using an appropriate tool (e.g., a resistor with insulated leads).
  4. หมายเหตุเกี่ยวกับการเดินสายไฟ: Carefully note or photograph the wiring connections to the old capacitor before disconnecting.
  5. ถอดตัวเก็บประจุเก่าออก: Disconnect the wires and remove the old capacitor from its mounting.
  6. ติดตั้งตัวเก็บประจุใหม่: Mount the new Ducati capacitor in the same location and connect the wires exactly as they were on the old capacitor. Ensure connections are secure.
  7. ประกอบกลับเข้าที่: เปลี่ยนแผงหรือฝาครอบที่ถอดออก
  8. ทดสอบ: Plug the appliance back into the power supply and test its function. Observe for any unusual noises or operation.

If you are unsure about any step, consult a professional appliance repair technician.

6. หลักการทำงาน

The permanent capacitor, also known as a run capacitor, is connected in series with the auxiliary winding of an AC induction motor. Its function is to create a phase shift between the current in the main winding and the auxiliary winding. This phase shift generates a rotating magnetic field, which is essential for the motor to start and run efficiently. Unlike start capacitors, permanent capacitors remain in the circuit during the entire operation of the motor, contributing to its overall performance and power factor correction.

7. การบำรุงรักษา

The Ducati Permanent Capacitor is a sealed, maintenance-free component. No user-serviceable parts are inside. Regular inspection of the capacitor for signs of physical damage, bulging, or leakage is recommended during any appliance servicing. If any such signs are observed, the capacitor should be replaced by a qualified technician.

8 การแก้ไขปัญหา

A faulty capacitor can lead to various issues in an appliance. If your washing machine or compatible appliance exhibits the following symptoms, the capacitor may need replacement:

If you suspect a capacitor failure, it is recommended to have it diagnosed and replaced by a qualified technician.

9. ความเข้ากันได้

This Ducati Permanent Capacitor (Model 416171064) is compatible with various washing machines and appliances from the following brands and models. Always verify the exact model number of your appliance before purchasinจีและการติดตั้ง

ยี่ห้อที่เข้ากันได้:

Exampรุ่นที่ใช้งานร่วมกันได้:

For a comprehensive list or to confirm compatibility, please contact the seller or manufacturer with your appliance's full model number.

10. การรับประกันและการสนับสนุน

Specific warranty information for this component may vary depending on the point of purchase and regional regulations. Please retain your proof of purchase for any warranty claims.

For technical support, compatibility inquiries, or warranty service, please contact the retailer from whom you purchased this product or refer to the official Ducati webเว็บไซต์สำหรับข้อมูลติดต่อฝ่ายบริการลูกค้า

หมายเหตุ: ข้อมูลเกี่ยวกับการมีจำหน่ายของอะไหล่ไม่ได้ระบุไว้ในข้อมูลผลิตภัณฑ์
