Sonance MAG6R In-Ceiling Speakers User Manual

สินค้าเกินview

The Sonance MAG6R 6-1/2" 2-Way In-Ceiling Speakers are designed to integrate seamlessly into your home audio system, providing high-quality sound from a discreet installation. Each speaker features a 6-1/2" glass fiber cone woofer with a rubber surround and a pivoting design, paired with a 1" silk-dome ferrofluid-cooled pivoting tweeter. This combination ensures a wide frequency response and clear audio reproduction. The speakers come with paintable perforated steel grilles, allowing them to blend with your interior decor.

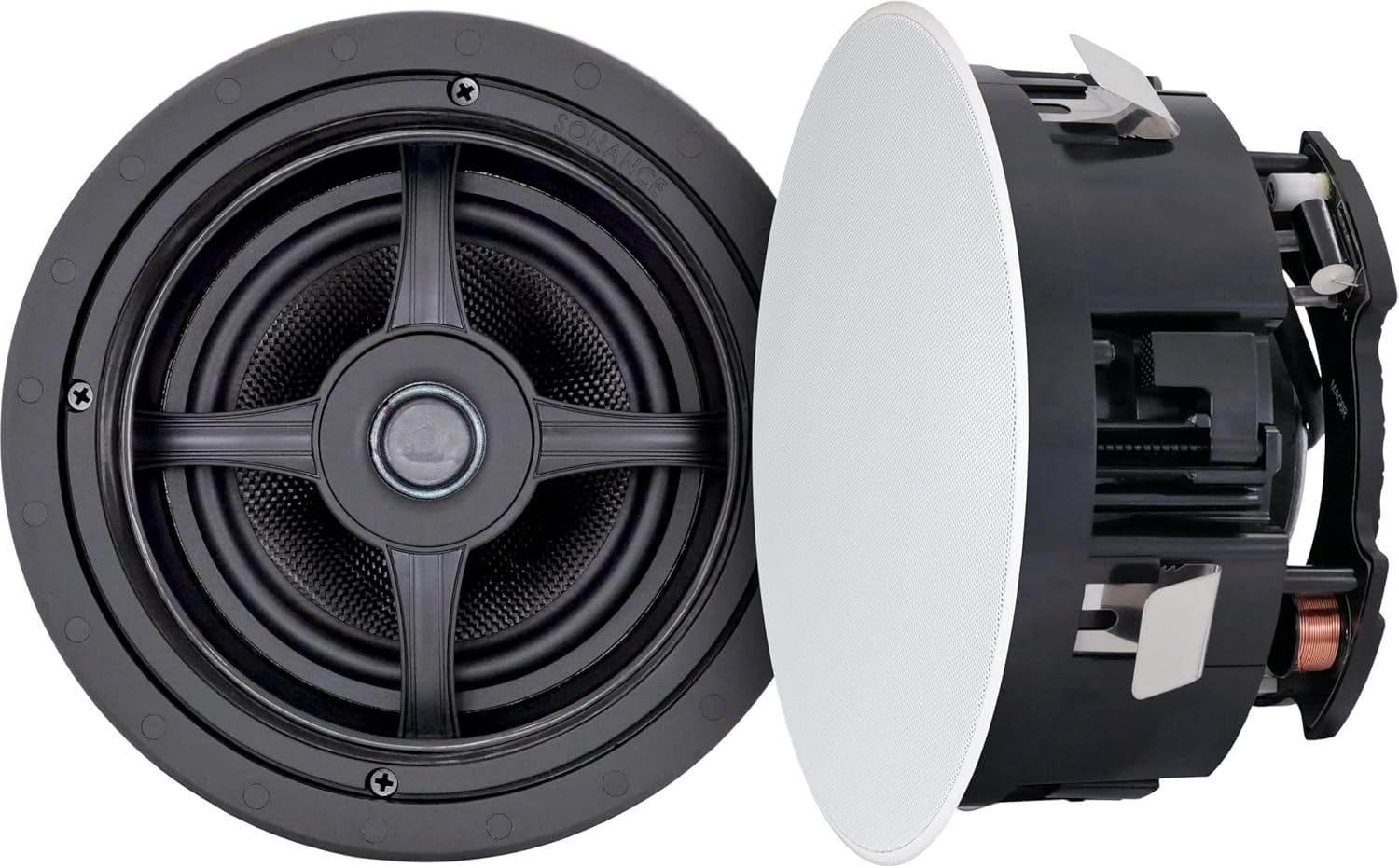

Image: Sonance MAG6R In-Ceiling Speaker, showing the main speaker unit and the removable white perforated grille. The speaker features a black frame and a central tweeter.

ข้อมูลด้านความปลอดภัย

Please read all safety instructions before installation and use. Failure to follow these instructions may result in injury or damage to the product.

• ตรวจสอบให้แน่ใจว่าได้ตัดกระแสไฟฟ้าออกก่อนการติดตั้งหรือการบำรุงรักษา
• Installation should be performed by a qualified professional if you are unsure of the process.
• อย่าให้ลำโพงสัมผัสกับความชื้นมากเกินไปหรืออุณหภูมิที่สูงเกินไป
• Use appropriate wiring and connectors as specified for audio equipment.
• เก็บให้พ้นจากมือเด็ก

การติดตั้งและการตั้งค่า

The Sonance MAG6R speakers are designed for in-ceiling installation. Proper planning and execution are crucial for optimal performance and safety.

1. การวางแผนการจัดวางตำแหน่งวิทยากร

Consider the acoustics of your room and the desired sound field. For surround sound systems, refer to your audio receiver's manual for recommended speaker layouts. Ensure there are no obstructions (e.g., joists, electrical wiring, plumbing) in the ceiling where you plan to install the speakers.

2. Preparing the Mounting Hole

The mounting cutout diameter is 9-3/4 inches. The mounting depth required is approximately 4 inches.

1. Using the provided cutout template (if applicable, or measure carefully), mark the desired location on the ceiling.
2. Carefully cut the opening using a drywall saw or appropriate tool.

Image: Dimensional diagram of the Sonance MAG6R speaker, indicating its depth and diameter for installation planning.

3. การต่อสายลำโพง

Connect appropriate gauge speaker wire from your amplifier or receiver to the speaker terminals. Ensure correct polarity (+ ถึง + และ - ถึง -) for all speakers in your system.

• Strip approximately 1/2 inch (12 mm) of insulation from the ends of the speaker wire.
• Press down on the terminal tabs on the speaker and insert the bare wire ends into the corresponding holes. Release the tabs to secure the wire.

ภาพ: ด้านหลัง view of the Sonance MAG6R speaker, highlighting the spring-loaded wire terminals for connecting audio cables.

4. การติดตั้งลำโพง

The speakers feature integrated mounting clampสำหรับการติดตั้งที่ปลอดภัย

1. Carefully insert the speaker into the cutout hole.
2. Tighten the mounting screws on the front baffle of the speaker. This will rotate the mounting clamps outwards and secure the speaker to the ceiling material. Do not overtighten.

ภาพ: ไซด์โปรfile of the Sonance MAG6R speaker, illustrating the robust mounting clamps that secure the speaker within the ceiling opening.

5. การติดตั้งตะแกรง

The perforated steel grilles attach magnetically for a clean, flush finish.

• Align the grille with the speaker frame.
• The magnets will pull the grille into place, securing it firmly.
• The grilles can be painted to match your ceiling color before installation.

Image: Close-up of the white perforated steel grille, designed to be paintable and attach magnetically to the speaker frame.

คำแนะนำการใช้งาน

Once installed, the Sonance MAG6R speakers operate as part of your audio system. There are no direct controls on the speakers themselves.

Adjusting Pivoting Tweeter and Woofer

The 1" silk-dome tweeter and 6-1/2" glass fiber woofer are pivoting, allowing you to direct the sound towards the primary listening area for optimized audio performance.

• Gently push the edge of the tweeter or woofer assembly to angle it as desired.
• หลีกเลี่ยงการใช้แรงมากเกินไปเพื่อป้องกันความเสียหาย

ภาพ: ด้านหน้า view of the Sonance MAG6R speaker without its grille, revealing the central pivoting tweeter and the surrounding pivoting woofer, which can be angled for optimal sound direction.

การซ่อมบำรุง

The Sonance MAG6R speakers require minimal maintenance.

• การทำความสะอาด: Use a soft, dry cloth to wipe the grilles and speaker frame. Do not use harsh chemicals or abrasive cleaners.
• การทาสีตะแกรง: If painting the grilles, ensure they are clean and dry. Use a thin coat of paint to avoid clogging the perforations, which could affect sound quality. Allow to dry completely before reattaching.
• การตรวจสอบ: Periodically check speaker connections to ensure they remain secure.

การแก้ไขปัญหา

If you experience issues with your Sonance MAG6R speakers, consider the following common troubleshooting steps:

ข้อมูลจำเพาะ

ข้อมูลการรับประกัน

The Sonance MAG6R speakers come with a Limited Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Sonance webเว็บไซต์.

การสนับสนุนลูกค้า

For further assistance, technical support, or to inquire about replacement parts, please visit the official Sonance webหรือติดต่อฝ่ายบริการลูกค้า โดยทั่วไปข้อมูลการติดต่อจะอยู่ในเว็บไซต์ของผู้ผลิต webไซต์หรือในบรรจุภัณฑ์ผลิตภัณฑ์ของคุณ
