การแนะนำ
The Moffat M024563 E31 Upgrade Kit, Power Relay, is a genuine OEM (Original Equipment Manufacturer) replacement part designed for use in commercial foodservice equipment, specifically Moffat E31 series ovens. This kit provides a critical component for the electrical system, ensuring the proper and safe operation of your appliance. It is intended for replacement or upgrade purposes to maintain the performance and reliability of your Moffat equipment.
ข้อมูลด้านความปลอดภัย
Please read and understand all safety instructions before attempting installation or maintenance. Failure to follow these instructions may result in property damage, serious injury, or death.
- แนะนำการติดตั้งอย่างมืออาชีพ: Installation of this power relay should only be performed by a qualified and certified technician.
- ตัดการเชื่อมต่อไฟฟ้า: Always ensure the appliance is completely disconnected from its power source before beginning any installation, maintenance, or repair work. Verify power is off using a voltagอี เมตร
- อะไหล่แท้: Use only genuine OEM parts for safety, reliability, and performance. Non-OEM parts may not meet safety standards and could void warranties.
- อันตรายจากไฟฟ้า: Be aware of potential electrical hazards. Do not touch live wires or components.
- อุปกรณ์ป้องกันส่วนบุคคล (PPE): Wear appropriate PPE, such as insulated gloves and safety glasses, during installation.
สินค้าเกินview
The Moffat M024563 E31 Upgrade Kit consists of a power relay and associated wiring components necessary for its integration into the appliance's electrical system.

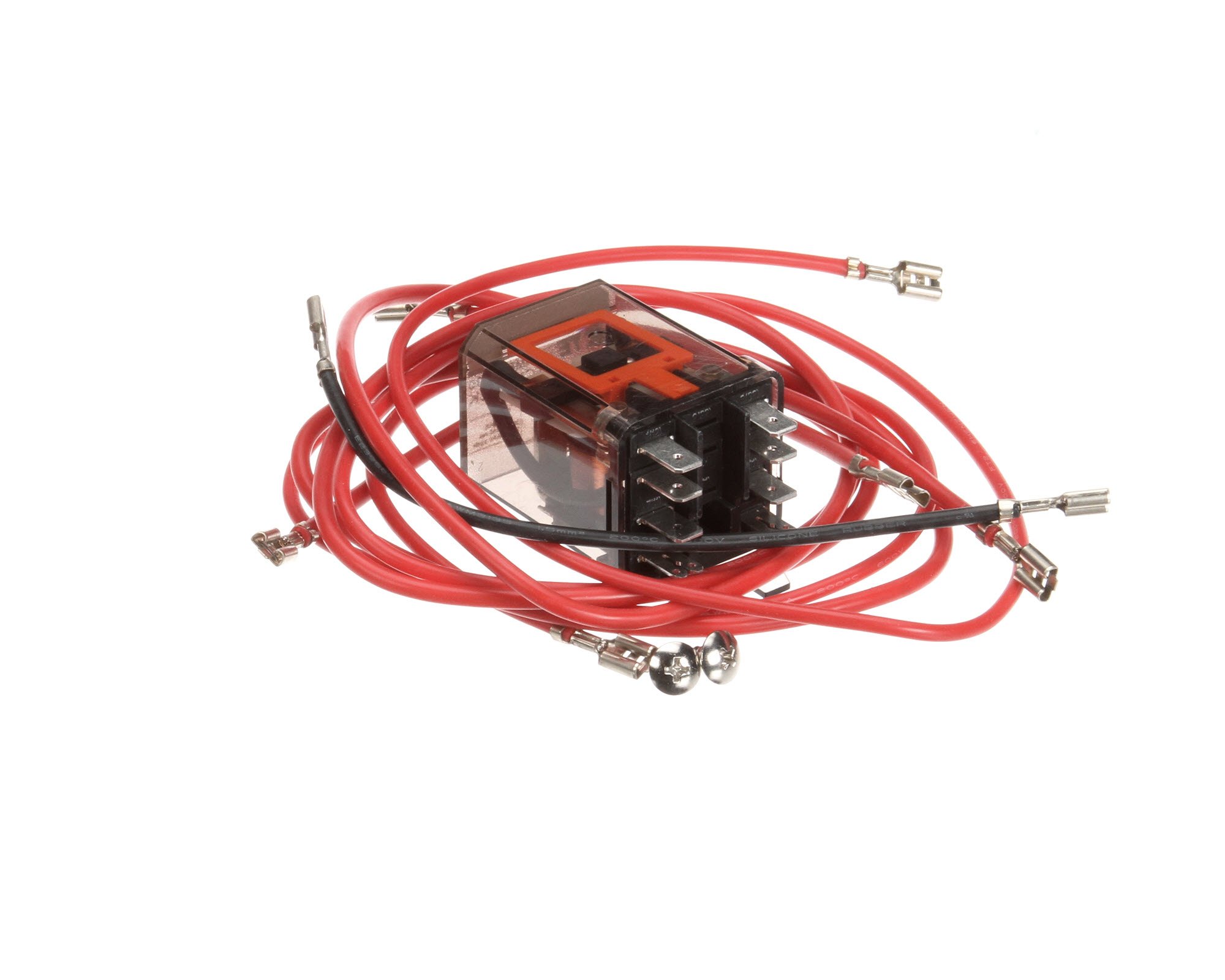

An image showing the Moffat M024563 E31 Upgrade Kit, which includes a clear plastic-encased power relay with multiple metal terminals, connected to red and black electrical wires with various types of spade and ring terminals at their ends. The wires are coiled around the relay.
The power relay acts as an electrical switch, controlling the flow of power to various components within the oven based on signals from the control board. This ensures that heating elements, fans, and other parts operate as intended.
การติดตั้งและการตั้งค่า
This section provides general guidance for the installation of the power relay. Due to the electrical nature of this component and the specific requirements of commercial appliances, it is strongly recommended that installation be performed by a qualified service technician.
เครื่องมือที่จำเป็น:
- ไขควง (แฉกและหัวแบน)
- Wire strippers/crimpers (if new terminals are needed)
- Multimeter/Voltage เครื่องทดสอบ
- ถุงมือกันความร้อน
- แว่นตานิรภัย
ขั้นตอนก่อนการติดตั้ง:
- ตัดการเชื่อมต่อไฟฟ้า: Turn off and unplug the appliance from its power source. If hardwired, turn off the circuit breaker supplying power to the appliance.
- ตรวจสอบให้แน่ใจว่าปิดเครื่องแล้ว: Use a multimeter to confirm that no power is present at the appliance's electrical connections.
- การถอดแผงปิดช่องเข้าถึง: Carefully remove the necessary access panels on the appliance to expose the existing power relay and its wiring. Refer to your appliance's specific service manual for panel removal instructions.
- การเดินสายเอกสาร: Before disconnecting any wires, take clear photographs or make detailed diagrams of the existing wiring connections to the old relay. Note wire colors and terminal positions.
ขั้นตอนการติดตั้ง:
- Disconnect Old Relay: Carefully disconnect all wires from the old power relay. Note any retaining clips or screws.
- ถอดรีเลย์เก่าออก: Unmount the old power relay from its position.
- ติดตั้งรีเลย์ใหม่: Mount the new Moffat M024563 power relay in the same location as the old one, ensuring it is securely fastened.
- การเชื่อมต่อสายไฟ: Using your documented wiring diagrams/photos, connect the wires from the appliance to the corresponding terminals on the new power relay. Ensure all connections are tight and secure.
- สายไฟที่ปลอดภัย: Ensure all wires are routed safely and are not pinched or in contact with moving parts or hot surfaces.
- Replace Access Panels: Once wiring is complete and verified, replace all access panels securely.
- คืนค่าพลัง: เสียบปลั๊กเครื่องใช้ไฟฟ้ากลับเข้าไป หรือเปิดสวิตช์ตัดไฟ
- ทดสอบฟังก์ชันการทำงาน: Power on the appliance and test its functions to ensure the new relay is operating correctly. Observe for any unusual noises, smells, or malfunctions.
การดำเนินงาน
The power relay is an internal component that operates automatically as part of the appliance's control system. There are no user-operable controls directly associated with the relay itself. Once properly installed, the relay will function to control the power flow to various components within your Moffat E31 series oven, enabling its normal operation as per the oven's control settings.
If the appliance is not functioning correctly after relay installation, refer to the Troubleshooting section or consult a qualified technician.
การซ่อมบำรุง
The Moffat M024563 Power Relay is a sealed component and does not require routine user maintenance. However, periodic inspection by a qualified technician is recommended as part of the appliance's overall maintenance schedule.
- การตรวจสอบประจำปี: Have a qualified technician inspect the relay and its connections annually for signs of wear, corrosion, or loose connections.
- ความสะอาด : Ensure the area around the relay is kept clean and free of dust, grease, or debris, which can impede proper heat dissipation.
- การเชื่อมต่อที่ปลอดภัย: Verify that all electrical connections to the relay remain tight and secure. Loose connections can lead to overheating and component failure.
การแก้ไขปัญหา
If your Moffat E31 series oven experiences issues after the installation of the M024563 Power Relay, consider the following common troubleshooting steps. Always ensure power is disconnected before inspecting internal components.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Appliance does not power on or specific functions (e.g., heating element) do not activate. | Incorrect wiring, loose connections, faulty new relay, or issue with other appliance components. | Verify all wiring connections are correct and secure according to your documentation. Test the new relay for continuity if you have the proper equipment and expertise. Check the appliance's circuit breaker or fuse. If issues persist, consult a qualified technician. |
| Intermittent operation of appliance functions. | Loose connections at the relay terminals or a failing relay. | Ensure all connections are tight. If the problem continues, the relay may be faulty and require replacement. |
| Burning smell or visible scorching around the relay. | Overheating due to loose connections, incorrect voltage, or a faulty relay. | ตัดการเชื่อมต่อไฟฟ้าทันที Do not attempt to operate the appliance. This indicates a serious electrical issue. Contact a qualified technician for immediate inspection and repair. |
For complex issues or if you are unsure about any step, always consult a qualified appliance service technician.
ข้อมูลจำเพาะ
| คุณลักษณะ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | M024563 |
| ผู้ผลิต | ม็อฟแฟต |
| ประเภทชิ้นส่วน | Power Relay Upgrade Kit |
| ความเข้ากันได้ | Moffat E31 Series Ovens (verify specific model compatibility with manufacturer) |
| ขนาดแพ็คเกจ | 10 x 7 x 6 นิ้ว |
| น้ำหนักสินค้า | 6.4 ออนซ์ |
| ASIN | B076C3VMR9 |
ข้อมูลการรับประกัน
Warranty coverage for the Moffat M024563 E31 Upgrade Kit, Power Relay, is typically provided by the manufacturer, Moffat, or the authorized seller from whom the part was purchased. Specific warranty terms, conditions, and duration may vary.
It is recommended to retain your proof of purchase and contact the seller or Moffat directly for detailed warranty information and to register your product if applicable.
สนับสนุน
หากต้องการความช่วยเหลือด้านเทคนิค คำแนะนำในการติดตั้ง หรือการแก้ไขปัญหาที่อยู่นอกเหนือขอบเขตของคู่มือนี้ โปรดติดต่อ:
- Moffat Customer Support: Refer to the official Moffat website or your appliance's user manual for contact details.
- Qualified Service Technician: For professional installation, diagnosis, and repair of your commercial appliance.
- Your Supplier/Distributor: The company from whom you purchased the Moffat M024563 part.
