MICMOL Aqua Air AA-1200 Marine 96W Smart LED Aquarium Light Instruction Manual

1. สินค้าหมดview

The MICMOL Aqua Air AA-1200 is a smart LED aquarium lighting system designed for saltwater marine, coral reef, and fish tanks. It features a super thin unibody design, programmable timer functions, and a full spectrum LED array to support aquatic life.

คุณสมบัติที่สำคัญ ได้แก่:

• 11mm (0.4") super thin design.
• 96W power output.
• Full spectrum LED array with 7 bands for diverse spectral combinations.
• Smart Controller with timer, sunrise, sunset, and lightning effects.
• Three independent LED channels with 6 adjustable timer points.
• Adjustable super bracket system for tanks 1185mm to 1685mm (47" to 66").
• Water-resistant cooling system.
• UL approved power supply.

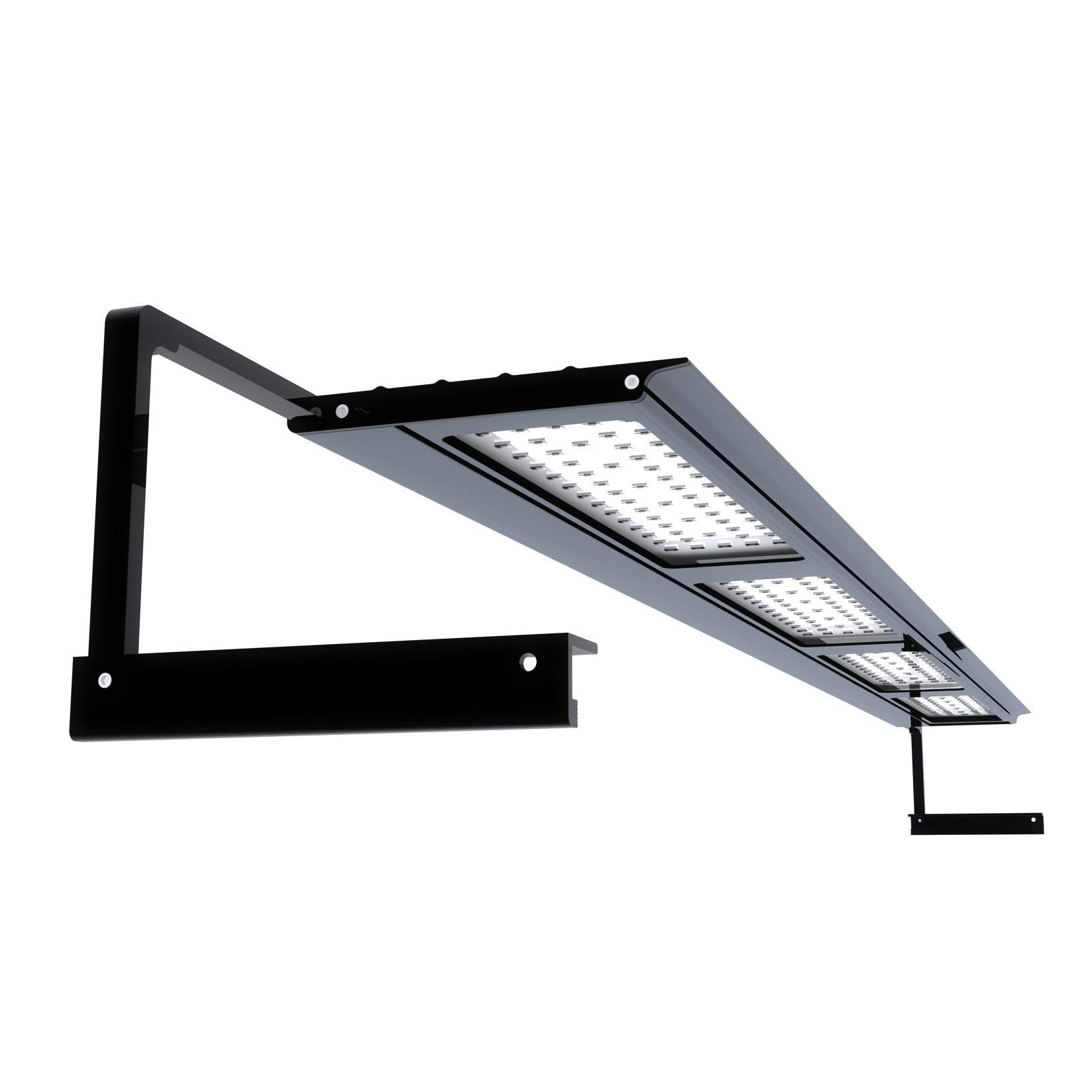

Image 1.1: MICMOL Aqua Air AA-1200 Smart LED Aquarium Light fixture.

2. อะไรอยู่ในกล่อง

ตรวจสอบว่าส่วนประกอบทั้งหมดมีอยู่ก่อนดำเนินการติดตั้ง

• 1 x G2 Aqua Air 1200 Lighting Fixture (AA-1200 / 96W)
• 1 x Smart Controller
• 1 x Super Bracket
• 1 x US Standard Power Cord
• อะแดปเตอร์ไฟฟ้า 1 ตัว
• 1 x Tool Sets
• 1 x Printed Instructions

3. คำแนะนำในการตั้งค่า

3.1 การติดตั้งโคมไฟ

The Aqua Air AA-1200 comes with an adjustable super bracket system suitable for both rimmed and rimless aquariums. The brackets accommodate tank sizes ranging from 1185mm (47 inches) to 1685mm (66 inches).

1. Attach the super brackets to the light fixture using the provided tool set. Ensure they are securely fastened.
2. Adjust the length of the brackets to fit your aquarium's dimensions.
3. Carefully place the light fixture onto the edges of your aquarium, ensuring it is stable and centered.
4. ไม่จำเป็น: If using hanging kits (sold separately), refer to the hanging kit instructions for installation.

3.2 Connecting Power and Controller

1. Connect the Smart Controller to the light fixture.
2. Connect the power adapter to the Smart Controller.
3. Plug the US Standard Power Cord into the power adapter.
4. Plug the power cord into a suitable electrical outlet. The light should power on, and the Smart Controller display will activate.

4. คู่มือการใช้งาน

The Smart Controller allows for comprehensive customization of your aquarium lighting. It features touch switches for navigation.

4.1 Smart Controller Functions

The controller provides access to various settings:

• นาฬิกา: ตั้งเวลาปัจจุบัน
• ตัวจับเวลา: Program on/off times and intensity levels for each LED channel.
• LED Channels: Adjust the intensity of the three independent LED channels. The channels are configured as follows for the Marine version:
  • Channel 1 (White): Controls 80 White LEDs.
  • Channel 2 (Blue): Controls 32 Royal Blue, 112 Royal Blue, and 8 Blue LEDs.
  • Channel 3 (Special): Controls 8 Warm White, 8 UV, 4 Red, and 4 Green LEDs.
• เอฟเฟกต์พิเศษ: Simulate natural phenomena such as sunrise, sunset, and thunderstorms.
• การสาธิต: Activates a 1-minute demonstration of all settings.
• รีเซ็ตเป็นค่าเริ่มต้นจากโรงงาน: Resets all settings to their default factory configuration.

4.2 Programming Timer and Intensity

The Smart Controller allows you to set 6 timer points for each of the three LED channels. This enables precise control over the light cycle and intensity throughout the day.

1. Navigate to the "Timer" setting on the Smart Controller.
2. Select the desired LED channel (Channel 1, 2, or 3).
3. For each of the 6 timer points, set the desired time and the corresponding intensity level (0-100%) for that channel.
4. Repeat this process for all three channels to create a customized lighting schedule.
5. Save your settings before exiting the timer menu.

5. การบำรุงรักษา

Regular maintenance ensures optimal performance and longevity of your Aqua Air AA-1200 light.

• การทำความสะอาด: Periodically wipe the aluminum body and LED surface with a soft, damp cloth. Ensure the light is unplugged before cleaning. Avoid abrasive cleaners.
• ระบบระบายความร้อน : The unit features a water-resistant cooling system. Ensure that the cooling vents (if visible) are not obstructed to allow for proper heat dissipation.
• การเชื่อมต่อ: Periodically check all power and controller connections to ensure they are secure.

6 การแก้ไขปัญหา

If you encounter issues with your Aqua Air AA-1200, refer to the following common problems and solutions:

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

The MICMOL Aqua Air AA-1200 comes with a รับประกันสองปี นับจากวันที่ซื้อ การรับประกันนี้ครอบคลุมถึงข้อบกพร่องจากการผลิตและการทำงานผิดปกติภายใต้การใช้งานปกติ

For technical support, warranty claims, or further assistance, please contact MICMOL customer service through their official webไซต์หรือร้านค้าปลีกของคุณ

โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ยืนยันการรับประกัน
