Husqvarna 445e II Gas Chainsaw User Manual

1. สินค้าหมดview

The Husqvarna 445e II is a gas-powered chainsaw designed for homeowners requiring a powerful and easy-to-handle tool for tasks such as pruning, limbing, and cutting firewood. It features an ergonomic design for comfortable operation and incorporates several technologies to enhance performance and user experience.

• เครื่องยนต์ X-Torq: Designed to reduce fuel consumption and exhaust emissions.
• Smart Start Technology: Facilitates easier starting with minimal effort.
• Air Injection System: A centrifugal air cleaning system that helps prevent larger dust and debris particles from reaching the air filter, contributing to extended engine life.
• LowVib System: Reduces vibration levels to provide more comfortable chainsaw operation.
• Automatic Chain Oiler: Delivers a consistent supply of bar and chain oil for effective cutting.
• Side-Mounted Chain Tensioning: Allows for quick and convenient chain adjustments.
• Quick-Release Air Filter: Simplifies cleaning and replacement of the air filter.

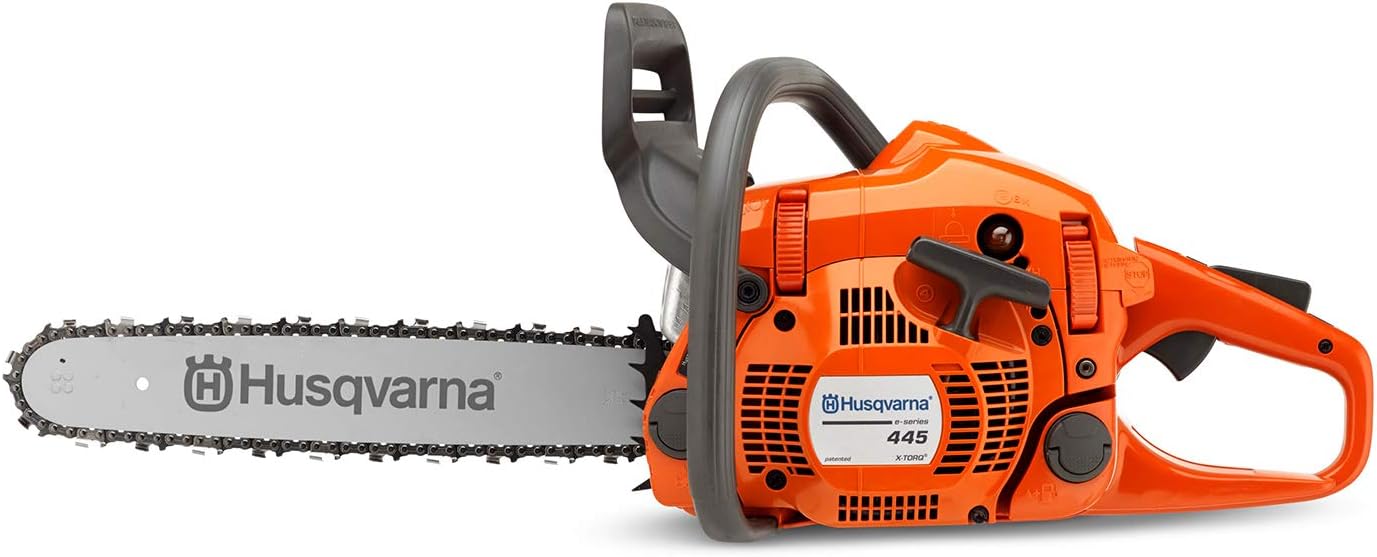

Image: Husqvarna 445e II Gas Chainsaw, showcasing การออกแบบโดยรวม

ภาพ: เหนือview of key features and specifications including engine size (50.2cc), horsepower (2.8 HP), bar length (18"), and weight (11.2 lbs).

2. ข้อมูลด้านความปลอดภัย

Operating a chainsaw requires strict adherence to safety guidelines to prevent injury. Always read and understand the complete safety manual provided with your chainsaw before use.

อุปกรณ์ป้องกันส่วนบุคคล (PPE)

Always wear appropriate personal protective equipment when operating the chainsaw. This includes:

• หมวกนิรภัย: For head and face protection.
• การป้องกันการได้ยิน: Noise-reducing ear protection.
• Chaps: Chainsaw protective chaps with warp protective layers.
• ถุงมือ: Synthetic leather palm gloves for grip and protection.
• Safety Boots: Steel-toed boots with good ankle support.

Image: A person wearing recommended safety gear including a helmet, hearing protection, chaps, and gloves while operating a chainsaw.

ข้อควรระวังด้านความปลอดภัยทั่วไป

• ตรวจสอบให้แน่ใจว่าพื้นที่ทำงานปลอดจากผู้คนและสิ่งกีดขวาง
• จับเลื่อยยนต์ให้แน่นด้วยมือทั้งสองข้าง
• Be aware of kickback risks and proper cutting techniques.
• Never operate the chainsaw when fatigued or under the influence of substances.
• Regularly inspect the chainsaw for damage or wear before each use.

3. การติดตั้งและการประกอบ

น้ำมันเชื้อเพลิงและน้ำมันโซ่

The Husqvarna 445e II requires a specific fuel mixture (gasoline and 2-cycle oil) and separate chain oil for lubrication. Always use high-quality fuel and oil as recommended by Husqvarna.

• Mix gasoline with 2-cycle engine oil at the specified ratio (e.g., 50:1).
• Fill the fuel tank with the mixed fuel.
• Fill the chain oil tank with appropriate bar and chain oil.

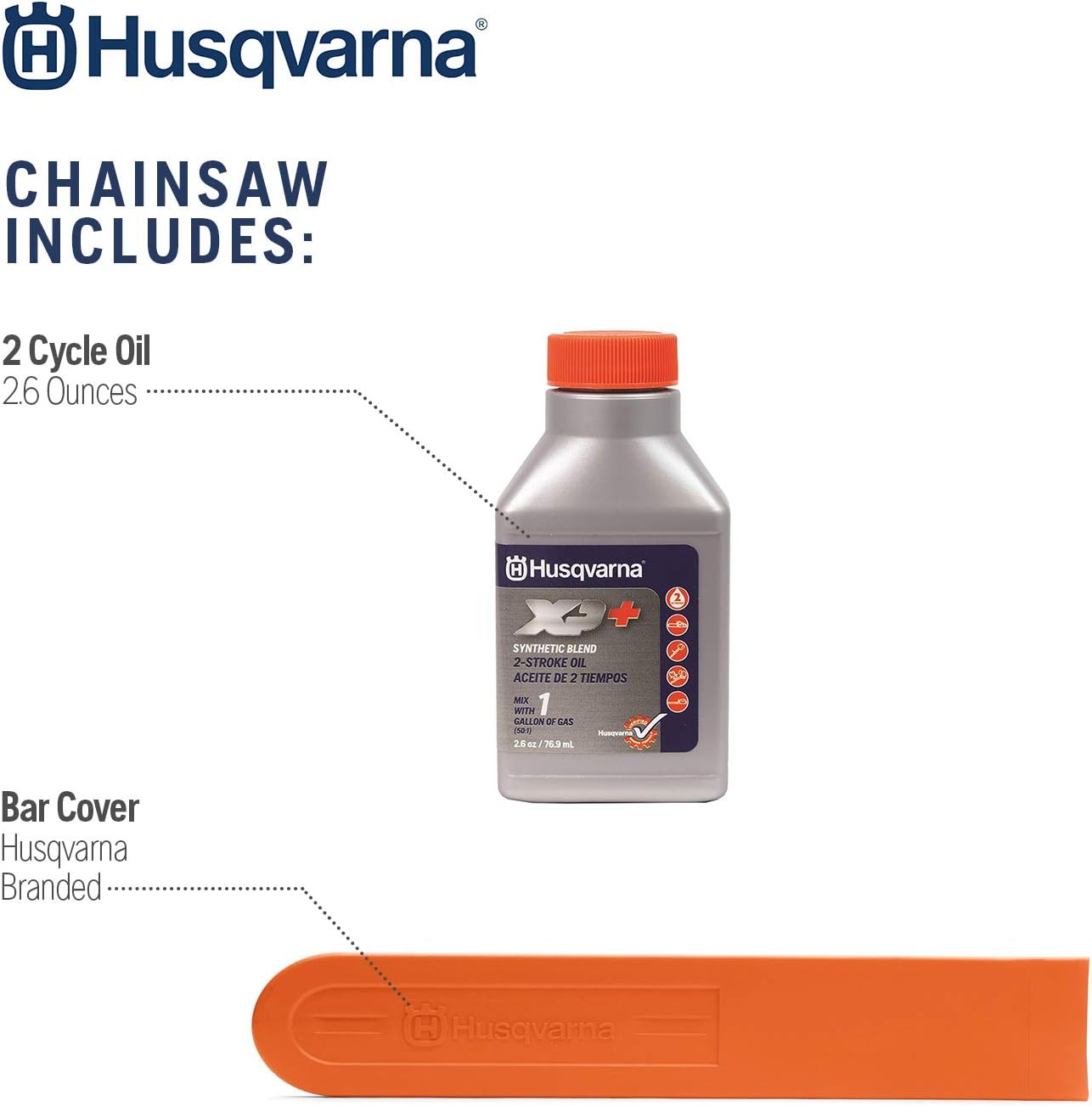

Image: Husqvarna 2-cycle oil (2.6 ounces) and an orange Husqvarna branded bar cover, which are included with the chainsaw.

การติดตั้งบาร์และโซ่

Proper installation of the guide bar and chain is crucial for safe and effective operation. Refer to the detailed instructions in your full manual for specific steps.

การปรับความตึงโซ่

Correct chain tension is vital. A chain that is too loose can derail, and a chain that is too tight can cause excessive wear and damage. The 445e II features a simple, side-mounted chain tensioning system.

Image: The included scrench combination screwdriver and wrench tool, used for quick chain and bar adjustments.

4. คู่มือการใช้งาน

การสตาร์ทเลื่อยไฟฟ้า

The Smart Start technology assists in easier starting. Follow these general steps:

1. วางเลื่อยยนต์บนพื้นผิวที่มั่นคงและเรียบ
2. ดึงโซ่เบรก
3. Set the choke and primer bulb as per the starting procedure in your manual.
4. Pull the starter cord until the engine fires, then disengage the choke.
5. ดึงเชือกสตาร์ทอีกครั้งจนกว่าเครื่องยนต์จะติด
6. Allow the engine to warm up briefly before use.

Image: Close-up of the Smart Start starter mechanism, designed for quick and easy starting.

เทคนิคการตัด

Always use proper cutting techniques to ensure safety and efficiency. Avoid cutting with the tip of the bar to prevent kickback. Plan your cuts and be aware of falling timber.

Image: A person operating the Husqvarna chainsaw to cut a log, demonstrating typical use.

การหยุดเลื่อยยนต์

To stop the chainsaw, simply move the stop switch to the 'STOP' position. Engage the chain brake when moving short distances or between cuts.

5. การบำรุงรักษา

การบำรุงรักษาตามปกติจะช่วยให้เลื่อยโซ่ยนต์ของคุณมีอายุการใช้งานยาวนานและปลอดภัย

การทำความสะอาดตัวกรองอากาศ

The quick-release air filter allows for easy access and cleaning. A clean air filter is essential for optimal engine performance and life.

Image: Hand accessing the quick-release air filter for cleaning or replacement.

Bar and Chain Maintenance

Inspect the guide bar and chain regularly for wear and proper lubrication. Clean the bar rail and grease hole to ensure smooth operation.

ลับคมโซ่

A sharp chain is crucial for efficient and safe cutting. Dull chains can lead to poor performance and increased risk of kickback.

Flip-Up Caps

The chainsaw features flip-up caps for easy access to the fuel and chain oil tanks, simplifying re-oiling and re-fueling.

Image: Close-up of the flip-up caps on the chainsaw, indicating easy access for refueling and re-oiling.

6 การแก้ไขปัญหา

If you encounter issues with your Husqvarna 445e II chainsaw, consult the troubleshooting section of your full product manual. Common issues may include:

• Starting Difficulties: Check fuel mixture, spark plug, and air filter.
• ประสิทธิภาพการตัดที่ไม่ดี: Inspect chain sharpness and tension, and ensure adequate chain oil.
• การสั่นสะเทือนมากเกินไป: Check for loose components or worn parts.

For complex issues or repairs, contact an authorized Husqvarna service center.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

For warranty information, service, or technical support, please refer to the official Husqvarna documentation included with your product or visit the official Husqvarna webไซต์นี้ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ยืนยันการรับประกัน
