VIAIR 00047 Tire Inflation Kit User Manual

การแนะนำ

The VIAIR 00047 Tire Inflation Kit is designed for accurate tire pressure reading and inflation. It features a 2.5-inch mechanical gauge, a tire gun, and is compatible with Onboard Air Systems equipped with an air tank. This kit allows for precise pressure adjustments and efficient tire maintenance for various vehicle types.

ข้อมูลด้านความปลอดภัย

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Always follow safety guidelines when operating this equipment.

• Always wear appropriate eye protection when using air tools.
• Ensure the air source is regulated to prevent over-inflation.
• Keep hands and body clear of moving parts.
• Do not exceed the maximum rated pressure of the tire or the inflation kit.
• ใช้ในบริเวณที่มีอากาศถ่ายเทสะดวก

มีอะไรอยู่ในกล่อง

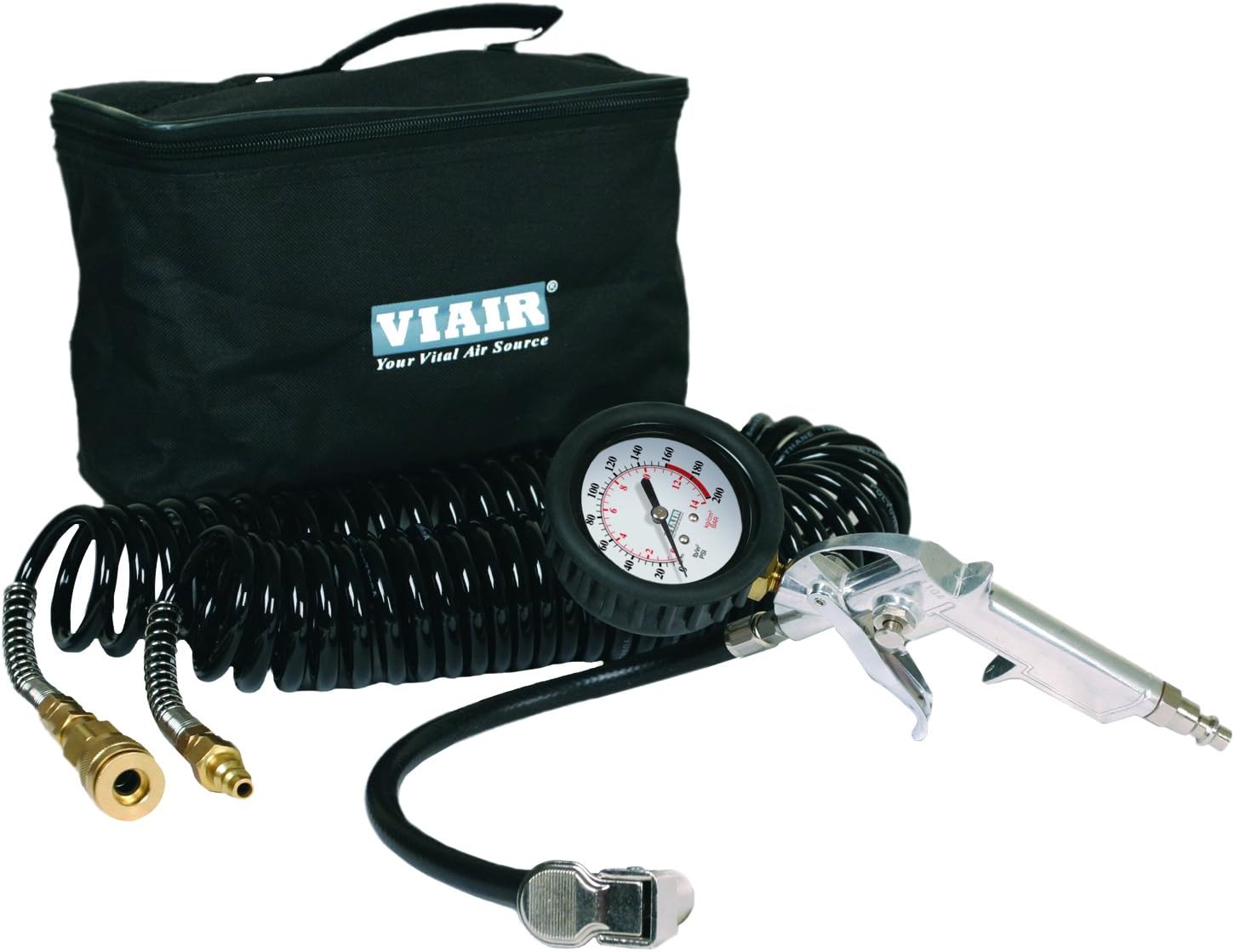

Image: All components of the VIAIR 00047 Tire Inflation Kit, including the inflation gun, coiled hose, and carry bag.

• Inflation Gun with 2.5" Mechanical Gauge (200 PSI)
• 30 ft. Polyurethane Air Line with Quick Connect Stud & Coupler
• 12" Rubber Air Hose
• Carry Bag

คุณสมบัติผลิตภัณฑ์

ภาพ: รายละเอียด view of the inflation gun, highlighting the 2.5" gauge, deflation button, trigger control, and quick connect stud.

• 2.5" (actual 3" on product description) 200 PSI/14 BAR Air Pressure Gauge: Provides accurate pressure readings for various tire types.
• Bleeder Valve: Integrated button for precise pressure adjustment and controlled deflation.
• 30' Polyurethane Air Line: Durable, coiled hose with quick connect stud & coupler for extended reach and easy connection.
• Folding Lever Air Chuck: Designed for secure and hands-free attachment to tire valve stems.
• 12" Rubber Air Hose: Flexible hose connecting the inflation gun to the main air line.

การตั้งค่า

1. นำส่วนประกอบทั้งหมดออกจากกระเป๋าพกพา
2. Connect the 12" rubber air hose to the threaded inlet on the inflation gun. Hand-tighten securely.
3. Attach the quick connect stud of the 30' polyurethane air line to the quick connect coupler on the 12" rubber air hose. Push firmly until it clicks into place.
4. Connect the other end of the 30' polyurethane air line to your Onboard Air System's air tank outlet. Ensure your air tank is pressurized and ready for use.
5. Verify all connections are tight and free of leaks before proceeding.

คำแนะนำการใช้งาน

การตรวจสอบแรงดันลมยาง

1. Ensure the inflation gun is connected to a pressurized air source.
2. Press the folding lever air chuck firmly onto the tire's valve stem. The gauge will immediately display the current tire pressure.
3. Read the pressure indicated on the 2.5" mechanical gauge.
4. If the pressure is too high, gently press the bleeder valve button to release air until the desired pressure is reached.

Image: The folding lever air chuck shown in an open position, ready to be attached to a tire valve.

Image: The folding lever air chuck shown in a closed position, indicating a secure connection to a tire valve.

การสูบลมยาง

1. Attach the folding lever air chuck to the tire's valve stem.
2. Squeeze the inflation trigger on the gun to begin inflating the tire.
3. Monitor the pressure gauge closely. Release the trigger when the desired pressure is reached.
4. Remove the air chuck from the valve stem.

การซ่อมบำรุง

• After each use, wipe down the inflation gun and hoses with a clean, dry cloth to remove dirt and moisture.
• Store the kit in its provided carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Regularly inspect hoses for cracks, kinks, or damage. Replace if necessary to ensure optimal performance and safety.
• Check quick connect fittings for wear and ensure they seal properly. A small amount of silicone grease can be applied to O-rings if needed.
• Do not lubricate the gauge or internal mechanisms of the inflation gun unless specified by the manufacturer.

Image: The VIAIR 00047 kit, including the coiled hose and quick connect fittings, neatly packed inside its black carry bag.

Image: The inflation gun and coiled hose components of the kit stored compactly within the black zippered carry bag.

การแก้ไขปัญหา

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For detailed warranty information, product registration, and technical support, please visit the official VIAIR webเยี่ยมชมเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้า แนะนำให้เก็บใบเสร็จรับเงินไว้เพื่อใช้ในการเคลมประกัน
