SMALLRIG Universal Microphone Shock Mount User Manual

การแนะนำ

The SMALLRIG Universal Microphone Shock Mount 1859 is designed to isolate your shotgun microphone from vibrations and handling noise. Featuring a four-point suspension system, it ensures clean audio recording by minimizing unwanted mechanical sounds. This versatile accessory can be easily mounted on cameras via a cold shoe or on boompoles and universal handles using its 3/8"-16 threaded connection.

ภาพ: ด้านหน้า view of the SMALLRIG Universal Microphone Shock Mount 1859, showcasing its robust design and cold shoe base.

เนื้อหาแพ็คเกจ

โปรดตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างมีอยู่ในแพ็คเกจของคุณหรือไม่:

• 1 x SMALLRIG Cold Shoe Adapter (ID: 1858)
• 1 x Microphone Shock Mount Adapter
• 4 x Rubber Support Bands (plus spares)

Image: Components included in the package: the shock mount, cold shoe adapter, and rubber bands.

คุณสมบัติ

• Four-Point Suspension: Designed to effectively reduce handling noise and vibrations for clearer audio.
• มุมปรับได้: Features a knob for easy 180° angle adjustment, allowing flexible microphone positioning.
• ตัวเลือกการติดตั้งหลายตัว: Includes an integrated cold shoe for camera mounting and a 3/8"-16 threaded hole for boompoles or universal handles.
• โครงสร้างทนทาน: ผลิตจากวัสดุคุณภาพสูงเพื่อประสิทธิภาพที่ยาวนาน

ความเข้ากันได้

The shock mount is compatible with shotgun microphones and other microphones with a diameter between 0.59 - 1.57 inches (15 - 40mm). Specific compatible models include:

• Rode: NTG1, NTG2, NTG3, NTG4, NTG4+
• เซนไฮเซอร์: MKE 600, MKH 416, ME 66 K6, MKH 8060, MKH8070, MKH 418
• Azden: SGM-1X
• Audio-Technica: AT897, AT835ST, BP4029, AT4073, BP4073
• Schoeps: CMIT 5U, SuperCMIT 2U
• ชูเร: VP82, VP89S
• Neumann: KMR-81i, KMR-81D, Sanken CS-1, CS-2, CS-3e
• Voice Technologies: VT500

Image: A visual representation of the shock mount's compatibility with various microphone brands and models.

การติดตั้งและการตั้งค่า

1. การติดตั้งไมโครโฟน

1. Gently insert your compatible microphone into the rubber support bands of the shock mount. Ensure the microphone is securely held by all four bands.

2. Mounting to a Camera (Cold Shoe)

1. Locate the cold shoe adapter at the base of the shock mount.
2. Slide the cold shoe adapter into the cold shoe mount on your camera or camera cage.
3. ขันน็อตให้แน่นurled wheel on the cold shoe adapter to secure the shock mount firmly in place.

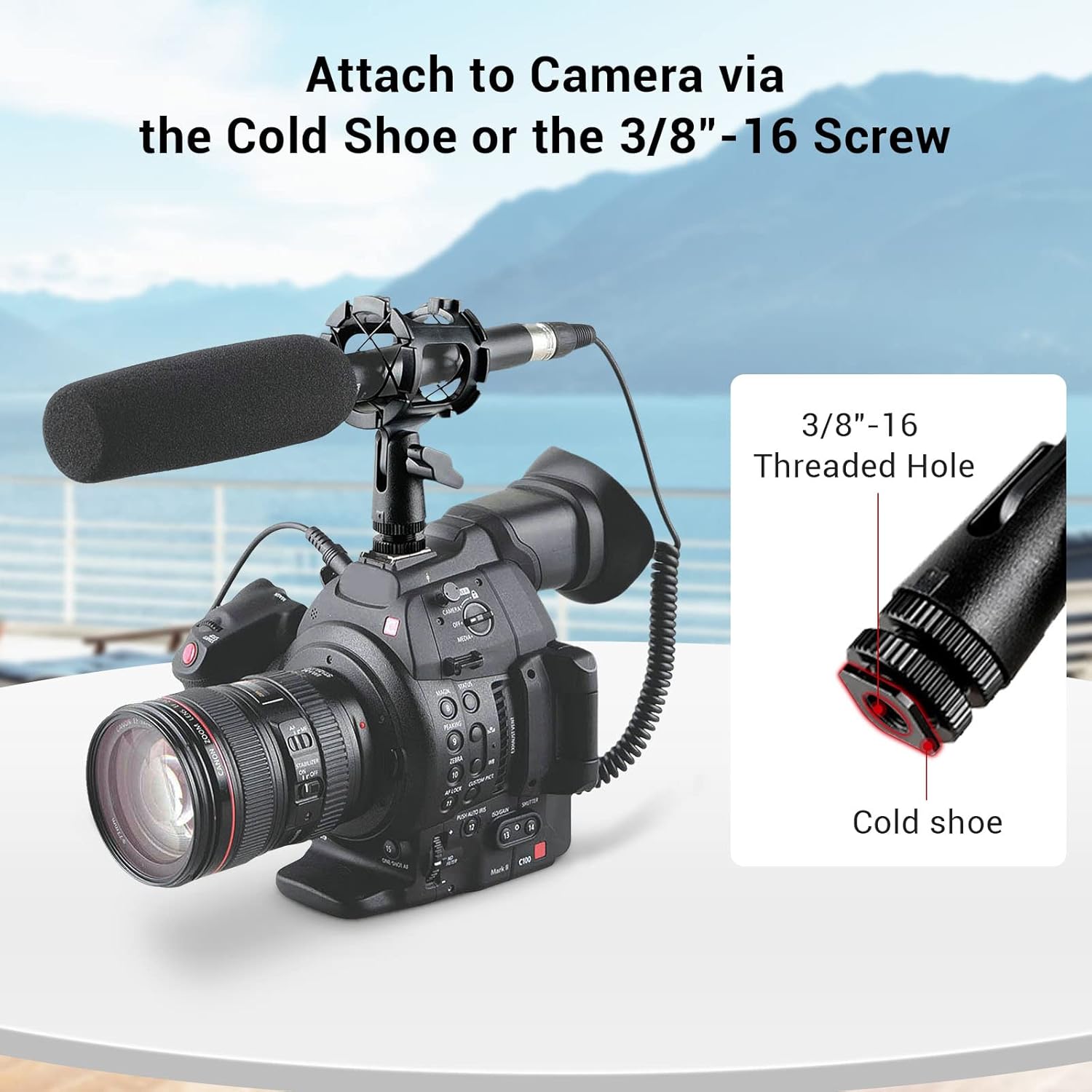

Image: The shock mount attached to a camera's cold shoe, with an inset showing the cold shoe and 3/8"-16 threaded hole.

3. Mounting to a Boompole or Handle (3/8"-16 Thread)

1. Unscrew the cold shoe adapter from the base of the shock mount to reveal the 3/8"-16 threaded hole.
2. Screw the shock mount onto a boompole, light stand, or universal handle that has a 3/8"-16 screw.
3. Ensure the connection is tight and secure before use.

Image: The shock mount integrated into a camera rig, demonstrating its versatility with a cold shoe adapter and 25mm rod clamp.

การดำเนินการ

การปรับมุม

The SMALLRIG Microphone Shock Mount features an adjustable knob that allows for a 180° tilt. To adjust the angle:

1. Loosen the adjustment knob located on the side of the shock mount.
2. Tilt the microphone to your desired angle.
3. Tighten the adjustment knob firmly to lock the angle in place.

Image: Diagram illustrating the 180-degree angle adjustment capability of the shock mount.

การซ่อมบำรุง

To ensure the longevity and optimal performance of your SMALLRIG Microphone Shock Mount, follow these maintenance guidelines:

• การทำความสะอาด: เช็ดที่ยึดด้วยผ้าแห้งเนื้อนุ่มเพื่อขจัดฝุ่นและเศษซาก หลีกเลี่ยงการใช้สารเคมีที่รุนแรงหรือวัสดุที่มีฤทธิ์กัดกร่อน
• Rubber Bands: Periodically inspect the rubber support bands for signs of wear, stretching, or cracking. Replace them if necessary using the provided spare bands to maintain effective shock absorption.
• พื้นที่จัดเก็บ: Store the shock mount in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• ความแน่น: Regularly check all screws and connections to ensure they are securely tightened.

การแก้ไขปัญหา

If you encounter any issues with your SMALLRIG Microphone Shock Mount, please refer to the following common troubleshooting tips:

• ไมโครโฟนไม่ได้ติดตั้งอย่างแน่นหนา:
  • Ensure the microphone diameter is within the compatible range (15-40mm).
  • Check if the rubber bands are properly seated and not damaged. Replace if worn.
• เสียงดัง/การสั่นสะเทือนมากเกินไป:
  • Verify that the microphone is correctly positioned within the shock mount and not touching the frame.
  • Inspect the rubber bands for any damage or loss of elasticity. Replace if needed.
  • Ensure the shock mount is securely attached to your camera or mounting device.
• Angle Adjustment Loose:
  • Tighten the adjustment knob firmly after setting the desired angle.

If the issue persists, please contact SMALLRIG customer support for further assistance.

ข้อมูลจำเพาะ

Image: Detailed dimensions of the shock mount, showing 13mm and 45mm measurements.

การรับประกันและการสนับสนุน

This SMALLRIG product comes with a การรับประกันจากผู้ผลิต 2 ปี. For warranty claims, technical support, or any inquiries regarding your product, please contact SMALLRIG customer service directly.

ผู้ผลิต: สมอลล์ริก

For more information and support, visit the official SMALLRIG webไซต์หรือดูเอกสารการซื้อของคุณ
