The BONECO A403 SMOG Filter is a replacement filter designed specifically for the BONECO P400 Air Purifier. This filter is engineered to significantly improve indoor air quality by targeting common pollutants found in urban environments and areas with high air pollution.
It features a multi-layer filtration system to effectively capture a wide range of airborne contaminants.

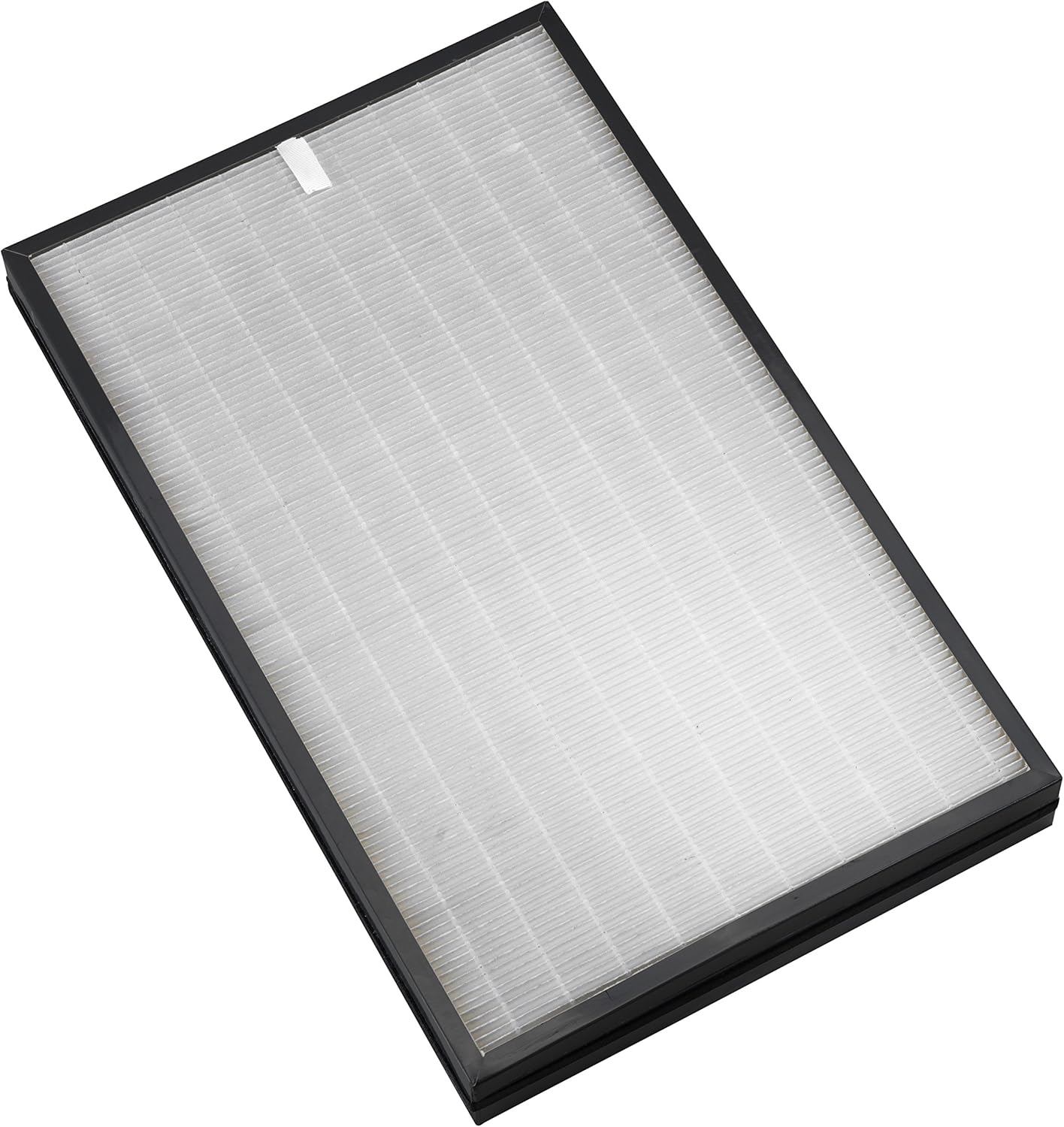

Image 1: The BONECO A403 SMOG Filter, showing its rectangular frame and filtration media.
คุณสมบัติหลัก:
- การกรองที่ครอบคลุม: Reduces tobacco smoke, harmful gases such as VOCs (Volatile Organic Compounds), formaldehyde, unpleasant odors, and exhaust gases.
- Fine Particle Elimination: Effectively eliminates 99% of fine particles, including PM2.5.
- Advanced Filter Combination: Utilizes a combination of a pre-filter, a HEPA filter, and an activated carbon filter for multi-stage purification.
- Wide Range of Pollutants Filtered: Captures dust, pollen, pet hair, carbon dust, ash, fine particles, SMOG, tobacco residue, formaldehyde, and exhaust gases.
- ความเข้ากันได้: Designed exclusively for use with the BONECO P400 Air Purifier.
ภาพที่ 2: ด้านหน้า view of the BONECO A403 SMOG Filter packaging, highlighting the model number and "SMOG FILTER" designation.
2. การตั้งค่าและการติดตั้ง
This section provides instructions for safely installing the BONECO A403 SMOG Filter into your BONECO P400 Air Purifier.
2.1 ข้อควรระวังเพื่อความปลอดภัย
- Always unplug the BONECO P400 Air Purifier from the power outlet before attempting any installation or maintenance.
- Ensure your hands are clean and dry before handling the new filter.
- Do not attempt to wash or reuse old filters.
2.2 ขั้นตอนการติดตั้ง
- เตรียมเครื่องฟอกอากาศให้พร้อม: Unplug the BONECO P400 Air Purifier from the wall socket.
- เปิดช่องใส่ตัวกรอง: Refer to your BONECO P400 user manual for specific instructions on how to open the filter compartment. Typically, this involves removing the back cover or a side panel.
- ลบตัวกรองเก่า: Carefully remove the used filter from the air purifier. Dispose of the old filter according to local waste disposal regulations.
- แกะกล่องตัวกรองใหม่: Remove the new BONECO A403 SMOG Filter from its protective packaging.
- แทรกตัวกรองใหม่: Insert the new A403 SMOG Filter into the filter compartment. Ensure it is oriented correctly, usually indicated by arrows or specific markings on the filter or the purifier. The filter should fit snugly.
- ปิดช่อง: ปิดฝาช่องใส่ตัวกรองให้สนิท
- คืนค่าพลัง: Plug the BONECO P400 Air Purifier back into the power outlet.
- รีเซ็ตตัวบ่งชี้ตัวกรอง (ถ้ามี): If your P400 model has a filter replacement indicator, follow the instructions in your P400 manual to reset it.
3. ข้อควรพิจารณาในการดำเนินงาน
The BONECO A403 SMOG Filter operates as an integral part of your BONECO P400 Air Purifier. No specific operational steps are required for the filter itself beyond proper installation.
3.1 ประสิทธิภาพที่เหมาะสมที่สุด
- Ensure the air purifier is placed in an area where air can circulate freely around it.
- For best results, operate the air purifier continuously, especially in environments with high levels of pollutants (e.g., near busy roads, in smoking households, or during smog alerts).
- Keep windows and doors closed when the air purifier is operating to maximize its effectiveness in purifying indoor air.
4. การบำรุงรักษาและการเปลี่ยนทดแทน
Regular maintenance and timely replacement of the BONECO A403 SMOG Filter are crucial for maintaining the efficiency and effectiveness of your BONECO P400 Air Purifier.
4.1 Filter Lifespan
The lifespan of the BONECO A403 SMOG Filter depends on various factors, including air quality, usage frequency, and the presence of specific pollutants. As a general guideline, it is recommended to replace the filter every 6-12 months under normal operating conditions.
Your BONECO P400 Air Purifier may have an indicator light or a digital display that signals when the filter needs replacement. Always refer to your P400 user manual for specific filter replacement schedules and indicator information.
4.2 ขั้นตอนการเปลี่ยน
Follow the "Installation Steps" outlined in Section 2.2 to replace the filter. It is essentially the same process: remove the old filter and insert the new one.
4.3 การทำความสะอาด
The BONECO A403 SMOG Filter is designed for replacement and cannot be cleaned or washed. Attempting to clean the filter will damage its filtration media and reduce its effectiveness.
5 การแก้ไขปัญหา
This section addresses common issues related to filter performance. For issues with the BONECO P400 Air Purifier itself, please consult its dedicated user manual.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Reduced Airflow / Decreased Purification | Filter is clogged or expired. | Replace the BONECO A403 SMOG Filter with a new one. |
| Unpleasant Odor from Purifier | Filter is saturated with odors or pollutants. | Replace the BONECO A403 SMOG Filter. Ensure the room is well-ventilated. |
| Filter Indicator Light Remains On After Replacement | Filter reset procedure not followed. | Refer to your BONECO P400 Air Purifier manual for instructions on how to reset the filter indicator. |
6. ข้อมูลจำเพาะ
Detailed technical specifications for the BONECO A403 SMOG Filter.
| คุณลักษณะ | รายละเอียด |
|---|---|
| ยี่ห้อ | BONECO |
| หมายเลขรุ่น | เอ403 |
| ขนาดสินค้า (กว้าง x ยาว x สูง) | 5.5 x 29.1 x 42.2 ซม. |
| น้ำหนัก | 0.67 กก. |
| วัสดุ | Plastic (frame) |
| อุปกรณ์ที่รองรับ | เครื่องฟอกอากาศ BONECO P400 |
| ประเภทตัวกรอง | Pre-filter + HEPA filter + Activated Carbon filter |
| ประสิทธิภาพการกรอง | Eliminates 99% of fine particles/PM2.5 |
| ประเทศต้นกำเนิด | จีน |
| ASIN | B01K1Q54VC |
7. การรับประกันและการสนับสนุน
Information regarding the warranty for the BONECO A403 SMOG Filter is typically provided with the product packaging or available on the official BONECO website. As this is a consumable replacement part, its warranty may differ from that of the air purifier unit itself.
For specific warranty details, technical support, or to purchase genuine replacement filters, please visit the official BONECO website or contact BONECO customer service directly. Contact information can usually be found on the product packaging or the manufacturer's webเว็บไซต์.
Note: This document provides general guidance. Always refer to the latest information from the manufacturer for the most accurate and up-to-date details.
