คู่มือผู้ใช้ระบบฝึกสุนัขอิเล็กทรอนิกส์ Aetertek AT-919C

การแนะนำ

The Aetertek AT-919C is a remote dog training system designed for effective communication and training of medium to large dogs. This system can be configured for one or two dogs, offering various correction modes including vibration, sound, and static stimulation. Its waterproof receiver collar and long remote range make it suitable for both home use and outdoor training environments.

คุณสมบัติที่สำคัญ ได้แก่:

• Configurable for 1-dog or 2-dog training (with additional collar).
• Independent use of vibration, sound, and static stimulation.
• Integrated Auto Anti-Bark function (can be turned on/off).
• LCD display on transmitter showing correction levels and dog channel.
• 10 levels of progressive static stimulation and 10 levels of adjustable sound.
• Strong level vibration.
• Rechargeable, 100% waterproof, and submersible receiver collar.
• Remote range up to 1100 yards (approx. 1000 meters), capable of passing through obstacles.
• Transmitter includes a flashlight feature and belt clip.

เนื้อหาแพ็คเกจ

Upon opening your Aetertek AT-919C training system, please verify that all components listed below are present:

• เครื่องส่งสัญญาณระยะไกล
• 2 x Collar Receivers (with built-in rechargeable batteries)
• Charger with US plug
• 2 x High-quality adjustable PU Dog Collar Straps
• หลอดทดลอง

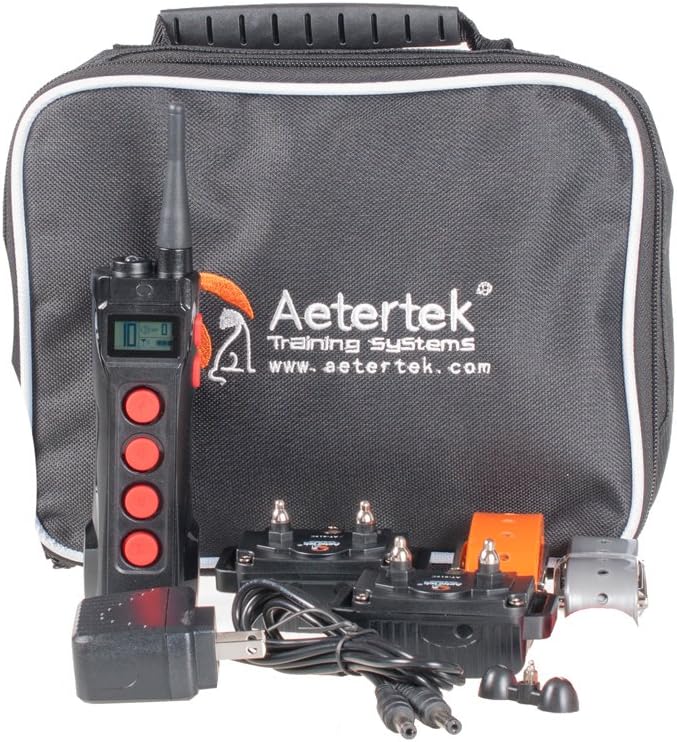

Image: Complete Aetertek AT-919C training system components, including the remote transmitter, two collar receivers, charger, and a black carrying bag.

Image: The included USB charger with a US plug and the dual charging cable for simultaneously charging both collar receivers.

คู่มือการติดตั้ง

1. การชาร์จอุปกรณ์

Before initial use, fully charge both the remote transmitter and the collar receivers. Use the provided charger and cable. The charging ports are typically covered by a rubber flap to ensure waterproofing on the receiver.

• เสียบที่ชาร์จเข้ากับเต้ารับไฟฟ้า
• Plug the charging cable into the charging port of the transmitter and each receiver.
• Allow devices to charge until the indicator light signals a full charge (refer to specific light indicators in the operating section if available on device).

2. Attaching the Collar Receiver

Proper fit of the collar receiver is crucial for effective and humane training. The contact points must touch the dog's skin.

• Thread the adjustable PU dog collar strap through the receiver unit.
• Place the collar around your dog's neck, ensuring the contact points are positioned underneath the neck.
• Adjust the strap snugly. You should be able to fit one or two fingers comfortably between the strap and your dog's neck. The collar should not be too loose, as this can cause inconsistent contact and irritation from rubbing.

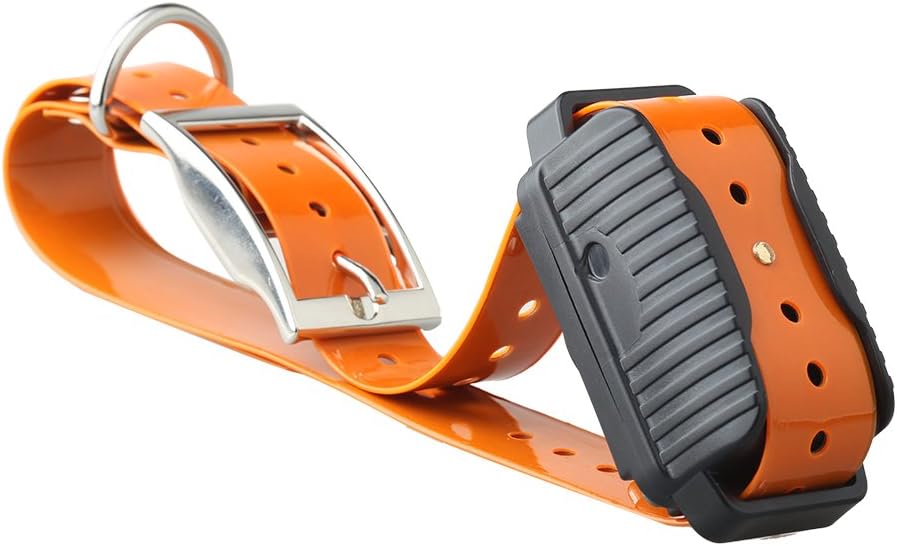

Image: The waterproof collar receiver attached to an orange PU strap, ready for fitting on a dog.

ภาพ: ด้านล่าง view of the collar receiver, highlighting the two metal contact points that deliver stimulation.

3. Pairing Transmitter and Receiver(s)

The system allows for training one or two dogs. Each receiver must be paired to a specific channel on the transmitter.

• Turn on the transmitter and the receiver(s).
• On the transmitter, use the "One button to change dog mode" (often labeled '1/2' or similar) to select the desired dog channel (Dog 1 or Dog 2).
• Follow the specific pairing instructions in your device's quick start guide, which usually involves holding a button on the receiver while the transmitter is in pairing mode. Note: Some users report that collars may unsync after charging, requiring re-pairing.

4. การทดสอบระบบ

Before using on your dog, test the functions of the collar.

• เสียงและการสั่นสะเทือน: With the receiver on, press the sound or vibration buttons on the transmitter. You should hear a beep or feel the receiver vibrate.
• การกระตุ้นแบบสถิต: Use the provided test bulb. Place the test bulb's wires across the two contact points on the receiver. Select a low static stimulation level on the transmitter and press the static stimulation button. The test bulb should light up, indicating the static function is working.

คำแนะนำการใช้งาน

ส่งสัญญาณเกินview

ภาพ: ด้านหน้า view of the Aetertek AT-919C remote transmitter, showing the LCD screen and control buttons.

ภาพ: ด้านข้าง view of the Aetertek AT-919C remote transmitter, highlighting the belt clip for portability.

ภาพ: ด้านล่าง view of the Aetertek AT-919C remote transmitter, showing the integrated flashlight and model number.

Image: The Aetertek AT-919C remote transmitter with its built-in flashlight activated, providing illumination.

โหมดการแก้ไข

The AT-919C offers three distinct correction modes:

• Sound (Beep): Delivers an audible tone from the receiver. This is often used as a warning or for positive reinforcement. There are 10 adjustable levels for the number of beeps.
• การสั่นสะเทือน: Causes the receiver to vibrate. This can be used as a gentle reminder or a precursor to static stimulation. The system features a strong level of vibration.
• Static Stimulation (Shock): Delivers a static pulse. This mode has 10 progressive levels, adjustable in both intensity and duration, allowing for precise control based on your dog's temperament and the training situation.

Using the Remote Transmitter

• เปิด/ปิดเครื่อง: Press and hold the power button to turn the transmitter on or off.
• Dog Channel Selection: Use the dedicated button (e.g., '1/2' or 'Dog Mode') to switch between Dog 1 and Dog 2 channels if training multiple dogs. The selected channel will be displayed on the LCD.
• การปรับระดับ: Use the up/down arrow buttons (often on the side or near the LCD) to adjust the intensity level for static stimulation or the number of beeps for sound. The current level will be shown on the LCD.
• Activating Corrections: Press the corresponding button for Sound, Vibration, or Static Stimulation to deliver the chosen correction to the active dog channel.
• ไฟฉาย: The transmitter includes a flashlight feature for use in low-light conditions. Activate it using its dedicated button.
• Auto Anti-Bark Function: The system has an auto anti-bark function that can be toggled on or off. Refer to your device's specific instructions for enabling/disabling this feature.

Effective Training Tips

• Start with the lowest effective level for static stimulation and gradually increase if necessary.
• Use corrections consistently and immediately after the undesirable behavior.
• Combine corrections with verbal commands and positive reinforcement.
• Never use the collar for punishment or aggression. It is a training tool to aid communication.
• Limit the duration of static stimulation to avoid over-correction.
• Do not leave the collar on your dog for extended periods (more than 12 hours) to prevent pressure necrosis.

การซ่อมบำรุง

Proper maintenance ensures the longevity and optimal performance of your Aetertek AT-919C training system.

• การทำความสะอาด: Clean the collar receiver and transmitter with water as needed. Ensure charging ports are sealed before cleaning the receiver. Use a soft cloth to wipe down surfaces.
• การดูแลแบตเตอรี่ The devices use Lithium Ion batteries. Handle them with care. Avoid extreme temperatures. Do not attempt to disassemble the battery packs. Recharge when the battery indicator is low to maintain battery health.
• จุดติดต่อ: Regularly inspect the contact points on the receiver for dirt or corrosion. Clean them gently if necessary. Ensure they are securely attached.
• การตรวจสอบสายรัด: Check the PU collar strap for any signs of wear, tears, or damage. Replace if necessary to ensure secure fit.
• พื้นที่จัดเก็บ: When not in use for extended periods, store the system in a cool, dry place. Ensure devices are fully charged before long-term storage to prevent battery degradation.

การแก้ไขปัญหา

ข้อมูลจำเพาะผลิตภัณฑ์

• แบบอย่าง: AT-919C
• ยี่ห้อ: เอเทอร์เทค
• น้ำหนักสินค้า: 1.2 ปอนด์ (ประมาณ 0.54 กก.)
• ขนาดแพ็คเกจ: 9.2 x 8 x 1.7 นิ้ว (ประมาณ 23.4 x 20.3 x 4.3 ซม.)
• แบตเตอรี่: ต้องใช้แบตเตอรี่ลิเธียมไอออน 3 ก้อน (รวมอยู่ด้วย)
• วัสดุ: Rubber (for collar strap)
• กลุ่มเป้าหมาย: Dogs (medium to large breeds recommended)
• ช่วงระยะไกล: Up to 1100 yards (approx. 1000 meters)
• ระดับการแก้ไข: 10 levels of static stimulation, 10 levels of sound
• ตัวรับสัญญาณกันน้ำ: 100% Waterproof and Submersible
• ผู้ผลิต: เอเทอร์เทค
• วันที่เข้าใช้งานครั้งแรก: 6 เมษายน 2016

ข้อมูลการรับประกัน

The Aetertek AT-919C Electronic Dog Training System comes with a รับประกัน 1 ปี นับจากวันที่ซื้อสินค้า การรับประกันนี้ครอบคลุมถึงข้อบกพร่องจากการผลิตและการทำงานผิดปกติภายใต้การใช้งานปกติ ไม่ครอบคลุมถึงความเสียหายที่เกิดจากการใช้งานผิดวิธี อุบัติเหตุ การดัดแปลงโดยไม่ได้รับอนุญาต หรือการสึกหรอตามปกติ

For warranty claims or inquiries, please retain your proof of purchase and contact the manufacturer or authorized seller.

การสนับสนุนลูกค้า

Should you encounter any issues not covered in this manual or require further assistance with your Aetertek AT-919C training system, please contact the manufacturer, Aetertek, or the retailer from whom you purchased the product. Refer to your product packaging or the seller's information for specific contact details.

When contacting support, please be prepared to provide your product model (AT-919C) and a detailed description of the issue.
