1. บทนำ
This manual provides essential information for the installation, operation, and maintenance of your SANTOS Cast Iron Gas Burner, Model 2452655. This product is designed as a replacement part for various gas grills, including specific SANTOS models and compatible grills from other brands such as Landmann, Enders, and Tchibo. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
2. ข้อมูลด้านความปลอดภัยที่สำคัญ
WARNING: Failure to follow these instructions could result in fire, explosion, or serious injury.
- Always ensure the gas supply to the grill is turned off and disconnected before attempting any installation or maintenance.
- Allow the grill to cool completely before handling any internal components.
- Wear appropriate protective gear, such as gloves, during installation to prevent cuts or burns.
- Ensure all gas connections are properly sealed and checked for leaks after installation. Use a soapy water solution to check for bubbles, indicating a leak.
- Only use this burner as a replacement part for compatible gas grills. Do not modify the burner or use it for purposes other than its intended design.
- Keep children and pets away from the grill during installation and operation.
3. สินค้าหมดview
The SANTOS Cast Iron Gas Burner is a durable replacement component designed to restore optimal heating performance to your gas grill. It features a robust cast iron construction for longevity and even heat distribution.
3.1 ส่วนประกอบ
- Cast Iron Burner (1 unit)
- Mounting screw (if applicable, typically pre-attached or included)
3.2 มิติ
- ความยาว: ประมาณ 40 ซม.
- ความกว้าง: ประมาณ 7 ซม.
3.3 ความเข้ากันได้
This cast iron burner is compatible with a range of gas grills. Please verify the dimensions and design against your existing burner before purchase and installation.
SANTOS Gas Grills (up to year of manufacture 2019):
- Angola, Buffalo, Dallas, Denver
- Family, Famous, Free Buffalo, Free Memphis, Fontana
- Hollywood, Las Vegas, Le Grand, Louisiana, Marakesch
- Matumbo, Memphis, Montana, Nambia, Nevada
- New Reno, Reno, San Diego, State, Woody, York
ยี่ห้ออื่นๆ:
- เอ็นเดอร์ส
- แลนด์แมนน์
- ชิโบ
- And other gas grills with matching burner dimensions and connection type.
ภาพที่ 1: ด้านบน view of the SANTOS Cast Iron Gas Burner, showing its overall shape and perforated surface.
Image 2: Two SANTOS Cast Iron Gas Burners, illustrating the assembled and partially disassembled states, highlighting the internal gas tube.
4. Installation (Burner Replacement)
Follow these steps carefully to replace your gas grill burner. If you are unsure about any step, consult a qualified technician.
- การตระเตรียม:
- Ensure the gas supply to the grill is completely turned off at the source (e.g., propane tank valve or natural gas shut-off).
- Disconnect the gas tank or line from the grill.
- Allow the grill to cool down completely if it has been in use.
- Open the grill lid and remove cooking grates, heat deflectors, and any other components covering the burners.
- Remove Old Burner:
- Locate the old burner. It is usually held in place by a screw or pin at one end and slides over a gas valve orifice at the other.
- Carefully remove any retaining screws or pins.
- Gently lift and slide the old burner off the gas valve orifice. Dispose of the old burner responsibly.
- ติดตั้งหัวเตาใหม่:
- Align the open end of the new SANTOS burner with the gas valve orifice.
- Carefully slide the burner onto the orifice, ensuring a snug fit. Do not force it.
- Secure the other end of the burner with the retaining screw or pin removed earlier. Ensure it is firmly in place.
- Reassemble and Leak Test:
- Replace heat deflectors and cooking grates.
- Reconnect the gas supply to the grill.
- เปิดแหล่งจ่ายก๊าซ
- Mix a solution of equal parts dish soap and water. Apply this solution to all gas connections (hoses, regulators, burner connections).
- If bubbles appear, there is a gas leak. Turn off the gas immediately and tighten connections or replace faulty parts. Repeat the leak test until no bubbles are present.
- การใช้ครั้งแรก:
- After confirming no leaks, light the grill according to your grill's manufacturer instructions.
- Observe the flame pattern. It should be blue with yellow tips, indicating proper combustion.

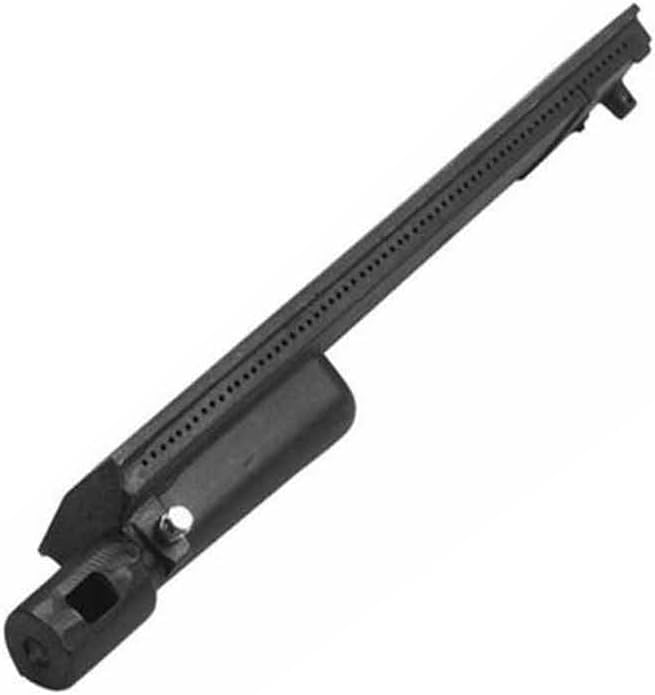

ภาพที่ 3: ด้านล่าง view of the SANTOS Cast Iron Gas Burner, showing the gas inlet and mounting point.
ภาพที่ 4: ภาพระยะใกล้ view of the gas inlet and the small mounting screw on the SANTOS Cast Iron Gas Burner, crucial for secure installation.
5. การดำเนินการ
Once the new burner is installed and leak-tested, operate your gas grill according to the original manufacturer's instructions. The SANTOS Cast Iron Gas Burner is designed to function identically to the original burner it replaces, providing consistent heat for grilling.
- Ensure proper ventilation when operating any gas grill.
- Always keep the grill area clear of flammable materials.
- Monitor flame appearance: A healthy flame is typically blue with small yellow tips. Large yellow or orange flames may indicate an issue with gas flow or air mixture, which should be addressed.
6. การบำรุงรักษา
Regular maintenance of your burner will extend its lifespan and ensure optimal performance.
- การทำความสะอาด: Periodically, with the gas supply off and the grill cool, remove the burner and clean any debris or food particles from the burner ports using a stiff wire brush or a small drill bit (ensure it matches the port size). This prevents blockages and ensures an even flame.
- การตรวจสอบ: Regularly inspect the burner for signs of corrosion, cracks, or excessive wear. Cast iron is durable but can degrade over time, especially with exposure to high heat and moisture.
- Spider/Insect Nests: Check the burner tubes and gas valve orifices for spider webs or insect nests, which can obstruct gas flow and cause dangerous flare-ups. Use a flexible wire brush to clear any blockages.
ภาพที่ 5: ด้านบน view of the SANTOS Cast Iron Gas Burner, showing the central gas distribution channel and the numerous small flame ports.
ภาพที่ 6: มุม view of the SANTOS Cast Iron Gas Burner, highlighting its robust cast iron construction and design.
7 การแก้ไขปัญหา
If you encounter issues after installing the new burner, refer to the following common problems and solutions:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| เตาไม่ติดไฟ |
|
|
| Weak or uneven flame |
|
|
| Yellow or orange flames |
|
|
| กลิ่นแก๊ส |
|
|
8. ข้อมูลจำเพาะ
- ยี่ห้อ: ซานโตส
- หมายเลขรุ่น: 2452655
- วัสดุ: เหล็กหล่อ
- ขนาดสินค้า (กว้าง x ยาว x สูง) : ขนาดประมาณ 40 ซม. x 7 ซม. x 4.5 ซม.
- น้ำหนัก: ประมาณ 1.85 กก.
- ความเข้ากันได้: Various SANTOS gas grills (up to 2019 models) and select models from Landmann, Enders, Tchibo.
9. การรับประกันและการสนับสนุน
For warranty information, please refer to the original purchase documentation or contact SANTOS customer support directly. Keep your proof of purchase for any warranty claims.
For further assistance or technical support, please visit the official SANTOS webเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าของพวกเขา
