Philips 1157 Automotive Lamp คู่มือการใช้งาน

1. บทนำ

This instruction manual provides essential information for the safe and effective use of your Philips 1157 Automotive Lamp. Please read this manual thoroughly before installation and retain it for future reference. This lamp is designed for signaling, stop, and other signal applications in automotive systems, operating at 12.8 volts.

2. สินค้าหมดview

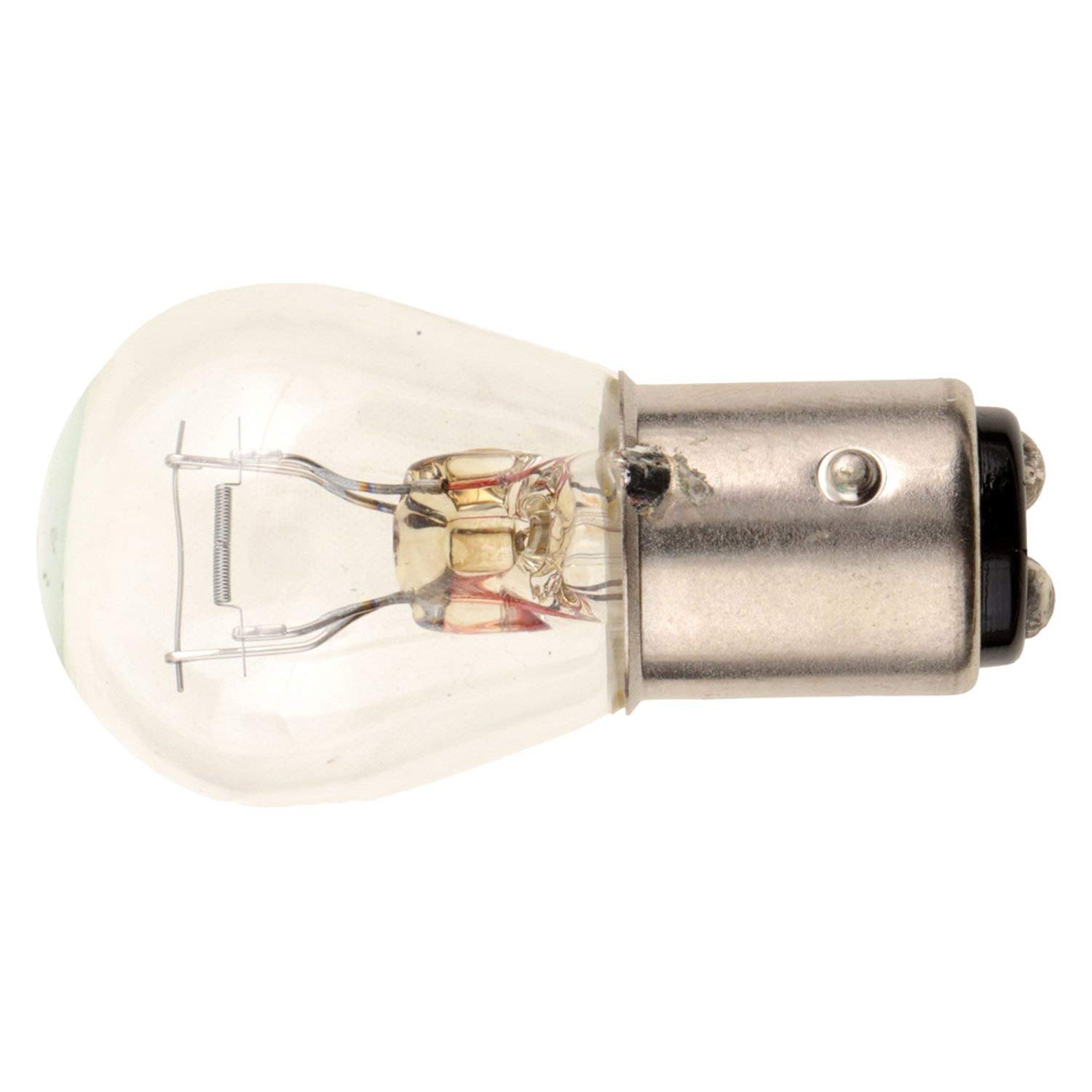

The Philips 1157 lamp is a high-quality automotive bulb featuring a BAY15D double contact bayonet base with offset lugs. This design ensures correct fitment and electrical connection in compatible sockets. It is an S8 bulb shape, commonly used for various signaling functions in vehicles. The lamp operates at 12.8 volts and has a wattage of 5 watts, providing reliable illumination for its intended purpose.

Image 2.1: Philips 1157 Automotive Lamp packaging. This image shows the retail packaging for the two-pack of Philips 1157 bulbs.

The unique BAY15D base features two electrical contacts at the bottom and two retaining lugs on the side, with one lug positioned slightly higher than the other. This offset design prevents incorrect insertion into the bulb socket, ensuring proper functionality for dual-filament applications like stop/tail lights.

3. ข้อมูลจำเพาะ

4. ข้อมูลด้านความปลอดภัย

คำเตือน: ผลิตภัณฑ์นี้ประกอบด้วยตะกั่ว ซึ่งเป็นสารเคมีที่รัฐแคลิฟอร์เนียทราบกันว่าเป็นสาเหตุของมะเร็ง ความผิดปกติแต่กำเนิด หรืออันตรายต่อระบบสืบพันธุ์อื่นๆ ล้างมือหลังจากจับต้อง

• Always ensure the vehicle's ignition is off and the lighting system is de-energized before attempting to replace any bulb.
• Bulbs can become very hot during operation. Allow sufficient time for the bulb to cool down before handling to prevent burns.
• Avoid touching the glass portion of the new bulb directly with bare hands. Oils from your skin can create hot spots, potentially reducing bulb life. Use gloves or a clean cloth when handling.
• Wear appropriate eye protection during installation to guard against accidental breakage.
• Dispose of old bulbs responsibly, following local regulations for electronic waste or hazardous materials, especially due to lead content.

5. การติดตั้ง

Follow these general steps for replacing an automotive bulb. Specific procedures may vary depending on your vehicle's make and model. Refer to your vehicle's owner's manual for detailed instructions.

1. เตรียมยานพาหนะ: Ensure the vehicle's ignition is off and the parking brake is engaged. For exterior lights, open the hood or trunk as needed to access the light assembly.
2. เข้าถึงหลอดไฟ: Locate the light assembly containing the bulb to be replaced. This may involve removing a cover, unscrewing a lens, or accessing from behind the assembly.
3. ถอดหลอดไฟเก่าออก: Gently twist the bulb socket counter-clockwise to unlock it from the housing, then pull it out. For the 1157 bulb, once the socket is out, push the old bulb inward and twist counter-clockwise to release it from the bayonet base.
4. ใส่หลอดไฟใหม่: Holding the new Philips 1157 bulb with a clean cloth or gloves, align the offset lugs on the bulb base with the corresponding slots in the socket. Push the bulb inward and twist clockwise until it locks into place. Ensure it is seated firmly.
5. ติดตั้งซ็อกเก็ตใหม่: Insert the bulb socket back into the light housing, aligning any tabs or grooves, and twist clockwise to secure it.
6. ทดสอบฟังก์ชันการทำงาน: Turn on the vehicle's ignition and test the light function (e.g., turn signals, brake lights, parking lights) to ensure the new bulb is working correctly.
7. ส่วนประกอบที่ปลอดภัย: Reattach any covers or lenses removed during the process.

6. การดำเนินการ

The Philips 1157 Automotive Lamp operates automatically as part of your vehicle's electrical system. When the appropriate function (e.g., turn signal, brake pedal, parking lights) is activated, the bulb will illuminate. As a dual-filament bulb, it provides two levels of brightness for different functions (e.g., dim for tail light, bright for brake light).

7. การบำรุงรักษา

The Philips 1157 Automotive Lamp is designed for maintenance-free operation until the end of its service life. Regular maintenance involves:

• การตรวจสอบเป็นระยะ: Periodically check all vehicle lights to ensure they are functioning correctly. Replace any non-functional bulbs promptly.
• การทดแทน: When a bulb burns out, replace it with a new Philips 1157 lamp to maintain optimal performance and safety. Always replace bulbs in pairs if possible, especially for critical functions like headlights or brake lights, to ensure consistent light output and color.
• การทำความสะอาด: Keep the exterior of your vehicle's light lenses clean to ensure maximum light output.

8 การแก้ไขปัญหา

If your Philips 1157 lamp หากฟังก์ชันการทำงานไม่เป็นไปตามที่คาดหวัง โปรดพิจารณาสิ่งต่อไปนี้:

• หลอดไฟไม่สว่าง:
  • Ensure the bulb is correctly seated in the socket and twisted fully into place.
  • Check the vehicle's fuse box for a blown fuse related to the lighting circuit.
  • Verify that the bulb type (1157) is correct for the application.
  • Inspect the bulb's filaments for breakage.
• Bulb Flickering or Dim:
  • Check for loose connections in the bulb socket or wiring.
  • Inspect the socket for corrosion or damage.
  • Ensure the vehicle's electrical system is providing stable voltage.
• Short Bulb Lifespan:
  • Excessive vibration in the vehicle can reduce bulb life.
  • เล่มที่tage spikes or over-voltage in the vehicle's electrical system can cause premature failure.
  • Ensure the bulb was handled with a clean cloth or gloves during installation to avoid oil residue on the glass.

9. การรับประกันและการสนับสนุน

For warranty information or technical support regarding your Philips 1157 Automotive Lamp, please refer to the official Philips Automotive webหรือติดต่อฝ่ายบริการลูกค้าของ Philips โดยตรง โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ

คุณสามารถหาข้อมูลเพิ่มเติมและรายละเอียดการติดต่อได้ที่ ร้านค้า Philips บน Amazon.
