Masterplug IP54 Weatherproof Enclosure Box

การแนะนำ

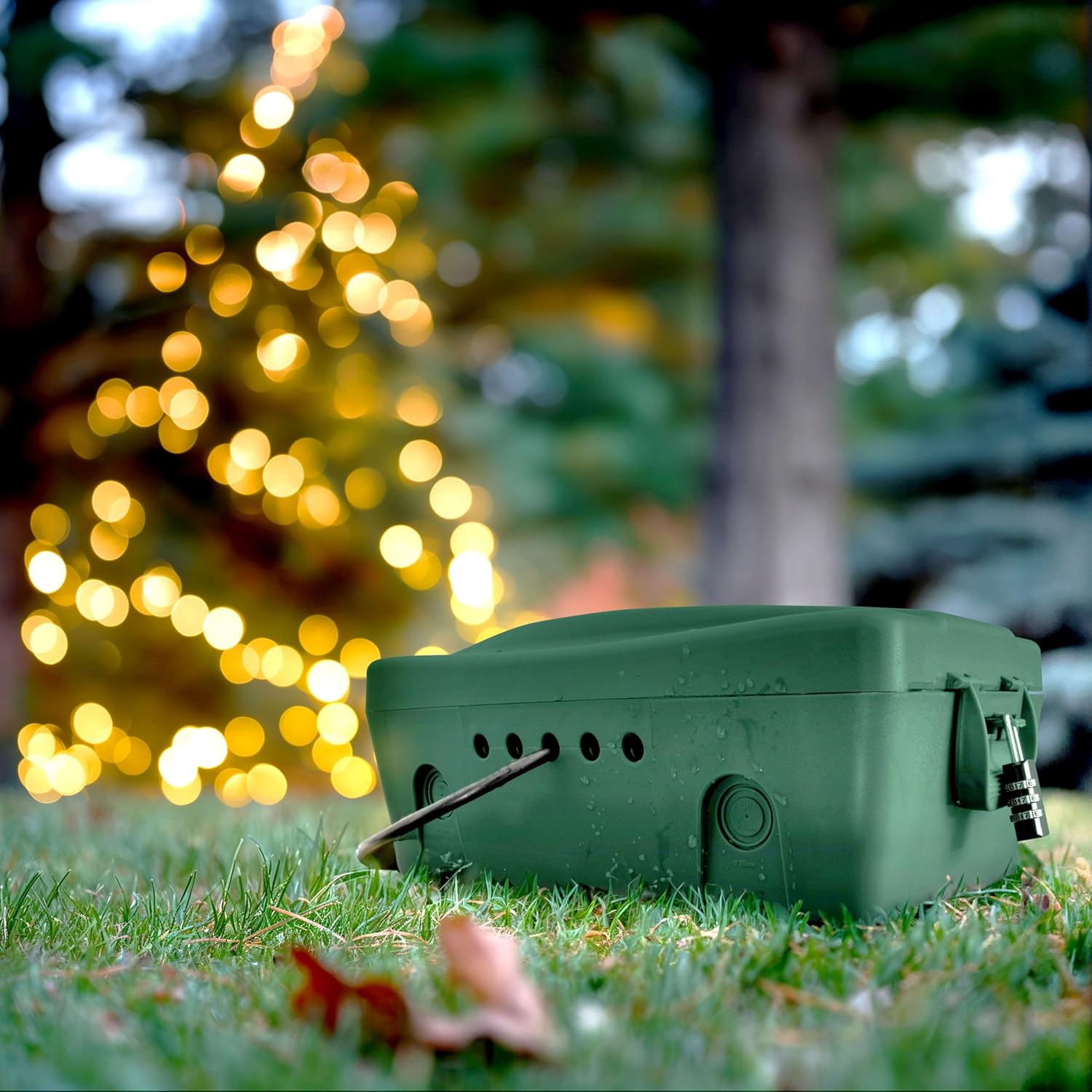

The Masterplug IP54 Weatherproof Enclosure Box is designed to provide a safe and secure housing for outdoor electrical connections. Its robust construction and IP54 rating protect against dust and water ingress, making it ideal for use with extension leads, bulky adaptors, transformers, and timers in various outdoor environments, such as gardening, DIY tasks, or temporary outdoor lighting.

ข้อมูลด้านความปลอดภัย

• Always read and understand these instructions before installing or using the enclosure box.
• Ensure all electrical connections inside the box are secure and dry before closing the lid.
• Do not submerge the enclosure box in water. It is designed for protection against splashes and dust, not immersion.
• Properly route all cables through the designated outlets to maintain the IP54 weather resistance. Do not force cables or create gaps.
• Always disconnect power from the electrical connections before opening the enclosure box for any reason, including maintenance or adjustments.
• Regularly inspect the enclosure box for any signs of damage, cracks, or wear. Discontinue use if damage is found.
• เก็บให้พ้นจากมือเด็ก

สินค้าเกินview

The Masterplug IP54 Weatherproof Enclosure Box offers a reliable solution for protecting outdoor electrical connections. Key features include:

• ระดับ IP54: Provides protection against dust and water splashes from any direction.

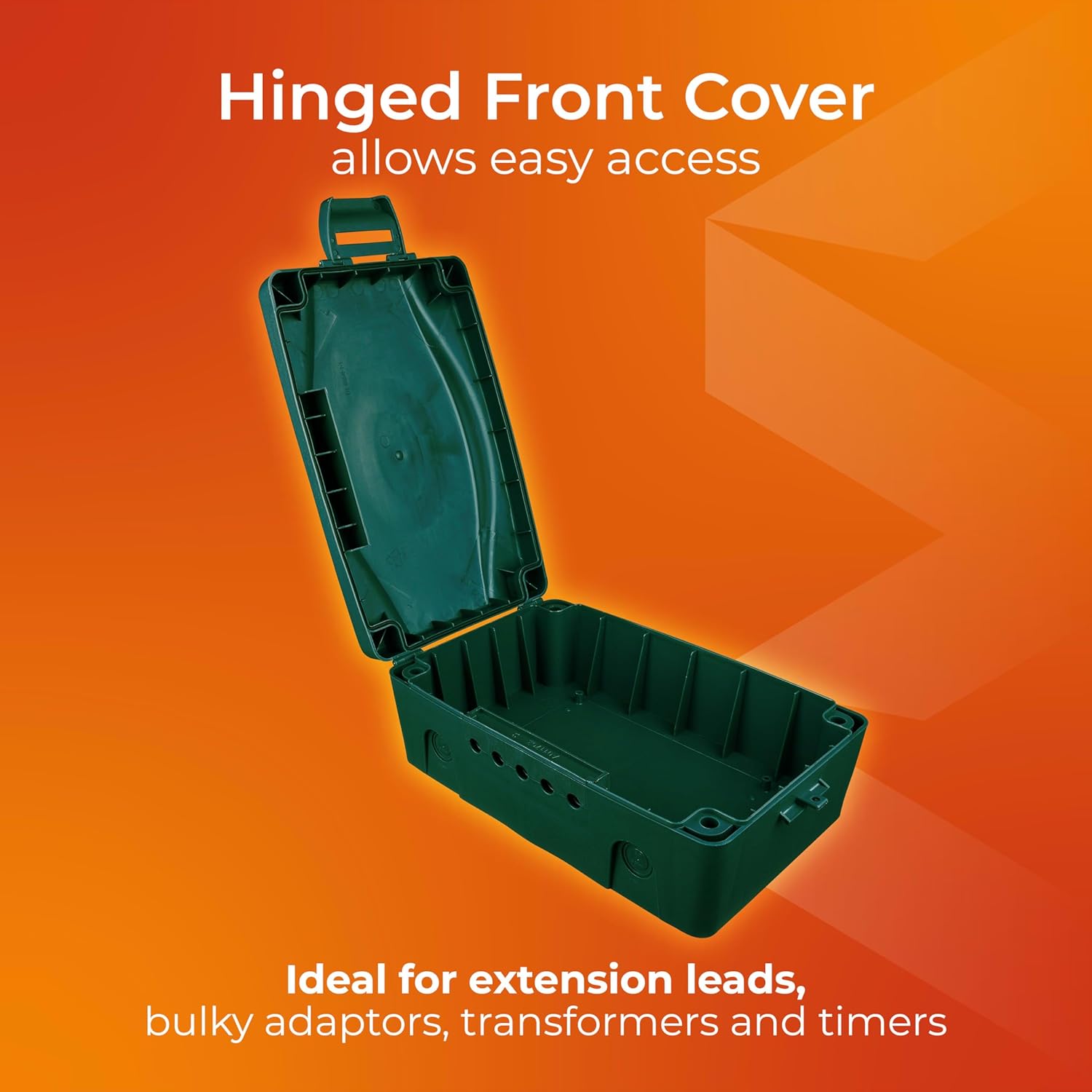

• ฝาหน้าแบบบานพับ: Allows for easy access to internal connections.
• Secure Side Catch: Ensures the lid is firmly closed and sealed.
• Wall-Fixing Capability: Can be securely mounted to a wall for a permanent solution.
• Internal Cable Management: Includes a hook and fastener strip to secure extension leads and prevent strain.

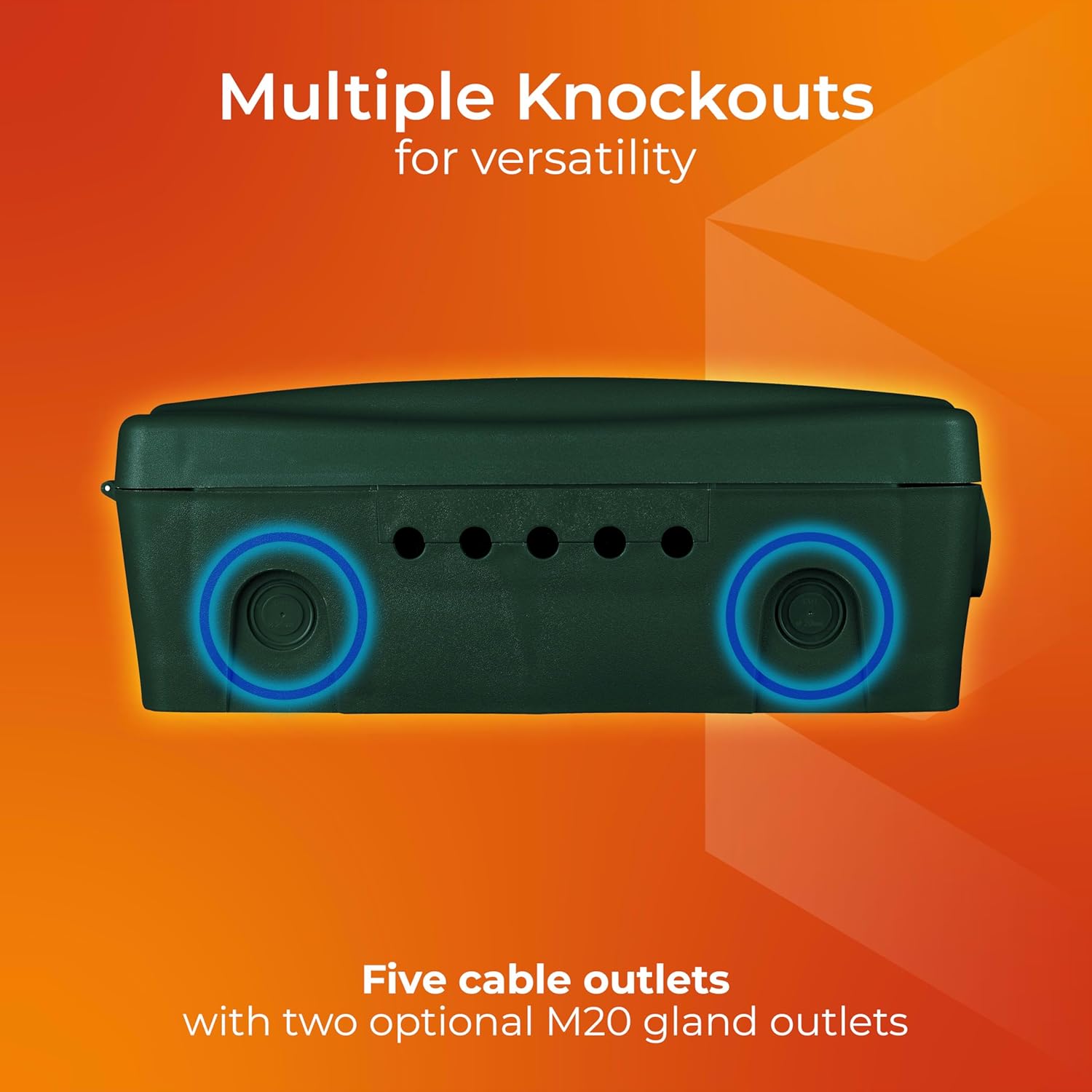

• Multiple Cable Outlets: Features five standard cable outlets and two optional M20 gland points for versatile cable entry and exit.

การติดตั้งและการตั้งค่า

1. การแกะกล่อง: Carefully remove the enclosure box from its packaging. Inspect for any damage that may have occurred during transit.
2. การจัดวาง: Choose a suitable location for the enclosure box. It can be placed on a flat, stable surface or wall-mounted. Ensure the location is easily accessible but protected from direct, prolonged heavy rain if possible.
3. การติดตั้งบนผนัง (อุปกรณ์เสริม):
   • Identify the mounting points on the back of the enclosure.
   • ทำเครื่องหมายตำแหน่งที่ต้องการเจาะบนผนัง
   • Drill holes using an appropriate drill bit for your wall material.
   • Secure the enclosure to the wall using suitable screws and wall plugs (not supplied). Ensure it is firmly attached.



4. รายการเคเบิล:
   • Open the hinged front cover of the enclosure.
   • Route your electrical cables (e.g., extension leads, power cords for outdoor appliances) through the designated cable outlets. The enclosure has five standard outlets.
   • For additional or specific cable entry/exit, two optional M20 gland points are available. Remove the knockouts and install M20 glands (not supplied) as needed.



5. การเชื่อมต่อภายใน:
   • Connect your electrical devices or extension leads inside the box.
   • Utilize the internal hook and fastener strip to secure extension leads, preventing them from moving and reducing strain on connections.



6. การปิดล้อม:
   • Ensure all cables are properly seated within the outlets and are not pinched by the lid or seals.
   • Close the hinged front cover firmly.
   • Engage the secure side catch to ensure the lid is fully sealed and the IP54 rating is maintained.



คำแนะนำการใช้งาน

Once the Masterplug IP54 Weatherproof Enclosure Box is properly installed and all electrical connections are made and secured inside, it is ready for use:

• Connect your main power source to the extension lead or device housed within the enclosure.
• Connect your outdoor appliances (e.g., lawnmowers, strimmers, outdoor lighting, power tools) to the outlets provided by the internal extension lead.
• Always ensure the enclosure box remains closed and the side catch is firmly secured during operation to maintain its weather-resistant properties.
• Avoid opening the box during wet weather conditions to prevent water ingress.

การซ่อมบำรุง

To ensure the longevity and continued performance of your Masterplug IP54 Weatherproof Enclosure Box, follow these maintenance guidelines:

• การตรวจสอบปกติ: Periodically check the entire enclosure for any signs of physical damage, such as cracks, dents, or discoloration.
• ความสมบูรณ์ของซีล: Inspect the rubber seals around the lid and cable outlets. Ensure they are clean, intact, and free from debris that could compromise the weather seal.
• การทำความสะอาด: Clean the exterior of the enclosure with a damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the material and seals.
• ตรวจสอบสายเคเบิล: While power is disconnected, inspect all cables entering and exiting the box for any signs of damage, fraying, or exposed wires. Replace damaged cables immediately.

การแก้ไขปัญหา

If you encounter issues with your Masterplug IP54 Weatherproof Enclosure Box, consider the following:

• น้ำเข้า: If water is found inside the enclosure, immediately disconnect power to all internal connections. Check the following:
  • Ensure the lid is fully closed and the side catch is securely fastened.
  • Verify that all cable outlets are properly sealed around the cables and that no gaps exist.
  • Inspect the enclosure body and seals for any damage or cracks.
• ปัญหาในการปิดฝา: Ensure that no cables or internal components are obstructing the lid or the rubber seals. Rearrange cables if necessary.
• Loose Wall Mounting: If the enclosure feels loose when wall-mounted, disconnect power, open the box, and carefully re-tighten the mounting screws. If necessary, use more appropriate or robust fixings for your wall material.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

This Masterplug product is manufactured to high standards and is designed for reliable performance. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For further assistance, technical support, or to inquire about warranty information, please refer to the Masterplug official website or contact their customer service department using the contact information provided with your purchase or on the manufacturer's webเว็บไซต์.
