SKYRC 15V 4A 60W Power Supply Adapter Instruction Manual

1. บทนำ

This manual provides essential information for the safe and efficient use of your SKYRC 15V 4A 60W Power Supply Adapter. This power supply is designed to provide stable DC power for compatible devices, such as the SKYRC IMAX B6 and Mini B6 Balance Chargers. Please read this manual thoroughly before use and retain it for future reference.

2. คำแนะนำด้านความปลอดภัย

• This power supply is intended for indoor use only. Do not expose it to rain, moisture, or extreme temperatures.
• ตรวจสอบให้แน่ใจปริมาณอินพุตtage matches the specifications on the adapter label before connecting to a power outlet.
• Do not operate the power supply if the cables are damaged or if the unit shows any signs of malfunction.
• Keep the power supply away from flammable materials and ensure adequate ventilation during operation.
• Disconnect the power supply from the wall outlet when not in use or during electrical storms.
• Do not attempt to open or modify the power supply. Refer all servicing to qualified personnel.

3. สินค้าหมดview

Familiarize yourself with the components of your SKYRC Power Supply Adapter.

รูปที่ 1 : ด้านหน้า view of the SKYRC 15V 4A 60W Power Supply Adapter, showing the AC input port and the attached DC output cable.

รูปที่ 2: รายละเอียด view of the product label, indicating input (100-240V~50/60Hz 1.5A) and output (15V===4A) specifications, along with safety warnings and certifications (FC, CE).

4. การตั้งค่าและการเชื่อมต่อ

ทำตามขั้นตอนเหล่านี้เพื่อติดตั้งแหล่งจ่ายไฟอย่างถูกต้อง:

1. แกะ: ถอดแหล่งจ่ายไฟและอุปกรณ์เสริมทั้งหมดออกจากบรรจุภัณฑ์อย่างระมัดระวัง
2. Connect AC Power Cord: Insert the AC power cord into the input port of the power supply. Ensure it is firmly seated.
3. Connect DC Output: Connect the DC output plug of the power supply to the DC input port of your compatible device, such as a SKYRC IMAX B6 or Mini B6 Balance Charger.
4. เสียบเข้ากับเต้ารับบนผนัง: Plug the AC power cord into a suitable wall outlet. The power supply is now ready for use.

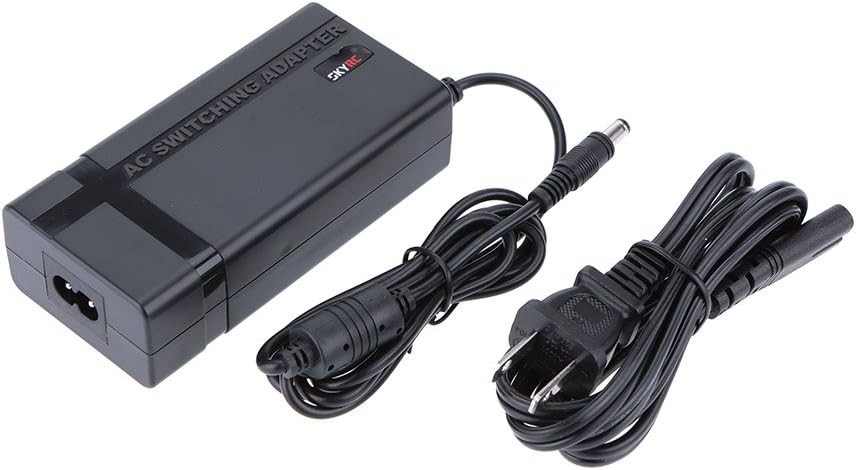

Figure 3: The SKYRC Power Supply Adapter shown with its detachable AC power cord, ready for connection.

5. คู่มือการใช้งาน

Once connected, the power supply is ready to deliver power. Ensure your connected device (e.g., balance charger) is compatible with the output specifications of this power supply.

• ตรวจสอบความเข้ากันได้: Always confirm that your device's power requirements (voltagอีและ amperage) match the output of this power supply (15V, 4A).
• เปิดเครื่อง: Turn on your connected device (e.g., balance charger) according to its own instruction manual. The power supply will provide the necessary power.
• ตรวจสอบการทำงาน: Observe your device during operation to ensure stable power delivery.
• Disconnect When Not In Use: For safety and energy conservation, disconnect the power supply from the wall outlet when not in use for extended periods.

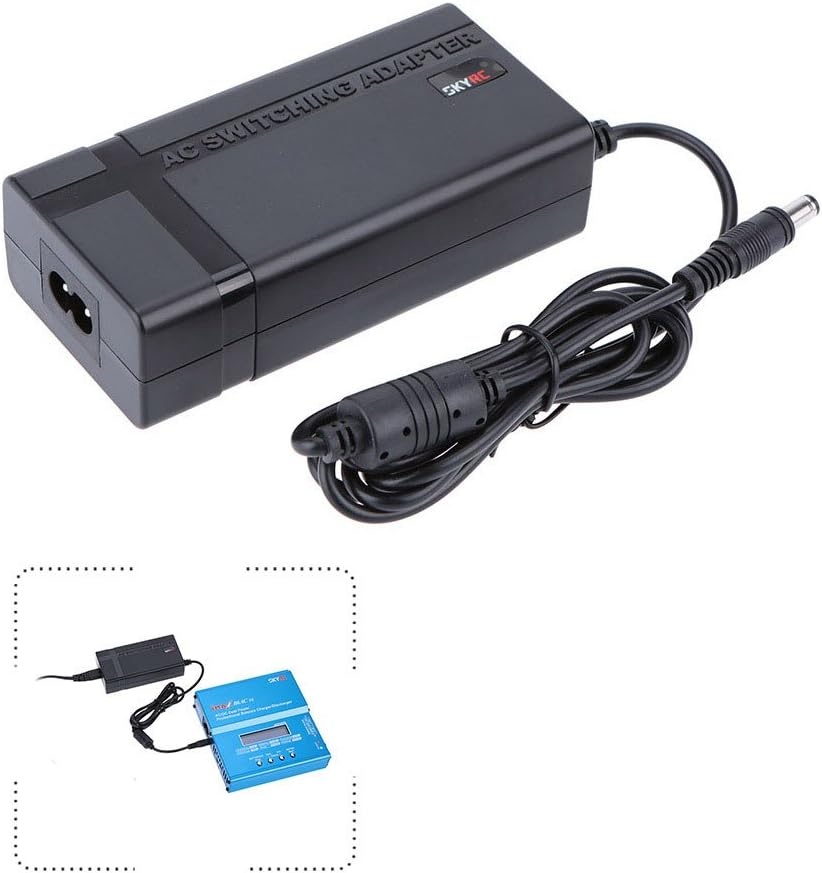

Figure 4: Illustration showing the SKYRC Power Supply Adapter connected to a compatible SKYRC IMAX B6 Mini Balance Charger, demonstrating typical usage.

6. การบำรุงรักษา

Proper maintenance ensures the longevity and reliable performance of your power supply:

• การทำความสะอาด: Use a soft, dry cloth to clean the exterior of the power supply. Do not use liquid cleaners or solvents.
• สิ่งแวดล้อม: Keep the power supply in a clean, dry environment, free from dust and moisture. Avoid extreme temperatures.
• การตรวจสอบสายเคเบิล: Regularly inspect the AC and DC cables for any signs of damage, fraying, or exposed wires. Replace immediately if damage is found.
• พื้นที่จัดเก็บ: When not in use, store the power supply in a cool, dry place.

7 การแก้ไขปัญหา

If you encounter issues with your power supply, refer to the following table for common problems and solutions:

8. ข้อมูลจำเพาะทางเทคนิค

9. การรับประกันและการสนับสนุน

For warranty information or technical support regarding your SKYRC 15V 4A 60W Power Supply Adapter, please refer to the official SKYRC website or contact your authorized dealer. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.
