คู่มือการใช้งานสายไฟประตูโรงรถอเนกประสงค์ Genie รุ่น 35265B

การแนะนำ

This manual provides instructions for the installation and use of the Genie Universal Garage Door Wire 35265B. This 2-conductor bell wire is designed for connecting garage door control stations and safety sensors. Please read these instructions carefully before proceeding with installation or repair.

สินค้าเกินview

The Genie Universal Garage Door Wire 35265B is a 90-foot spool of 2-conductor wire. It is suitable for both new installations and for repairing existing damaged wiring for garage door wall buttons or safety sensors. The wire features a durable, insulated design and is universally compatible with most garage door openers.

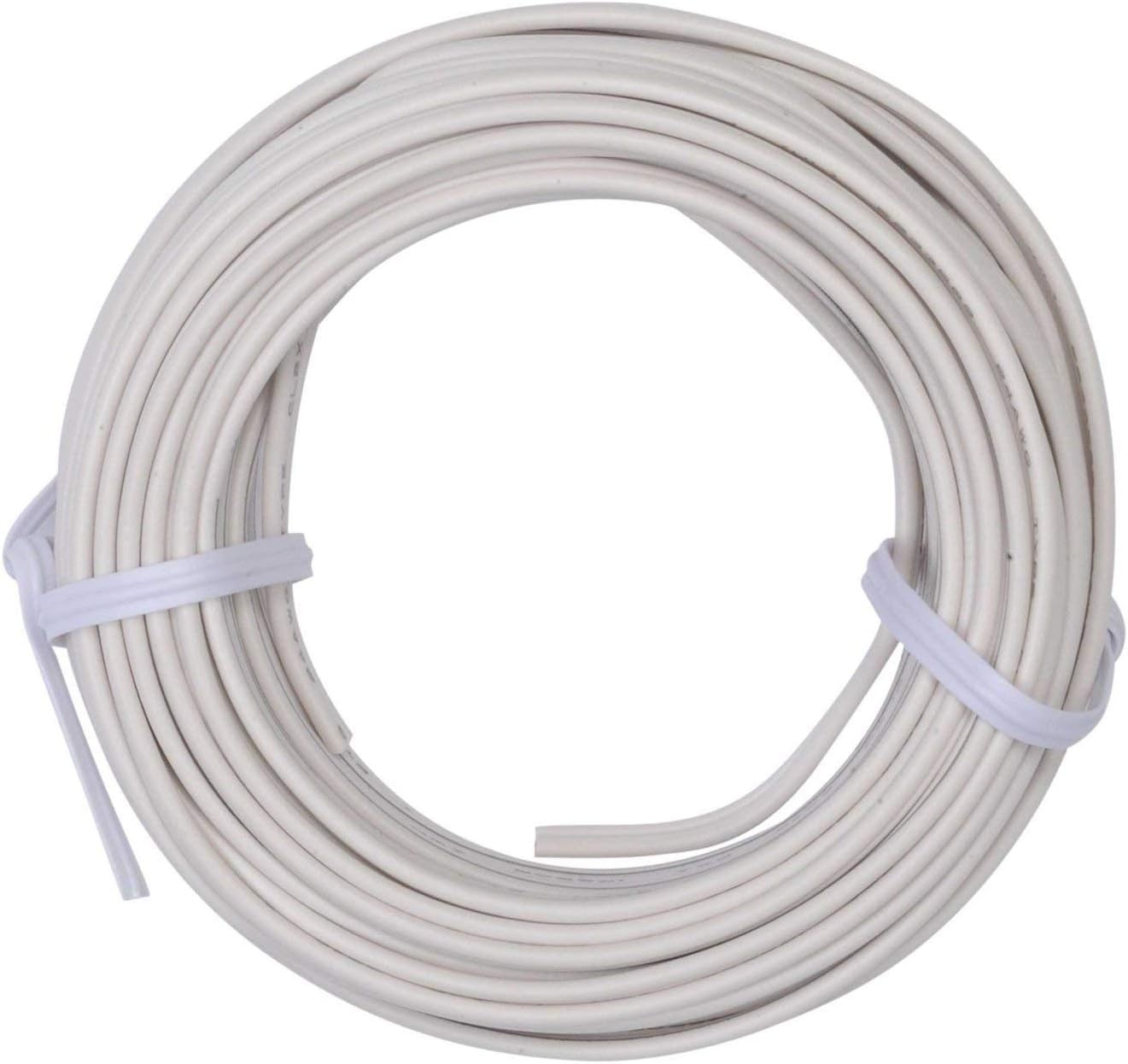

Image: A spool of Genie Universal Garage Door Wire 35265B. This wire is designed for connecting garage door sensors and control stations.

การติดตั้งและการตั้งค่า

This wire can be used to replace damaged wiring or for new installations of garage door safety sensors or wall control buttons. The two conductors of the wire can be easily split apart at the ends to expose individual wires for connection to positive and negative terminals.

1. การตระเตรียม: Ensure the power to the garage door opener is disconnected before beginning any wiring work.
2. วัดและตัด: Measure the required length of wire from the garage door opener to the sensor or wall button location. Cut the wire to the appropriate length.
3. Separate Conductors: Carefully separate approximately 1/2 inch to 1 inch of the wire ends to expose individual conductors.
4. ฉนวนแบบแถบ: Gently strip a small amount of insulation (approximately 1/4 inch) from the end of each individual conductor to expose the copper wire.
5. เชื่อมต่อกับอุปกรณ์: Connect one stripped wire to the positive terminal and the other to the negative terminal of the garage door sensor or wall button. Ensure a secure connection.
6. เชื่อมต่อกับตัวเปิด: Route the wire back to the garage door opener and connect the corresponding wires to the appropriate terminals on the opener. Refer to your garage door opener's manual for specific terminal identification.
7. การเดินสายไฟที่ปลอดภัย: Use appropriate wire staples or clips to secure the wire along walls and ceilings, preventing it from being snagged or damaged.
8. ระบบทดสอบ: Once all connections are made and secured, restore power to the garage door opener and test the functionality of the sensors and/or wall button.

คำแนะนำการใช้งาน

The Genie Universal Garage Door Wire 35265B functions as a conduit for electrical signals between your garage door opener and its peripheral devices, such as safety sensors and wall control buttons. Once correctly installed, it facilitates the proper operation of these components, ensuring safety and convenience. No direct operation of the wire itself is required; its function is passive, transmitting signals as part of the overall garage door system.

การซ่อมบำรุง

Regular inspection of the wire is recommended to ensure its longevity and proper function. Check for any signs of wear, fraying, cuts, or damage to the insulation. Ensure that the wire remains securely fastened and is not pinched or exposed to excessive tension. If any damage is observed, replace the affected section of wire promptly to maintain system integrity and safety.

การแก้ไขปัญหา

• Sensors Not Functioning: Check for loose connections at both the sensor and opener terminals. Inspect the entire length of the wire for cuts or damage. Ensure the wire is correctly connected to the positive and negative terminals.
• Wall Button Not Responding: Verify secure connections at the wall button and opener. Examine the wire for any visible damage.
• การทำงานเป็นระยะ: This could indicate a loose connection or a partially damaged wire. Systematically check all connections and the wire's condition.

If issues persist after checking connections and wire integrity, consult your garage door opener's specific troubleshooting guide or contact a qualified technician.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For specific warranty information regarding your Genie Universal Garage Door Wire 35265B, please refer to the documentation provided with your original purchase or contact Genie customer support directly. General product support and technical assistance may also be available through the manufacturer's official channels.
