SHIMANO Deore XT BR-M8000 Hydraulic Disc Brake Caliper

การแนะนำ

This manual provides essential information for the proper installation, operation, and maintenance of your SHIMANO Deore XT BR-M8000 hydraulic disc brake caliper. The BR-M8000 caliper is designed to deliver reliable and consistent braking performance for mountain bikes. Please read these instructions thoroughly before attempting any installation or maintenance procedures.

หมายเหตุสำคัญ: This product includes only the brake caliper. Essential components such as the brake lever, brake hose, hydraulic mineral oil, and bleeding kit are sold separately and are required for a complete, functional brake system. A mount adapter may also be necessary depending on your bicycle frame, fork, and rotor size.

ข้อมูลด้านความปลอดภัย

• Always wear appropriate safety gear, including eye protection, when working on bicycle components.
• Bicycle brake systems are critical safety components. Incorrect installation or maintenance can lead to serious injury or death. If you are unsure about any procedure, consult a qualified bicycle mechanic.
• Use only genuine SHIMANO parts and recommended SHIMANO mineral oil for hydraulic brake systems. Using incompatible fluids or components can damage the brake system and void your warranty.
• Ensure all bolts are tightened to the manufacturer's specified torque values. Overtightening or undertightening can cause component failure.
• After installation, always test the brakes thoroughly in a safe environment before riding.

เนื้อหาแพ็คเกจ

The SHIMANO Deore XT BR-M8000 Hydraulic Disc Brake Caliper package typically includes the following items:

• SHIMANO Deore XT BR-M8000 Brake Caliper (Front)
• Brake Pad Fin
• Caliper Mounting Bolts
• คู่มือการใช้งาน (เอกสารนี้)

Items NOT Included (Sold Separately):

• SHIMANO Hydraulic Brake Lever
• SHIMANO Hydraulic Brake Hose (e.g., SM-BH90-SBM)
• SHIMANO Mineral Oil
• SHIMANO Bleeding Kit (e.g., TL-BT03-S or TL-BT03)
• จานเบรค
• Mount Adapter (if required for your frame/fork and rotor size)
• Necessary tools for installation and bleeding

การติดตั้งและการตั้งค่า

Proper installation is crucial for the safe and effective operation of your hydraulic disc brake caliper. It is highly recommended that installation be performed by a professional bicycle mechanic.

1. การติดตั้งคาลิเปอร์

Attach the BR-M8000 caliper to your bicycle's frame or fork using the provided mounting bolts. Ensure that the caliper is correctly oriented for your specific frame/fork and rotor size. If a mount adapter is required, install it according to its specific instructions before attaching the caliper.

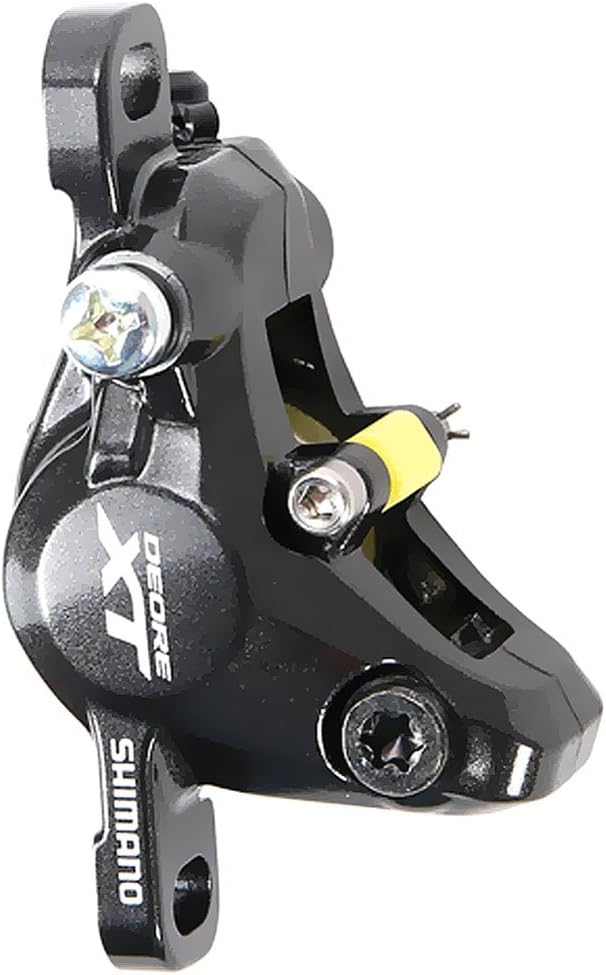

ภาพ: ด้านหน้า view of the SHIMANO Deore XT BR-M8000 hydraulic disc brake caliper, showing mounting points and pad retention pin.

2. Brake Hose Connection

Connect the hydraulic brake hose (sold separately) to the caliper. Follow the instructions provided with your specific brake hose and lever for proper cutting, fitting, and connection. Ensure all connections are secure and free from leaks.

3. Brake Bleeding

After connecting the brake hose, the hydraulic system must be properly bled to remove any air. Air in the system will result in a spongy lever feel and poor braking performance. Refer to the instructions provided with your SHIMANO bleeding kit (sold separately) for the correct bleeding procedure. Use only SHIMANO mineral oil.

4. Pad Installation and Rotor Alignment

Install the brake pads into the caliper. Ensure the pads are correctly seated and secured with the retention pin. Mount the brake rotor (sold separately) to your wheel. Align the caliper so that the brake pads are centered over the rotor and do not rub when the brake is not applied. This typically involves loosening the caliper mounting bolts slightly, squeezing the brake lever to center the caliper, and then retightening the bolts.

Image: An assembled SHIMANO Deore XT hydraulic brake system, showing the caliper and lever. Note that the lever is not included with this caliper product.

คำแนะนำการใช้งาน

ระยะเวลาเบรกอิน

New brake pads and rotors require a break-in period to achieve optimal braking performance. During this period, perform approximately 20-30 moderate stops from a moderate speed (e.g., 20 km/h) without coming to a complete stop. This process helps to bed the pads to the rotor surface, improving friction and reducing noise. Avoid hard braking during the initial break-in.

Braking Technique

Apply brake pressure smoothly and progressively. Hydraulic disc brakes offer significant stopping power, so familiarize yourself with their feel in a safe, controlled environment. Avoid sudden, harsh braking unless in an emergency.

การซ่อมบำรุง

Regular maintenance ensures the longevity and performance of your SHIMANO Deore XT BR-M8000 hydraulic disc brake caliper.

• การทำความสะอาด: Keep the caliper, pads, and rotor clean. Use a clean cloth and isopropyl alcohol to clean rotors. Avoid getting oil or grease on brake components.
• การตรวจสอบแผ่นรอง: Regularly inspect brake pads for wear. Replace pads when the friction material is worn down to 0.5mm or less, or if they become contaminated with oil or grease.
• Rotor Inspection: Check the brake rotor for wear, damage, or excessive heat discoloration. Replace if necessary.
• Fluid Level and Bleeding: Periodically check the hydraulic fluid level in the reservoir (part of the brake lever, sold separately). If the lever feels spongy or inconsistent, the system may need to be bled to remove air.
• แรงบิดของสลักเกลียว: Periodically check the torque of all mounting bolts to ensure they are secure.

ภาพ: ด้านข้าง view of the SHIMANO Deore XT BR-M8000 hydraulic disc brake caliper, highlighting its compact design and finned pads.

การแก้ไขปัญหา

Below are common issues and potential solutions for your hydraulic disc brake caliper. For complex problems, consult a qualified bicycle mechanic.

• Spongy Brake Lever:
  สาเหตุ: อากาศในระบบไฮดรอลิกส์
  สารละลาย: Bleed the brake system thoroughly using a SHIMANO bleeding kit and mineral oil.
• Poor Braking Power:
  สาเหตุ: Worn brake pads, contaminated pads/rotor, air in system, improper break-in.
  สารละลาย: Inspect and replace worn or contaminated pads. Clean rotor with isopropyl alcohol. Bleed the system. Ensure proper pad break-in.
• เสียงเบรก (เสียงดังเอี๊ยดอ๊าด/บด):
  สาเหตุ: Contaminated pads/rotor, misaligned caliper, worn pads, loose bolts.
  สารละลาย: Clean or replace contaminated pads/rotor. Realign caliper. Replace worn pads. Check all bolt torques.
• Rotor Rubbing:
  สาเหตุ: Misaligned caliper, bent rotor, sticky piston.
  สารละลาย: Realign caliper. Inspect rotor for trueness; true or replace if bent. If a piston is sticky, it may require professional servicing.

ข้อมูลจำเพาะ

ข้อมูลการรับประกัน

For detailed warranty terms and conditions, please refer to the official SHIMANO website or consult your authorized SHIMANO retailer. Keep your proof of purchase for any warranty claims.
