1. บทนำ
This manual provides essential information for the proper setup, operation, and maintenance of your Detecto BT-1818 Ball Top Transfer Platform. Please read this manual thoroughly before using the product to ensure safe and efficient operation.
2. สินค้าหมดview
The Detecto BT-1818 is a robust ball top transfer platform designed for industrial and scientific applications, particularly for use with point-of-sale (POS) systems or personal computers requiring weight data. Its design facilitates easy movement of items across its surface.
คุณสมบัติหลัก:
- ขนาดแพลตฟอร์ม: 18 inches x 18 inches (46 cm x 46 cm).
- การก่อสร้าง: Durable brushed stainless steel for easy cleaning and longevity.
- การเชื่อมต่อ: Equipped with one USB-B port and three RS-232 serial ports for versatile integration.
- การปรับระดับ: Features adjustable leveling feet and a bubble level for precise installation.
- ความปลอดภัย: Includes overload stops to protect the internal components.
- ใบรับรอง: NTEP legal-for-trade certification for accuracy in commercial applications.

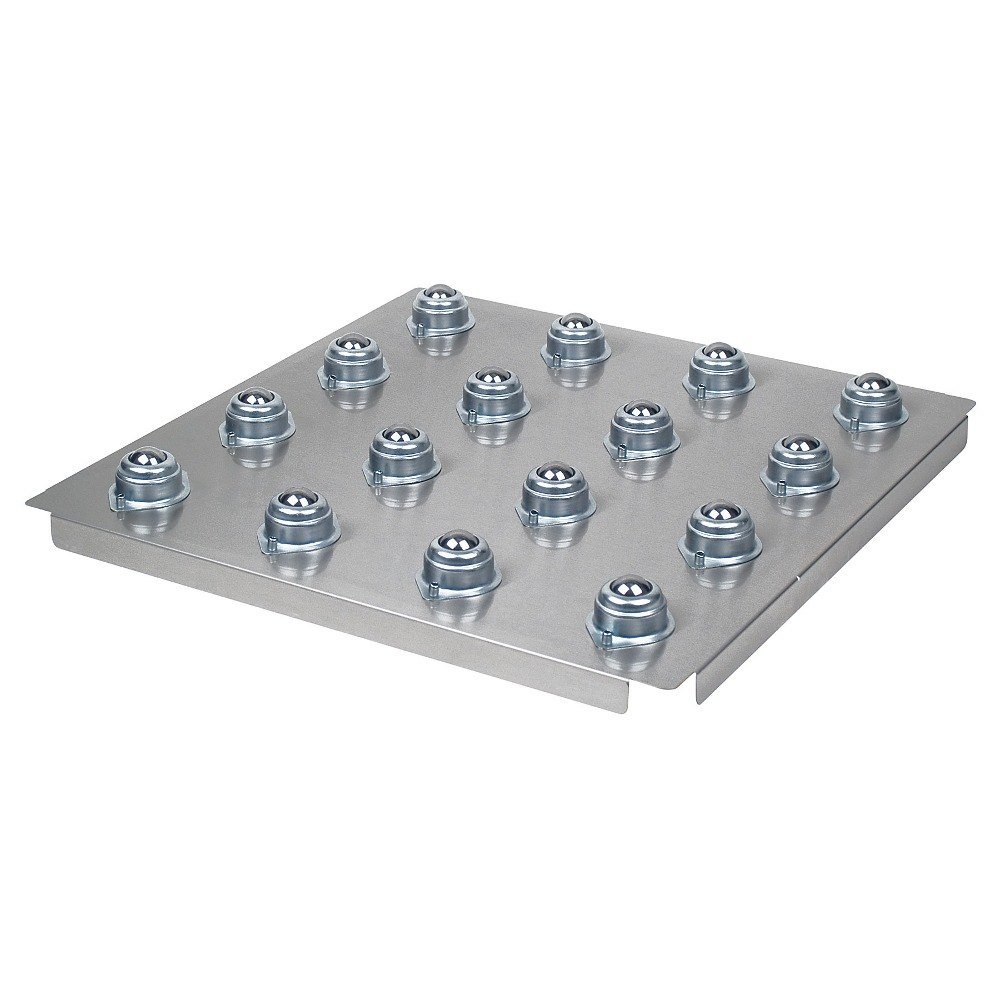

Figure 2.1: The Detecto BT-1818 Ball Top Transfer Platform. This image displays the square stainless steel platform with multiple ball transfer units evenly distributed across its surface, designed for smooth item movement.
3. การตั้งค่าและการติดตั้ง
- การแกะกล่อง: Carefully remove the platform from its packaging. Inspect for any signs of damage during transit.
- การจัดวาง: Place the platform on a stable, flat, and level surface. Ensure there is adequate space around the unit for operation and maintenance.
- การปรับระดับ: Use the adjustable leveling feet located on the underside of the platform to ensure it is perfectly level. Refer to the integrated bubble level for accuracy. A level platform is crucial for proper function and accurate data transfer.
- การเชื่อมต่อ:
- Connect the platform to your point-of-sale (POS) system or personal computer using a compatible USB-B cable or one of the three RS-232 serial cables.
- ตรวจสอบให้แน่ใจว่าการเชื่อมต่อทั้งหมดมีความปลอดภัย
- พลังงาน (ถ้ามี): While this model is primarily a transfer platform, if it is connected to a scale system, ensure the scale system is properly powered according to its own manual.
4. คู่มือการใช้งาน
The BT-1818 platform is designed to facilitate the movement of items. Its primary function is to provide a stable, low-friction surface for transferring goods, especially when integrated with a weighing system.
- การจัดวางรายการ: Gently place the item to be moved or weighed onto the center of the ball top platform.
- ความเคลื่อนไหว: The ball transfer units allow for omnidirectional movement of the item with minimal effort. Guide the item smoothly across the platform as needed.
- Integration with Weighing Systems: When used with a compatible Detecto Enterprise APS series scale or other weighing device, the platform acts as the surface upon which items are placed for weighing. The weight data will be transmitted via the connected USB or RS-232 ports to your POS system or PC. Refer to your specific scale's manual for software and data integration procedures.
- ระบบป้องกันการโอเวอร์โหลด: The platform is equipped with overload stops. Avoid placing items exceeding the maximum rated capacity of the integrated scale system to prevent damage.
5. การบำรุงรักษาและการดูแล
Regular maintenance ensures the longevity and optimal performance of your Detecto BT-1818 platform.
- การทำความสะอาด: The brushed stainless steel platform can be cleaned with a damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Ensure the platform is dry before reuse.
- Ball Transfer Units: Periodically inspect the ball transfer units for any debris or obstructions that might hinder smooth movement. Clean as necessary.
- การปรับระดับ: Recheck the platform's level periodically, especially if it has been moved or if the surface it rests on is prone to shifting.
- พื้นที่จัดเก็บ: When not in use for extended periods, store the platform in a clean, dry environment away from extreme temperatures and humidity.
6 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Item not moving smoothly | Debris in ball units; damaged ball unit; uneven surface. | Clean ball units; inspect for damage (contact support if damaged); re-level the platform. |
| No data transfer to PC/POS (if integrated with scale) | Loose cable connection; incorrect port selection; software issue on PC/POS. | Check USB/RS-232 cable connections; verify correct port is selected in software; consult scale/POS system manual for software troubleshooting. |
| Platform appears unstable | Uneven surface; leveling feet not properly adjusted. | Ensure platform is on a stable surface; adjust leveling feet using the bubble level. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Detecto customer support.
7. ข้อมูลจำเพาะ
| คุณลักษณะ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | BT-1818 |
| ยี่ห้อ | ตรวจจับ |
| ขนาดสินค้า | 22 x 20 x 6 นิ้ว (55.88 x 50.8 x 15.24 ซม.) |
| น้ำหนักสินค้า | 12 ปอนด์ (5.44 กก.) |
| วัสดุ | สแตนเลส |
| ขนาดจาน | 18 นิ้ว x 18 นิ้ว (45.72 ซม. x 45.72 ซม.) |
| พอร์ตเชื่อมต่อ | 1 x USB-B, 3 x RS-232 Serial |
| วันที่พร้อมใช้งานครั้งแรก | 23 เมษายน 2010 |
8. การรับประกันและการสนับสนุน
For information regarding product warranty, technical support, or service, please contact Detecto directly. Their official website or the product packaging should provide the most current contact details and warranty terms.
Note: This manual provides general guidance. Specific warranty terms and support procedures may vary.
