APS Class 3 Tow Trailer Hitch User Manual

1. บทนำ

This manual provides essential information for the installation, operation, and maintenance of your APS Class 3 Tow Trailer Hitch. Designed for compatibility with 2003-2019 Dodge Ram 1500, 2500, and 3500 models, this hitch offers reliable towing capabilities. It features a 2-inch receiver tube and is constructed from heavy-duty carbon steel with a durable black powder coat finish for enhanced rust resistance and longevity. Please read this manual thoroughly before installation and use to ensure safe and proper operation.

Image: The APS Class 3 Tow Trailer Hitch, a robust black steel component, shown with its square receiver opening and a separate black rubber receiver cover.

2. ข้อมูลด้านความปลอดภัย

Your safety and the safety of others are paramount. Adhere to all safety guidelines to prevent injury or damage.

• พิกัดน้ำหนักของยานพาหนะ: Never exceed your vehicle's maximum weight rating or the hitch's stated capacity, whichever is lower. Refer to your vehicle's owner's manual for specific towing capacities.
• การปฏิบัติตามมาตรฐาน: This hitch is tested for safety in accordance with SAE J684 and exceeds V5 Standards. Ensure all components are installed correctly to maintain these safety ratings.
• การติดตั้งที่ปลอดภัย: Ensure all mounting hardware is properly tightened before each use. Regularly inspect bolts for tightness and the hitch for any signs of wear or damage.
• แนะนำการติดตั้งอย่างมืออาชีพ: While designed for easy bolt-on installation, if you are unsure about any step, seek professional assistance.
• การตรวจสอบปกติ: Before each towing operation, inspect the hitch, trailer coupler, safety chains, and electrical connections for proper function and secure attachment.
• ฝาครอบหัวลาก: Use the included hitch cover when the receiver is not in use to protect it from debris and corrosion.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าส่วนประกอบทั้งหมดที่ระบุไว้ด้านล่างมีอยู่ในแพ็คเกจของคุณ:

• Class 3 Trailer Hitch (1 unit)
• All Necessary Mounting Hardware (bolts, washers, nuts as required)
• Trailer Hitch Rubber Cover (1 unit)
• DIY Instruction (This Manual)

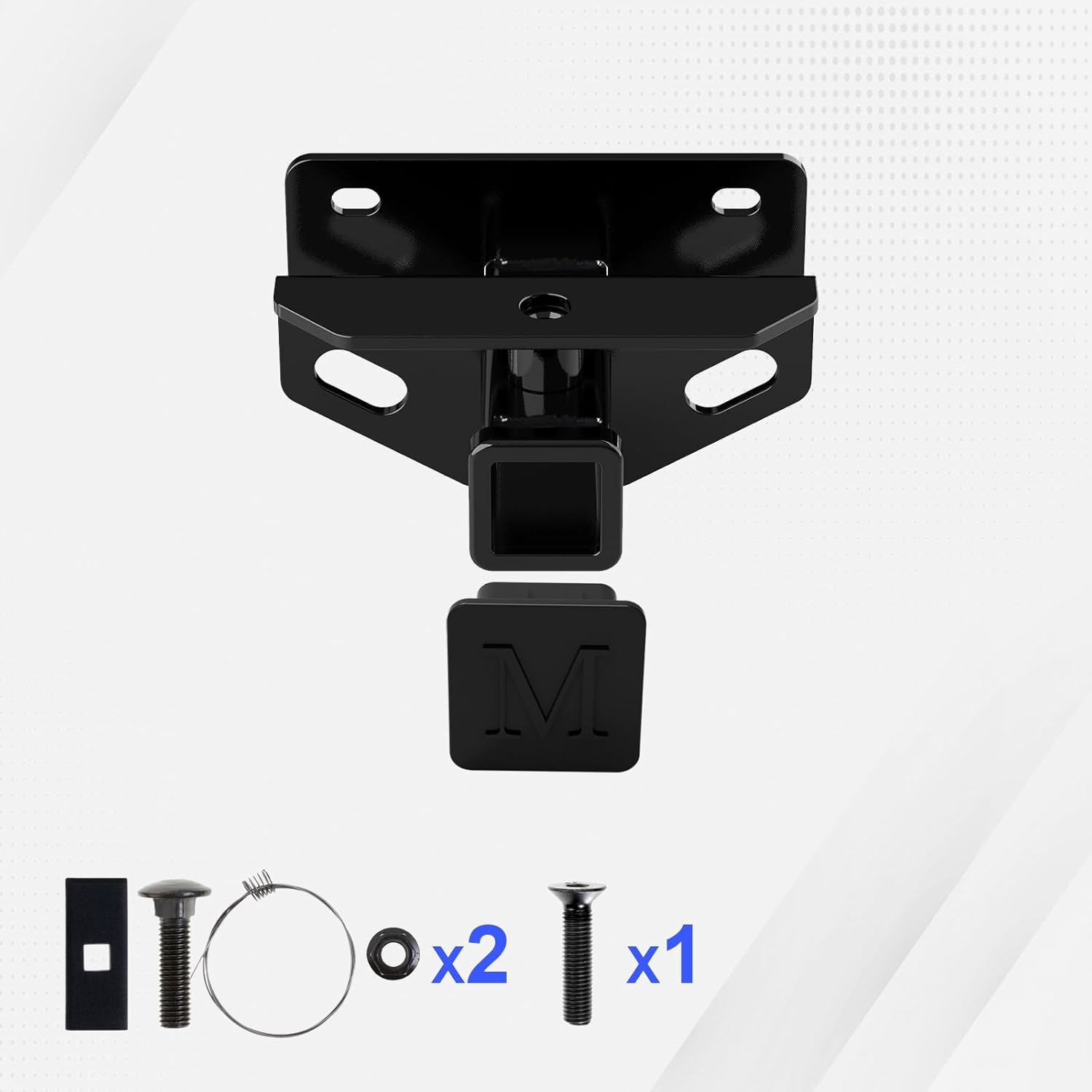

ภาพ: เหนือศีรษะ view showing the main hitch component, the rubber receiver cover, two large bolts, and one smaller pin/screw, representing the typical package contents.

4. การตั้งค่าและการติดตั้ง

The APS Class 3 Tow Trailer Hitch is designed for easy bolt-on installation with no drilling required for compatible vehicles. Follow these general steps:

1. เตรียมยานพาหนะ: Park your vehicle on a level surface and engage the parking brake. For easier access, you may consider lowering the spare tire, though it may not be strictly necessary.
2. ระบุตำแหน่งจุดติดตั้ง: Identify the existing mounting holes on your vehicle's frame. These are typically located at the rear of the vehicle, near the bumper.
3. ตำแหน่งการต่อพ่วง: Carefully lift the hitch into position, aligning the holes on the hitch with the mounting holes on the vehicle's frame. It may be helpful to have a second person assist with this step.
4. ติดตั้งฮาร์ดแวร์: Insert the provided bolts through the aligned holes. Secure them with washers and nuts as per the hardware diagram (refer to included DIY instruction sheet for specific hardware placement).
5. ขันสลักเกลียวให้แน่น: Hand-tighten all bolts first to ensure proper alignment. Once all bolts are in place, progressively tighten them using appropriate tools. Refer to your vehicle's service manual or a professional for recommended torque specifications for hitch mounting bolts. Ensure all bolts are securely fastened.
6. การตรวจสอบขั้นสุดท้าย: Double-check all connections and ensure the hitch is securely mounted and stable.

ภาพ: ด้านหลัง view of a truck showing the APS Class 3 Trailer Hitch installed below the bumper, highlighting its 2-inch receiver opening and robust construction.

Image: A diagram illustrating the features of the hitch, including robotically welded joints, dual-stage black powder coating, and its compliance with SAE J684 standards for safety.

ภาพ: ภาพระยะใกล้ view of the hitch being manufactured using an automatic robot welding process, emphasizing solid one-piece welded design and durable steel construction.

5. คู่มือการใช้งาน

Your APS Class 3 Tow Trailer Hitch is designed for versatile use with various towing and carrying applications:

• การลากรถพ่วง: Compatible with a wide range of trailers including utility trailers, boat trailers, and camp trailers. Ensure your trailer's coupler is compatible with a 2-inch receiver.
• ระบบกระจายน้ำหนัก: Can be used with weight distribution hitches to distribute trailer tongue weight more evenly across vehicle axles, improving stability and handling.
• Trailer Hitch Ball Mounts: Attach a suitable trailer hitch ball mount with the correct ball size for your trailer.
• ผู้ขนส่งสินค้า: Ideal for attaching hitch-mounted cargo carriers to expand your vehicle's hauling capacity.
• Bike Carriers: Use with hitch-mounted bike racks for transporting bicycles securely.
• อุปกรณ์เสริมอื่นๆ: Suitable for various other 2-inch receiver accessories such as kayak trailers.

Always ensure that any accessory or trailer attached to the hitch is properly secured with a hitch pin and clip, and that safety chains are correctly connected when towing.

Image: An illustration demonstrating the versatility of the hitch, showing it used with various attachments like weight distribution systems, ball mounts, cargo carriers, bike carriers, and for towing different types of trailers including kayak, boat, campและรถพ่วงอเนกประสงค์

6. การบำรุงรักษา

Proper maintenance will extend the life and ensure the safe operation of your tow hitch.

• การตรวจสอบปกติ: ตรวจสอบอุปกรณ์ต่อพ่วงเป็นระยะๆ เพื่อดูว่ามีสนิม รอยแตก รอยงอ หรือความเสียหายอื่นๆ หรือไม่ ให้ความสนใจเป็นพิเศษกับจุดเชื่อมและบริเวณที่ติดตั้ง
• ความรัดกุม: Check all mounting bolts regularly, especially after the first few uses and before each towing trip, to ensure they remain securely tightened. Re-tighten if necessary.
• การทำความสะอาด: Clean the hitch periodically with mild soap and water to remove dirt, salt, and road grime. Rinse thoroughly and dry.
• การป้องกันการกัดกร่อน: Although the hitch features a durable high-gloss black powder coat finish and a special "E-coating" for rust resistance, applying a thin layer of automotive wax or a rust-inhibiting spray to exposed metal surfaces can provide additional protection, especially in harsh environments.
• การดูแลรักษาท่อรับสัญญาณ: Keep the inside of the receiver tube clean and free of debris. Use the included rubber hitch cover when not in use to prevent dirt and moisture from accumulating.

Image: A cutaway diagram illustrating the three layers of rust resistance: pre-treatment steel, special "E-coating" inside and out, and a dual-stagเคลือบสีดำแบบพาวเดอร์โค้ท

7 การแก้ไขปัญหา

หัวข้อนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอ

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For warranty information or technical support regarding your APS Class 3 Tow Trailer Hitch, please contact the manufacturer directly. Details can typically be found on the product packaging or the official APS webไซต์ โปรดเก็บใบเสร็จรับเงินของคุณไว้เป็นหลักฐานการซื้อสำหรับการเรียกร้องการรับประกันใดๆ

ผู้ผลิต: เอพีเอส

Webเว็บไซต์: เยี่ยมชมร้าน APS บน Amazon (สำหรับข้อมูลทั่วไปเกี่ยวกับแบรนด์)
