คู่มือการใช้งานเครื่องอัดอากาศ Yaskawa SERVOPACK CACR-IR 151515FB

1. บทนำ

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Yaskawa SERVOPACK model CACR-IR 151515FB. This device is a 3-axis servo drive designed for industrial applications requiring precise motor control. Please read this manual thoroughly before using the product to ensure correct handling and to prevent accidents.

2. ข้อมูลด้านความปลอดภัย

ปฏิบัติตามข้อควรระวังด้านความปลอดภัยต่อไปนี้เสมอเพื่อป้องกันการบาดเจ็บต่อบุคลากรและความเสียหายต่ออุปกรณ์

• อันตรายจากไฟฟ้า: Ensure all power is disconnected before performing any installation, wiring, or maintenance. High voltages are present within the SERVOPACK and can cause severe injury or death.
• บุคลากรที่ผ่านการรับรอง: Installation, wiring, and maintenance should only be performed by qualified and trained personnel familiar with electrical equipment and safety standards.
• การต่อลงดิน: Properly ground the SERVOPACK according to local and national electrical codes to prevent electric shock.
• สภาพแวดล้อม : Do not expose the SERVOPACK to moisture, corrosive gases, flammable materials, or extreme temperatures outside its specified operating range.
• การติดตั้งที่ปลอดภัย: Mount the SERVOPACK securely in a stable location to prevent it from falling or vibrating excessively during operation.

3. สินค้าหมดview

The Yaskawa SERVOPACK CACR-IR 151515FB is a robust 3-axis servo drive designed for industrial automation systems. It provides precise control over servo motors, enabling accurate positioning and motion control in various machinery.

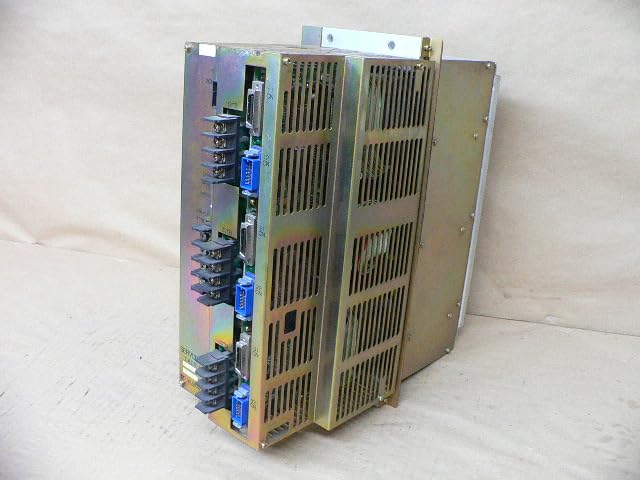

รูปที่ 3.1: ทั่วไป view of the Yaskawa SERVOPACK CACR-IR 151515FB. This image displays the unit from an angled side, showing multiple connection terminals on the left side and ventilation grilles along the top and front surfaces, indicating its industrial design and cooling features.

Key features include its multi-axis capability, allowing for synchronized control of up to three servo motors, and its durable construction suitable for demanding industrial environments.

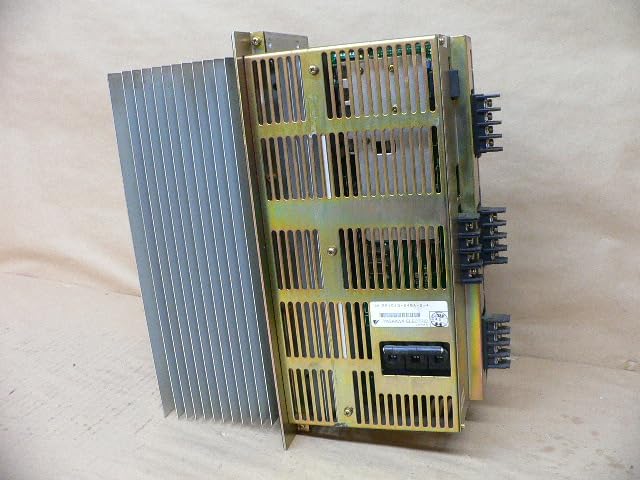

รูปที่ 3.2: ด้านข้าง view of the Yaskawa SERVOPACK CACR-IR 151515FB. This perspective highlights a prominent heat sink on one side, essential for thermal management during operation, and additional connection points on the opposite side, emphasizing its robust cooling and connectivity.

The model number and brand identification are clearly marked on the unit for easy reference.

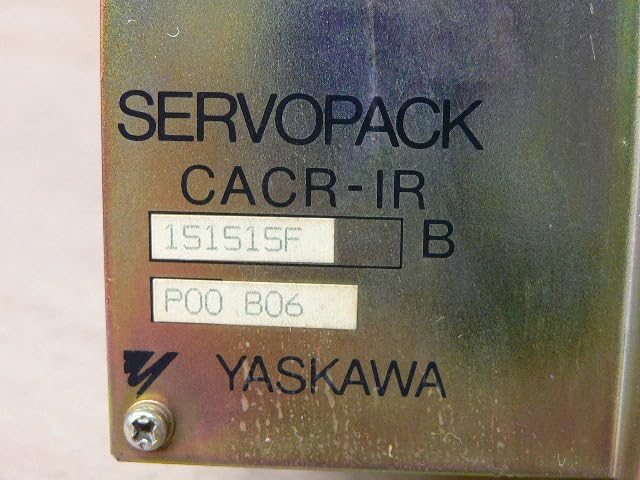

รูปที่ 3.3: Close-up of the product label on the Yaskawa SERVOPACK. The label clearly displays "SERVOPACK CACR-IR 151515FB" and the "YASKAWA" brand logo, confirming the model and manufacturer for identification and compliance purposes.

4. การตั้งค่า

Proper setup is crucial for the reliable operation of the SERVOPACK. Follow these general guidelines:

1. การติดตั้ง: Securely mount the SERVOPACK in a control cabinet or on a panel, ensuring adequate ventilation space around the unit, especially near the heat sink. Use appropriate fasteners for the unit's weight (approximately 22 pounds).
2. การเดินสายไฟ: Connect the main power supply to the designated terminals. Ensure the voltage and current ratings match the SERVOPACK's specifications. Use appropriate wire gauges and circuit protection devices.
3. การเดินสายมอเตอร์: Connect the servo motors to the corresponding motor output terminals. Pay close attention to phase sequence and ensure all connections are tight and secure.
4. Feedback Wiring: Connect the motor encoder feedback cables to the SERVOPACK's feedback input terminals. Correct feedback connection is essential for precise control.
5. การเดินสายสัญญาณควบคุม: Connect control signals (e.g., command signals, limit switches, emergency stop) from the host controller to the SERVOPACK's input/output terminals. Refer to the detailed wiring diagrams in the complete technical manual for specific pin assignments.
6. การต่อลงดิน: Establish a proper ground connection for the SERVOPACK chassis to the system's protective earth ground.

5. คู่มือการใช้งาน

Once the SERVOPACK is correctly installed and wired, follow these steps for initial operation:

1. การเพิ่มพลังเริ่มต้น: Apply power to the SERVOPACK. Observe the status indicators for any error codes or warnings.
2. การตั้งค่าพารามิเตอร์: Configure the necessary operating parameters using the appropriate programming tool or interface. This includes motor parameters, control gains, and operational limits.
3. ทดสอบการทำงาน: Perform a low-speed, no-load test run of the connected servo motors to verify correct rotation and response.
4. จูน: Adjust the servo gains to achieve optimal performance for your specific application. This may involve auto-tuning functions or manual adjustments.
5. การรวมระบบ: Integrate the SERVOPACK with the overall control system, ensuring proper communication and command execution.

Always monitor the system during initial operation and make adjustments as needed to ensure stable and safe performance.

6. การบำรุงรักษา

Regular maintenance helps ensure the longevity and reliable operation of your SERVOPACK.

• การตรวจสอบ: Periodically inspect the SERVOPACK for signs of dust accumulation, loose connections, discolored components, or unusual odors.
• การทำความสะอาด: Keep the unit clean and free from dust and debris. Use compressed air to clear ventilation grilles, ensuring proper airflow for cooling. Ensure power is off before cleaning.
• การตรวจสอบการเชื่อมต่อ: Verify that all electrical connections are tight and secure. Loose connections can lead to intermittent operation or overheating.
• การควบคุมสิ่งแวดล้อม: Maintain the operating environment within specified temperature and humidity ranges to prevent component degradation.
• อายุการใช้งานของตัวเก็บประจุ: Electrolytic capacitors have a finite lifespan. Consider periodic replacement based on operating hours and environmental conditions, as recommended by the manufacturer.

7 การแก้ไขปัญหา

If the SERVOPACK exhibits abnormal behavior, consult the following general troubleshooting steps. For detailed error codes and specific solutions, refer to the comprehensive Yaskawa technical documentation.

• ไม่มีไฟฟ้า: Check the main power supply, circuit breakers, and all power wiring connections.
• มอเตอร์ไม่เคลื่อนที่: Verify motor wiring, feedback connections, and control signal inputs. Check for emergency stop activation or limit switch engagement.
• กระแสไฟเกิน/การโอเวอร์โหลด: This may indicate a motor problem, incorrect parameter settings, or excessive load. Check motor current, load conditions, and SERVOPACK parameters.
• โอเวอร์โวลtage/อันเดอร์โวลtage: ตรวจสอบปริมาณไฟฟ้าอินพุตtagอี Overvoltage can occur during deceleration if regeneration is not handled correctly.
• Encoder Error: Inspect encoder wiring for damage or loose connections. Verify encoder type and settings in the SERVOPACK parameters.
• การทำงานไม่เสถียร: This often points to incorrect servo gain tuning. Re-tune the system or adjust gain parameters.

If the issue persists after basic troubleshooting, contact Yaskawa technical support or a qualified service technician.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For specific warranty information regarding the Yaskawa SERVOPACK CACR-IR 151515FB, please refer to the original purchase documentation or contact your authorized Yaskawa distributor or reseller. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

For technical support, service, or to obtain detailed wiring diagrams and advanced programming guides, please visit the official Yaskawa website or contact their customer service department. Ensure you have your product model number and serial number available when seeking support.
