MEAN WELL SP-200-24 Power Supply User Manual

1. บทนำ

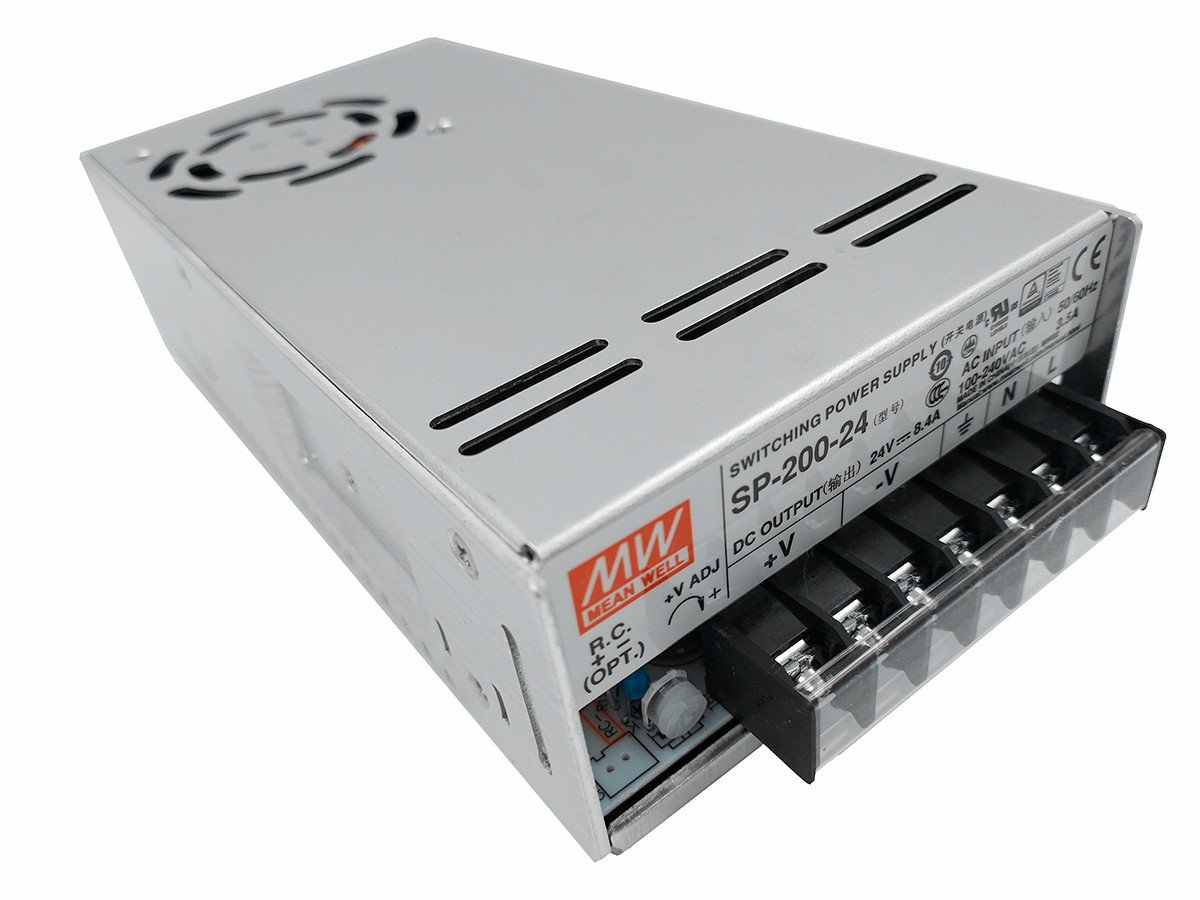

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the MEAN WELL SP-200-24 Power Supply. The SP-200-24 is a 200W single output AC/DC power supply featuring a Power Factor Correction (PFC) function, designed to deliver a stable 24V DC output at 8.4A. Please read this manual thoroughly before using the product.

2. คำแนะนำด้านความปลอดภัย

คำเตือน: Risk of electric shock. Installation and servicing should only be performed by qualified personnel.

• Ensure the power supply is disconnected from the AC mains before any installation or wiring.
• ตรวจสอบว่าปริมาณอินพุตtage range of the power supply matches the local AC mains voltage.
• Proper grounding (FG) is essential to prevent electric shock.
• Do not operate the unit in environments exceeding its specified temperature and humidity limits.
• Ensure adequate ventilation and airflow around the unit to prevent overheating.
• ห้ามเปิดแหล่งจ่ายไฟ casing; ไม่มีชิ้นส่วนใดที่ผู้ใช้สามารถซ่อมบำรุงเองได้ภายใน

3. คุณสมบัติของผลิตภัณฑ์

• 200W Single Output with Power Factor Correction (PFC) Function.
• อินพุต Voltage Range: AC 85~264V.
• ปริมาณการส่งออกtagอี: 24V DC
• Output Current: 8.4A.
• High efficiency and reliability.
• Built-in cooling fan for optimal thermal management.
• Protections: Overload (O.L.P.), Over Temperature (O.T.P.), Over Voltage (O.V.P.).
• Remote ON/OFF control capability (optional).

4. ข้อกำหนดทางกล

The following diagram illustrates the mechanical dimensions and mounting points of the SP-200-24 power supply. All dimensions are in millimeters (mm).

รูปที่ 1: Mechanical Dimensions and Pin Assignments. The unit measures approximately 199mm in length, 99mm in width, and 50mm in height. It features various mounting holes: two M4 holes with 5mm length, five M3 holes with 3mm length, and six M4 holes with 6mm length. Airflow direction is indicated for cooling.

Key dimensions include:

• Overall Dimensions: 199mm (L) x 99mm (W) x 50mm (H).
• รูยึด:
  • 2 x M4 (L=5mm)
  • 5 x M3 (L=3mm)
  • 6 x M4 (L=6mm)
• Airflow: Indicated by arrows for proper cooling.

5. การกำหนดพิน

Refer to Figure 1 for the physical location of the terminals.

5.1. Terminal Pin No. Assignment

5.2. Remote ON/OFF (CN1) (Optional)

This feature uses a JST S2B-XH connector or equivalent.

6. แผนผังบล็อก

The internal functional blocks of the SP-200-24 power supply are illustrated below, showing the flow of power and control signals.

รูปที่ 2: Functional Block Diagram. The diagram shows the input (I/P) passing through EMI filter & rectifiers, PFC circuit, power switching, and then to rectifiers & filter for DC output. Control loops include PWM & PFC control, constant current limiting & detection, and over voltage protection (O.V.P.). Overload protection (O.L.P.) and over temperature protection (O.T.P.) are also indicated.

Key functional blocks include:

• EMI Filter & Rectifiers: Processes the AC input.
• PFC Circuit: Improves power factor.
• Power Switching: Converts DC to high-frequency AC for efficient transformation.
• Rectifiers & Filter: Converts high-frequency AC back to stable DC output.
• PWM & PFC Control: Regulates output voltagอี และตัวประกอบกำลัง
• วงจรป้องกัน: O.L.P. (Overload Protection), O.T.P. (Over Temperature Protection), O.V.P. (Over Voltage Protection), Constant Current Limiting & Detection Circuit.
• การควบคุมความเร็วพัดลม: Manages the cooling fan operation.

PFC switching frequency (fosc) is 67KHz, and PWM switching frequency (fosc) is 134KHz.

7. Derating Curves

The derating curves illustrate the maximum permissible load under varying environmental conditions. Adhering to these curves ensures optimal performance and longevity of the power supply.

รูปที่ 3: Derating Curves. This image displays two graphs: "Derating Curve" (Load % vs. Ambient Temperature °C) and "Output Derating VS Input Voltage" (Load % vs. Input Voltage VAC). The first graph shows that the power supply can operate at 100% load up to approximately 50°C ambient temperature, after which the load must be reduced. The second graph indicates that the unit can deliver 100% load for input voltages between 100VAC and 264VAC, with a slight derating below 100VAC.

7.1. Derating Curve (Load vs. Ambient Temperature)

This curve shows the maximum output load percentage that can be drawn from the power supply at different ambient temperatures.

• Up to approximately 50°C, the power supply can operate at 100% of its rated load.
• Above 50°C, the output load must be linearly derated to maintain safe operating temperatures.

7.2. Output Derating vs. Input Voltage

This curve illustrates the maximum output load percentage based on the input AC voltage.

• สำหรับอินพุตโวลุ่มtages between 100VAC and 264VAC, the power supply can deliver 100% of its rated load.
• Below 100VAC (e.g., down to 85VAC), the output load capacity is reduced.

8. การตั้งค่าและการติดตั้ง

ปฏิบัติตามขั้นตอนเหล่านี้เพื่อการติดตั้งที่ถูกต้อง:

1. การติดตั้ง: Securely mount the power supply using the designated mounting holes (refer to Section 4, Figure 1) in a location that allows for adequate airflow and heat dissipation.
2. สายไฟอินพุต: Connect the AC mains input to the terminals labeled AC/L (Pin 1) and AC/N (Pin 2). Ensure proper polarity.
3. การต่อลงดิน: Connect the Frame Ground (FG) terminal (Pin 3) to a reliable earth ground. This is critical for safety.
4. สายไฟเอาท์พุต: Connect your load to the DC OUTPUT -V (Pins 4,5) and DC OUTPUT +V (Pins 6,7) terminals. Observe correct polarity.
5. Remote ON/OFF (Optional): If using the remote ON/OFF function, connect the control signals to the CN1 pins (RC+ and RC-) as described in Section 5.2.
6. การระบายอากาศ : Ensure that the air intake and exhaust vents are not obstructed. Maintain sufficient clearance around the unit for proper cooling.
7. การตรวจสอบเบื้องต้น: ก่อนจ่ายไฟ ให้ตรวจสอบการเชื่อมต่อสายไฟทั้งหมดอีกครั้งเพื่อความถูกต้องและปลอดภัย

9. คู่มือการใช้งาน

Once installed and wired correctly:

1. เปิดเครื่อง: Apply AC mains power to the unit. The power supply should start operating, and the LED indicator (if present) should illuminate.
2. ปริมาณการส่งออกtage การปรับ: If your model includes a voltage adjustment potentiometer (V ADJ), you can fine-tune the output voltage within a small range. Use a voltmeter to monitor the output during adjustment.
3. การติดตาม: Periodically check the power supply's temperature and ensure proper ventilation, especially under heavy loads.
4. รีโมทคอนโทรล: If the remote ON/OFF function is utilized, use the external control signal to switch the power supply on or off.

10. การบำรุงรักษา

The SP-200-24 power supply is designed for reliable operation with minimal maintenance.

• การทำความสะอาด: Periodically inspect the unit for dust accumulation, especially on the cooling fan and vents. Disconnect power before gently cleaning with compressed air or a soft brush.
• การตรวจสอบ: Check wiring connections for any signs of loosening or damage. Ensure the mounting remains secure.
• ไม่มีชิ้นส่วนที่ผู้ใช้สามารถซ่อมบำรุงได้: ห้ามเปิดหรือซ่อมแซมแหล่งจ่ายไฟด้วยตนเอง โปรดส่งต่อการซ่อมแซมทั้งหมดให้กับช่างผู้ชำนาญการ

11 การแก้ไขปัญหา

If the power supply is not functioning as expected, consider the following:

If troubleshooting steps do not resolve the issue, contact MEAN WELL customer support or a qualified service technician.

12. ข้อมูลจำเพาะ

13. การรับประกันและการสนับสนุน

The MEAN WELL SP-200-24 Power Supply is generally covered by a รับประกัน 3 ปี ตั้งแต่วันที่ซื้อ การรับประกันนี้ครอบคลุมถึงข้อบกพร่องในวัสดุและฝีมือการผลิตภายใต้การใช้งานปกติ

For technical support, warranty claims, or service inquiries, please contact your authorized MEAN WELL distributor or reseller. Please have your product model number and purchase date available when contacting support.

บันทึก: Any unauthorized modification, improper installation, or operation outside the specified parameters will void the product warranty.
