KeylessOption Key Fob Instruction Manual

Model: KPT1660 | FCC ID: GQ43VT14T

การแนะนำ

This manual provides detailed instructions for the KeylessOption 3-button key fob remote, model KPT1660, designed as a replacement for compatible Toyota and Pontiac vehicles. It includes information on product components, vehicle compatibility, programming procedures, and general usage.

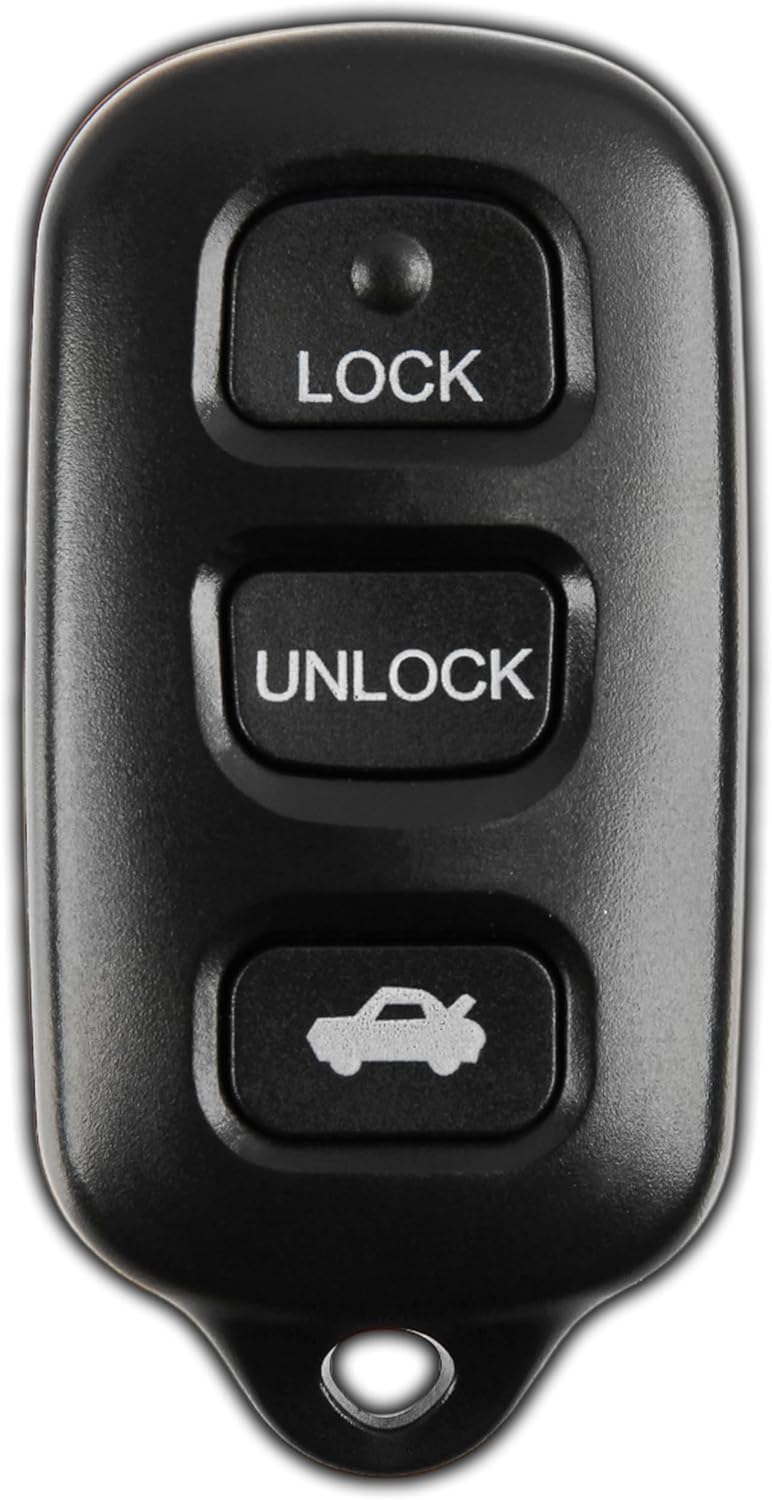

KeylessOption 3-button key fob remote

ภาพ: ด้านหน้า view of the KeylessOption 3-button key fob remote, showing Lock, Unlock, and Trunk/Panic buttons.

สิ่งที่รวมอยู่

Contents of the KeylessOption key fob package

Image: The package contents, including the key fob remote, a ring loop, and a pre-installed CR2032 battery.

ความเข้ากันได้

This key fob is compatible with specific Toyota and Pontiac vehicle models and years. Please verify your vehicle's original keyless entry system and FCC ID to ensure compatibility.

Key fob compatibility information with FCC ID

Image: The front and back of the key fob, highlighting the FCC ID GQ43VT14T and Part Number 89742-AA030 for compatibility verification.

ยานพาหนะที่เข้ากันได้:

หมายเหตุสำคัญ: This item will not work if your original remote has a red light indicator. Ensure your vehicle is equipped with factory original keyless entry.

รหัส FCC: GQ43VT14T

หมายเลขชิ้นส่วน: 89742-AA030

การตั้งค่าและการเขียนโปรแกรม

The KeylessOption key fob is designed for self-programming. Follow these step-by-step instructions carefully. All steps must be performed within the specified timeframes.

DIY Self Programming instructions for key fob

Image: Graphic indicating "DIY Self Programming" for the key fob, emphasizing it is fast, easy, and free.

ขั้นตอนการเขียนโปรแกรม:

  1. การตระเตรียม:
    • ตรวจสอบให้แน่ใจว่าได้ถอดกุญแจออกจากช่องเสียบกุญแจแล้ว
    • The driver's door must be open, all other doors closed and locked.
    • The driver's door must be unlocked.
  2. Initial Key Cycle (within 5 seconds):
    • Insert the key into the ignition (DO NOT Turn). Pull the key out.
    • Insert the key into the ignition (DO NOT Turn). Pull the key out.
  3. Door Cycle 1 (within 40 seconds):
    • Close then open the driver's door.
    • Close then open the driver's door.
    • Insert the key into the ignition (DO NOT Turn). Pull the key out.
  4. Door Cycle 2 and Ignition (within 40 seconds):
    • Close then open the driver's door.
    • Close then open the driver's door.
    • Insert the key into the ignition and leave it in the ignition.
    • Close the driver's door.
    • Turn the ignition to ON (DO NOT Start) then back to OFF.
    • ถอดกุญแจออกจากสวิตช์กุญแจ
  5. Programming Mode Confirmation:
    • Within 3 seconds, the power door locks should lock then unlock automatically. This indicates successful entry into programming mode. If locks do not cycle, return to step 1.
  6. Remote Programming (within 40 seconds):
    • กดปุ่ม ล็อค และ ปลดล็อค buttons on the remote simultaneously for 1.5 seconds.
    • ทันทีหลังจากปล่อยตัวasinจี ล็อค และ ปลดล็อค กดปุ่ม ล็อค button by itself and hold for 2 seconds.
    • Within 3 seconds, the door locks should lock and then unlock once, indicating successful programming. If the door locks cycle twice, repeat the previous two sub-steps (pressing LOCK and UNLOCK simultaneously, then LOCK alone) as the remote was not accepted.
    • Repeat the previous two sub-steps for each additional new remote you wish to program.
  7. ออกจากโหมดการเขียนโปรแกรม:
    • Open the driver's door to exit programming mode.

การใช้งานรีโมทกุญแจ

The KeylessOption key fob features three distinct buttons for controlling your vehicle's keyless entry functions.

Key fob buttons and their functions

Image: Diagram showing the front of the key fob with labels pointing to the Lock, Unlock, and Trunk/Panic buttons.

Back of the key fob showing the panic button

ภาพ: ด้านหลัง view of the key fob, showing the red panic button.

การซ่อมบำรุง

การเปลี่ยนแบตเตอรี่:

The key fob uses one CR2032 lithium coin cell battery. When the remote's range decreases or it stops responding, it may be time to replace the battery.

  1. ค่อยๆ งัดพวงกุญแจออกอย่างระมัดระวังasinโดยใช้ไขควงปากแบนขนาดเล็กหรือเครื่องมือสำหรับงัดแงะ
  2. Locate the CR2032 battery inside the casing.
  3. Remove the old battery, noting its orientation (positive side up).
  4. ใส่แบตเตอรี่ CR2032 ใหม่โดยให้ด้านบวก (+) หันขึ้น
  5. หักกุญแจรีโมทasinกลับเข้าด้วยกันอย่างแน่นหนา

การดูแลทั่วไป:

การแก้ไขปัญหา

ปัญหาสาเหตุที่เป็นไปได้สารละลาย
รีโมทใช้งานไม่ได้หลังจากตั้งโปรแกรมแล้วProgramming steps not followed correctly; battery low or dead; vehicle not compatible.Review and repeat the "Setup and Programming" steps carefully. Ensure all timings are met. Replace the CR2032 battery. Verify vehicle compatibility (check FCC ID and red light warning).
Remote works intermittently or has reduced range.Low battery; interference from other electronic devices.Replace the CR2032 battery. Try operating the remote away from strong electronic interference sources.
Trunk button opens hatch instead of trunk (Pontiac Vibe specific).Known behavior for some Pontiac Vibe models where the remote signal for trunk release may activate the hatch.This is a vehicle-specific behavior and not a defect of the remote. If problematic, consider manual trunk/hatch operation or consult a vehicle specialist.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

KeylessOption products are designed for reliability and performance. For any issues or questions regarding your key fob, please contact KeylessOption customer support.

While specific warranty details are not provided in this manual, KeylessOption is committed to customer satisfaction. For support, please visit the official KeylessOption store on Amazon or contact their customer service directly through your purchase platform.

You can find more information and contact details by searching for "KeylessOption" on Amazon or by visiting their brand store:
