The Littelfuse CCMR008.TXP Class CC Fuse is a high-performance, fast-acting, and current-limiting fuse designed for superior overcurrent protection. It features a high interrupting capacity, making it suitable for a wide range of demanding electrical applications.
This fuse is particularly well-suited for control circuits, street lighting, High-Intensity Discharge (H.I.D.) lighting, computer systems, and other applications that do not experience high in-rush currents. Its robust design ensures reliable protection against overloads and short circuits.
- POWR-PRO performance: Engineered for high-level protection.
- Extremely current limiting: Minimizes damage to protected components during fault conditions.
- 300 kA interrupting rating, self certified: Capable of safely interrupting very high fault currents.

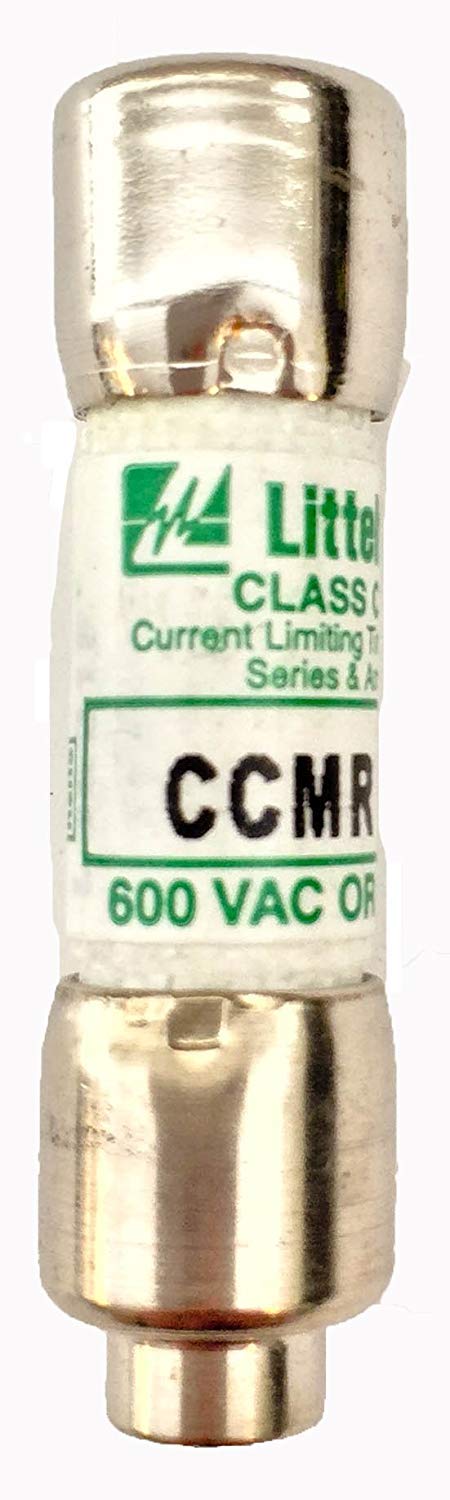

An image of the Littelfuse CCMR008.TXP Class CC Fuse, showing its cylindrical shape, metallic end caps, and the white body with green labeling indicating 'Littelfuse', 'CLASS CC', 'CCMR', and '600 VAC OR'.
การติดตั้งและการตั้งค่า
Installation of the Littelfuse CCMR008.TXP Class CC Fuse should only be performed by qualified personnel in accordance with all applicable national and local electrical codes and safety regulations. Improper installation can lead to electrical shock, fire, or damage to equipment.
- ความปลอดภัยเป็นสิ่งสำคัญที่สุด: Ensure all power to the circuit is disconnected and locked out before beginning any installation work. Verify zero voltagโดยใช้เครื่องมือทดสอบที่เหมาะสม
- Identify Correct Rating: Confirm that the fuse's voltagอี (600V) และ ampยุค (8 Amp) ratings match the requirements of the circuit and equipment being protected. Using an incorrect fuse rating can compromise safety and protection.
- การติดตั้ง: This fuse is designed for through-hole mounting. Insert the fuse into the appropriate fuse holder or block, ensuring a secure and proper connection.
- การเชื่อมต่อที่ปลอดภัย: Ensure all connections are tight and free from corrosion to prevent overheating and ensure optimal performance.
- คืนค่าพลัง: Once the fuse is securely installed and all connections are verified, power can be safely restored to the circuit.
Always consult the equipment manufacturer's instructions for specific fuse requirements and installation procedures.
หลักการทำงาน
The Littelfuse CCMR008.TXP Class CC Fuse operates as a sacrificial device designed to protect electrical circuits from overcurrent conditions. When the current flowing through the circuit exceeds a safe level due to an overload or short circuit, the fuse's internal element melts, opening the circuit and interrupting the flow of electricity.
ในฐานะที่เป็น การหน่วงเวลา fuse, it is designed to withstand temporary, harmless overcurrents (like motor starting surges) without opening, while still providing rapid protection against sustained overloads and short circuits. Its current-limiting characteristic means it quickly reduces the magnitude and duration of a fault current, minimizing the energy let-through and thus reducing potential damage to downstream components.
The fuse functions passively and requires no external power or control. Its operation is entirely dependent on the current flowing through it, providing reliable, single-use protection.
การซ่อมบำรุง
Fuses, including the Littelfuse CCMR008.TXP, are generally maintenance-free devices. They are designed for single-use operation; once they have interrupted an overcurrent, they must be replaced.
- การตรวจสอบปกติ: Periodically inspect fuse holders and the surrounding area for signs of overheating, discoloration, or loose connections.
- การทดแทน: If a fuse blows (opens), it indicates an electrical fault or overload condition. Before replacing the fuse, identify and rectify the cause of the fault.
- Use Correct Replacement: Always replace a blown fuse with a new fuse of the exact same type, voltage rating, and amperage rating (e.g., Littelfuse CCMR008.TXP). Using a fuse with a different rating can compromise safety and protection.
- การทำความสะอาด: Keep fuse holders and contacts clean and free of dust or debris to ensure proper electrical contact and heat dissipation.
Never attempt to repair a blown fuse or bypass it, as this can lead to severe electrical hazards and equipment damage.
การแก้ไขปัญหา
The primary function of a fuse is to open a circuit when an overcurrent condition occurs. If the Littelfuse CCMR008.TXP fuse blows, it is performing its intended protective function. Troubleshooting involves identifying why the fuse blew.
Symptom: Fuse Blows (Circuit is Open)
สาเหตุที่เป็นไปได้:
- โอเวอร์โหลด: The circuit is drawing more current than it is designed for, or more than the fuse's amperage rating. This can happen if too many devices are connected or if a device is malfunctioning.
- ไฟฟ้าลัดวงจร: A direct, low-resistance path has formed between two points in the circuit that are normally at different potentials, causing a very high surge of current. This can be due to damaged wiring, faulty components, or insulation breakdown.
- Incorrect Fuse Rating: The installed fuse has a lower amperage rating than required by the circuit's normal operating current or its transient surges.
- ความล้มเหลวของส่วนประกอบ: A component within the protected equipment has failed in a way that causes excessive current draw.
การกระทำ:
- ตัดการเชื่อมต่อไฟฟ้า: Immediately disconnect all power to the affected circuit.
- ระบุสาเหตุ: Investigate the circuit and connected equipment to determine the reason for the overcurrent. Check for overloaded outlets, damaged cords, faulty appliances, or wiring issues.
- Rectify Fault: Correct the underlying issue before replacing the fuse. If the cause cannot be identified or rectified, consult a qualified electrician.
- เปลี่ยนฟิวส์: Only after the fault has been corrected, replace the blown fuse with a new Littelfuse CCMR008.TXP fuse of the identical rating.
- วงจรทดสอบ: Carefully restore power and monitor the circuit to ensure the problem is resolved.
Repeated fuse blowing indicates a persistent problem that requires professional attention.
ข้อมูลจำเพาะทางเทคนิค
| ข้อมูลจำเพาะ | ค่า |
|---|---|
| ยี่ห้อ | ลิตเทิลฟิวส์ |
| หมายเลขรุ่น | CCMR008.TXP |
| คลาสฟิวส์ | CC |
| เล่มที่tage เรตติ้ง | 600 โวลต์ (AC) |
| คะแนนปัจจุบัน | 8 Amps |
| ขัดจังหวะการให้คะแนน | 300 กิโลแคลอรี |
| พิมพ์ | Time Delay, Current Limiting |
| การปฏิบัติตาม | เป็นไปตามมาตรฐาน RoHS |
| ประเภทการติดตั้ง | การติดตั้งแบบเจาะทะลุ |
| ขนาดแพ็คเกจ | 2.2 x 1.6 x 0.7 นิ้ว |
| น้ำหนักสินค้า | 0.16 ออนซ์ |
การรับประกันและการสนับสนุน
For specific warranty information regarding the Littelfuse CCMR008.TXP Class CC Fuse, please refer to the official warranty documentation provided by Littelfuse or visit their official webไซต์ เงื่อนไขการรับประกันโดยทั่วไปครอบคลุมถึงข้อบกพร่องในการผลิต
For technical support, product inquiries, or assistance with specific applications, please contact Littelfuse directly through their official customer service channels or website. Always ensure you are consulting official resources for accurate and up-to-date information.
