1. บทนำ
This manual provides essential information for the safe and effective use of the IDEC GE1A-C10-HAD24 On-Delay Timing Relay. It covers product description, specifications, installation, operation, maintenance, and troubleshooting. Please read this manual thoroughly before installation and operation, and retain it for future reference.
2. ข้อมูลด้านความปลอดภัย
Observe the following safety precautions to prevent injury to personnel and damage to the product or other equipment.
- อันตรายจากไฟฟ้า: Ensure power is disconnected before performing any installation, wiring, or maintenance. Failure to do so may result in electric shock or equipment damage.
- บุคลากรที่ผ่านการรับรอง: Installation and wiring should only be performed by qualified and trained personnel familiar with electrical systems and safety standards.
- การใช้งานที่เหมาะสม: Use this product only for its intended purpose as an on-delay timing relay within specified electrical ratings. Do not exceed voltage หรือขีดจำกัดปัจจุบัน
- สภาพแวดล้อม : Install the relay in an environment free from excessive moisture, dust, corrosive gases, and extreme temperatures.
3. คำอธิบายผลิตภัณฑ์
The IDEC GE1A-C10-HAD24 is an electromechanical on-delay timing relay designed for industrial control applications. It features a Double Pole Double Throw (DPDT) contact configuration, a 5 Amp current rating, and operates on 24VAC. The on-delay function means that the relay contacts will change state after a set time delay once power is applied to the coil. It is typically used for sequencing operations, motor starting, and other time-dependent control tasks.

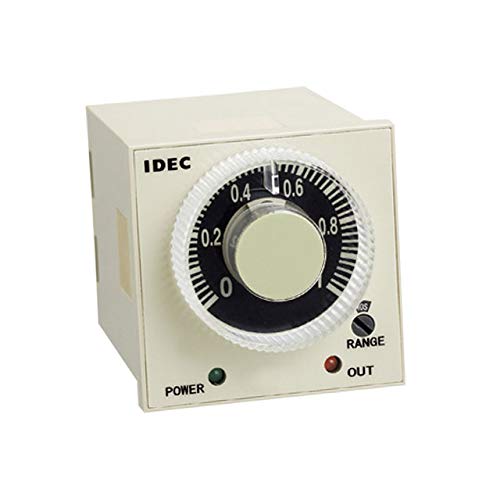

รูปที่ 1 : ด้านหน้า view of the IDEC GE1A-C10-HAD24 On-Delay Timing Relay. The front panel displays a large rotary dial for setting the time delay, a smaller rotary switch for selecting the time range, a green 'POWER' LED indicator, and a red 'OUT' LED indicator. The brand 'IDEC' is visible at the top left.
4. ข้อมูลจำเพาะ
| พารามิเตอร์ | ค่า |
|---|---|
| ยี่ห้อ | ไอดีอีซี |
| แบบอย่าง | GE1A-C10-HAD24 |
| การทำงาน | On-Delay Timing Relay |
| ประเภทการติดต่อ | DPDT (Double Pole Double Throw) |
| คะแนนปัจจุบัน | 5 Amps |
| ปฏิบัติการฉบับที่tage | 24VAC |
| ประเภทการติดตั้ง | ติดตั้งปลั๊กอิน |
| ประเภทขั้วต่อ | ปลั๊กอิน |
5. การติดตั้งและการตั้งค่า
5.1 การติดตั้ง
The GE1A-C10-HAD24 is designed for plug-in mounting. It typically plugs into a compatible relay socket (sold separately) which can then be mounted on a DIN rail or panel. Ensure the socket is securely fastened before inserting the relay.
5.2 การเดินสายไฟ
Refer to the wiring diagram provided with your relay socket or the product's technical datasheet for specific terminal connections. Always ensure power is off before wiring. Connect the 24VAC power supply to the designated coil terminals. Connect the load to the DPDT contact terminals according to your application requirements (e.g., normally open or normally closed configuration).
- ตรวจสอบพลังงาน: Confirm that the main power supply to the control circuit is disconnected.
- Connect Coil: Wire the 24VAC control voltage to the relay coil terminals.
- เชื่อมต่อโหลด: Wire the load circuit to the appropriate DPDT contact terminals (Common, Normally Open, Normally Closed).
- การเชื่อมต่อที่ปลอดภัย: ตรวจสอบให้แน่ใจว่าการเชื่อมต่อสายไฟทั้งหมดแน่นหนาและปลอดภัย เพื่อป้องกันการหลวมของหน้าสัมผัสและอันตรายที่อาจเกิดขึ้น
- Double Check: Before restoring power, visually inspect all wiring for correctness and ensure no bare wires are exposed.
6. การดำเนินการ
6.1 การเปิดเครื่อง
Once the relay is correctly installed and wired, restore power to the control circuit. The green 'POWER' LED indicator on the front panel should illuminate, indicating that the relay is receiving power.
6.2 Setting Time Delay
The time delay is set using the large rotary dial and the smaller 'RANGE' switch on the front panel. First, select the desired time range using the 'RANGE' switch (e.g., seconds, minutes). Then, rotate the large dial to set the specific time value within that range. The relay will initiate the timing sequence when power is applied to the coil, and the contacts will switch after the set delay.
6.3 Output Status
The red 'OUT' LED indicator on the front panel illuminates when the relay contacts have switched state after the set time delay. This provides a visual confirmation of the relay's output status.
7. การบำรุงรักษา
The IDEC GE1A-C10-HAD24 timing relay is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.
- การทำความสะอาด: Keep the relay free from dust and debris. Use a soft, dry cloth for cleaning. Do not use solvents or abrasive cleaners.
- การตรวจสอบ: Periodically inspect the relay and its connections for any signs of damage, discoloration, or loose wiring. Ensure the relay is securely seated in its socket.
- การตรวจสอบสิ่งแวดล้อม: Verify that the operating environment remains within the specified conditions (temperature, humidity, absence of corrosive substances).
- การทดแทน: If the relay shows signs of malfunction, inconsistent timing, or physical damage, it should be replaced by a qualified technician.
8 การแก้ไขปัญหา
This section provides solutions to common issues encountered with the GE1A-C10-HAD24 timing relay. Always disconnect power before troubleshooting or making adjustments.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| No Power LED (Green) | No power to coil; Incorrect wiring; Faulty power supply. | Check 24VAC supply; Verify coil wiring; Test power supply. |
| Relay does not time out / Output LED (Red) does not illuminate | Incorrect time setting; Faulty relay; No power to coil. | Adjust time dial and range switch; Replace relay if faulty; Check power supply. |
| จังหวะเวลาไม่สม่ำเสมอ | Unstable power supply; Environmental interference; Faulty relay. | Ensure stable 24VAC supply; Check for electromagnetic interference; Replace relay. |
| Output contacts not switching load | Load wiring error; Overloaded contacts; Faulty contacts. | Verify load wiring; Ensure load current is within 5A rating; Replace relay. |
9. การรับประกันและการสนับสนุน
IDEC Corporation products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official IDEC website. For technical support, service, or replacement parts, please contact your authorized IDEC distributor or IDEC customer service. When contacting support, please have your product model number (GE1A-C10-HAD24) and purchase details available.
