คู่มือการใช้งานเตาย่างเซรามิก VISION Grills รุ่น Kamado

1. บทนำและเรื่องอื่นๆview

The VISION Grills Professional C-Series Ceramic Kamado is designed to provide precise temperature control for both smoking and grilling. Featuring separate calibrated control systems on the top vent and the bottom Pro Zone™, this grill offers comprehensive command over the cooking temperature, from low slow-smoking to high-heat searing.

Its robust ceramic construction ensures excellent heat retention and even cooking. The large 604 square inch cooking surface, equipped with 2-tiered stainless steel dual flip grates, provides ample space and versatility for various cooking methods.

รูปที่ 1 : ด้านหน้า view of the VISION Grills Ceramic Kamado.

2. การติดตั้งและการประกอบ

Assembly of your VISION Grills Ceramic Kamado is required. Please follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all components are securely fastened before initial use.

ส่วนประกอบหลัก:

• 2-Tiered Cooking Grates: The grill includes 604 square inch stainless steel dual flip grates, designed for easy addition of charcoal and smoking wood chunks.
• Dual Purpose Lava Stone: This component is essential for indirect cooking and heat deflection.
• Electric Starter: For convenient charcoal ignition.
• Removable Ash Drawer: Facilitates easy cleaning and ash disposal.
• Slatted Side Shelves: Provide convenient workspace and include hooks for tools.

Figure 2: The 2-tiered stainless steel dual flip cooking grates.

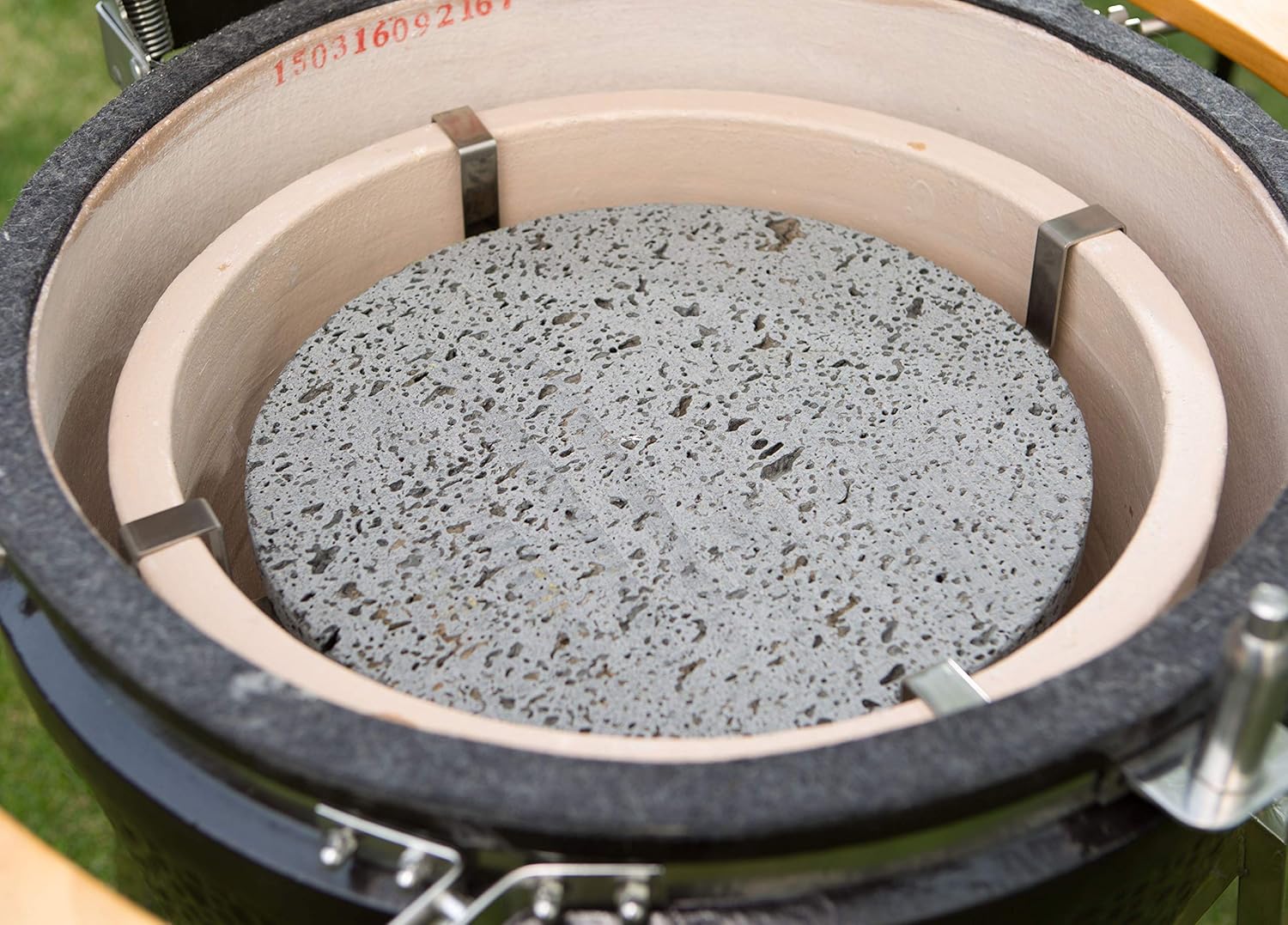

Figure 3: The dual purpose lava stone, used for indirect heat.

รูปที่ 4: ขนาดผลิตภัณฑ์สำหรับการวางแผนการจัดวาง

3. คู่มือการใช้งาน

3.1. Charcoal Loading and Ignition

Load lump charcoal into the firebox at the bottom of the grill. For quick and efficient ignition, utilize the included electric starter. Insert the electric starter into the designated port on the front of the grill, ensuring it makes contact with the charcoal. Once the charcoal is lit and glowing, remove the starter.

Figure 5: The electric starter for quick charcoal ignition.

Figure 6: Location of the electric starter port on the grill body.

3.2. Temperature Control (Pro Zone™)

The VISION Grills Kamado features a unique Pro Zone™ control system, allowing precise temperature management. Adjust the top vent and the bottom control knobs to achieve desired temperatures for smoking, grilling, or searing. The built-in thermometer on the lid provides real-time temperature readings.

• การสูบบุหรี่: Use lower settings on both the top vent and bottom Pro Zone™ controls for slow cooking and smoking.
• Grilling/Searing: Open the vents and adjust the Pro Zone™ controls to higher settings for direct grilling and searing at high temperatures.

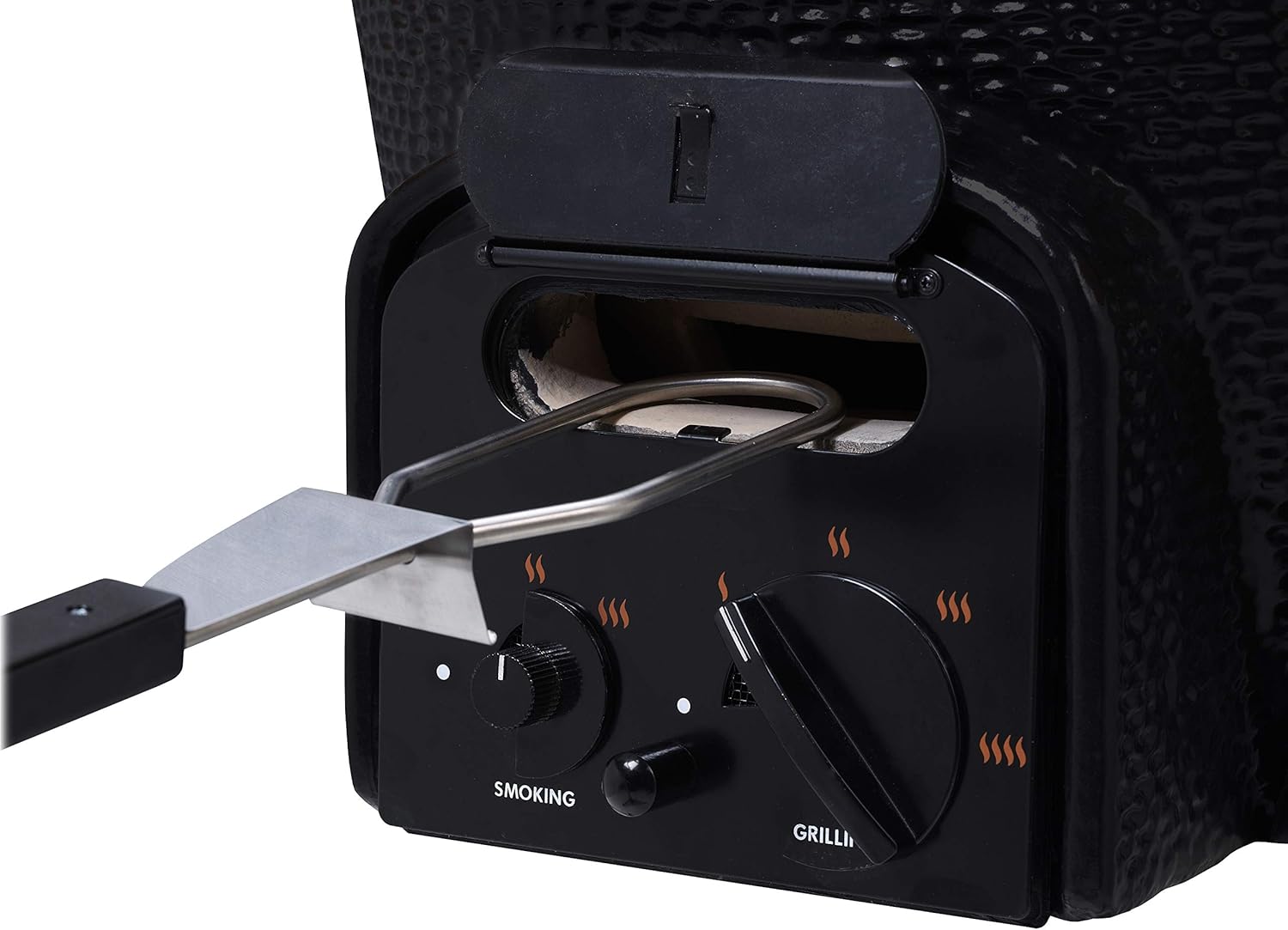

Figure 7: The Pro Zone™ control system for precise temperature adjustments.

3.3. Cooking with Dual Racks and Side Shelves

The 2-tiered cooking grates allow for cooking at different heat levels or for increased capacity. The slatted side shelves provide a convenient surface for food preparation, holding utensils, or resting cooked items. These shelves can be folded down when not in use.

Figure 8: Slatted side shelves with integrated tool hooks.

รูปที่ 9: อดีตample of food being cooked on the grill.

4. การบำรุงรักษา

Regular maintenance ensures the longevity and optimal performance of your Kamado grill.

4.1. การกำจัดขี้เถ้า

After each use, once the grill has completely cooled, remove the removable ash drawer located at the bottom of the grill. Dispose of ashes safely. This prevents airflow obstruction and maintains grill efficiency.

Figure 10: The removable ash drawer for convenient cleaning.

4.2. Grate Cleaning

Clean the stainless steel cooking grates after each use. A grill brush is recommended to remove food residue. For deeper cleaning, grates can be washed with warm, soapy water.

4.3. การดูแลภายนอก

เช็ดทำความสะอาดพื้นผิวเซรามิกด้านนอกด้วยน้ำยาทำความสะอาดamp cloth. For long-term protection against the elements, especially when stored outdoors, use a fitted grill cover.

Figure 11: A cape-style grill cover provides protection from weather.

5 การแก้ไขปัญหา

This section addresses common issues you might encounter with your Kamado grill.

5.1. Temperature Fluctuations

• ปัญหา: Grill temperature is difficult to maintain or fluctuates widely.
• สารละลาย: Ensure both the top vent and bottom Pro Zone™ controls are properly adjusted for the desired temperature. Check for sufficient charcoal and clear ash buildup in the ash drawer. Ceramic grills are highly efficient; small adjustments can lead to significant temperature changes.

5.2. Difficulty Igniting Charcoal

• ปัญหา: Charcoal does not ignite easily or quickly.
• สารละลาย: Ensure the electric starter is fully inserted and making good contact with the charcoal. Use dry, high-quality lump charcoal. Ensure adequate airflow by opening vents during ignition.

5.3. Smoke Leakage

• ปัญหา: Smoke is escaping from areas other than the top vent.
• สารละลาย: Check the gasket seal around the lid and the main body. Over time, gaskets may wear and require replacement to maintain a tight seal. Ensure all clamps ถูกทำให้รัดกุมอย่างแน่นหนา

6. ข้อมูลจำเพาะ

7. การรับประกันและการสนับสนุน

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official VISION Grills webไซต์ เงื่อนไขและข้อกำหนดการรับประกันอาจแตกต่างกันไป

For customer support, technical assistance, or inquiries about replacement parts, please contact VISION Grills directly through their official channels. Contact information can typically be found on their webไซต์หรือในเอกสารผลิตภัณฑ์ของคุณ
