การแนะนำ
Thank you for choosing the Saris Freedom 2-Bike Hitch Rack. This manual provides essential information for the safe and effective installation, operation, and maintenance of your bike rack. Please read all instructions carefully before use and retain this manual for future reference.
คำเตือน: ผลิตภัณฑ์นี้มีสารเคมีที่รัฐแคลิฟอร์เนียระบุว่าอาจก่อให้เกิดมะเร็ง ความพิการแต่กำเนิด หรืออันตรายต่อระบบสืบพันธุ์ สำหรับข้อมูลเพิ่มเติม โปรดเยี่ยมชม www.P65Warnings.ca.gov.
The Saris Freedom 2-Bike Hitch Rack, designed for secure and versatile bicycle transport.
การติดตั้งและการตั้งค่า
Proper installation is crucial for the safety of your bikes and vehicle. The Saris Freedom 2-Bike Hitch Rack is compatible with both 1¼-inch and 2-inch hitch receivers.
1. Attaching to Vehicle Hitch
- Insert the hitch arm of the rack into your vehicle's hitch receiver.
- Align the hitch pin hole on the rack with the hole on the receiver.
- Insert the threaded locking hitch pin through both holes and tighten securely. Ensure the rack is stable and does not wobble.
The Saris Freedom 2-Bike Hitch Rack securely attached to a vehicle's hitch receiver, ready for use.
2. Adjusting Wheel Trays and Cradles
The rack features adjustable wheel trays and down-tube cradles to accommodate various bike sizes and styles, minimizing handlebar interference between bikes.
- Wheel Trays: Loosen the yellow knobs on the wheel trays to slide them along the horizontal bar. Position them to match your bike's wheelbase. Tighten the knobs firmly once adjusted.
- Down-Tube Cradles: These rubberized cradles securely hold the bike's frame. They are designed to protect your bike's finish from scratches.
Detail of the down-tube cradle and the rack's ability to fold down when not in use, offering convenience and space-saving.
วิดีโอแนะนำการติดตั้ง
For a visual step-by-step guide on installation and initial setup, please watch the official product video below:
Official video demonstrating the installation and key features of the Saris Freedom Bike Hitch Car Rack.
A detailed PDF installation manual is also available for download: Saris Freedom 2-Bike Hitch Rack Installation Manual (PDF)
การทำงานและการใช้งาน
1. การขนจักรยานขึ้นรถ
The Saris Freedom rack is designed to transport up to two bicycles, each weighing up to 60 lbs, for a total capacity of 120 lbs. Always load the heavier bike closer to the vehicle.
- Place the bike's wheels into the adjusted wheel trays.
- Position the bike's down-tube into the rubberized cradle.
- Secure the wheels using the ratcheting straps. Ensure they are tight and the bike is stable.
- Use the integrated lock cables (if equipped) to secure your bikes to the rack for added security.
A user demonstrating the process of loading a bicycle onto the Saris Freedom rack, highlighting the ease of use.
2. Accessing Vehicle Rear
The rack features a foot pedal activated tilt mechanism, allowing you to access your vehicle's rear cargo area without removing the bikes.
- Press the foot pedal located at the base of the rack.
- Gently tilt the rack downwards, away from the vehicle.
- Once you have accessed your cargo, lift the rack back into its upright position until it locks securely.

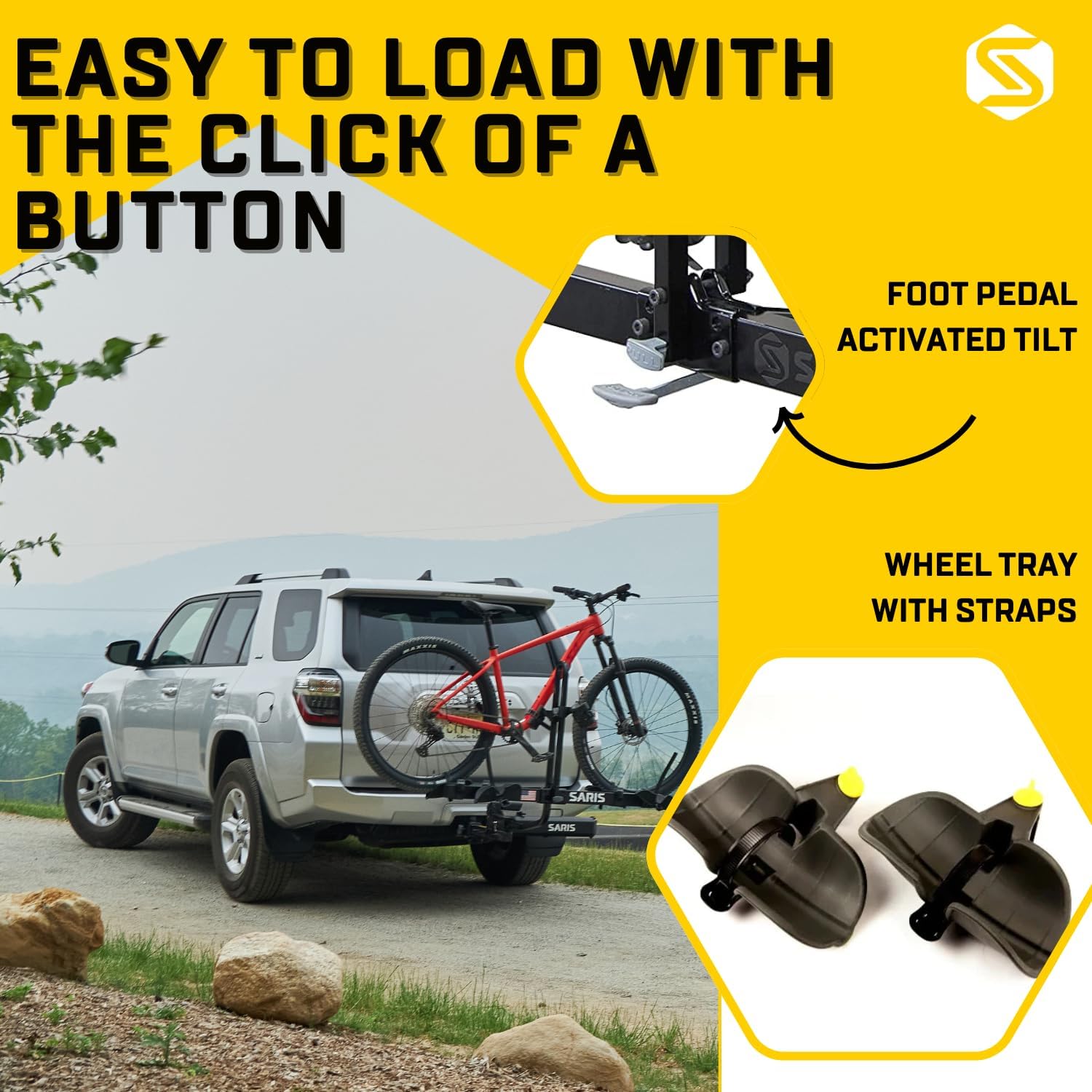

The foot pedal mechanism allows the rack to tilt, providing convenient access to the vehicle's trunk or tailgate.
การซ่อมบำรุง
Regular maintenance will ensure the longevity and safe operation of your Saris Freedom 2-Bike Hitch Rack.
- การทำความสะอาด: Clean the rack regularly with mild soap and water, especially after exposure to road salt or dirt. Rinse thoroughly and dry.
- การตรวจสอบ: Periodically check all bolts, nuts, and straps for tightness and wear. Replace any worn or damaged parts immediately.
- การหล่อลื่น: Apply a small amount of grease or silicone spray to moving parts, such as the tilt mechanism and hitch pin, to ensure smooth operation.
การแก้ไขปัญหา
If you encounter issues with your Saris Freedom 2-Bike Hitch Rack, consider the following common solutions:
- Rack Wobbles: Ensure the threaded hitch pin is fully tightened. Some movement is normal, but excessive wobble indicates improper installation.
- Bikes Not Secure: Verify that the wheel trays are correctly positioned for your bike's wheelbase and that all ratcheting straps are pulled taut. The down-tube cradle should firmly hold the frame.
- Difficulty Tilting: Check for any obstructions. Lubricate the pivot points of the tilt mechanism if it feels stiff.
For persistent issues, refer to the detailed PDF manual or contact Saris customer support.
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ชื่อรุ่น | Saris Freedom Bike Hitch Car Rack, 2-Bicycle Carrier |
| หมายเลขรุ่น | 4412บี |
| ความจุ | จักรยาน 2 คัน |
| Max Weight per Bike | 60 ปอนด์ (27.2 กก.) |
| ความจุน้ำหนักรวม | 120 ปอนด์ (54.4 กก.) |
| Hitch Compatibility | 1¼" and 2" Receivers |
| น้ำหนักสินค้า | 26.2 ปอนด์ (11.88 กก.) |
| ขนาดสินค้า (กว้าง x ยาว x สูง) | 8.66 x 48.03 x 13.39 นิ้ว (22 x 122 x 34 ซม.) |
| สี | คาร์บอนแบล็ค |
| ประเภทการติดตั้ง | Hitch Mount, Strap Mount |
| ยูพีซี | 012527010073 |
การรับประกันและการสนับสนุน
Saris stands behind the quality of its products. The Saris Freedom 2-Bike Hitch Rack is built in the USA and comes with a lifetime warranty, ensuring long-term reliability and peace of mind.
- รับประกันตลอดอายุการใช้งาน: Saris offers a lifetime warranty on its bike racks, covering manufacturing defects. Please refer to the official Saris webเว็บไซต์เพื่อดูข้อกำหนดและเงื่อนไขการรับประกันฉบับเต็ม
- แผนการคุ้มครอง: Additional protection plans may be available for purchase to extend coverage beyond the manufacturer's warranty.
- การสนับสนุนลูกค้า: For technical assistance, parts replacement, or warranty claims, please visit the official Saris webเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าของพวกเขา
- แหล่งข้อมูลออนไลน์: You can find more information and resources at the Saris Store on Amazon หรือดาวน์โหลด คู่มือการติดตั้ง (PDF).
