Hurom SJ-200B Slow Juicer Instruction Manual

การแนะนำ

Thank you for choosing the Hurom SJ-200B Slow Juicer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new juicer. The Hurom SJ-200B is designed to extract maximum nutrition and flavor from fruits, vegetables, and leafy greens through its advanced slow juicing technology. Please read this manual thoroughly before first use and keep it for future reference.

Image: The fully assembled Hurom SJ-200B Slow Juicer, showcasing its compact and elegant design in white.

ข้อควรระวังเพื่อความปลอดภัยที่สำคัญ

• Ensure the juicer is connected to a 220โวลต์ power supply only. Using an incorrect voltage may damage the appliance and void the warranty.
• ห้ามจุ่มฐานมอเตอร์ลงในน้ำหรือของเหลวอื่นใด
• Keep hands and utensils out of the feeding chute during operation to prevent injury. Always use the provided tampเอ่อ.
• Ensure all parts are correctly assembled before operating the juicer.
• Unplug the juicer from the power outlet before cleaning, assembling, or disassembling.
• เครื่องใช้ไฟฟ้านี้ไม่ได้มีไว้สำหรับบุคคลที่มีความบกพร่องทางร่างกาย ประสาทสัมผัส หรือจิตใจ หรือขาดประสบการณ์และความรู้ เว้นแต่บุคคลดังกล่าวจะได้รับการดูแลหรือคำแนะนำเกี่ยวกับการใช้เครื่องใช้ไฟฟ้าโดยบุคคลที่รับผิดชอบด้านความปลอดภัยของบุคคลดังกล่าว
• Do not operate the juicer if the power cord or plug is damaged, or if the appliance malfunctions or has been dropped or damaged in any manner.

ส่วนประกอบของผลิตภัณฑ์

The Hurom SJ-200B Slow Juicer comes with several key components designed for optimal juicing performance and ease of use. Familiarize yourself with each part before assembly.

• ฐานมอเตอร์: The main unit containing the motor.
• ฮอปเปอร์: The top part where ingredients are fed.
• Drum Assembly: Includes the juicing bowl, auger, fine screen, coarse screen, and spinning brush.
• สว่าน: The spiral screw that crushes and presses ingredients. Manufactured from GE Ultem material for durability.
• หน้าจอละเอียด: For smooth juice with minimal pulp.
• หน้าจอหยาบ: For juice with more pulp, or for softer fruits.
• Pulp Extraction Plugs: Control pulp discharge.
• Self-Cleaning Screen Holder: Aids in cleaning the screen.
• Juice Cups (2): Two 50 oz cups for collecting juice and pulp.
• Tampเอ่อ: For safely pushing ingredients down the chute.
• แปรงทำความสะอาด: For thorough cleaning of components.

ภาพ: จากบนลงล่าง view of the Hurom SJ-200B's juicing chamber, showing the auger, screen, and spinning brush components.

การติดตั้งและการประกอบ

Follow these steps to assemble your Hurom SJ-200B Slow Juicer before first use.

1. Place the motor base on a stable, flat surface.
2. Align the juicing bowl (drum assembly) with the motor base and rotate it clockwise until it locks into place.
3. Insert the spinning brush into the juicing bowl.
4. Place either the fine or coarse screen inside the spinning brush, ensuring it sits securely.
5. Insert the auger into the center of the screen, pressing down and rotating slightly until it settles firmly.
6. Place the hopper onto the juicing bowl, aligning the red dot on the hopper with the red dot on the juicing bowl, then rotate clockwise until it locks.
7. Position the juice cup under the juice outlet and the pulp cup under the pulp outlet.
8. Ensure the pulp extraction plug is correctly inserted.
9. เสียบสายไฟเข้ากับเต้ารับไฟฟ้า 220 โวลต์

คำแนะนำการใช้งาน

1. Ingredient Preparation

• ล้างผลไม้และผักทุกชนิดให้สะอาดหมดจด
• Remove large seeds, pits, and hard skins (e.g., pineapple, melon, citrus).
• Cut ingredients into pieces that fit easily into the feeding chute. For fibrous vegetables like celery or leafy greens, cut them into shorter lengths (approx. 1-2 inches) to prevent clogging.

2. กระบวนการคั้นน้ำผลไม้

1. With the juicer assembled and plugged in, turn the power switch to the "ON" position.
2. Slowly feed prepared ingredients into the feeding chute. Do not force ingredients down; allow the auger to pull them in naturally.
3. ใช้ทีamper only if necessary to gently guide ingredients.
4. Juice will flow from the juice outlet, and pulp will be expelled from the pulp outlet.
5. For continuous juicing, ensure the juice and pulp cups do not overflow.
6. After juicing, turn the power switch to "OFF" and unplug the appliance.

3. Tips for Optimal Juicing

• Alternate between soft and hard ingredients to maintain efficient juicing.
• For leafy greens and wheatgrass, feed them in small batches.
• คู่-stage extraction process ensures maximum yield and dry pulp.

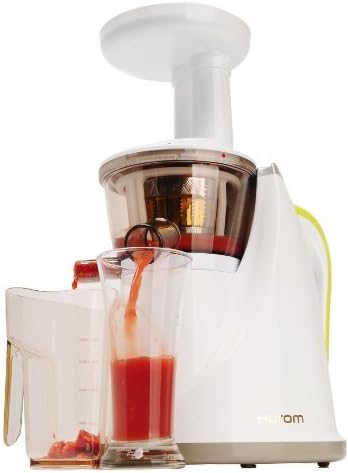

Image: The Hurom SJ-200B Slow Juicer actively extracting juice, with fresh juice pouring into a glass and a collection pitcher.

การบำรุงรักษาและการทำความสะอาด

Regular cleaning ensures the longevity and hygienic operation of your Hurom SJ-200B Slow Juicer.

1. การถอดประกอบ

1. Ensure the juicer is turned "OFF" and unplugged.
2. Rotate the hopper counter-clockwise to unlock and remove it.
3. Remove the auger, then the screen and spinning brush.
4. Rotate the juicing bowl counter-clockwise to unlock and remove it from the motor base.

2. การทำความสะอาด

• คุณสมบัติทำความสะอาดตัวเอง: For quick cleaning between different ingredients, pour a glass of water into the feeding chute while the juicer is running. This helps rinse the internal components.
• การทำความสะอาดอย่างทั่วถึง: Immediately after each use, rinse all detachable parts (hopper, auger, screens, spinning brush, juicing bowl, cups) under running water.
• Use the provided cleaning brush to remove any pulp residue from the screens and other components. Pay special attention to the fine mesh of the screens.
• All detachable parts are recommended for hand washing only. Do not wash them in a dishwasher.
• เช็ดฐานมอเตอร์ด้วยโฆษณาamp ผ้า ห้ามจุ่มฐานมอเตอร์ลงในน้ำ
• ตรวจสอบให้แน่ใจว่าชิ้นส่วนทั้งหมดแห้งสนิทก่อนประกอบกลับหรือจัดเก็บ

3. การจัดเก็บ

Store the assembled or disassembled juicer in a clean, dry place away from direct sunlight and extreme temperatures.

การแก้ไขปัญหา

ข้อมูลจำเพาะ

• แบบอย่าง: SJ-200B
• ยี่ห้อ: ฮูรอม
• เล่มที่tage: 220 โวลต์
• แหล่งพลังงาน: สายไฟ
• การใช้ที่แนะนำ: Fruits, Vegetables, Herbs, Wheatgrass
• คำแนะนำในการดูแล: Hand Wash Only (detachable parts)
• ขนาด : Approximately 9.75 inches (L) x 6.75 inches (W) x 15.75 inches (H)
• Auger Material: GE Ultem

การรับประกันและการสนับสนุน

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Hurom customer service directly. Keep your purchase receipt as proof of purchase.

Juice Exampเลส

The Hurom SJ-200B Slow Juicer is capable of producing a wide variety of fresh, nutritious juices from different ingredients.

Image: Freshly extracted strawberry juice, vibrant red and smooth.

Image: A glass of bright orange carrot juice, indicating efficient extraction.

Image: A refreshing glass of orange juice, demonstrating the juicer's capability with citrus.

Image: A tall glass of pineapple juice, showcasing the juicer's ability to process fibrous fruits.

Image: A martini glass filled with rich pomegranate juice, highlighting the juicer's versatility.

Image: A glass of vibrant green wheatgrass juice, demonstrating the juicer's effectiveness with leafy greens.
