Lindell Audio 7X-500 FET Compressor Limiter User Manual

1. บทนำ

The Lindell Audio 7X-500 is a high-quality FET compressor/limiter designed for integration into a standard API 500 Series rack. This unit provides dynamic range control for audio signals, offering both compression and limiting capabilities with a classic '60s-style FET sound. Its design focuses on essential controls for efficient audio processing in studio environments.

2. คำแนะนำด้านความปลอดภัย

• พลัง: This unit operates within a 500 Series rack, which supplies power. Ensure the rack's power supply meets specifications and is properly grounded.
• สิ่งแวดล้อม: Operate the unit in a dry environment, away from moisture, extreme temperatures, and direct sunlight.
• การระบายอากาศ : Ensure adequate ventilation around the 500 Series rack to prevent overheating.
• การบริการ: Refer all servicing to qualified personnel. Do not attempt to open or modify the unit.
• การเชื่อมต่อ: Always power off the 500 Series rack before inserting or removing the 7X-500 module.

3. การตั้งค่า

To set up your Lindell Audio 7X-500, follow these steps:

1. การติดตั้งชั้นวาง: Ensure your 500 Series rack is powered off. Carefully slide the 7X-500 module into an available slot in your API 500 Series compatible rack. Apply firm, even pressure until the module is fully seated and secured by its mounting screws.
2. การเชื่อมต่อเสียง: Connect your audio source (e.g., microphone preamp output, instrument, or mixer send) to the input of the 7X-500 module on the rear of the 500 Series rack. Connect the output of the 7X-500 to your desired destination (e.g., audio interface input, mixer return, or next processing stage). Use balanced XLR or TRS cables as appropriate for your setup.
3. เปิดเครื่อง: Once all connections are secure, power on your 500 Series rack. The 7X-500 module will receive power from the rack.

4. คู่มือการใช้งาน

The Lindell Audio 7X-500 provides intuitive controls for dynamic range processing. Understanding each control's function is key to achieving desired results.

Basic Compression Workflow:

1. ตั้งค่าระดับอินพุต: Begin by setting the ป้อนข้อมูล knob to achieve a healthy signal level without clipping.
2. Engage Compression: พลิกกลับ การแข่งขัน switch to the 'IN' position to engage the compressor.
3. Select Ratio: Choose your desired compression ratio using the อัตราส่วน switch (4:1 for general compression, 100:1 for limiting).
4. Adjust Attack and Release: ตั้งค่า จู่โจม และ ปล่อย switches to control how quickly the compressor reacts to and recovers from signals. Faster settings (FAST) are good for transients, while slower settings (SLOW) can provide a smoother, more transparent compression.
5. Monitor Gain Reduction: สังเกตดู GR (Gain Reduction) LEDs to see how much compression is being applied. Aim for appropriate gain reduction for your source material.
6. Set Output Level: ใช้ เอาท์พุต knob to compensate for any level loss due to compression, ensuring the signal exits the unit at an appropriate level.
7. Blend with Mix Knob (Parallel Compression): การ DRY/COMP MIX knob allows you to blend the uncompressed ('DRY') signal with the fully compressed ('COMP MIX') signal. This is useful for parallel compression techniques, adding density and punch while retaining natural dynamics.

5. การควบคุมและตัวชี้วัด

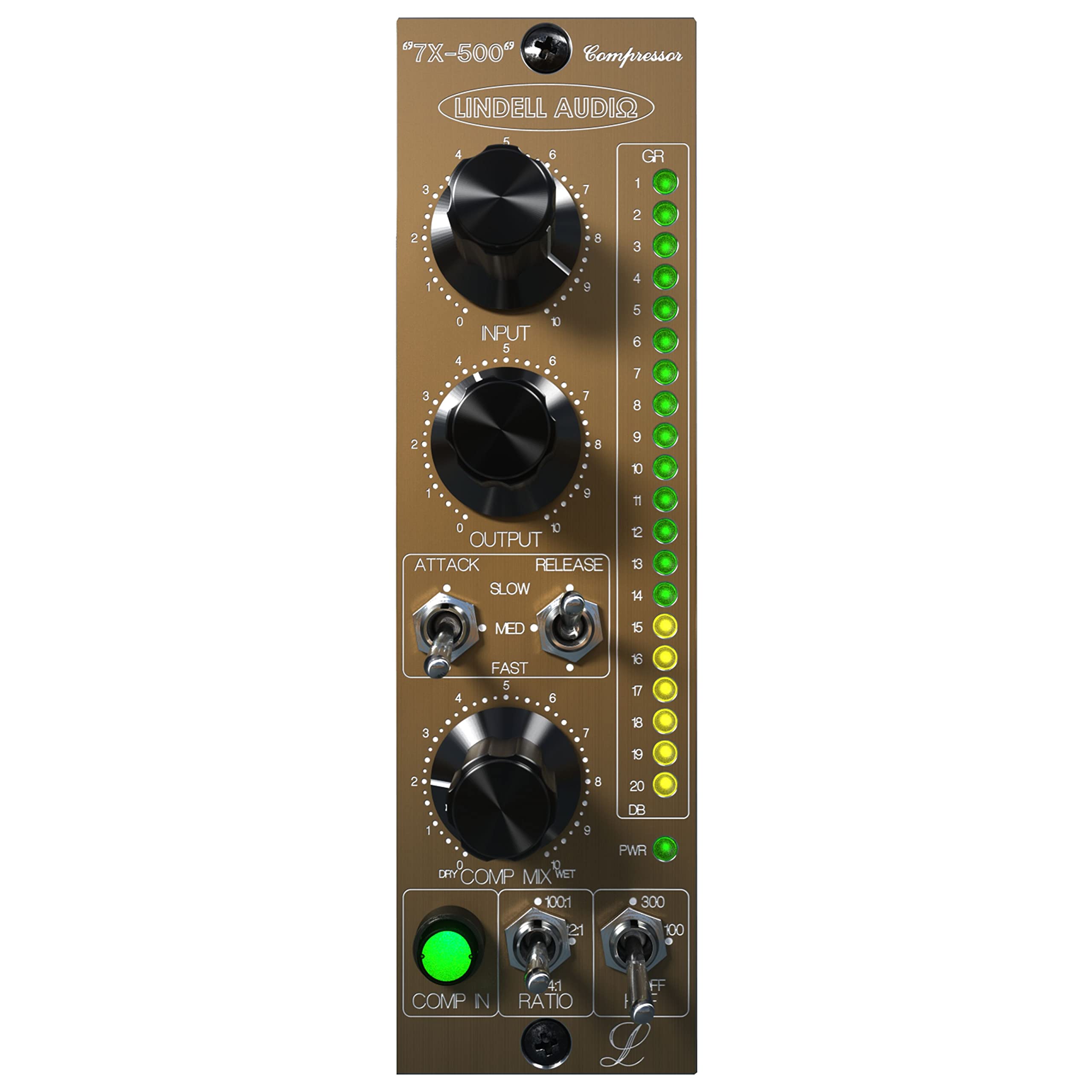

Figure 1: Front Panel of the Lindell Audio 7X-500

• ปุ่มอินพุต: (Labeled 'INPUT' 0-10) Adjusts the input gain of the audio signal entering the compressor. Turning clockwise increases the input level, driving the compressor harder.
• ปุ่มเอาท์พุต: (Labeled 'OUTPUT' 0-10) Adjusts the output gain of the processed audio signal. Use this to set the final level after compression.
• สวิตช์โจมตี: (Toggle switch with 'SLOW', 'MED', 'FAST' settings) Controls the speed at which the compressor begins to reduce gain once the signal exceeds the threshold. 'FAST' reacts quickly, 'SLOW' reacts more gradually.
• RELEASE Switch: (Toggle switch with 'SLOW', 'MED', 'FAST' settings) Controls the speed at which the compressor returns to its original gain once the signal falls below the threshold. 'FAST' releases quickly, 'SLOW' releases more gradually.
• DRY/COMP MIX Knob: (Labeled 'DRY' to 'COMP MIX') Blends the original, unprocessed ('DRY') signal with the fully compressed ('COMP MIX') signal. Fully counter-clockwise is 100% dry, fully clockwise is 100% compressed.
• COMP IN Switch: (Toggle switch with 'COMP IN' and 'OFF' positions) Engages or bypasses the compressor circuit. When 'OFF', the unit acts as a clean signal path.
• RATIO Switch: (Toggle switch with '4:1' and '100:1' settings) Selects the compression ratio. '4:1' provides a moderate compression, while '100:1' acts as a hard limiter.
• GR (Gain Reduction) LEDs: (Vertical LED meter) Indicates the amount of gain reduction being applied by the compressor in decibels (dB). Higher illuminated LEDs indicate more gain reduction.

6. การบำรุงรักษา

• การทำความสะอาด: ใช้ผ้านุ่มและแห้งเช็ดทำความสะอาดภายนอกตัวเครื่อง ห้ามใช้น้ำยาทำความสะอาดหรือตัวทำละลาย
• พื้นที่จัดเก็บ: When not in use for extended periods, store the unit in a cool, dry place, preferably within its 500 Series rack or in protective packaging.
• การตรวจสอบ: Periodically check all connections for secure fit.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

• แบบอย่าง: 7X-500
• พิมพ์: FET Compressor/Limiter
• รูปแบบ: API 500 Series Module
• น้ำหนักสินค้า: 1.26 ปอนด์
• ขนาดสินค้า : 7.75 x 5.7 x 2.15 นิ้ว
• ประเภทวัสดุ : สแตนเลส
• แหล่งพลังงาน: Corded Electric (via 500 Series rack)

9. การรับประกันและการสนับสนุน

Lindell Audio products are designed and manufactured to high standards. For information regarding warranty coverage, technical support, or service, please refer to the official Lindell Audio webเยี่ยมชมเว็บไซต์หรือติดต่อตัวแทนจำหน่ายที่ได้รับอนุญาตของคุณ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในการเรียกร้องการรับประกัน
