คู่มือการใช้งานกล้องวิดีโอไทม์แลปส์ Brinno TLC200

การแนะนำ

The Brinno TLC200 is a specialized camera designed to simplify HD time lapse photography. It offers flexibility for advanced users with interchangeable lenses and custom programmable time intervals. This camera features advanced power management, allowing for extended capture periods over several months on a single set of batteries. It includes a 1.44-inch LCD preview screen for precise framing and targeting of subjects. The TLC200 generates an AVI video file directly in the camera, eliminating the need for post-processing.

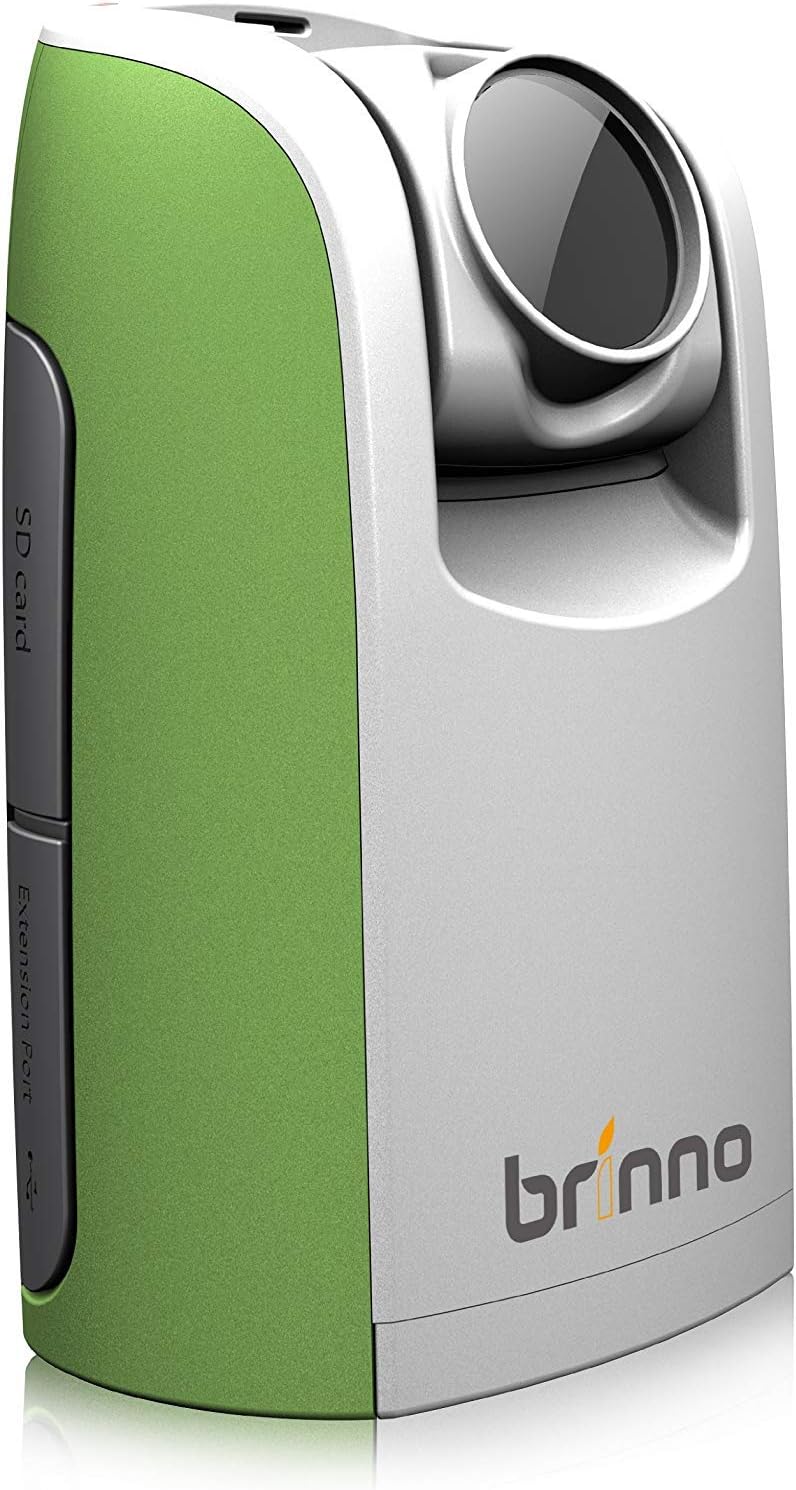

Figure 1: Brinno TLC200 Time Lapse Video Camera, showing its compact design.

มีอะไรอยู่ในกล่อง

Upon unboxing your Brinno TLC200, please verify that all components are present:

• Brinno TLC200 Time Lapse Video Camera
• แบตเตอรี่ AA 4 ก้อน
• 1 x 2GB SD Card
• 1 x Vertical Release Buckle

Note: An optional external shutter release (model ATS100) and a wide-angle lens (model ATL045) are sold separately and are not included in the standard package.

การตั้งค่า

1. การติดตั้งแบตเตอรี่

The Brinno TLC200 operates on 4 AA batteries. These are included in the package. Locate the battery compartment on the camera, open it, and insert the batteries according to the polarity indicators (+/-). Close the compartment securely.

2. การติดตั้งการ์ด SD

The camera requires an SD card for storing time lapse videos and still images. A 2GB SD card is included, and the camera supports cards up to 32GB. Insert the SD card into the designated SD card slot until it clicks into place. Ensure the card is inserted correctly to avoid damage.

รูปที่ 2: ด้านข้าง view of the Brinno TLC200, highlighting the SD card slot and extension port.

3. การเปิด/ปิดเครื่อง

To power on the camera, slide the power switch to the 'on' position. The 1.44-inch TFT LCD screen will illuminate. To power off, slide the switch back to the 'off' position.

4. การตั้งค่าเริ่มต้น

Upon first use or after battery replacement, you may need to set the date and time. Use the 'MENU' button to navigate through settings and the 'OK/START' button to confirm selections. Key settings to configure include:

• วันที่และเวลา: Essential for accurate time lapse metadata.
• ปณิธาน: Select between 1280 x 720 (HD) or 640 x 480.
• ช่วงเวลา: Set the interval between captured frames, ranging from 1 second to 24 hours.

Figure 3: The Brinno TLC200's LCD screen displaying resolution and control buttons.

การใช้งานกล้อง

1. Basic Time Lapse Recording

1. Aim the Camera: Position the camera to capture your desired scene. Use the 1.44-inch LCD screen for accurate targeting and framing.
2. ตั้งค่าช่วงเวลา: Ensure your desired time interval is set (e.g., 1 second, 1 minute, 1 hour).
3. เริ่มการบันทึก: Press the 'OK/START' button to begin the time lapse recording. The camera will automatically capture images at your set interval and compile them into an AVI video file.
4. หยุดการบันทึก: Press the 'OK/START' button again to stop the recording. The video file will be finalized and saved to the SD card.

2. คุณสมบัติขั้นสูง

• วิดีโอขั้นตอนการทำ: This feature allows you to record short video clips at specified time intervals, which are then automatically combined into a single video. Consult the camera's menu for Step Video settings.
• ฟังก์ชั่นจับเวลา: The new Timer feature enables you to program specific start and end times for recording, allowing for automated capture sessions. Access this setting via the 'TIMER' button or menu.
• External Shutter Release (Optional): If using the optional ATS100 Shutter Release Cable, connect it to the camera's extension port. This allows for creating stop-motion movies or triggering single still images.

3. Framing and Positioning

The TLC200 can be mounted on a tripod using its standard tripod mount or simply placed on a flat, stable surface. For outdoor or long-term projects, ensure the camera is protected from elements and stable to prevent movement that could disrupt the time lapse sequence.

Figure 4: The compact size of the Brinno TLC200, shown next to a smartphone for scale.

การซ่อมบำรุง

1. การทำความสะอาด

To clean the camera body, use a soft, dry cloth. For the lens and LCD screen, use a lens cleaning cloth specifically designed for optics. Avoid using abrasive cleaners or solvents that could damage the camera's surfaces.

2. การจัดเก็บ

When not in use for extended periods, remove the batteries to prevent leakage. Store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. Use a protective case to prevent dust and physical damage.

3. การดูแลแบตเตอรี่

Always use fresh, high-quality AA batteries. If using rechargeable batteries, ensure they are fully charged before a long recording session. Dispose of used batteries responsibly according to local regulations.

การแก้ไขปัญหา

• กล้องไม่สามารถเปิดได้:
  • ตรวจสอบว่าใส่แบตเตอรี่ถูกต้องและขั้วถูกหรือไม่
  • เปลี่ยนแบตเตอรี่ใหม่
  • Ensure the power switch is fully in the 'on' position.
• Recording does not start:
  • ตรวจสอบให้แน่ใจว่าได้เสียบการ์ด SD แล้วและมีพื้นที่ว่างเพียงพอ
  • Check if the SD card is properly formatted (FAT32 recommended).
  • Verify that the time interval is set and the 'OK/START' button is pressed firmly.
• คุณภาพวิดีโอไม่ดี:
  • ตรวจสอบให้แน่ใจว่าเลนส์สะอาดและปราศจากรอยเปื้อน
  • Check the selected resolution setting (1280x720 is higher quality).
  • Ensure adequate lighting for the scene, especially for HDR performance.
• Camera freezes or becomes unresponsive:
  • Remove and reinsert the batteries to perform a hard reset.
  • ลองใช้การ์ด SD อื่น

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

The Brinno TLC200 Time Lapse Video Camera comes with a limited 1-year warranty. Additionally, Brinno offers a 30-day money-back guarantee. Brinno is committed to providing regular firmware updates to enhance product performance and features.

For further assistance, technical support, or to download the latest firmware and detailed user manual (PDF), please visit the official Brinno webไซต์หรือดูข้อมูลการติดต่อที่ให้มาพร้อมกับบรรจุภัณฑ์ผลิตภัณฑ์ของคุณ

การปฏิเสธความรับผิดทางกฎหมาย: Please refer to the packing on the box for complete legal disclaimers and terms.
