Sommer Duo Vision 800 Garage Door Motor with Rail User Manual

1. บทนำ

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Sommer Duo Vision 800 Garage Door Motor with Rail. Please read this manual thoroughly before beginning any procedures to ensure proper functionality and to prevent potential hazards.

ข้อมูลด้านความปลอดภัยที่สำคัญ: Always prioritize safety. Disconnect power before performing any maintenance or installation. Ensure all moving parts are clear during operation. Keep children and pets away from the garage door area.

2. สินค้าหมดview

The Sommer Duo Vision 800 is a robust garage door motor system designed for reliable and quiet operation. It includes a motor unit, a rail system, and remote controls for convenient access.

ภาพที่ 1: จบแล้วview of the Sommer Duo Vision 800 system, including the motor, rail, and two remote controls.

คุณสมบัติหลัก:

• Rail unit with a travel length of 2600 mm, suitable for garage doors up to 2.6 meters high.
• Integrated push button on the motor housing for manual operation.
• Includes a stainless steel Design 4 (4020) handheld transmitter for remote control.
• Integral radio receiver (FM 868.8 MHz) with 112 memory slots.
• Pluggable, service-friendly motor control unit.
• Obstacle detection: The door reverses when meeting an obstacle.
• Dynamic Power System (DPS) reads required force automatically, adjusting to changing external conditions for safety.
• Controlled soft run for smooth and quiet operation.

Image 2: Diagram illustrating the track unit, control unit, and ceiling mounting unit with their respective features.

3. การตั้งค่าและการติดตั้ง

Assembly of the Sommer Duo Vision 800 is required. It is recommended that installation be performed by a qualified professional to ensure safety and correct operation. The system is designed for various mounting configurations.

ขั้นตอนการติดตั้ง (ทั่วไป):

1. Prepare the Garage Door: Ensure the garage door is in good working condition, balanced, and moves freely.
2. Assemble the Rail Unit: Connect the rail sections according to the included hardware. The rail unit has a travel length of 2600 mm.
3. Mount the Motor Unit: Secure the motor unit to the rail.
4. Install the Rail System: Attach the assembled rail system to the garage ceiling or header, ensuring it is level and securely fastened. Various mounting options are available (see Image 3).
5. เชื่อมต่อแขนประตู: Attach the door arm from the trolley to the garage door.
6. การเชื่อมต่อไฟฟ้า: Connect the motor unit to a grounded power outlet.
7. การปรับสวิตช์จำกัด: Program the open and close limits of the garage door.
8. การจับคู่การควบคุมระยะไกล: Pair the handheld transmitters with the motor unit.

ภาพที่ 3: อดีตamples of various mounting configurations for the Sommer Duo Vision 800, including rear, ceiling, front, and direct track mounting.

ภาพที่ 4: ภาพระยะใกล้ view of the Sommer Duo Vision 800 motor unit.

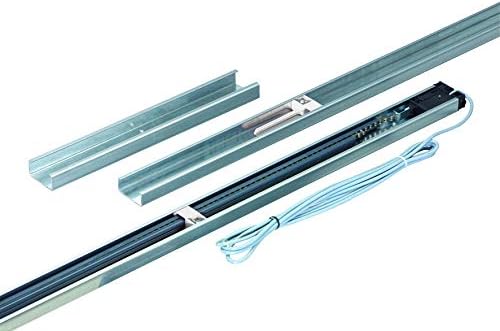

Image 5: Individual components of the rail system, including the track and wiring.

4. คู่มือการใช้งาน

The Sommer Duo Vision 800 offers convenient operation via handheld transmitters and an integrated push button.

Using the Handheld Transmitter:

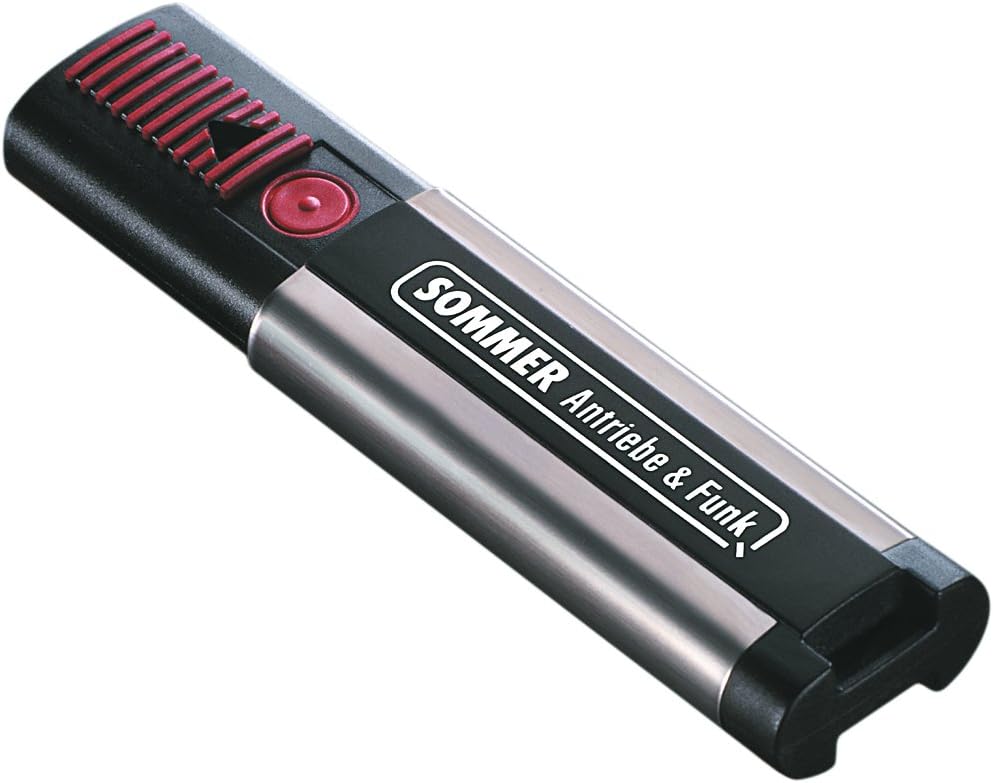

Image 6: The stainless steel Design 4 (4020) handheld transmitter.

• Press the designated button on the transmitter to open or close the garage door.
• Pressing the button again during door movement will stop the door.
• The system features obstacle detection; if the door encounters an obstruction, it will reverse to prevent damage or injury.

Using the Integrated Push Button:

Image 7: The wall-mounted control unit, which includes an integrated push button for manual operation.

• A push button is integrated directly on the motor housing for convenient manual operation from inside the garage.
• Press the button to initiate door movement (open or close).
• Pressing the button again during door movement will stop the door.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your garage door motor. Perform these checks periodically:

• รายเดือน: Inspect the garage door for proper balance and smooth operation. Lubricate rollers, hinges, and springs as recommended by your garage door manufacturer.
• รายไตรมาส: Check the motor unit and rail for any loose fasteners or signs of wear. Ensure the safety reversal system is functioning correctly by placing an object in the door's path.
• รายปี: Have a qualified technician perform a comprehensive inspection and service.

ควรตัดกระแสไฟออกจากเครื่องก่อนทำการบำรุงรักษาทุกครั้ง

6 การแก้ไขปัญหา

If your Sommer Duo Vision 800 is not functioning as expected, consider the following common issues:

• Door does not move: Check if the unit is plugged in and receiving power. Ensure the safety sensors are aligned and unobstructed. Verify remote control battery.
• Door reverses unexpectedly: This indicates the safety reversal system is active. Check for obstructions in the door's path or issues with the safety sensors. The door force settings might need adjustment by a professional.
• การควบคุมระยะไกลไม่ทำงาน: Replace the battery in the handheld transmitter. Re-pair the remote control with the motor unit if necessary (refer to the detailed pairing instructions in the full product manual).
• เสียงผิดปกติ: Inspect the rail and moving parts for any obstructions or worn components. Lubricate as needed. If the noise persists, contact a service technician.

For complex issues, it is recommended to consult a qualified garage door technician.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

Specific warranty details for the Sommer Duo Vision 800 Garage Door Motor with Rail are not provided in this document. Please retain your proof of purchase and contact your retailer or the manufacturer directly for information regarding warranty coverage and support services.

For technical assistance or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the official SOMMER webเว็บไซต์.
