การแนะนำ
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Livex Lighting Monterey Outdoor Wall Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference. This fixture is designed for outdoor use and features a durable bronze finish with clear beveled glass panels.
ข้อมูลด้านความปลอดภัย
- คำเตือน: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation, servicing, or changing bulbs.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring.
- This fixture is intended for outdoor use. Ensure all wiring connections are properly sealed to prevent water intrusion.
- อย่าให้เกินวัตต์สูงสุดtage ตามที่ระบุไว้สำหรับหลอดไฟ
- จัดการชิ้นส่วนแก้วด้วยความระมัดระวังเพื่อป้องกันการแตกหัก
เนื้อหาแพ็คเกจ
ตรวจสอบว่าส่วนประกอบทั้งหมดมีอยู่ก่อนเริ่มการติดตั้ง:
- Monterey Outdoor Wall Lantern Fixture
- Mounting Hardware (Mounting plate, screws, wire nuts)
- คู่มือการใช้งาน
Note: Bulbs are not included and must be purchased separately.
การติดตั้งและการตั้งค่า
ปฏิบัติตามขั้นตอนเหล่านี้เพื่อการติดตั้งที่ถูกต้อง:
- ปิดเครื่อง: Locate the circuit breaker or fuse box that controls the power to the desired installation location. Turn off the power completely.
- เตรียมพื้นผิวการติดตั้ง: ตรวจสอบให้แน่ใจว่าพื้นผิวในการติดตั้งนั้นสะอาด แห้ง และมีโครงสร้างที่แข็งแรง
- ติดตั้งแผ่นยึด: Secure the mounting plate to the electrical junction box using the provided screws. Ensure the plate is level and firmly attached.
- ทำการเชื่อมต่อไฟฟ้า: Carefully connect the fixture's wires to the house wires using the provided wire nuts. Match the wires as follows:
- Black (Live/Hot) fixture wire to Black (Live/Hot) house wire.
- White (Neutral) fixture wire to White (Neutral) house wire.
- Green or Bare Copper (Ground) fixture wire to Green or Bare Copper (Ground) house wire.
- ติดตั้งอุปกรณ์: Carefully align the fixture with the mounting plate and secure it in place using the provided screws or nuts. Ensure the fixture is flush against the mounting surface.
- ติดตั้งหลอดไฟ: Insert the appropriate candelabra base bulbs (not included) into the sockets. Refer to the specifications section for maximum wattage.
- คืนค่าพลัง: เมื่อติดตั้งเสร็จสมบูรณ์และต่อสายทั้งหมดแน่นแล้ว ให้เปิดไฟกลับที่เบรกเกอร์หรือกล่องฟิวส์

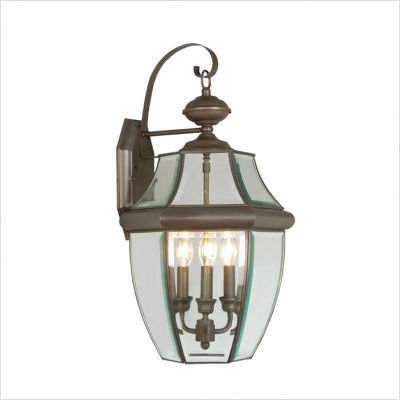

Image: Livex Lighting Monterey Outdoor Wall Lantern. This image displays the complete assembled outdoor wall lantern, featuring a bronze finish, clear beveled glass panels, and three candelabra-style bulb sockets visible inside the lantern enclosure. The fixture is designed to be mounted to a wall, with a decorative curved arm extending from the wall plate to support the lantern body.
คำแนะนำการใช้งาน
Once properly installed and powered, the Livex Lighting Monterey Outdoor Wall Lantern operates via the wall switch or external control (e.g., dimmer, timer, photocell) to which it is connected. Ensure the correct type and wattagมีการติดตั้งหลอดไฟจำนวนหนึ่งเพื่อให้ได้ประสิทธิภาพและความปลอดภัยสูงสุด
การซ่อมบำรุง
- การทำความสะอาด: ในการทำความสะอาดโคมไฟ ให้ปิดไฟและปล่อยให้เย็นลง จากนั้นเช็ดด้วยผ้าเนื้อนุ่มและแห้งamp ใช้ผ้าเช็ดทำความสะอาดเท่านั้น ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย เพราะอาจทำให้พื้นผิวหรือกระจกเสียหายได้
- การเปลี่ยนหลอดไฟ: Turn off the power before replacing bulbs. Allow old bulbs to cool before removing. Replace with new candelabra base bulbs of the specified wattage.
- การตรวจสอบ: ตรวจสอบอุปกรณ์เป็นระยะๆ เพื่อหาร่องรอยการสึกหรอ ความเสียหาย หรือการเชื่อมต่อหลวมๆ และแก้ไขปัญหาทันที
การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ไฟไม่ติด | ไม่มีแรงยึดติด การเชื่อมต่อสายไฟหลวม หลอดไฟผิดพลาด สวิตช์ผนังผิดพลาด | ตรวจสอบเบรกเกอร์/ฟิวส์ ตรวจสอบให้แน่ใจว่าสายไฟทั้งหมดเชื่อมต่อแน่นดีแล้ว (ปิดเครื่องก่อน) เปลี่ยนหลอดไฟ. ทดสอบหรือเปลี่ยนสวิตช์ |
| ไฟกระพริบ | หลอดไฟหลวม การเชื่อมต่อสายไฟหลวม ประเภทหลอดไฟ/วัตต์ไม่ถูกต้องtage | ขันลูกยางให้แน่น ตรวจสอบการเชื่อมต่อสายไฟ (ปิดเครื่อง) ตรวจสอบให้แน่ใจว่าหลอดไฟชนิดและวัตต์ถูกต้องtage. |
| Glass panels are loose | Retaining clips/screws are loose | Carefully tighten retaining clips or screws holding the glass panels. |
ข้อมูลจำเพาะ
| คุณลักษณะ | รายละเอียด |
|---|---|
| ยี่ห้อ | ลีเว็กซ์ |
| หมายเลขรุ่น | 2356-07 (Also 2251-07, 2351-07) |
| Product Dimensions (30" H model) | ขนาด 30 นิ้ว สูง x 16 นิ้ว กว้าง x 15 นิ้ว ลึก |
| วัสดุ | บรอนซ์ |
| สี | Bronze finish, Clear glass |
| แบบฟอร์มการติดตั้งไฟ | โคมไฟติดผนัง |
| การใช้งานภายใน/ภายนอกอาคาร | กลางแจ้ง |
| แหล่งพลังงาน | สายไฟ |
| Bulb Type (30" H model) | (4) 60W Candelabra Base Bulbs (not included) |
| น้ำหนักสินค้า | 9.5 ปอนด์ |
| ประเภทการติดตั้ง | ติดผนัง |
การรับประกันและการสนับสนุน
For warranty information or technical support, please contact Livex Lighting directly. Keep your purchase receipt as proof of purchase. Contact details can typically be found on the manufacturer's official webบรรจุภัณฑ์ไซต์หรือผลิตภัณฑ์
