Vogue Cast Iron Juice Extractor User Manual

การแนะนำ

ยินดีต้อนรับสู่คู่มือผู้ใช้สำหรับเครื่องใหม่ของคุณ Vogue Cast Iron Juice Extractor, Model CF339. This heavy-duty, manual juicer is designed for efficient and effortless extraction of juice from citrus fruits, suitable for both commercial and home use. Its robust cast iron construction ensures durability and stability, while the simple lever mechanism maximizes juice yield without the need for electricity. Enjoy fresh, natural juice anytime, anywhere.

คุณสมบัติที่สำคัญ ได้แก่:

• Maximum Juice Extraction: Engineered to extract every last drop, ensuring you get the most out of your fruits.
• การก่อสร้างงานหนัก: Built to withstand everyday use, perfect for both domestic & commercial settings.
• Manual Lever Operation: Simple to use with a lever that maximises pressure without the need for electricity.
• พกพาสะดวกและสะดวกสบาย: No power connection needed, making it easy to move & use in various locations.
• Hassle-Free Cleaning: Features a detachable juicing cone that is dishwasher safe for quick & easy cleaning.
• Ready to Use Anytime: Simply place a cup underneath to catch the fresh juice as you press the lever down.

รูปที่ 1: เต็ม view of the Vogue Cast Iron Juice Extractor, showcasing its robust design and manual lever.

ข้อมูลด้านความปลอดภัยที่สำคัญ

Please read all instructions carefully before using the Vogue Cast Iron Juice Extractor. Failure to follow these safety guidelines may result in injury or damage to the product.

• Always place the juicer on a stable, flat, and non-slip surface before operation to prevent tipping.
• Keep hands and fingers clear of the juicing cone and pressing mechanism during operation to avoid pinching.
• This appliance is designed for juicing citrus fruits only. Do not attempt to juice other types of fruits or vegetables as this may damage the unit.
• Do not force the lever down excessively. Apply steady, firm pressure.
• เก็บให้พ้นมือเด็ก นี่ไม่ใช่ของเล่น
• Inspect the juicer for any damage before each use. Do not use if any parts are broken or missing.
• Clean the juicer thoroughly after each use as per the cleaning instructions to prevent residue buildup.
• Exercise caution when handling the juicing cone and strainer as they may have sharp edges.

ส่วนประกอบของผลิตภัณฑ์

Familiarize yourself with the parts of your Vogue Cast Iron Juice Extractor:

1. ด้ามจับ/คันโยก: The long arm used to apply pressure.
2. Pressing Cone: The upper part that presses down onto the fruit.
3. Juicing Cone/Strainer: The lower, removable part where the fruit sits and juice drains through.
4. Cup Holder/Base: The sturdy base that holds the juicing cone and collects juice.
5. เฟรมหลัก: The heavy cast iron structure providing stability.

รูปที่ 2: ระยะใกล้ view of the juicing cone and strainer, showing where the fruit is placed.

การตั้งค่า

ก่อนใช้งานครั้งแรก และหลังการทำความสะอาดทุกครั้ง โปรดทำตามขั้นตอนต่อไปนี้:

1. แกะ: Carefully remove all components from the packaging. Retain packaging for future storage or transport if desired.
2. การทำความสะอาดเบื้องต้น: Wash the detachable juicing cone and strainer thoroughly with warm, soapy water. Rinse well and dry completely. Wipe down the main cast iron frame with a damp ผ้า.
3. การประกอบ: Ensure the juicing cone and strainer are correctly seated in the base. The unit typically comes pre-assembled, but verify all connections are secure.
4. การจัดวาง: Place the juicer on a sturdy, level, and non-slip surface. Ensure there is enough clearance above the unit for the lever to be fully raised.

คำแนะนำการใช้งาน

Follow these steps to extract juice efficiently:

1. เตรียมผลไม้: Select fresh citrus fruits (oranges, lemons, limes, grapefruits). Cut the fruit in half across the middle.
2. ผลไม้ประจำตำแหน่ง: Place one half of the cut fruit, cut-side down, onto the juicing cone.
3. ถ้วยวาง: Position a glass or container directly beneath the juicing cone to collect the extracted juice.
4. Lower Lever: Slowly and firmly pull the handle/lever down. The pressing cone will descend and press the fruit against the juicing cone, extracting the juice. Apply steady pressure until all juice is extracted.
5. คันโยกปลดล็อค: Once juicing is complete, slowly release the lever back to its upright position.
6. Remove Pulp: Remove the squeezed fruit half and discard the pulp. Repeat the process for additional fruit halves.

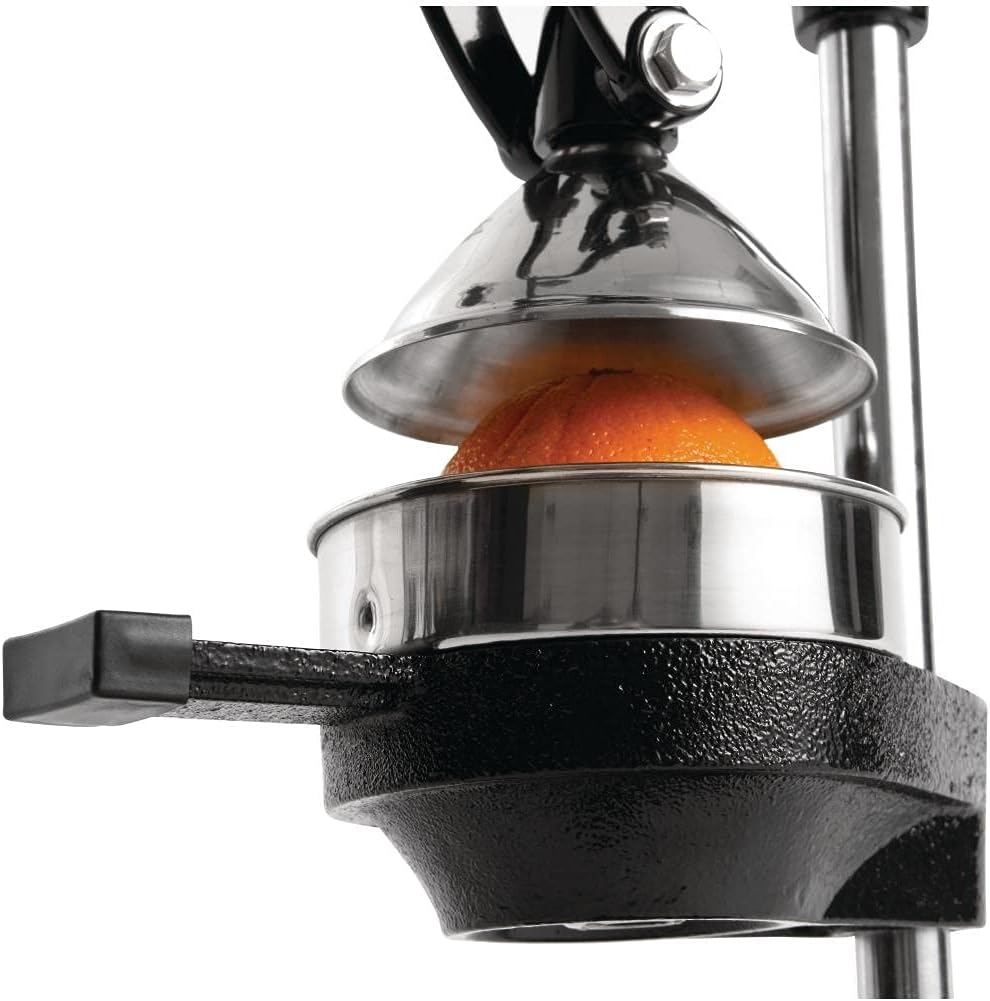

Figure 3: The juicer in action, demonstrating the pressing mechanism on a citrus fruit.

Figure 4: The juicer with a cup positioned to collect freshly extracted juice.

การบำรุงรักษาและการทำความสะอาด

Proper cleaning and maintenance will ensure the longevity and optimal performance of your juicer.

• หลังการใช้แต่ละครั้ง: Immediately after each juicing session, remove the detachable juicing cone and strainer.
• อะไหล่เครื่องล้างจานปลอดภัย: The juicing cone and strainer are dishwasher safe. Place them on the top rack of your dishwasher for cleaning.
• การล้างมือ: For best results or if a dishwasher is not available, wash the juicing cone and strainer with warm, soapy water using a brush to remove pulp. Rinse thoroughly.
• การทำความสะอาดตัวเครื่องหลัก: Wipe down the main cast iron frame and lever with a damp ผ้า. อย่าจุ่มตัวเครื่องลงในน้ำ
• การอบแห้ง: Ensure all parts are completely dry before reassembling or storing to prevent rust, especially on the cast iron components.
• พื้นที่จัดเก็บ: Store the juicer in a dry place.

การแก้ไขปัญหา

If you encounter any issues with your juicer, refer to the following common problems and solutions:

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

The Vogue Cast Iron Juice Extractor is manufactured to high-quality standards. While specific warranty details are not provided in this manual, most products come with a limited manufacturer's warranty covering defects in materials and workmanship.

For warranty claims, technical support, or to inquire about replacement parts, please contact the manufacturer, Olympia, or the retailer from whom you purchased the product.

You may also visit the official VOGUE brand webเข้าชมเว็บไซต์เพื่อดูข้อมูลเพิ่มเติมและรายละเอียดการติดต่อ
