Vaillant 255025 มอเตอร์ VHR.C (NL) VC-VCW 196 E คู่มือการใช้งาน

การแนะนำ

This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the Vaillant 255025 Motor VHR.C (NL) VC-VCW 196 E. This motor is designed as a replacement component for specific Vaillant heating systems, including models VC 126 E-C, VC 196 E-C, and VC 246 E-C. Please read this manual thoroughly before proceeding with any installation or maintenance procedures.

ข้อมูลด้านความปลอดภัย

Important: Installation and maintenance of this component must only be performed by qualified and authorized personnel. Failure to comply with safety instructions may result in property damage, personal injury, or death.

• Always disconnect power to the heating system before beginning any work.
• ตรวจสอบให้แน่ใจว่าพื้นที่ทำงานสะอาด แห้ง และมีแสงสว่างเพียงพอ
• ควรใช้อุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม เช่น ถุงมือและแว่นตาป้องกันดวงตา
• Verify that the replacement part is compatible with your specific Vaillant heating system model.
• Refer to the main heating system's instruction manual for additional safety guidelines.

สินค้าเกินview

The Vaillant 255025 Motor is a critical component for the proper functioning of compatible Vaillant VHR.C and VC-VCW series heating systems. It is designed for reliable performance and precise control within the boiler's operational parameters.

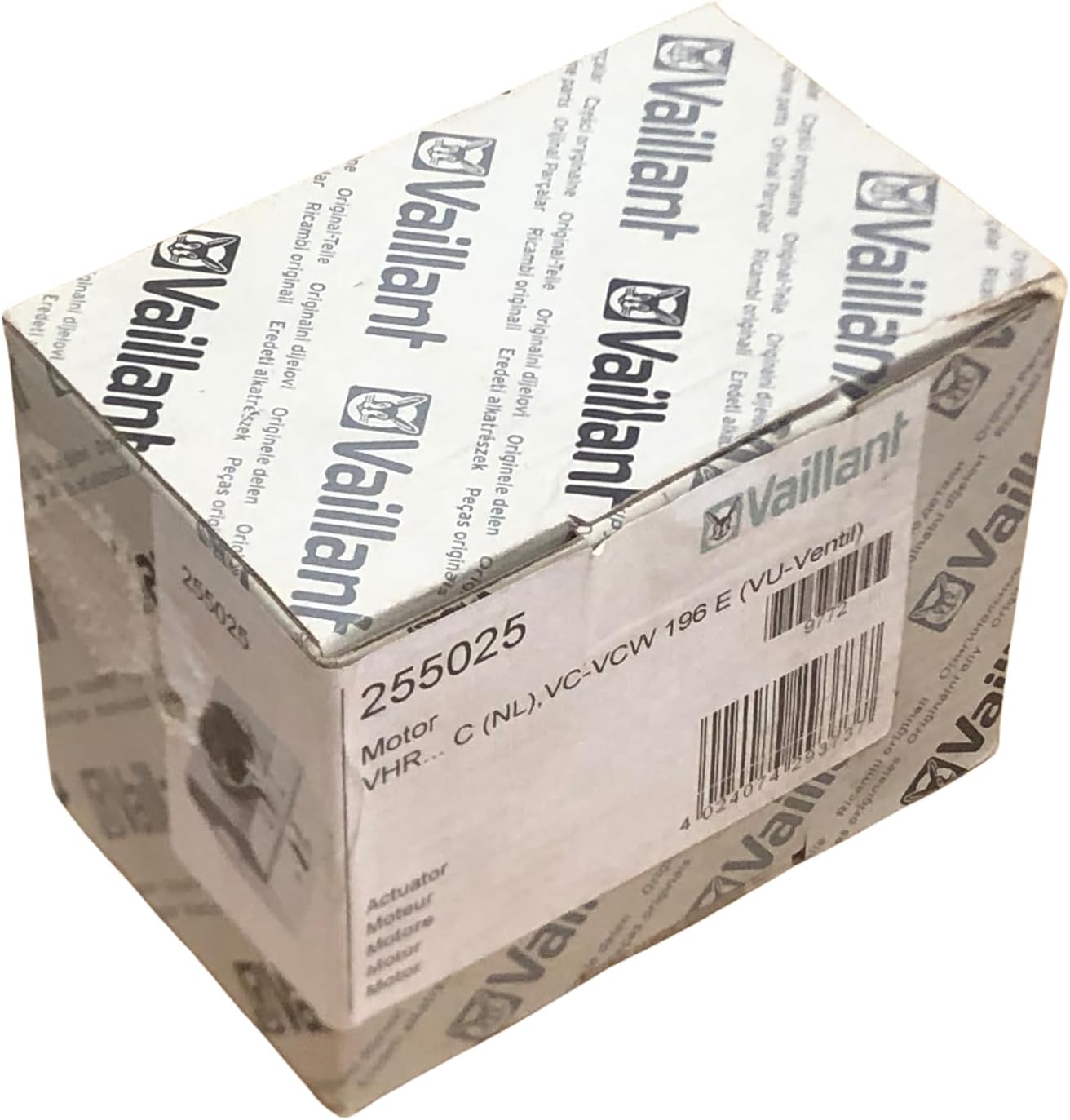

รูปที่ 1: Vaillant 255025 Motor in its original packaging. The packaging clearly displays the model number '255025' and the Vaillant brand logo, indicating it is a genuine replacement part.

รูปที่ 2: Close-up of the Vaillant 255025 Motor packaging, showing the model number, product description in multiple languages, and a barcode (UPC: 4024074293737).

While the primary product is the Vaillant 255025 Motor, some images provided illustrate a related component, the VC8010 Actuator, which often works in conjunction with such motors in heating systems. The principles of installation and connection for similar components are generally consistent.

รูปที่ 3: ด้านหน้า view of a VC8010 Double Insulated Actuator, an example of a component that might be used with the Vaillant motor. It displays specifications like "24 VAC 50 HZ" and "IP40".

การติดตั้งและการตั้งค่า

Installation of the Vaillant 255025 Motor requires technical expertise. It is strongly recommended that a certified HVAC technician performs the installation to ensure safety and proper system function.

1. การตระเตรียม: Turn off the main power supply to the heating system at the circuit breaker. Close any relevant water or gas valves.
2. เข้าถึง: ค่อยๆ เปิดฝาหม้อต้มน้ำasing to access the motor assembly. Refer to your boiler's specific service manual for exact access procedures.
3. การถอดเครื่องยนต์เก่า: Disconnect any electrical wiring from the old motor, noting their positions for correct re-connection. Detach the motor from its mounting points.
4. การติดตั้งเครื่องยนต์ใหม่: Position the new Vaillant 255025 Motor in place. Secure it using the appropriate fasteners.
5. การเดินสายไฟ: Reconnect the electrical wiring to the new motor. Ensure all connections are secure and match the original configuration.
6. System Reassembly: Close the boiler casing. Restore water/gas supply and turn on the main power.
7. การทดสอบ: Perform a functional test of the heating system to ensure the new motor operates correctly and there are no leaks or unusual noises.

รูปที่ 4: Example wiring diagram for a 2-wire common valve actuator. This diagram illustrates typical electrical connections for such components, showing control, closed, and open positions, and power input. Always refer to the specific wiring diagram provided with your Vaillant boiler or the motor itself.

คำแนะนำการใช้งาน

The Vaillant 255025 Motor operates automatically as part of your heating system's control logic. Once correctly installed, it will respond to signals from the boiler's thermostat and control board to regulate the flow of heating medium or air, depending on its specific application within the system.

No direct user interaction is typically required for the motor itself. Ensure your heating system's main controls (thermostat, programmer) are set according to your desired heating schedule and temperature.

การซ่อมบำรุง

Regular maintenance of your heating system, including components like the Vaillant 255025 Motor, is crucial for longevity and efficiency. It is recommended to have your heating system inspected annually by a qualified technician.

• การตรวจสอบภาพ: During routine boiler servicing, the technician should visually inspect the motor for any signs of wear, corrosion, or damage.
• ความสะอาด : Ensure the area around the motor is free from dust and debris, which can impede its operation or lead to overheating.
• การตรวจสอบการดำเนินงาน: The technician should verify that the motor operates smoothly and quietly, without unusual vibrations or noises.

การแก้ไขปัญหา

If your heating system is not functioning correctly after motor replacement, consider the following:

• ไม่มีไฟฟ้า: Check if the main power supply to the boiler is on and if any circuit breakers have tripped.
• การเดินสายไฟไม่ถูกต้อง: Double-check all electrical connections against the wiring diagram. Loose or incorrect wiring is a common cause of malfunction.
• เสียงที่ผิดปกติ: If the motor makes grinding or excessive noise, it may indicate an issue with the motor itself or its connection to the valve/dampเอ่อ.
• รหัสข้อผิดพลาดของระบบ: Consult your boiler's main instruction manual for any error codes displayed on the control panel.

For persistent issues, contact a qualified HVAC technician. Do not attempt complex repairs yourself unless you are certified to do so.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For information regarding the warranty of your Vaillant 255025 Motor, please refer to the documentation provided with your original heating system or contact Vaillant customer support directly. Keep your purchase receipt as proof of purchase.

For technical assistance or to locate an authorized service provider, visit the official Vaillant webเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าของพวกเขา
