HMF 303-02 Key Safe with Combination Lock User Manual

1. สินค้าหมดview

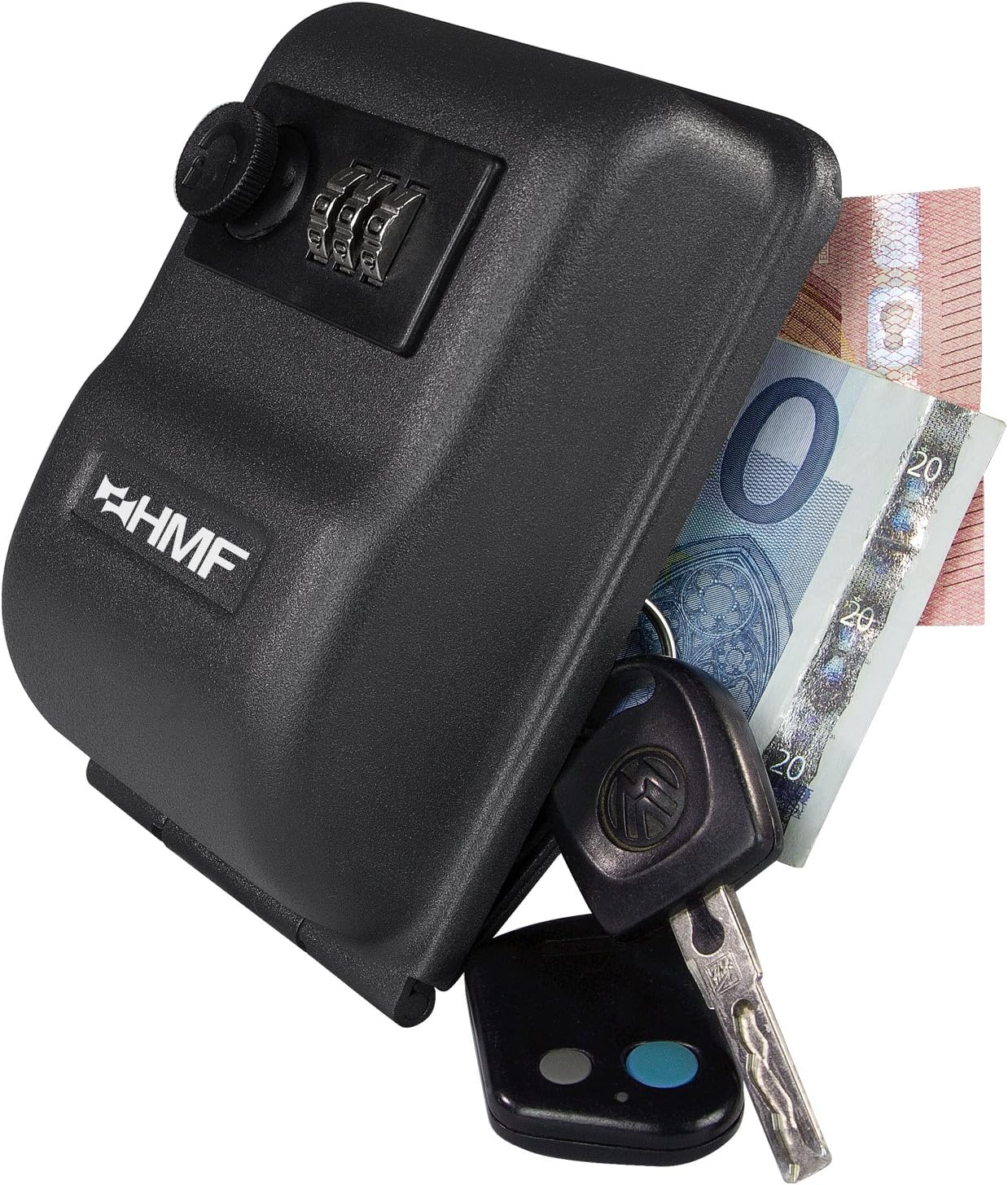

The HMF 303-02 Key Safe is designed for the secure storage of keys, such as car keys, house keys, or other small valuables. It features a robust construction and a personally adjustable combination lock for enhanced security. The safe can be securely mounted to a wall or other suitable surface using the provided hardware.

• การจัดเก็บข้อมูลที่ปลอดภัย: Ideal for car keys, house keys, and other small valuables.
• Personal Combination Lock: Set your own numerical code for access.
• ติดผนัง: Equipped with 4 pre-drilled holes for stable wall fixation.
• Includes Mounting Hardware: Screws and dowels are provided for installation.
• ขนาดกะทัดรัด: Measures approximately 14.5 x 10 x 5.7 cm.

2. การตั้งค่าและการติดตั้ง

2.1 การตั้งค่าชุดค่าผสมส่วนตัวของคุณ

The key safe comes with a factory-set combination, usually "0-0-0". It is crucial to change this to a personal combination immediately after unpacking. Please follow these steps:

1. Open the safe using the current combination (factory default is "0-0-0").
2. Locate the reset lever or button inside the safe, usually on the back of the door or near the locking mechanism. This is often a small lever that needs to be moved from position A to B (or similar, depending on the specific design).
3. While the lever is in the reset position, set your desired new 3-digit combination by rotating the number dials. Choose a memorable but secure combination.
4. Return the reset lever to its original position.
5. Close the safe and scramble the dials to lock it. Test your new combination to ensure it works correctly before securing any valuables.

สำคัญ: Make a note of your new combination and store it in a safe place, separate from the key safe. There is no master key or override for the combination lock.

2.2 การติดตั้งบนผนัง

The key safe is designed for stable wall mounting. Choose a discreet and secure location for installation.

1. Open the key safe.
2. Hold the safe against the desired mounting surface and mark the positions of the four pre-drilled mounting holes.
3. Drill pilot holes at the marked positions. Ensure the drill bit size is appropriate for the included dowels.
4. ใส่เดือยเข้าไปในรูที่เจาะ
5. Align the key safe with the dowels and secure it firmly using the provided screws.

3. คู่มือการใช้งาน

3.1 Opening the Key Safe

1. Rotate the number dials to align with your personal 3-digit combination.
2. Once the correct combination is set, the safe can be opened by pulling the front cover.

3.2 Closing and Locking the Key Safe

1. วางสิ่งของของคุณไว้ในตู้เซฟ
2. ปิดฝาครอบด้านหน้าให้แน่นสนิท
3. Scramble the number dials to a random sequence. This will lock the safe and prevent unauthorized access.

4. การบำรุงรักษา

To ensure the longevity and proper functioning of your HMF 303-02 Key Safe, consider the following maintenance tips:

• การทำความสะอาด: เช็ดภายนอกด้วยผ้านุ่มๆamp ใช้ผ้าเช็ดทำความสะอาด หลีกเลี่ยงน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลายที่อาจทำให้พื้นผิวหรือกลไกภายในเสียหายได้
• การหล่อลื่น: Periodically, a small amount of graphite powder or a silicone-based lubricant can be applied to the combination dials and locking mechanism to ensure smooth operation. Avoid oil-based lubricants as they can attract dust and grime.
• สภาพแวดล้อม : While robust, avoid prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight, freezing temperatures) if not permanently mounted in a sheltered outdoor location, as this can affect the materials over time.

5 การแก้ไขปัญหา

5.1 Safe Will Not Open with Combination

• ตรวจสอบรหัสผ่าน: Double-check that you are entering the correct 3-digit combination. Ensure each number is precisely aligned with the indicator mark.
• Dial Alignment: Sometimes, dials can be slightly misaligned. Gently wiggle each dial to ensure it's fully seated in its position for the correct number.
• ตำแหน่งคันโยกรีเซ็ต: If you recently changed the combination, ensure the reset lever inside was fully returned to its original position after setting the new code. If it wasn't, the combination might not have been set correctly.
• Forgotten Combination: If the combination is forgotten, there is no master key or override. The safe will need to be opened by a professional locksmith, which may damage the unit. Always keep a record of your combination in a secure, separate location.

5.2 Dials are Stiff or Hard to Turn

• ทำความสะอาดหน้าปัด: Dust or grime can accumulate. Clean the dials and surrounding area with a soft, dry cloth.
• การหล่อลื่น: Apply a small amount of graphite powder or silicone spray lubricant to the dials. Do not use oil-based lubricants.

6. ข้อมูลจำเพาะ
