Dorman 520-209 Control Arm Instruction Manual

1. สินค้าหมดview

The Dorman 520-209 Control Arm is a direct replacement component designed for specific vehicle applications. It includes a pre-installed ball joint, ensuring a trouble-free installation and restoring proper vehicle handling and suspension performance. Constructed from durable steel, this control arm is built for longevity and reliability.

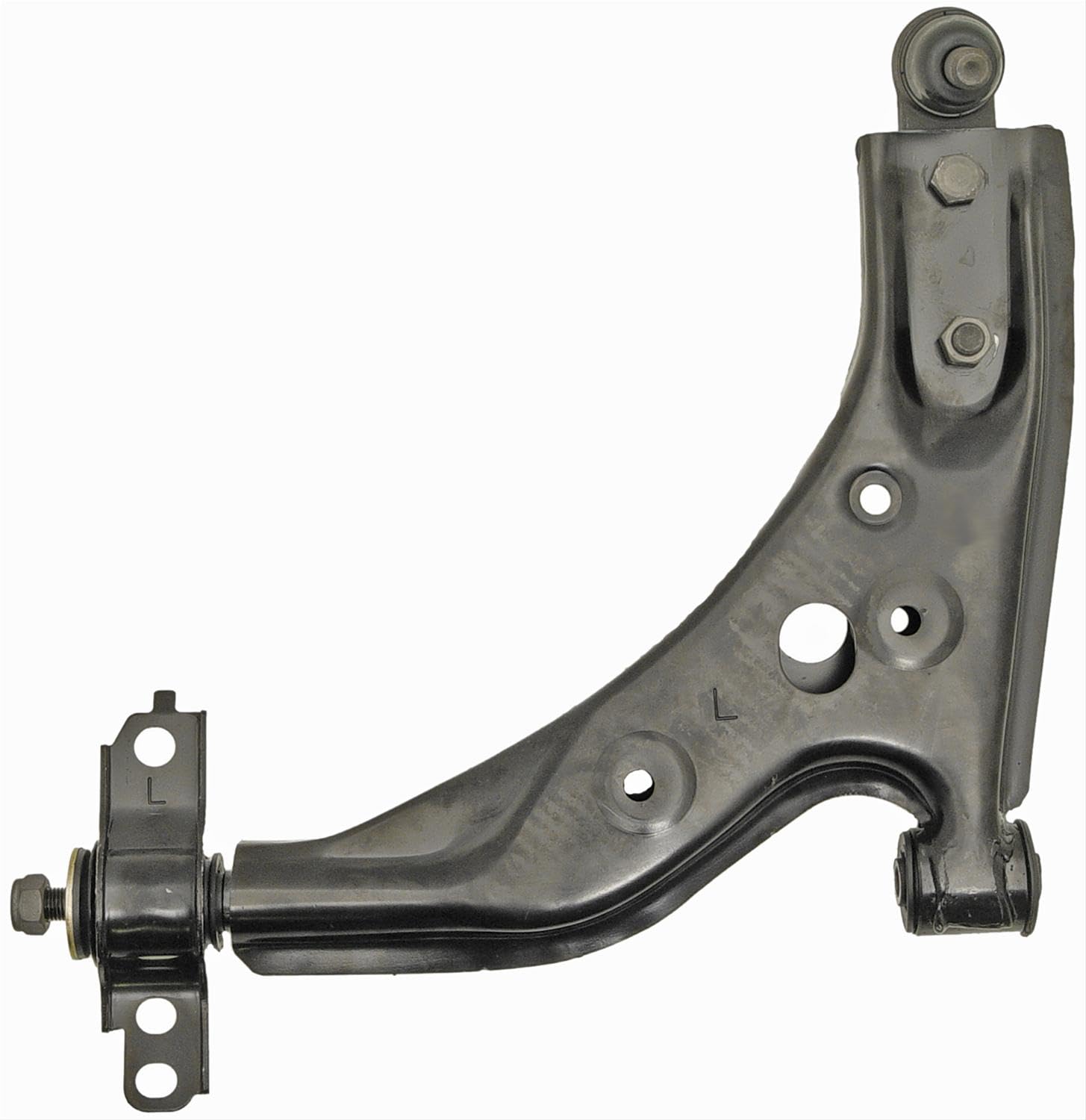

รูปที่ 1.1: The Dorman 520-209 Control Arm, showing its robust steel construction and integrated ball joint. This component is designed for the front, driver's side of the vehicle.

คุณสมบัติหลัก:

• ทดแทนโดยตรง: Engineered to match the fit and function of the original equipment control arm on specified vehicles.
• Integrated Ball Joint: Comes with a pre-installed ball joint, simplifying installation and reducing labor time.
• โครงสร้างทนทาน: Manufactured from high-strength steel to ensure structural integrity and extended service life.
• การรับรองคุณภาพ: Backed by a Dorman limited lifetime warranty, reflecting confidence in its quality and performance.

2. ข้อมูลจำเพาะ

3. การติดตั้ง (ตั้งค่า)

Installation of automotive suspension components, such as control arms, requires specialized tools, knowledge, and adherence to vehicle-specific service procedures. Improper installation can lead to severe safety hazards and vehicle damage. It is highly recommended that this component be installed by a qualified automotive technician.

ข้อควรพิจารณาในการติดตั้งทั่วไป:

• ความปลอดภัยเป็นสิ่งสำคัญที่สุด: ควรใช้อุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสมเสมอ และตรวจสอบให้แน่ใจว่ารถได้รับการรองรับอย่างมั่นคงบนขาตั้งหรือลิฟต์
• ขั้นตอนเฉพาะสำหรับรถแต่ละรุ่น: Refer to the vehicle manufacturer's service manual for detailed removal and installation steps, torque specifications, and alignment procedures.
• การตรวจสอบส่วนประกอบ: Before installation, inspect the new control arm for any shipping damage.
• การจัดตำแหน่ง: After replacing a control arm, a professional wheel alignment is crucial to ensure proper steering, tire wear, and vehicle handling.
• ข้อมูลจำเพาะแรงบิด: All fasteners must be tightened to the vehicle manufacturer's specified torque values.

This Dorman control arm is designed as a direct fit, meaning it should align with existing mounting points without modification. The integrated ball joint simplifies the process by eliminating the need for separate ball joint pressing.

4. การดำเนินการ

The control arm is a critical component of a vehicle's suspension system. Its primary function is to connect the steering knuckle or wheel hub to the vehicle's frame or subframe, allowing for vertical movement of the wheel while maintaining proper alignment and stability. The integrated ball joint facilitates pivotal movement, enabling the wheel to turn and articulate smoothly.

A properly functioning control arm ensures:

• Stable and predictable vehicle handling.
• Effective absorption of road shocks and vibrations.
• Correct wheel alignment, preventing premature tire wear.
• Safe and comfortable driving experience.

5. การบำรุงรักษา

Control arms are generally maintenance-free components, but regular inspection of the entire suspension system is vital for vehicle safety and performance. The rubber bushings and ball joint are wear items that should be checked periodically.

กำหนดการตรวจสอบที่แนะนำ:

• Every Oil Change: Visually inspect the control arm, ball joint boot, and bushings for cracks, tears, or excessive wear.
• During Tire Rotations: Check for any signs of looseness in the ball joint or bushings by attempting to move the wheel vertically and horizontally while the vehicle is lifted.
• Annually or Every 15,000 Miles (24,000 km): A more thorough inspection by a qualified technician is recommended to assess the condition of all suspension components.

If any signs of wear or damage are observed, replacement of the control arm assembly may be necessary to maintain vehicle safety and performance.

6 การแก้ไขปัญหา

Issues with a control arm or its components (bushings, ball joint) can manifest in several ways. If you experience any of the following symptoms, it is advisable to have your vehicle inspected by a professional.

Common Symptoms of a Worn Control Arm:

• เสียงดังคลักๆ หรือเสียงป๊อปๆ: Often heard when going over bumps, accelerating, or braking, indicating a loose or worn ball joint or bushing.
• การสั่นสะเทือน: Excessive vibration felt through the steering wheel or floorboards, especially at higher speeds.
• Steering Instability: Loose or wandering steering, difficulty maintaining a straight line, or a feeling of looseness in the front end.
• การสึกหรอของยางไม่สม่ำเสมอ: Cupping, feathering, or excessive wear on the inner or outer edges of the tires, often due to improper alignment caused by worn suspension components.
• การดึงรถ: The vehicle consistently pulls to one side, even on a flat road.

If these symptoms are present, a thorough inspection of the control arm and surrounding suspension components is necessary to diagnose the exact cause and determine if replacement is required.

7. การรับประกันและการสนับสนุน

The Dorman 520-209 Control Arm is backed by a Dorman Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use and service for the lifetime of the product, subject to Dorman's terms and conditions.

For specific warranty claims, technical support, or further assistance, please contact Dorman customer service or visit their official webไซต์ โปรดเก็บใบเสร็จรับเงินของคุณไว้เป็นหลักฐานการซื้อสำหรับการเรียกร้องการรับประกันใดๆ

บันทึก: Warranty coverage typically applies to the original purchaser and may require professional installation documentation. Always refer to the official Dorman warranty policy for complete details.
