คู่มือผู้ใช้แบตเตอรี่ AGM แบบปิดผนึกอเนกประสงค์ OPTIMA D34 YellowTop

1. บทนำ

This manual provides essential information for the safe and effective use of your OPTIMA D34 YellowTop Dual Purpose Sealed AGM Battery. The OPTIMA YellowTop battery is designed for high-performance applications, offering both strong cranking power and deep-cycle capabilities. It is suitable for vehicles with significant accessory loads, such as cars, trucks, and SUVs.

2. สินค้าหมดview

The OPTIMA D34 YellowTop battery features advanced AGM (Absorbed Glass Mat) technology, providing a sealed, maintenance-free power source. Its unique SpiralCell Technology enhances power delivery and vibration resistance.

คุณสมบัติหลัก:

• การออกแบบเพื่อการใช้งานสองวัตถุประสงค์: Functions as both a starting battery and a deep-cycle battery.
• ไม่ต้องบำรุงรักษา: Sealed design eliminates the need for water additions.
• Spillproof: Can be mounted in various positions without leakage.
• ความต้านทานการสั่นสะเทือน: Up to 15 times more resistant to vibration compared to standard flooded batteries.
• Faster Recharging: Designed for efficient recharging.
• อายุการใช้งานยาวนานขึ้น: Offers up to three times longer life than standard flooded batteries.

ส่วนประกอบของผลิตภัณฑ์:

ภาพที่ 2.1: ด้านหน้า view of the OPTIMA D34 YellowTop battery, showing the yellow top cover and gray casing with positive (red) and negative (black) terminals.

ภาพที่ 2.2: มุม view of the OPTIMA D34 YellowTop battery, highlighting the compact design and terminal placement.

ภาพที่ 2.3: ด้านข้าง view of the OPTIMA D34 YellowTop battery, showing the cylindrical cells within the casing.

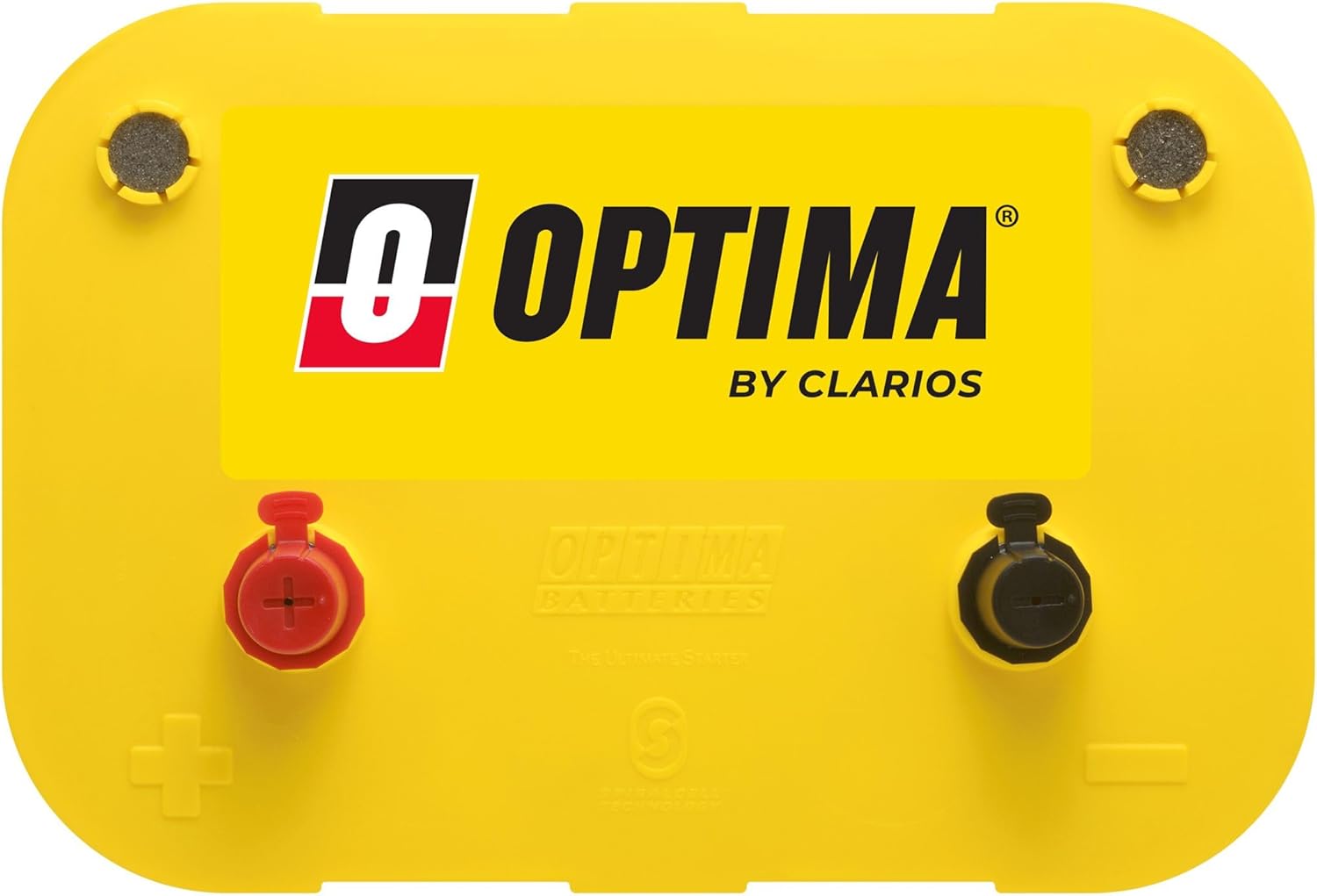

ภาพที่ 2.4: สูงสุด view of the OPTIMA D34 YellowTop battery, illustrating its dimensions: 10 1/16" (254 mm) length, 6 7/8" (175 mm) width, and 7 7/8" (200 mm) height.

3. ข้อมูลด้านความปลอดภัย

WARNING: Batteries contain sulfuric acid and produce explosive gases. Improper handling can cause severe injury or death. Always wear eye protection and gloves when working with batteries.

• เก็บแบตเตอรี่ให้พ้นจากมือเด็ก
• ห้ามสูบบุหรี่หรือวางเปลวไฟไว้ใกล้แบตเตอรี่
• ตรวจสอบให้แน่ใจว่ามีการระบายอากาศที่เพียงพอขณะชาร์จหรือใช้งานแบตเตอรี่
• Avoid contact with battery acid. In case of contact, flush immediately with water and seek medical attention.
• ห้ามลัดวงจรขั้วแบตเตอรี่
• Always disconnect the negative (-) terminal first and connect it last during installation or removal.
• Refer to your vehicle's owner's manual for specific battery handling and installation procedures.

4. การตั้งค่าและการติดตั้ง

Proper installation is crucial for battery performance and safety. If you are unsure about any step, consult a qualified technician.

1. การตระเตรียม:
   • Ensure the vehicle's ignition is off and all accessories are disconnected.
   • Wear appropriate safety gear: eye protection and gloves.
   • Gather necessary tools: wrench, battery terminal cleaner, anti-corrosion spray.
2. Removing the Old Battery:
   • ค้นหาแบตเตอรี่ในรถของคุณ
   • Disconnect the negative (-) terminal first, then the positive (+) terminal.
   • Remove any battery hold-down clamps หรือสายรัด
   • Carefully lift and remove the old battery, noting its orientation. Batteries are heavy; use proper lifting techniques or seek assistance.
3. Installing the OPTIMA D34 YellowTop Battery:
   • Clean the battery tray and terminal clamps thoroughly to ensure good electrical contact.
   • Place the new OPTIMA D34 YellowTop battery into the battery tray, ensuring it is securely seated and oriented correctly (positive to positive, negative to negative).
   • Secure the battery with hold-down clamps หรือสายรัด
   • Connect the positive (+) terminal first, then the negative (-) terminal. Ensure connections are tight.
   • Apply anti-corrosion spray to the terminals to prevent corrosion.
4. การตรวจสอบหลังการติดตั้ง:
   • ตรวจสอบว่าการเชื่อมต่อทั้งหมดปลอดภัย
   • Start the vehicle to confirm proper operation.
   • ตรวจสอบดูว่ามีไฟเตือนใดๆ บนหน้าปัดรถหรือไม่

Note: Due to variations in vehicle designs, some modifications to battery cables or trays may be necessary for proper fitment in certain models. Always ensure secure connections and proper clearance.

5. คู่มือการใช้งาน

The OPTIMA D34 YellowTop is a dual-purpose battery, meaning it is designed to provide both starting power and sustained power for accessories. It is suitable for vehicles with high electrical demands.

• กำลังสตาร์ท: The battery delivers high cold cranking amps (CCA) for reliable engine starting, even in challenging weather conditions.
• การใช้งานแบบ Deep Cycle: It can withstand repeated discharge and recharge cycles, making it ideal for powering vehicle accessories, audio systems, winches, or other high-demand electronics without compromising starting ability.
• การชาร์จ: For optimal performance and longevity, use a battery charger compatible with AGM batteries. Avoid overcharging or undercharging.

6. การบำรุงรักษา

The OPTIMA D34 YellowTop battery is designed to be maintenance-free, meaning it does not require water additions. However, periodic checks can help ensure its longevity and performance.

• การตรวจสอบเทอร์มินัล: Periodically inspect battery terminals for corrosion or loose connections. Clean terminals with a battery brush and baking soda solution if corrosion is present, then rinse with water and dry. Ensure connections are tight.
• Battery Case Inspection: Check the battery case for any signs of damage, cracks, or bulging. If damage is observed, the battery should be replaced.
• ระดับการชาร์จ: If the vehicle is stored for extended periods or used infrequently, consider using a trickle charger or battery maintainer specifically designed for AGM batteries to keep the charge level optimal.
• การทำความสะอาด: Keep the top of the battery clean and dry to prevent dirt and moisture from creating conductive paths.

7 การแก้ไขปัญหา

If you encounter issues with your OPTIMA D34 YellowTop battery, consider the following common troubleshooting steps:

• Vehicle Not Starting / Slow Cranking:
  • Check battery terminals for tightness and corrosion. Loose or corroded connections can impede current flow.
  • Ensure the battery is fully charged. A low charge can result in slow cranking or failure to start.
  • Have the vehicle's charging system (alternator) checked by a professional to ensure it is properly charging the battery.
  • If the battery is old, its capacity may have diminished.
• แบตเตอรี่ไม่เก็บประจุ:
  • Verify there are no parasitic drains on the vehicle's electrical system (e.g., lights left on, faulty accessories).
  • Ensure the charging system is functioning correctly.
  • The battery may have been deeply discharged multiple times, which can reduce its overall lifespan if not properly recharged.
• ปัญหาเรื่องความพอดีของเสื้อผ้า:
  • The OPTIMA D34 has specific dimensions (10" x 6 7/8" x 7 13/16"). Compare these to your vehicle's battery tray and available space.
  • Terminal orientation and cable length can vary by vehicle. Minor adjustments or specialized terminals may be required in some cases.

If problems persist after performing these checks, it is recommended to consult a professional automotive technician or contact OPTIMA customer support.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For warranty information and customer support, please refer to the official OPTIMA Batteries website or contact their customer service directly. Warranty terms and conditions may vary based on purchase location and retailer.

ขอแนะนำให้เก็บหลักฐานการซื้อไว้เพื่อใช้เรียกร้องการรับประกัน
