การแนะนำ
This instruction manual provides essential information for the safe and correct handling, installation, and maintenance of your Beko BE68MSW Inner Oven Door Glass. Please read this manual thoroughly before attempting any installation or maintenance procedures. Retain this manual for future reference.
ข้อมูลด้านความปลอดภัย
คำเตือน: Always disconnect the oven from the main power supply before beginning any installation or maintenance work. Failure to do so can result in electric shock or serious injury.
คำเตือน: Oven glass can be fragile. Handle with extreme care to prevent breakage and injury. Wear appropriate protective gloves and eye protection during installation.
- Ensure the oven has completely cooled down before handling any parts.
- Do not use damaged glass. Inspect the new glass for any cracks or chips before installation.
- หากคุณไม่แน่ใจเกี่ยวกับขั้นตอนใด ๆ โปรดปรึกษาช่างเทคนิคที่มีคุณสมบัติ
สินค้าเกินview
The Beko BE68MSW Inner Oven Door Glass is a replacement component designed to fit specific Beko oven models. It serves as an insulating layer and part of the viewing window within the oven door assembly. This particular glass measures 415mm in width and 335mm in height.

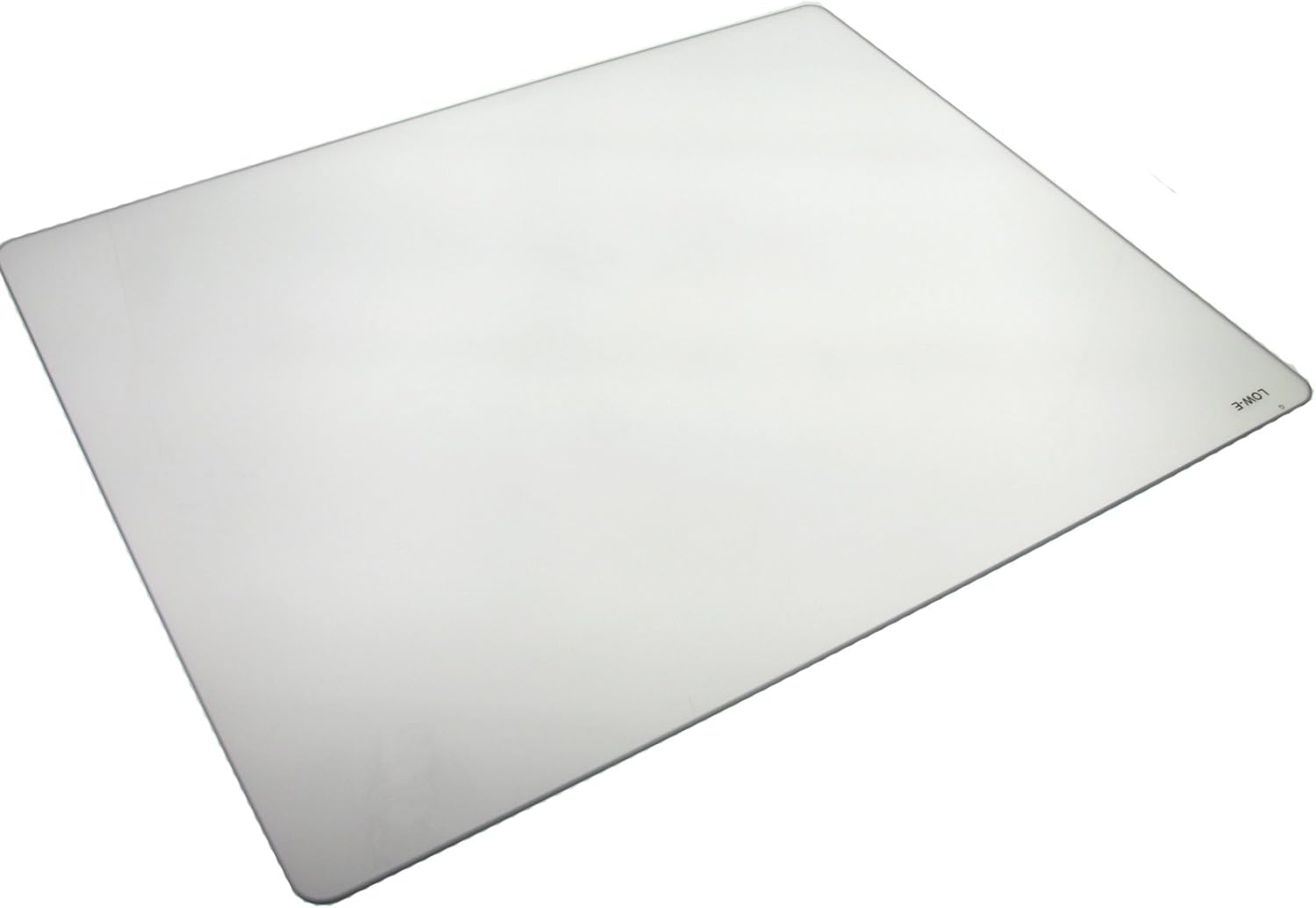

This image displays the Beko BE68MSW Inner Oven Door Glass, a clear, rectangular pane with slightly rounded corners. The glass is designed to fit inside an oven door, providing insulation and a viewing window. The surface appears smooth and reflective.
การตั้งค่า (การติดตั้ง)
เครื่องมือที่จำเป็น: Screwdriver set (Phillips and flathead), protective gloves, soft cloth.
- การตัดการเชื่อมต่อไฟฟ้า: Ensure the oven is completely disconnected from the electrical supply.
- Oven Cooling: Allow the oven to cool down completely to room temperature.
- Door Removal (if necessary): Depending on your oven model, it may be easier to remove the entire oven door. Consult your oven's primary instruction manual for specific door removal procedures.
- Accessing the Inner Glass: Carefully open the oven door. Locate the screws or clips that secure the inner panel of the oven door. These are typically found along the top or sides of the inner door frame.
- Removing the Old Glass: Unscrew or unclip the retaining mechanisms. Gently lift out the old inner glass. If the old glass is broken, carefully remove all fragments, ensuring no small pieces remain within the door assembly.
- การทำความสะอาด: Clean the interior of the oven door frame to remove any grease or debris before installing the new glass.
- Installing the New Glass: Carefully place the new Beko BE68MSW Inner Oven Door Glass into the designated slot within the oven door frame. Ensure it sits flush and securely.
- การยึดกระจก: Reattach the retaining screws or clips, ensuring they are tightened sufficiently to hold the glass firmly in place, but do not overtighten, as this could damage the glass.
- ประกอบประตูใหม่: If the oven door was removed, reattach it according to your oven's primary instruction manual.
- การตรวจสอบขั้นสุดท้าย: Gently open and close the oven door to ensure the new glass is stable and there are no unusual noises or movements.
Operating (Post-Installation)
After successful installation, the oven door glass functions as an integral part of the oven's thermal insulation and viewing window. No specific 'operation' is required for the glass itself beyond its passive role.
- Ensure the oven door closes properly and seals tightly after installation.
- Avoid slamming the oven door, as this can stress the glass and other components.
- อย่าวางของหนักบนประตูเตาอบเมื่อเปิดอยู่
การซ่อมบำรุง
Regular cleaning and inspection will help prolong the life of your oven door glass.
- การทำความสะอาด: Clean the inner oven door glass with a soft cloth and a non-abrasive oven cleaner or a mixture of warm water and mild dish soap. Avoid harsh chemicals or abrasive scrubbing pads, which can scratch or damage the glass surface. Ensure the oven is cool before cleaning.
- การตรวจสอบ: Periodically inspect the glass for any signs of cracks, chips, or damage. If any damage is observed, the glass should be replaced immediately to ensure safety and maintain oven efficiency.
- การตรวจสอบซีล: Check the door seal (gasket) around the oven door for any signs of wear or damage. A compromised seal can affect oven performance and potentially lead to heat escaping.
การแก้ไขปัญหา
This section addresses common issues related to the inner oven door glass.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Glass does not fit correctly. | Incorrect model part; improper alignment during installation. | Verify the part number (BE68MSW) matches your oven model. Re-align the glass carefully, ensuring it sits flush in its frame. |
| Glass rattles or feels loose. | Retaining screws/clips are loose or not properly secured. | Ensure all retaining screws or clips are tightened securely. Do not overtighten. |
| Condensation between glass panes. | This is often normal during cooking, especially with high moisture foods. Persistent condensation may indicate a faulty door seal. | Ensure the door seal is clean and intact. If condensation persists and affects visibility, inspect the door seal for damage and replace if necessary. |
| Glass is cracked or broken. | Impact damage; thermal stress; manufacturing defect. | Immediately discontinue oven use. Replace the glass with a new, undamaged Beko BE68MSW Inner Oven Door Glass. |
ข้อมูลจำเพาะ
- แบบอย่าง: BE68MSW
- พิมพ์: Inner Oven Door Glass
- Dimensions (Width x Height): 415มม. x 335มม.
- วัสดุ: กระจกนิรภัย
- น้ำหนักสินค้า: 0.66 กิโลกรัม
- ASIN: 1020100664
การรับประกันและการสนับสนุน
For warranty information or technical support regarding your Beko BE68MSW Inner Oven Door Glass, please refer to the original purchase documentation or contact Beko customer service directly. Ensure you have your oven model number and the part's ASIN (1020100664) available when contacting support.
For further assistance, visit the official Beko website or contact your local authorized Beko service center.
