TOWILD CL600 Rechargeable Bicycle Light Instruction Manual

การแนะนำ

This manual provides detailed instructions for the TOWILD CL600 Rechargeable Bicycle Light. Please read this manual thoroughly before use to ensure proper operation and maintenance. The CL600 is designed for cyclists seeking a reliable and versatile front light, featuring 600 lumens brightness, a 2600mAh battery, USB-C charging, IPX6 waterproofing, and multiple lighting modes.

การตั้งค่า

1. การแกะกล่องและส่วนประกอบ

Verify all components are present: CL600 light unit, handlebar mount, GoPro compatible mount, USB-C charging cable, and instruction manual.

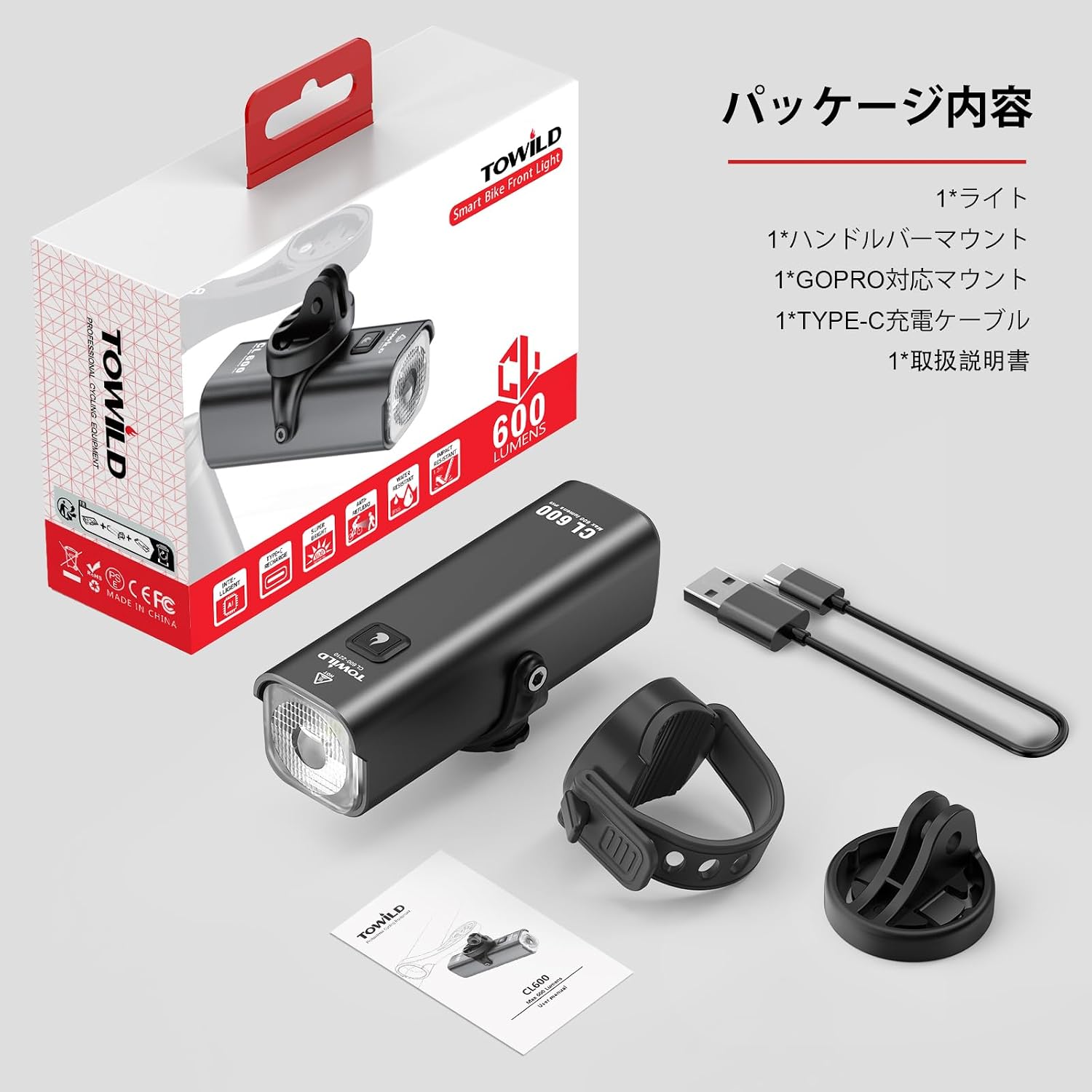

Image: Package contents of the TOWILD CL600 bicycle light, showing the light unit, handlebar mount, GoPro mount, USB-C cable, and user manual.

2. การติดตั้งไฟ

• ที่ยึดแฮนด์บาร์: Attach the handlebar mount securely to your bicycle's handlebar. Ensure the mount is tightened sufficiently to prevent movement during riding.
• Garmin/GoPro Compatible Mount: The CL600 features a Garmin-compatible bracket, allowing it to be mounted above or below your handlebars, or even on a helmet, using compatible Garmin/GoPro mounts (sold separately). This provides flexibility for various cycling setups.

Image: The TOWILD CL600 bicycle light securely mounted on a handlebar, demonstrating its front placement.

Image: Various mounting options for the TOWILD CL600, including helmet and under-handlebar positions, highlighting its Garmin mount compatibility.

3. ค่าธรรมเนียมเริ่มต้น

Before first use, fully charge the CL600 light using the provided USB-C cable. Connect the cable to the light's USB-C port and a suitable USB power source. The battery indicator will show charging status.

การดำเนินการ

1. เปิด/ปิดเครื่อง

Press and hold the power button for approximately 1 second to turn the light ON or OFF.

2. การเปลี่ยนโหมดแสงสว่าง

• With the light ON, a single press of the power button cycles through the three steady brightness modes: สูง (600 lumens), ปานกลาง (300 lumens), and ต่ำ (150 ลูเมน)
• Double-click the power button to switch to the flashing modes: ไนท์แฟลช (200 lumens) and วันแฟลช (600 ลูเมน)

ภาพ: ภาพระยะใกล้ view of the TOWILD CL600 bicycle light, highlighting the power button for mode selection and the main light lens.

Image: A table detailing the TOWILD CL600's lighting modes (Low, Medium, High, Night Flash, Day Flash), their respective brightness levels (150LM to 600LM), and approximate runtimes (2.25 to 13 hours).

3. Smart Mode (Vibration Sensor)

• The CL600 features a smart mode with a vibration sensor. When activated (indicated by a blue light), the light will automatically turn off after approximately 120 seconds of inactivity (e.g., when stopped at a traffic light).
• Upon detecting vibration (movement), the light will automatically turn back on.

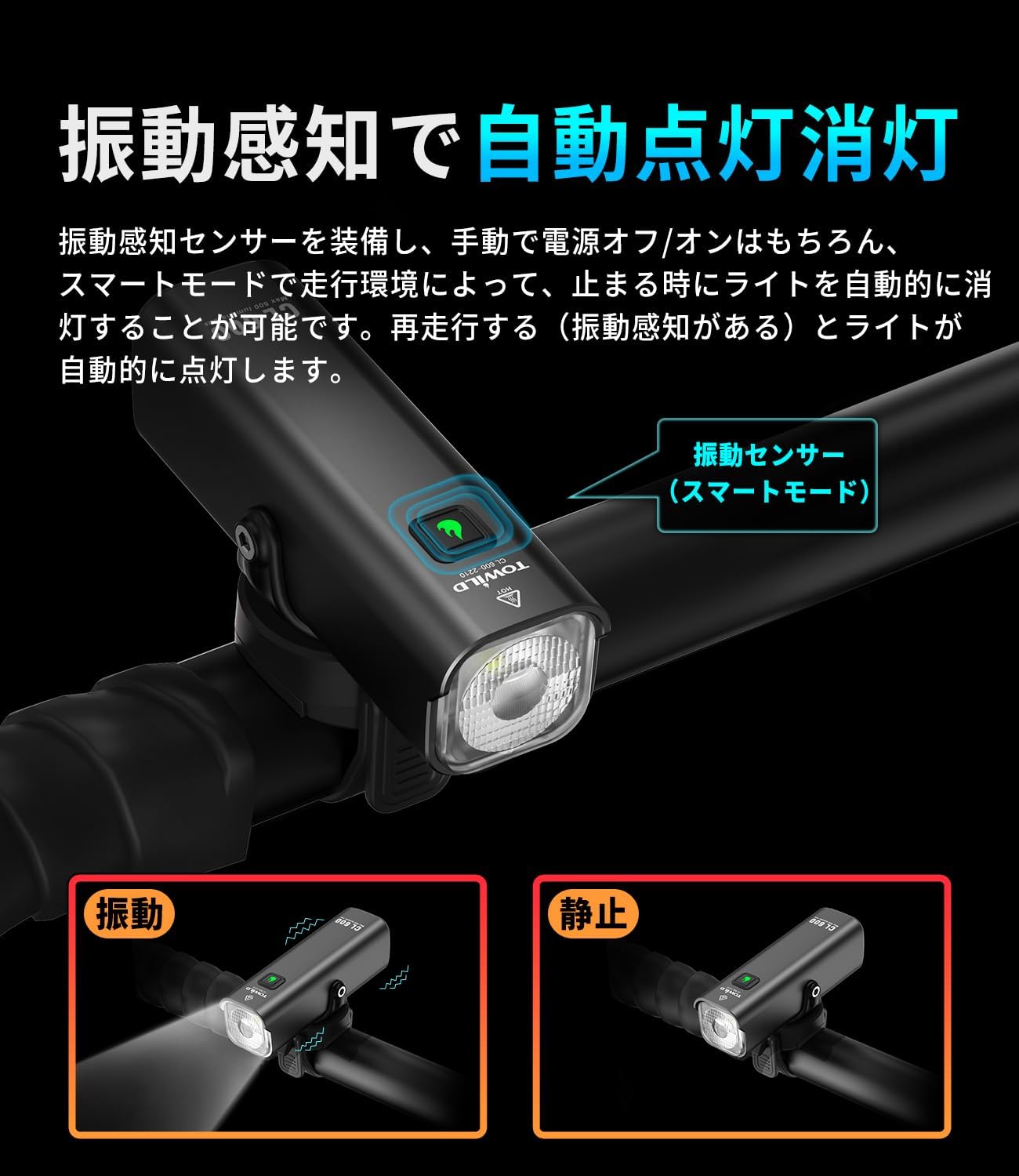

Image: The TOWILD CL600 bicycle light mounted on a handlebar, with an arrow indicating the vibration sensor for its smart mode functionality.

Image: A visual representation of the TOWILD CL600's automatic on/off feature, showing the light turning off when stationary and turning back on when vibration is detected.

4. ไฟแสดงสถานะแบตเตอรี่

The indicator light on the device displays the battery level:

• Green (steady): 100-30% charge.
• สีเขียว (กะพริบ): Below 30% charge.
• Red & Green (alternating flash): Below 10% charge.

Image: A diagram illustrating the battery indicator light states for the TOWILD CL600, showing different colors and flashing patterns for various charge levels.

การซ่อมบำรุง

1. การชาร์จไฟ

• Charge the light using the provided USB-C cable. The 2600mAh battery allows for extended use.
• หลีกเลี่ยงการชาร์จมากเกินไปหรือทำให้แบตเตอรี่หมดเพื่อยืดอายุการใช้งาน

Image: The TOWILD CL600 bicycle light being charged via a USB-C cable, demonstrating the charging port location.

Image: The TOWILD CL600 bicycle light being charged via USB-C from multiple power sources, including a laptop, power bank, and car charger.

2. การทำความสะอาด

เช็ดตัวไฟและเลนส์ด้วยผ้าเนื้อนุ่มและแห้งamp ผ้า ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย

3. ความทนทานต่อน้ำ

The CL600 is IPX6 waterproof, meaning it is protected against powerful water jets. It can withstand heavy rain but should not be submerged in water.

Image: The TOWILD CL600 bicycle light shown in a rainy environment, illustrating its IPX6 waterproof capability.

4. การจัดเก็บ

Store the light in a cool, dry place when not in use for extended periods. Charge it periodically (every 3-6 months) to maintain battery health.

การแก้ไขปัญหา

• ไฟไม่ติด:
  • Ensure the battery is charged. Connect to a USB-C power source and check the indicator light.
  • Press and hold the power button for 1 second to ensure it's not just in standby.
• ไฟไม่ชาร์จ:
  • ตรวจสอบสาย USB-C และอะแดปเตอร์ไฟฟ้าว่าได้รับความเสียหายหรือไม่
  • Ensure the cable is fully inserted into the light's port.
• Smart mode not working:
  • Ensure the smart mode is activated (blue indicator light).
  • Verify the light is securely mounted and can detect vibrations.
• แสงสว่างไม่เพียงพอ:
  • แบตเตอรี่อาจเหลือน้อย โปรดชาร์จไฟ
  • ตรวจสอบให้แน่ใจว่าเลนส์สะอาดและปราศจากสิ่งสกปรกหรือสิ่งกีดขวาง

ข้อมูลจำเพาะ

ข้อมูลการรับประกัน

The TOWILD CL600 Bicycle Light comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For warranty service, please contact customer support.

การสนับสนุนลูกค้า

For any questions, concerns, or technical assistance regarding your TOWILD CL600 Bicycle Light, please contact our customer support team:

• อีเมล: support@towild.com
• Webเว็บไซต์: www.towild.com
• โทรศัพท์: +1-XXX-XXX-XXXX (Please refer to your regional support contact if available)
