Generic 10-Inch Chainsaw Chain Blade Instruction Manual

1. บทนำ

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Generic 10-inch Chainsaw Chain Blade. This chain is designed for use with compatible chainsaws, including models like the SCOTTS S20500, requiring a 3/8"LP pitch, .043" gauge, and 40 drive links. Please read this manual thoroughly before attempting to install or use the chain.

For specific instructions related to your chainsaw model, always refer to the chainsaw manufacturer's own instruction manual.

2. ข้อมูลด้านความปลอดภัย

Chainsaws and their components can be dangerous if not handled properly. Adhere to all safety warnings and instructions provided by your chainsaw manufacturer. Failure to do so may result in serious injury or death.

• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสมเสมอ, including safety glasses, hearing protection, gloves, and sturdy footwear, when handling or operating a chainsaw.
• Ensure the chainsaw is turned off and the spark plug cap is removed (for gasoline models) or the battery is disconnected (for electric/cordless models) before performing any maintenance, installation, or adjustment.
• Inspect the chain and chainsaw regularly for damage, wear, or loose components. Do not use damaged equipment.
• Keep bystanders and pets at a safe distance when operating a chainsaw.
• Maintain a firm grip on the chainsaw with both hands during operation.
• Be aware of kickback hazards and understand how to avoid them.

3. การตั้งค่าและการติดตั้ง

Proper installation of the chainsaw chain is critical for safe and efficient operation. Refer to your chainsaw's specific manual for detailed instructions on how to remove the old chain and install a new one.

1. เตรียมเลื่อยยนต์ให้พร้อม: Ensure the chainsaw is turned off, the engine is cool, and the power source is disconnected (spark plug cap removed or battery disconnected). Engage the chain brake.
2. ถอดฝาครอบราวเหล็ก: คลายตัวน็อตยึดแกนและถอดฝาครอบด้านข้างที่ยึดแกนนำทางออก
3. ถอดโซ่เก่าออก (ถ้ามี): Carefully remove the old chain from the guide bar and sprocket. Dispose of it safely if it is damaged or worn.
4. ติดตั้งโซ่ใหม่:
   • Uncoil the new Generic 10-inch chain blade.
   • Ensure the cutting edges (teeth) are facing the correct direction for cutting (usually forward, away from the chainsaw body, on the top of the guide bar).
   • Place the chain around the drive sprocket (behind the clutch drum) and then guide it into the groove of the guide bar.
   • Work the chain around the nose of the guide bar, ensuring all drive links are seated correctly in the bar groove.
5. Reattach Bar Cover and Adjust Tension:
   • Slide the guide bar back into position, ensuring the chain tensioner pin engages with the hole in the guide bar.
   • Replace the side cover and hand-tighten the bar nuts.
   • Adjust the chain tension using the tensioning screw. The chain should be snug against the guide bar but still able to be pulled freely by hand. There should be no slack on the underside of the bar, and the drive links should not come out of the bar groove.
   • เมื่อปรับความตึงได้ถูกต้องแล้ว ให้ขันน็อตยึดให้แน่นสนิท
6. ตรวจสอบการหล่อลื่น: ตรวจสอบให้แน่ใจว่ากระปุกน้ำมันของเลื่อยยนต์นั้นเต็มไปด้วยน้ำมันหล่อลื่นโซ่และบาร์ที่เหมาะสม

4. คู่มือการใช้งาน

After proper installation, follow these general guidelines for operating your chainsaw with the new chain. Always prioritize safety and refer to your chainsaw's manual for specific operating procedures.

• การตรวจสอบก่อนการทำงาน: Before each use, check the chain tension, ensure the chain is properly lubricated, and inspect for any damage or loose parts.
• การเผชิญหน้าครั้งแรก: Run the chainsaw at a moderate speed for a few minutes to allow the chain to seat properly and for oil to circulate. Recheck chain tension after this initial run, as new chains can stretch slightly.
• เทคนิคการตัดผมที่ถูกต้อง: Use the chainsaw as instructed by its manufacturer. Avoid forcing the chain; let the sharp teeth do the work.
• การหล่อลื่นโซ่: Ensure the automatic oiler is functioning correctly and that the chain is receiving adequate lubrication during operation.

5. การบำรุงรักษา

Regular maintenance extends the life of your chainsaw chain and ensures safe operation.

• การลับคม: A sharp chain cuts efficiently and safely. Sharpen the chain regularly using a round file of the correct diameter (typically 5/32" for 3/8"LP chains, but verify with your chainsaw manual). Maintain the correct filing angles. A dull chain will produce fine sawdust instead of chips and require more force to cut.
• การทำความสะอาด: After each use, clean the chain and guide bar to remove sawdust, sap, and debris. This prevents buildup that can hinder performance and lubrication.
• การหล่อลื่น: Always ensure the chainsaw's oil reservoir is filled with appropriate bar and chain oil. Proper lubrication reduces friction and wear.
• พื้นที่จัดเก็บ: When not in use, clean and lightly oil the chain before storing it in a dry place. Consider using a chain guard to protect the teeth.
• การตรวจสอบ: Periodically inspect the chain for damaged or missing drive links, cracks, or excessive wear. Replace the chain if any significant damage is found.

6 การแก้ไขปัญหา

ต่อไปนี้คือปัญหาทั่วไปบางประการและแนวทางแก้ไขที่เป็นไปได้:

• Chain not cutting efficiently:
  • สารละลาย: The chain is likely dull. Sharpen the chain or replace it if severely worn. Check chain direction.
• Chain smoking or overheating:
  • สารละลาย: Insufficient lubrication. Check bar and chain oil level and ensure the oiler is functioning. Chain tension might be too tight.
• Chain coming off the bar:
  • สารละลาย: Chain tension is too loose. Re-tension the chain. Inspect the guide bar for wear or damage.
• Chain binding in the cut:
  • สารละลาย: Chain is dull or improperly sharpened. Ensure proper cutting technique and avoid twisting the bar.

7. ข้อมูลจำเพาะ

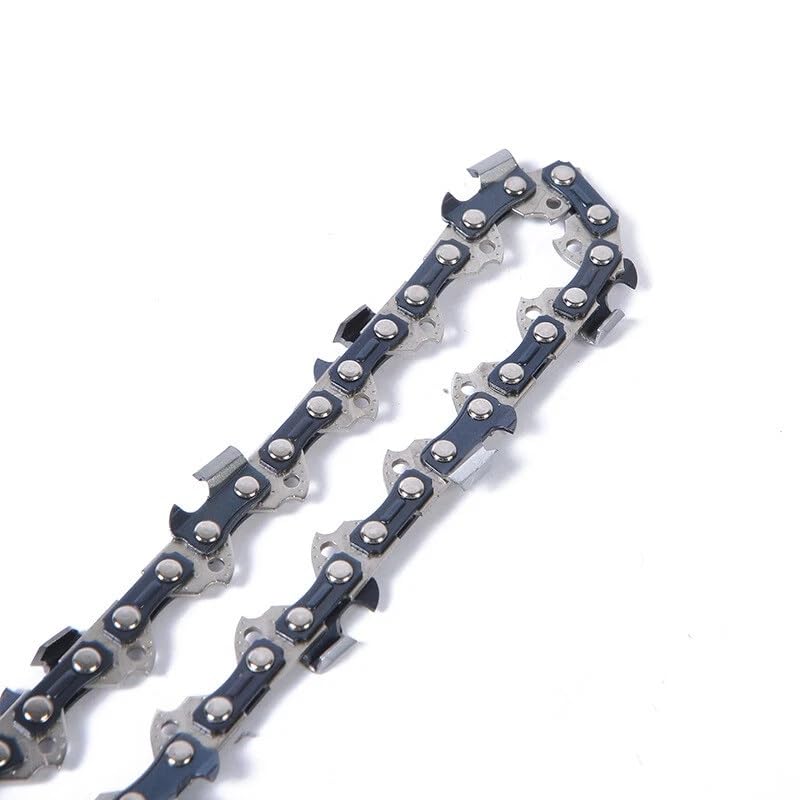

The Generic 10-inch Chainsaw Chain Blade features the following specifications:

• ขนาด: 10 นิ้ว
• วัด: 043"
• ขว้าง: 3/8"LP (Low Profile)
• ลิงค์ไดรฟ์: 40DL
• วัสดุ: เหล็กคุณภาพสูง
• ความเข้ากันได้: Designed to fit chainsaws requiring these specifications, including SCOTTS S20500.

8. การรับประกันและการสนับสนุน

For information regarding warranty coverage or customer support for this Generic chainsaw chain blade, please refer to the documentation provided by your retailer or the seller from whom you purchased the product. Specific warranty terms and support contacts are typically managed by the point of sale or the brand's official channels.
