1. บทนำ
Thank you for choosing the VOLTVOGUE VV20-16 Electric Fat Tire E-Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new e-bike. Please read this manual thoroughly before your first ride and keep it for future reference.

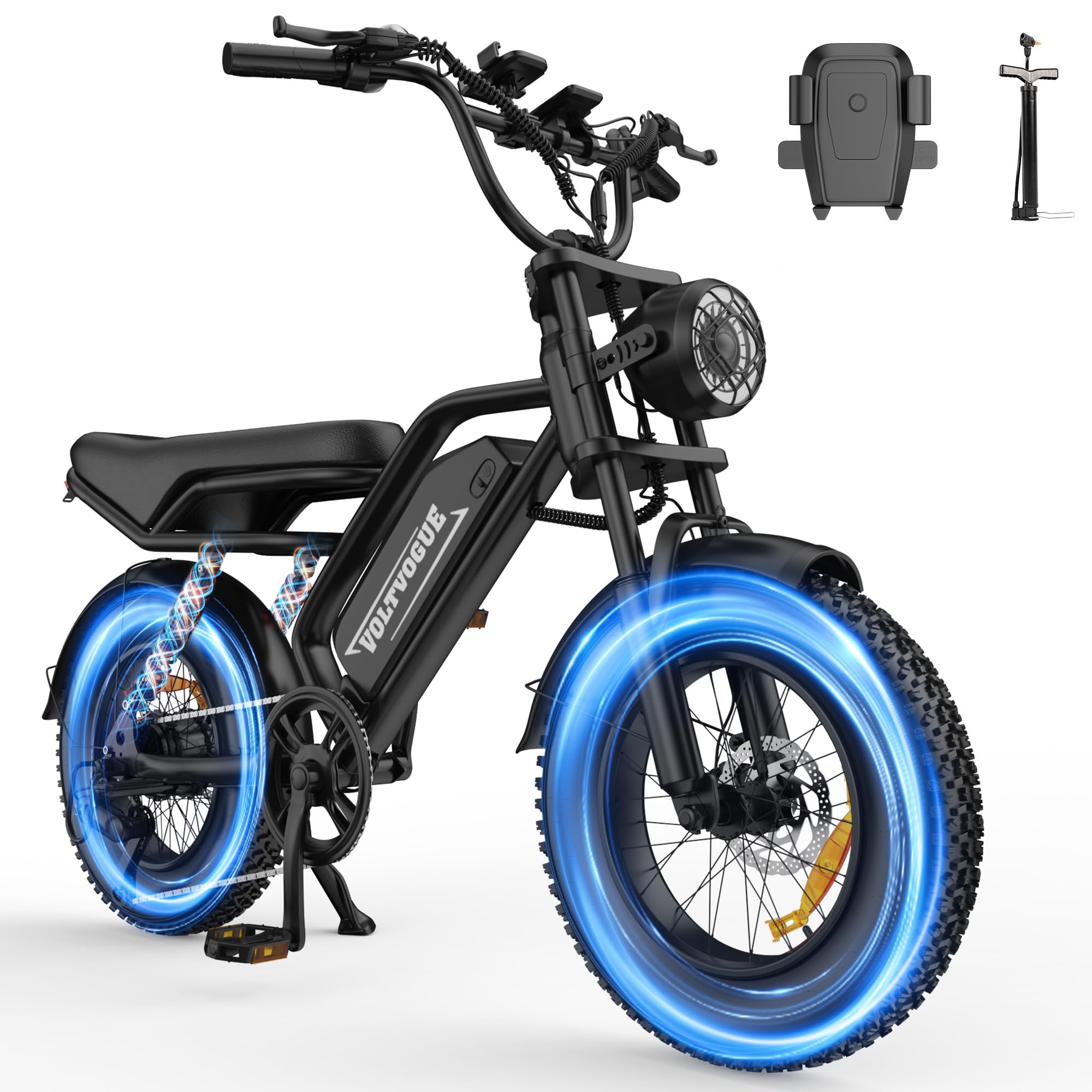

Figure 1: The VOLTVOGUE VV20-16 Electric Fat Tire E-Bike, featuring its robust frame and fat tires.
2. ข้อมูลด้านความปลอดภัย
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local e-bike regulations and traffic laws. Perform a pre-ride inspection before each use.
2.1 แนวปฏิบัติด้านความปลอดภัยทั่วไป
- ควรสวมหมวกนิรภัยที่ได้รับการรับรองทุกครั้ง
- ตรวจสอบให้แน่ใจว่าส่วนประกอบทั้งหมดติดตั้งแน่นสนิทก่อนขี่
- อย่าขี่ภายใต้ฤทธิ์แอลกอฮอล์หรือยาเสพติด
- โปรดระมัดระวังสิ่งรอบข้างและสภาพการจราจร
- Maintain proper tire pressure as specified in the specifications section.
2.2 ความปลอดภัยของแบตเตอรี่
- ใช้เฉพาะที่ชาร์จที่ให้มาเท่านั้น
- อย่าให้แบตเตอรี่ถูกอุณหภูมิที่สูงหรือแสงแดดโดยตรง
- Avoid puncturing or damaging the battery pack.
- เก็บแบตเตอรี่ให้ห่างจากเด็กและสัตว์เลี้ยง
3. เนื้อหาบรรจุภัณฑ์
เมื่อแกะกล่อง โปรดตรวจสอบว่ามีสิ่งของครบถ้วนตามรายการด้านล่าง:
- VOLTVOGUE VV20-16 E-Bike (partially assembled)
- แบตเตอรี่แบบถอดได้
- เครื่องชาร์จแบตเตอรี่
- คู่มือการใช้งาน (เอกสารนี้)
- ชุดเครื่องมือ
- ล็อคจักรยาน
- Backseat (optional installation)
วิดีโอ 1: จบview of the Fat Tire Electric Bike, including unboxing and key features. This video is provided by the seller, Miaojinebike.
4. การติดตั้งและการประกอบ
Your VOLTVOGUE VV20-16 E-Bike comes partially assembled. Follow these steps to complete the assembly:
- ติดตั้งแฮนด์บาร์: Secure the handlebar to the stem using the provided tools. Ensure it is centered and tightened properly.
- ติดตั้งไฟหน้า: Attach the headlight to the front fork and connect the wiring.
- ติดตั้งล้อหน้า: Carefully align the front wheel with the fork and secure it using the quick-release skewer or axle nuts. Ensure the brake rotor is correctly positioned within the caliper.
- ติดตั้งเบาะรองนั่ง: Insert the seat post into the frame and adjust the height to your preference. Tighten the quick-release clamp.
- ติดตั้งแป้นเหยียบ: Identify the left (L) and right (R) pedals. Thread the 'R' pedal clockwise into the right crank arm and the 'L' pedal counter-clockwise into the left crank arm. Tighten securely with a wrench.
- Attach the Backseat (Optional): If desired, attach the backseat to the rear rack using the provided hardware.
Video 2: Detailed installation guide for the ZNH Fat Tire Electric Mountain Bike, demonstrating handlebar, headlight, front wheel, seat, and pedal assembly. This video is provided by the seller, Miaojinebike.
5. คู่มือการใช้งาน
5.1 การเปิด/ปิดเครื่อง
To power on the e-bike, ensure the battery is securely installed and turned on (if it has a separate switch). Then, press and hold the 'M' (Mode) button on the handlebar display until the screen illuminates. To power off, press and hold the 'M' button again.
Figure 2: The color LCD display shows speed, mileage, battery level, and operating mode.
5.2 Speed Modes and Pedal Assist
The e-bike features multiple speed modes and pedal assist levels. Use the '+' and '-' buttons on the display to cycle through different assist levels (0-5). Level 0 provides no electric assistance, while Level 5 provides maximum assistance. The display will show your current speed, trip mileage, and battery status.
Figure 3: The e-bike supports multiple driving modes: Bicycle Mode (pedal only), Pedal Assist (PAS), and Pure Electric (throttle only).
5.3 การทำงานของคันเร่ง
For pure electric power, use the thumb throttle located on the handlebar. Gently press the throttle to engage the motor. Release the throttle to reduce speed or stop. Always be mindful of your speed and surroundings when using the throttle.
5.4 การเปลี่ยนเกียร์
The e-bike is equipped with a 7-speed Shimano gear system. Use the gear shifter on the right handlebar to change gears, allowing you to adapt to various terrains and riding conditions. Shift to lower gears for climbing hills and higher gears for flat terrain or downhill riding.
5.5 การเบรก
The e-bike features dual disc brakes for reliable stopping power. Apply both front and rear brakes simultaneously for optimal control and shorter stopping distances. Avoid sudden, hard braking, especially at high speeds, to prevent skidding.
Figure 4: Key safety features include bright LED headlights, responsive brake lights, and reliable disc brakes for enhanced control.
5.6 ไฟและแตร
Activate the LED headlight for improved visibility during low-light conditions or night riding. The e-bike also includes turn signals and a horn for communication with other road users. Use these features to enhance your safety and awareness.
Figure 5: Large LED headlights provide a bright and wide field of vision, complemented by turn signals for safer cycling.
6. การบำรุงรักษา
Regular maintenance ensures the longevity and optimal performance of your e-bike.
6.1 การทำความสะอาด
ทำความสะอาดจักรยานไฟฟ้าของคุณเป็นประจำด้วยamp ผ้าและสบู่ชนิดอ่อน หลีกเลี่ยงการล้างด้วยแรงดันสูงกับชิ้นส่วนไฟฟ้าโดยตรง
6.2 การดูแลรักษายางรถยนต์
Check tire pressure before each ride. The recommended pressure is typically indicated on the tire sidewall. Inspect tires for wear, punctures, or damage.
Figure 6: The 16"x4.0" fat tires are designed for various terrains, including city roads, mountain trails, sandy paths, and snow.
6.3 การตรวจสอบเบรก
Regularly inspect brake pads and rotors for wear. Ensure brake levers are responsive and cables are not frayed. Adjust or replace components as needed.
6.4 การหล่อลื่นโซ่
Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust. Apply a suitable bicycle chain lubricant periodically.
6.5 การชาร์จและการจัดเก็บแบตเตอรี่
Charge the battery fully after each ride. For long-term storage, charge the battery to 50-70% and store it in a cool, dry place. Avoid completely draining the battery.
Figure 7: The e-bike features a 748Wh removable lithium-ion battery for convenient charging and extended range.
Figure 8: The 48V 15.6Ah removable lithium battery is IPX4 waterproof and includes a Battery Management System (BMS) for safety and performance, offering 2000 cycle charges and charge protection.
7 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| จักรยานไฟฟ้าเปิดไม่ติด | แบตเตอรี่ไม่ได้ชาร์จหรือติดตั้งไม่ถูกต้อง | Ensure battery is fully charged and securely locked into place. Check battery switch. |
| มอเตอร์ไม่ช่วย | Pedal assist level is 0 or motor cable is disconnected. | Increase pedal assist level using '+' button. Check motor cable connections. |
| เบรกรู้สึกอ่อนแรง | ผ้าเบรกสึกหรอหรือสายเบรกหลวม | ตรวจสอบผ้าเบรกว่าสึกหรอหรือไม่ และเปลี่ยนหากจำเป็น ปรับความตึงของสายเบรก |
| เสียงผิดปกติระหว่างการขับขี่ | Loose components, dry chain, or tire rubbing. | Check all bolts and fasteners. Lubricate chain. Inspect tire clearance. |
8. ข้อมูลจำเพาะ
- ประเภทจักรยาน : จักรยานไฟฟ้า
- ช่วงอายุ: ผู้ใหญ่
- ยี่ห้อ: VOLTVOGUE
- หมายเลขรุ่น: VV20-16
- มอเตอร์: Peak 1500W Brushless Motor
- ความเร็วสูงสุด: 25/31 MPH (depending on mode/conditions)
- แบตเตอรี่: 48V 748Wh Removable Lithium Battery (IPX4 Waterproof, BMS Intelligent System, 2000 Cycle Charging, Charge Protection)
- พิสัย: 40-70 Miles (depending on assist level and terrain)
- ยางรถยนต์ : 16-Inch All-Terrain Fat Tires
- ประเภทการแขวนลอย: Dual Full Suspension (Multi Dampไอเอ็นจี)
- รูปแบบเบรก: Disc Brakes (Front and Rear)
- จำนวนความเร็ว: 7 (ชิมาโนะ)
- วัสดุกรอบ: สแตนเลส
- สี: สีดำ
- คุณสมบัติพิเศษ: LED Headlight, Brake Lights, Turn Signals, Horn, Color LCD Display
- ความสูงที่แนะนำ: 4'11" - 6'3"
- โหลดสูงสุด: 330 ปอนด์
Figure 9: The e-bike is powered by an 800W powerful brushless motor with a peak output of 1500W, offering a max speed of 25MPH, 30-degree climbing ability, and a 330 lbs max load capacity.
Figure 10: The multi-damping system provides full suspension for a comfortable ride across varied terrains.
Figure 11: E-bike dimensions are 59.45 inches long, 28.54 inches wide (handlebar), and 43.31 inches high. Recommended for riders 4'11" to 6'3" and up to 330 lbs.
9. การรับประกันและการสนับสนุน
The VOLTVOGUE VV20-16 E-Bike comes with a 2-year warranty. For warranty claims, technical support, or any questions regarding your e-bike, please contact VOLTVOGUE customer service through your retailer or the official brand webเว็บไซต์.
