JESIMAIK 3-Canister Gas Adapter User Manual

1. บทนำ

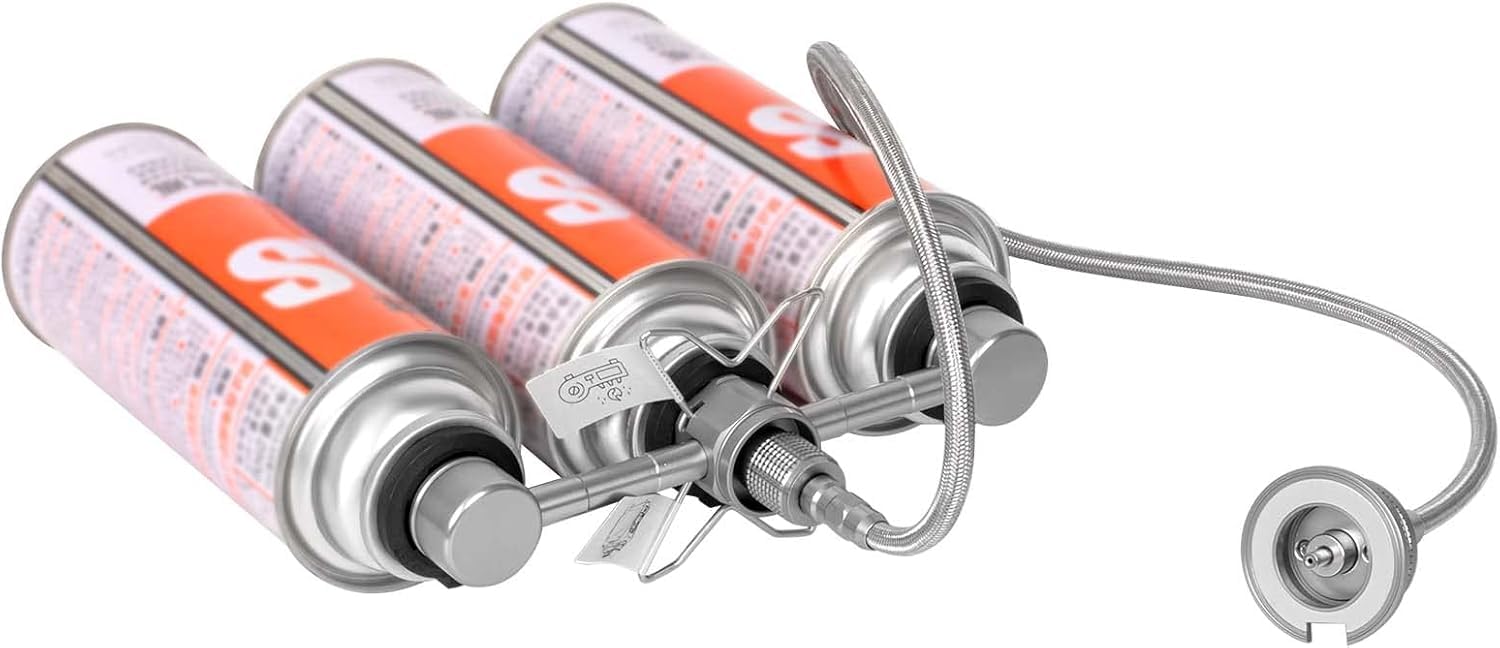

The JESIMAIK 3-Canister Gas Adapter is designed to provide an extended gas supply for various outdoor and emergency gas appliances. It allows simultaneous connection of up to three cassette butane (CB) cans, with an option to expand to five cans using additional sockets. This adapter ensures a continuous gas flow for generators, stoves, and heaters, minimizing interruptions due to gas depletion. It also features a conversion function for OD cans, enhancing its versatility across different temperatures and environments.

2. ข้อมูลด้านความปลอดภัย

• ใช้กลางแจ้งเท่านั้น: Always use this gas adapter in a well-ventilated outdoor area to prevent carbon monoxide buildup.
• การตรวจสอบการรั่วไหล: Before each use, perform a leak check on all connections using a soapy water solution. Bubbles indicate a leak. Tighten connections or replace seals if necessary.
• การเชื่อมต่อที่ถูกต้อง: Ensure all gas cans and appliance connections are securely fastened according to the instructions. Improper connection can lead to gas leakage.
• ไม่มีเปลวไฟเปิด: Do not connect or disconnect gas cans near open flames, sparks, or other ignition sources.
• Canister Compatibility: Use only compatible cassette butane (CB) cans and OD cans (when using the conversion adapter).
• Product Limitation: This product is an external socket for cassette bombs. Cassette bombs (CB cans) and OD cans are not included with this adapter.
• พื้นที่จัดเก็บ: Disconnect gas cans from the adapter when not in use and store them in a cool, dry, well-ventilated area away from direct sunlight and heat sources.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีรายการทั้งหมดอยู่ในแพ็คเกจ:

• 1 x JESIMAIK 3-Canister Gas Adapter with Hose
• 1 x OD Can Conversion Adapter (integrated into one of the sockets)

4. คุณสมบัติของผลิตภัณฑ์

• Extended Gas Supply: Connects up to three cassette butane (CB) cans simultaneously, providing a continuous gas supply for prolonged operation. Expandable to five cans by connecting additional sockets.
• Versatile Appliance Compatibility: Suitable for powering various gas appliances such as generators, camping stoves, heaters, and single burners.
• ประสิทธิภาพการทำงานที่อุณหภูมิต่ำ: Includes an integrated adapter for converting CB cans to OD can compatibility, enhancing performance and reliability in colder environments.
• การออกแบบความปลอดภัยขั้นสูง: Features a built-in reverse valve in the cylinder-side socket to prevent gas leakage, even when only one canister is connected. The hose is fully protected with durable stainless mesh, offering high flexibility and resistance to scratches and damage.
• Iwatani Stove Compatibility: Designed to be compatible with Iwatani magnet-detachable gas stoves and cookers. Note: The appliance-side socket includes added iron parts to ensure a secure connection without relying on magnetism.

5. การตั้งค่า

Follow these steps to set up your JESIMAIK 3-Canister Gas Adapter:

1. Prepare Gas Cans: Ensure you have 1 to 3 compatible cassette butane (CB) cans. Make sure they are full and in good condition.
2. Connect CB Cans: Align the nozzle of each CB can with the adapter's input sockets. Push firmly and twist slightly until the can locks into place. Ensure a secure, leak-free connection.
3. เชื่อมต่อกับอุปกรณ์: Attach the adapter's output hose to your gas appliance (generator, stove, etc.). Tighten the connection hand-tight, then use a wrench if necessary to ensure it is secure.
4. Perform Leak Check: Before igniting any appliance, apply a soapy water solution to all connections. If bubbles appear, tighten the connection or replace the gas can.
5. OD Can Conversion (Optional): To use OD cans, rotate the cylinder-side socket counter-clockwise to remove the CB can connector. This will expose the OD can threaded connector. Screw the OD can directly onto this connector.

6. คู่มือการใช้งาน

Once the adapter is securely set up and leak-checked:

1. Open Gas Flow: If your appliance has a gas control valve, ensure it is in the closed position before opening the gas flow from the adapter.
2. Ignite Appliance: Follow your appliance's specific instructions for ignition.
3. Monitor Gas Levels: Periodically check the gas cans to ensure sufficient fuel. The adapter automatically draws gas from connected cans, providing a continuous supply.
4. Replacing Cans: If a can runs empty, turn off the appliance, close any gas valves, and carefully disconnect the empty can. Replace it with a new, full can, ensuring a secure connection and performing a leak check before resuming operation.
5. ปิดระบบ: When finished, turn off your gas appliance, then close any gas valves on the adapter or individual cans. Allow the system to cool before disconnecting cans.

7. การบำรุงรักษา

Proper maintenance ensures the longevity and safe operation of your gas adapter:

• การทำความสะอาด: Wipe the adapter and hose with a damp cloth after each use to remove dirt and debris. Do not use harsh chemicals or abrasive cleaners.
• การตรวจสอบ: Regularly inspect the hose for any signs of wear, cracks, or damage. Check all connections for corrosion or deformation. Replace any damaged components immediately.
• พื้นที่จัดเก็บ: Disconnect all gas cans from the adapter before storage. Store the adapter in a cool, dry, and well-ventilated place, away from direct sunlight, extreme temperatures, and corrosive materials.

8 การแก้ไขปัญหา

If you encounter issues with your JESIMAIK 3-Canister Gas Adapter, refer to the following:

9. ข้อมูลจำเพาะ

• แบบอย่าง: 3-Canister Gas Adapter
• วัสดุ: อลูมิเนียม, สแตนเลส
• ขนาด : 18.2 x 13.4 x 7.2 ซม. (ประมาณ 7.17 x 5.28 x 2.83 นิ้ว)
• น้ำหนัก: 340 กรัม (ประมาณ 0.75 ปอนด์)
• Canister Compatibility: Cassette Butane (CB) cans, OD cans (with conversion adapter)
• ความจุ: Connects 3 cans, expandable up to 5 cans with additional sockets
• คุณสมบัติด้านความปลอดภัย: Built-in reverse valve, stainless mesh hose

10. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the retailer where you purchased this product or visit the official JESIMAIK website. Keep your proof of purchase for any warranty claims. Do not attempt to repair the product yourself, as this may void the warranty and pose safety risks.
