HOBOT-SP10 iScraper Window Cleaning Robot User Manual

1. บทนำ

The HOBOT-SP10 iScraper Window Cleaning Robot is designed to provide efficient and streak-free cleaning for various glass surfaces. Featuring Spray-Sweep-Scrape (SSS) technology, 6000Pa suction, and intelligent navigation, this robot simplifies window maintenance for both indoor and outdoor use. It supports control via a smartphone app and remote control, offering a convenient cleaning experience.

ภาพ: ด้านหน้า view of the HOBOT-SP10 iScraper Window Cleaning Robot, showcasing its compact design and water tank.

วิดีโอ: จบแล้วview of the HOBOT-SP10 iScraper Window Cleaning Robot's features and operation.

2. ข้อมูลด้านความปลอดภัย

Read all safety instructions before operating the HOBOT-SP10. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always attach the safety rope and secure it to a sturdy anchor point before placing the robot on a window, especially for high-rise cleaning. The safety rope can withstand up to 230kgf of pulling force.
• Ensure the power cord is securely connected to the robot and a power outlet. The robot features a UPS backup system that maintains suction for 20 minutes during a power loss, accompanied by voice and app alerts.
• ห้ามใช้หุ่นยนต์บนพื้นผิวกระจกที่แตกหรือชำรุด
• เก็บมือ ผม และเสื้อผ้าที่หลวมให้ห่างจากชิ้นส่วนที่เคลื่อนไหว
• Do not allow children or pets near the robot during operation.
• Use only HOBOT-approved cleaning solutions and accessories.
• For outdoor use, ensure weather conditions are suitable (no strong winds or rain).

Image: Diagram illustrating the safety rope and secure power connection for the HOBOT-SP10.

3. อะไรอยู่ในกล่อง

Your HOBOT-SP10 package includes the following components:

• HOBOT-SP10 iScraper Window Cleaning Robot
• รีโมทคอนโทรล
• Cleaning Pads (Microfiber Cloths)
• อะแดปเตอร์และสายไฟ
• เชือกนิรภัย
• คู่มือการใช้งาน (คู่มือนี้)
• ขวดบรรจุน้ำ
• Storage-Carrier Case (if included with your model)

Image: The HOBOT-SP10 robot, remote control, and various accessories neatly arranged in a storage case.

4. การตั้งค่า

4.1. Attaching the Cleaning Cloth

Before use, prepare the cleaning cloth for optimal performance, especially for washing mode.

1. Rinse the cleaning cloth under running water.
2. พับงamp cloth three times.
3. Wring out excess water until no water drips remain. The cloth should be damp,ไม่เปียกโชก.
4. Align the edge of the cleaning cloth carefully, ensuring it does not over-cover the squeegee on both sides of the robot. This prevents slipping and damage to the edge-leakage sensors.

Video: Instructions on how to prepare and attach the cleaning cloth for the HOBOT-SP10 washing mode.

Image: The HOBOT-SP10 with a microfiber cleaning cloth properly attached to its base.

4.2. การเติมน้ำลงในถังน้ำ

Locate the water tank on the robot. Use the provided water filling bottle to fill the tank with clean water or HOBOT-approved cleaning solution. Do not overfill.

4.3. Connecting Power and Safety Rope

Connect the power adapter to the robot's threaded DC jack and then to a power outlet. Secure the safety rope to a stable indoor fixture before placing the robot on the window.

5. คู่มือการใช้งาน

5.1. Placing the Robot on the Window

Place the HOBOT-SP10 firmly on the glass surface. Ensure it adheres securely before releasing your grip. The 6000 Pa static suction will hold it in place.

Image: A person placing the HOBOT-SP10 onto a window, demonstrating its adherence.

5.2. การเริ่มต้นและการหยุดการทำความสะอาด

Press the power button on the robot or use the remote control/app to start cleaning. To stop, press the pause/stop button. The robot will return to its starting position upon completion or when stopped.

5.3. SSS Glass-Cleaning Technology

The HOBOT-SP10 utilizes a three-step cleaning process:

1. สเปรย์: Dual nozzles on both sides spray an ultra-wide angle, wind-resistant mist to loosen dirt.
2. กวาด: A thick microfiber cloth sweeps the surface, removing dust and dirt.
3. Scrape: Dual glide scrapers, made of durable high surface tension material, remove residual water without streaks. When moving horizontally, the robot automatically lifts the leading scraper and engages the trailing one.

Image: Visual representation of the HOBOT-SP10's Spray, Sweep, Scrape cleaning mechanism.

5.4. โหมดการทำความสะอาดและการวางแผนเส้นทาง

The HOBOT-SP10 offers multiple cleaning modes for various needs:

• Standard Mode (ZH): Zigzag horizontally first, then clean along the left and right sides of the window.
• Fine Cleaning Mode (ZN): Zigzag horizontally first, then vertically.
• Fast Cleaning Mode (Z): Only zigzag horizontally.
• Handle Avoidance Mode (ZHA): ZH mode with left and right window handle dodging algorithm, providing an extra scrub to remove stubborn stains.

The iScraper detects and optimizes the cleaning path, moving horizontally along the edges in parallel downward strokes, then finishing with precise sweeps along both vertical edges for thorough coverage.

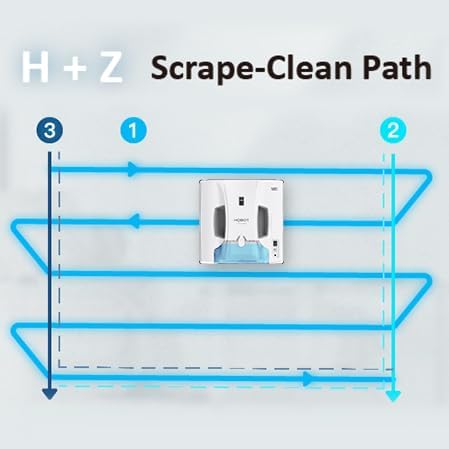

Image: Illustration of the HOBOT-SP10's H+Z (Horizontal then Vertical) scrape-clean path for comprehensive coverage.

5.5. Edge-Leakage Sensors and Edge-to-Edge Clean

The robot's Edge-Leakage Sensors detect and react instantly to air leaks from window seals, frameless edges, or minor bumps against window frames, ensuring a smoother and safer cleaning experience. The trailing scraper removes dirt piles from the edge, preventing buildup near the frame for a spotless finish.

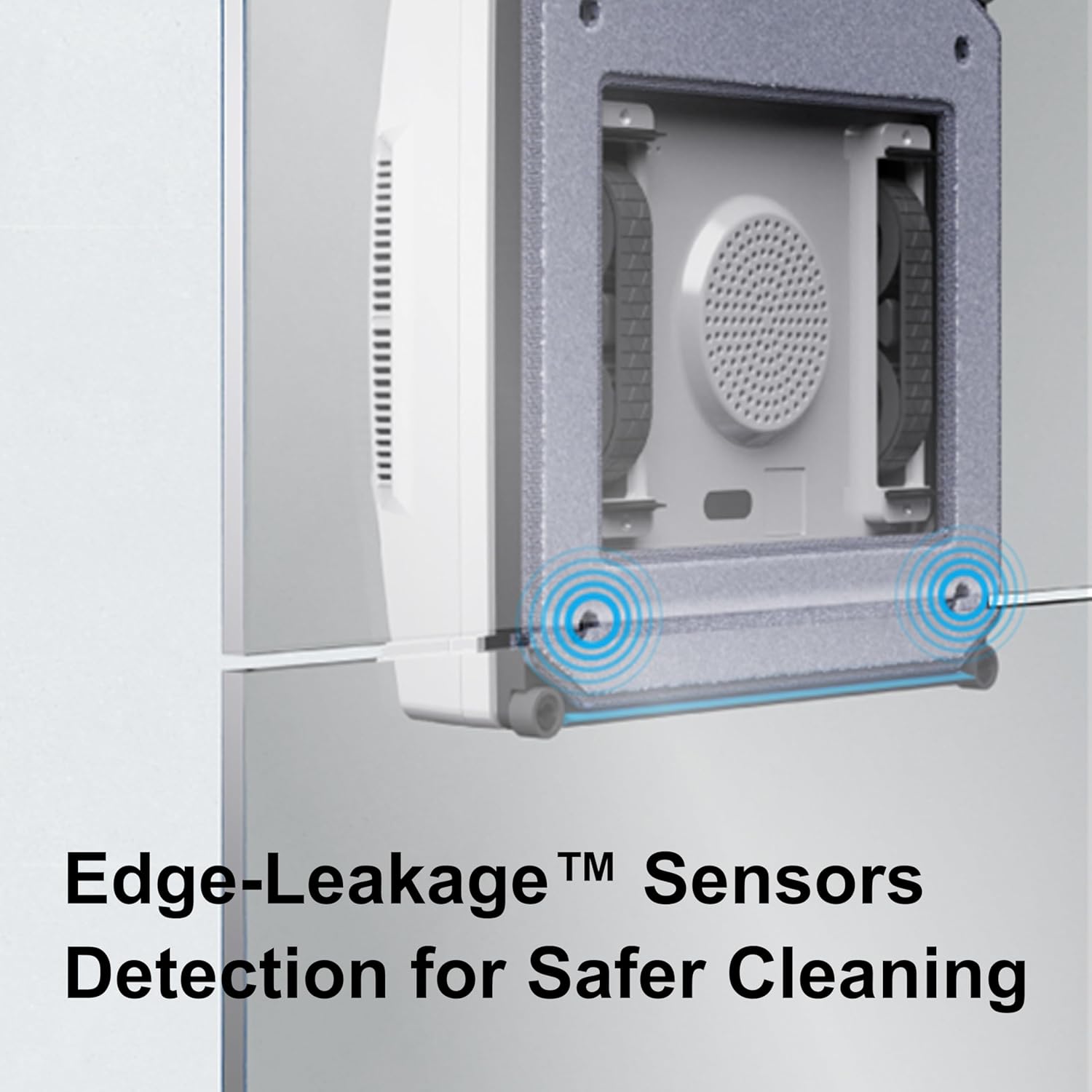

Image: Close-up of the HOBOT-SP10's Edge-Leakage Sensors detecting the edge of a window.

Image: The HOBOT-SP10 cleaning right up to the edge of a window, illustrating its edge-to-edge cleaning capability.

5.6. Indoor and Outdoor Use

The HOBOT-SP10 is suitable for both indoor and outdoor window cleaning. Its robust design and powerful suction ensure stable operation on various glass types.

5.7. Reclined Windows and Glass Thickness

The HOBOT-SP10 can operate on reclined windows with angles between 7° and 100°, making it suitable for greenhouse roofs and solar panels. It is designed for glass of all thicknesses and finishes.

6. การบำรุงรักษา

6.1. Cleaning Cloth Care

The microfiber cleaning cloths are machine-washable. Regularly wash them to maintain optimal cleaning performance. Ensure they are completely dry before reattaching.

6.2. Scraper and Nozzle Replacement

The scrapers and nozzles are designed for easy replacement. Refer to the detailed instructions for replacing these components to ensure consistent cleaning results.

ภาพ: ระยะใกล้ view of the HOBOT-SP10 showing the replaceable scraper and spraying nozzle components.

6.3. General Robot Cleaning

เช็ดทำความสะอาดภายนอกของหุ่นยนต์ด้วยผ้าแห้งเนื้อนุ่ม ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อน หรือจุ่มหุ่นยนต์ลงในน้ำ

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For warranty information, product registration, or technical support, please refer to the official HOBOT website or contact HOBOT customer service. Keep your purchase receipt for warranty claims.
