MAXLANDER 15-Amp Electric Wood Chipper Shredder User Manual

1. คำแนะนำด้านความปลอดภัยที่สำคัญ

Read all instructions carefully before operating the MAXLANDER Electric Wood Chipper Shredder. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• อุปกรณ์ป้องกันภัยส่วนบุคคล: Always wear safety glasses, hearing protection, and heavy-duty gloves when operating the chipper. Long pants and closed-toe shoes are also recommended.
• พื้นที่ทำงาน : Operate the chipper on a firm, level surface. Keep the work area clear of bystanders, children, and pets. Ensure adequate lighting.
• ความปลอดภัยทางไฟฟ้า: Connect the chipper to a properly grounded outlet. Do not operate in wet conditions or expose to rain. Inspect the power cord for damage before each use.
• วัสดุสำหรับให้อาหาร: Only feed branches and yard waste within the specified cutting diameter (up to 1.8 inches or 45mm). Do not force material into the chute. Use the provided safety piston to guide branches. Keep hands and feet away from the feeding chute and discharge opening.
• การออกแบบป้องกันการอุดตัน: The chipper features an anti-clogging mechanism. If a jam occurs, immediately turn off the machine and unplug it before attempting to clear the obstruction.
• Safety Start Knob & Overload Protection: The machine will only operate when the safety start knob is fully secured. Integrated overload protection will automatically cut off power if the motor is overloaded, protecting the equipment.
• ถังเก็บรวบรวม: The 50L collection bin must be correctly installed for the chipper to operate. This is a safety feature to prevent accidental startup and contain shredded material.

2. สินค้าหมดview

The MAXLANDER 15-Amp Electric Wood Chipper Shredder is designed for efficiently processing yard waste and branches into mulch. It features a powerful motor, a 1.8-inch cutting capacity, and a 50L collection bin.

Image 2.1: MAXLANDER Electric Wood Chipper Shredder with key specifications and dimensions. The image shows the main unit, the 50L collection bin, and details like 15 Amps power, 1.8-inch cutting diameter, and 4000 RPM speed.

ส่วนประกอบ:

• Main Chipper Unit
• 50L Collection Bin
• Wheeled Stand Assembly
• Safety Piston (Plunger)
• Blades (installed)
• สายไฟ

3. คำแนะนำในการประกอบ

Follow these steps to assemble your MAXLANDER Electric Wood Chipper Shredder:

1. ติดตั้งล้อ: Secure the wheels to the stand assembly using the provided hardware.
2. ประกอบขาตั้ง: Connect the stand components as per the diagram in the packaging.
3. Mount the Chipper Unit: Carefully place the main chipper unit onto the assembled stand, ensuring it is securely fastened.
4. Install the Collection Bin: Slide the 50L collection bin into its designated slot beneath the chipper unit. Ensure it clicks into place or is firmly seated, as the chipper will not operate without it.

4. คู่มือการใช้งาน

Before starting, ensure all safety precautions are followed and the chipper is fully assembled with the collection bin in place.

1. การเชื่อมต่อไฟฟ้า: Plug the chipper into a suitable grounded electrical outlet.
2. เริ่มเครื่อง: Turn the safety start knob clockwise until it is fully secured. Then, press the power switch to turn on the chipper.
3. วัสดุสำหรับให้อาหาร: Slowly feed branches and yard waste into the feeding chute. Use the safety piston to guide the material. Do not push with your hands.
4. Observe Material Size: The chipper can handle branches up to 1.8 inches (45mm) in diameter. For optimal performance and to prevent jamming, feed smaller branches and softer materials first.
5. Monitor Collection Bin: Regularly check the 50L collection bin and empty it before it becomes too full to prevent blockages.
6. ปิดระบบ: To turn off the chipper, press the power switch to the 'OFF' position, then unplug the machine from the power outlet.

Image 4.1: A person operating the wood chipper, demonstrating the feeding of branches and the resulting shredded material, highlighting the 15:1 reduction ratio.

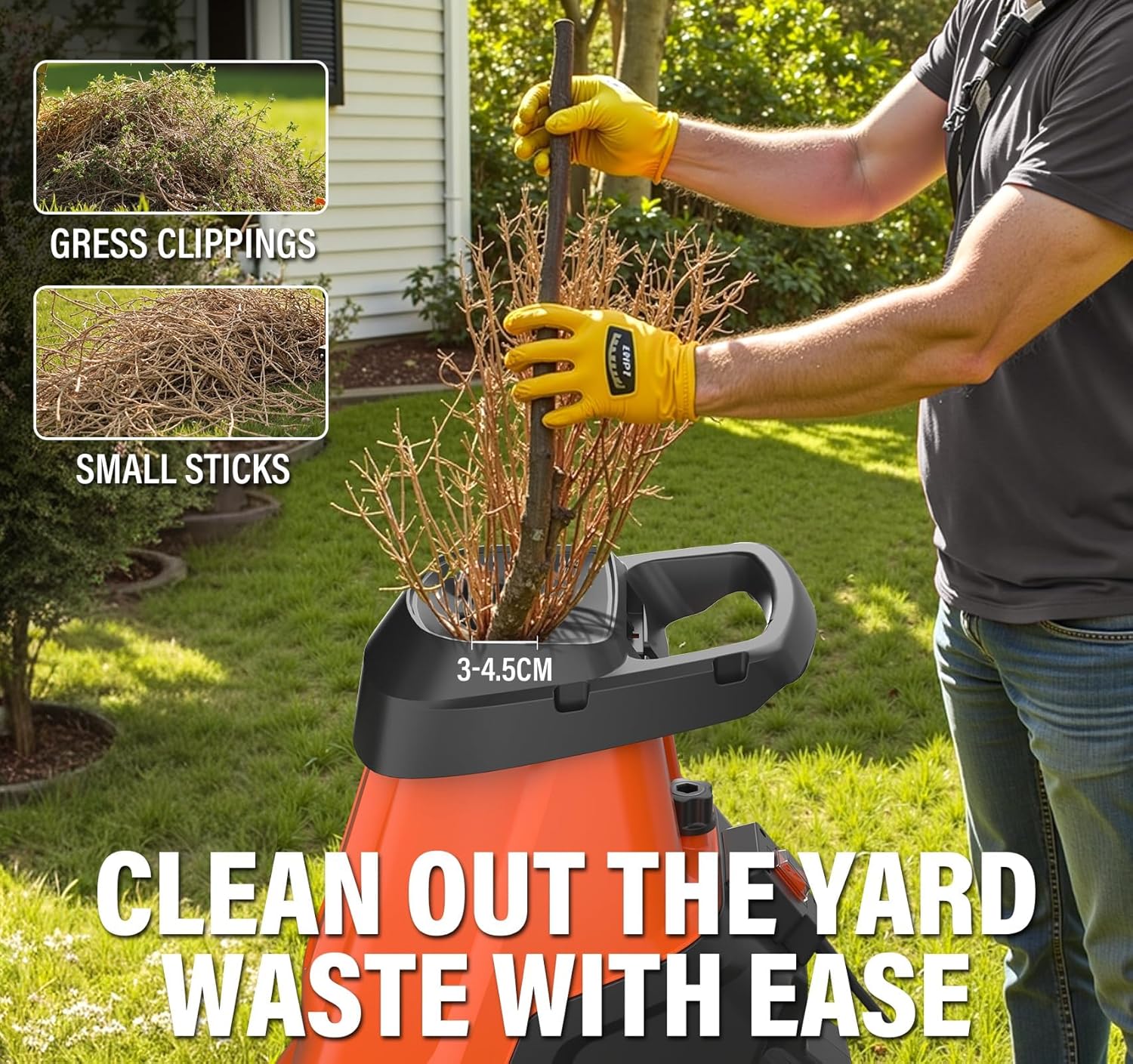

Image 4.2: This image shows the feeding chute of the chipper, illustrating the types of yard waste it can process, such as grass clippings and small sticks, and the recommended branch diameter of 3-4.5 cm.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your chipper. Always unplug the machine before performing any maintenance.

• การทำความสะอาด: After each use, clear any debris from the feeding chute, discharge opening, and around the motor housing. Use a brush or compressed air. Do not use water directly on electrical components.
• การตรวจสอบใบมีด: Periodically inspect the blades for sharpness and damage. Dull or damaged blades can reduce efficiency and increase motor strain. Refer to the manual for instructions on blade replacement or sharpening.
• ถังเก็บรวบรวม: Keep the collection bin clean and free of compacted material.
• พื้นที่จัดเก็บ: Store the chipper in a dry, secure location, away from moisture and extreme temperatures.

6 การแก้ไขปัญหา

If you encounter issues with your chipper, refer to the following common problems and solutions:

7. ข้อมูลจำเพาะ

Key technical details for the MAXLANDER Electric Wood Chipper Shredder:

ภาพที่ 7.1: รายละเอียด view of the motor specifications, including 15 Amps power, 1.8-inch cutting diameter, 4000 RPM speed, and the overload protection feature.

8. การรับประกันและการสนับสนุน

MAXLANDER products are manufactured to high-quality standards. For warranty information, technical support, or to order replacement parts, please refer to the warranty card included with your product or visit the official MAXLANDER webไซต์ โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ
