The ATOMSTACK C4 Pro CNC milling machine is engineered for precision and versatility, offering exceptional repeatability of 0.01 mm and a total tolerance of ±0.1 mm. Its robust and rigid motion system ensures stable, smooth, and precise results for a wide range of complex and professional projects. This manual provides essential information for setting up, operating, and maintaining your C4 Pro machine.
2. การติดตั้งและการประกอบ
The C4 Pro features a modular design for quick and straightforward assembly. Most users can complete the setup in approximately 15 minutes, allowing you to begin your projects without delay. The machine comes 70% pre-assembled with all necessary tools included.

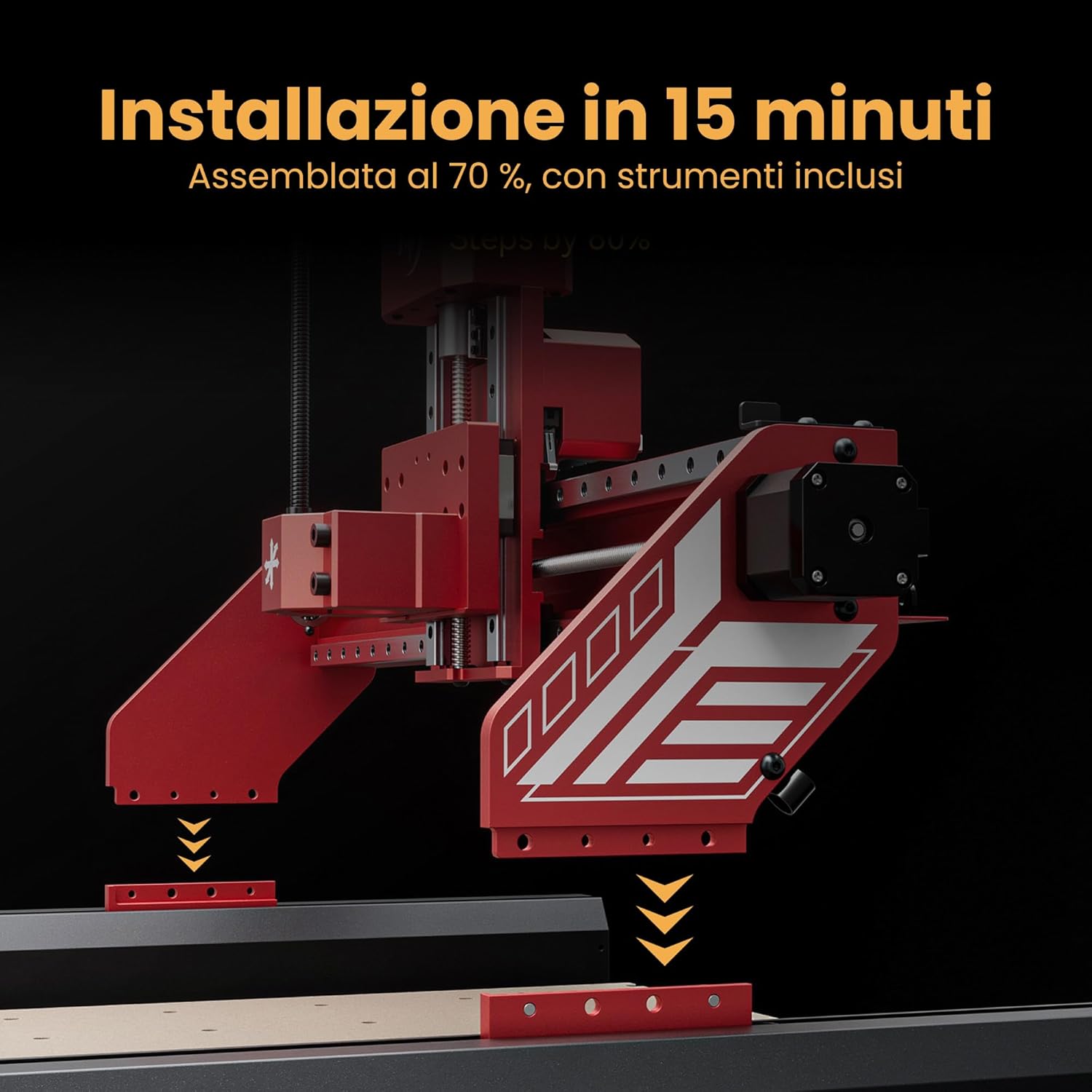

Image: Modular design for easy assembly. The machine is shown in red and black, with components being attached to form the main structure.
Follow the detailed instructions provided in the separate assembly guide for step-by-step installation. Ensure all connections are secure before powering on the device.
3. คุณสมบัติหลักและการใช้งาน
3.1 High Precision and Stability
The C4 Pro is built with MGH12 linear guides and dual-safety thrust screws, ensuring exceptional stability and minimizing step loss or vibrations. This rigid construction contributes to its ultra-high precision, making it suitable for intricate designs.
Image: Demonstrating 0.01 mm repeatability, highlighting the machine's precision.
Image: Visual comparison of dimensional precision, showing the C4 Pro's superior ±0.1 mm machining accuracy.
3.2 Powerful Spindle and Large Work Area
Equipped with a 200W high-torque spindle, the C4 Pro can reach speeds of up to 12,000 RPM, enabling rapid and efficient material removal. The generous working area of 420 × 420 × 100 mm allows for larger projects and greater creative freedom.
Image: Highlighting the machine's speed with 2000 mm/min engraving and 12,000 RPM spindle.
ภาพ: การแสดงภาพของ ample 420x420x100mm working area.
3.3 Advanced 4-Axis Control and Offline Operation
The ATOMSTACK C4 Pro features an intelligent 4AXIS V1.0 controller, providing industrial-grade functionalities such as 24/7 continuous operation, efficient XYZ + 4-axis linkage (4th axis sold separately), one-touch centering, precision compensation, and smart software limits. The included offline controller allows for operation without a computer connection.
Image: The offline controller for direct machine control without a computer.
3.4 Material Compatibility and Versatility
The C4 Pro is highly versatile, capable of working with a wide range of materials including wood, plastics, PVC, POM, PCBs, acrylic, aluminum, and brass. It supports various operations such as engraving, milling, and cutting, making it ideal for woodworking, PCB prototyping, metal engraving, and acrylic cutouts.
ภาพ: อดีตamples of diverse materials compatible with the C4 Pro, including wood, metals, and plastics.
3.5 Expandability and Dual Mode Functionality
The C4 Pro comes with a work lamp, milling cutter set, and tool set. It is optionally expandable with a 4th axis, cyclone suction system, laser module, expansion kit, tensioners, and scrap plates. The one-click CNC/laser mode change allows for seamless transitions between fine laser engraving and CNC milling workflows.
4. วิดีโอผลิตภัณฑ์view
วิดีโอ: ภาพรวมที่ครอบคลุมview of the ATOMSTACK C4 Pro CNC machine, demonstrating its modular design, precision, material versatility, powerful spindle, work area, speed, handwheel control, 4-point centering, optional vacuum kit, 4-axis linkage, and laser mode capabilities.
5. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ผู้ผลิต | อะตอมสแตค |
| หมายเลขรุ่น | ซีทู โปร |
| น้ำหนักสินค้า | 30 กิโลกรัม |
| ขนาดแพ็คเกจ | 78.5 x 72 x 28 ซม. |
| ประเภทแหล่งพลังงาน | AC |
| ส่วนประกอบที่รวมอยู่ | 1 ATOMSTACK C4 Pro CNC Milling Machine |
| รวมแบตเตอรี่ด้วยมั้ย? | เลขที่ |
| พื้นที่ทำงาน | 420 × 420 × 100 มม. |
| ความเร็วแกนหมุน | สูงสุด 12,000 รอบต่อนาที |
| ความเร็วในการแกะสลักสูงสุด | 2000 มม./นาที |
| ความสามารถในการทำซ้ำ | 0.01 มม. |
| Machining Accuracy | ±0.1 มม. |
6. การบำรุงรักษา
Regular maintenance is crucial for ensuring the longevity and optimal performance of your ATOMSTACK C4 Pro. Always disconnect the power before performing any maintenance.
- การทำความสะอาด: Regularly clean the machine, especially the linear guides and lead screws, to prevent dust and debris buildup. An optional woodworking vacuum kit with two-stage filtration and cyclone separation can help keep your workspace clean and extend machine lifespan.
- การหล่อลื่น: Apply appropriate lubricant to moving parts as recommended in the detailed product manual (not provided here) to ensure smooth operation.
- การตรวจสอบ: Periodically inspect all components for wear and tear, loose connections, or damage. Replace worn parts promptly.
7 การแก้ไขปัญหา
If you encounter any issues with your ATOMSTACK C4 Pro, refer to the following common troubleshooting tips. For more complex problems, consult the full product manual or contact customer support.
- เครื่องไม่เปิดเครื่อง: ตรวจสอบให้แน่ใจว่าสายไฟเชื่อมต่อแน่นหนาดีแล้ว และสวิตช์ไฟอยู่ในตำแหน่ง "เปิด" ตรวจสอบเต้ารับไฟฟ้า
- Poor engraving/milling quality: Verify that the correct tool is installed, the material is properly secured, and the cutting parameters (speed, depth) are appropriate for the material. Check for any loose components or debris affecting movement.
- ปุ่มควบคุมไม่ตอบสนอง: If using the offline controller, ensure it is properly connected. Restart the machine and the controller.
- เสียงผิดปกติ: Immediately stop the machine and inspect for any obstructions, loose parts, or signs of damage.
8. การรับประกันและการสนับสนุน
Your ATOMSTACK C4 Pro CNC Milling Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact ATOMSTACK customer service through their official webเว็บไซต์หรือตัวแทนจำหน่ายที่ได้รับอนุญาต
