RUIZHI ESP32 V3 LoRa Development Board User Manual

1. บทนำ

The RUIZHI ESP32 V3 LoRa Development Board is a versatile and powerful solution for Internet of Things (IoT) and long-range wireless communication projects. Powered by the SX1262 LoRa transceiver and the ESP32-S3 microcontroller, this board offers integrated WiFi, Bluetooth, and a 0.96-inch OLED display. It is fully compatible with Meshtastic and Arduino ecosystems, making it suitable for a wide range of applications from remote monitoring to smart agriculture.

2. สินค้าหมดview และส่วนประกอบ

This section provides a visual guide to the RUIZHI ESP32 V3 LoRa Development Board, detailing its physical layout and key components.

Figure 2.1: The RUIZHI ESP32 V3 LoRa Development Board, showcasing its compact design, integrated 0.96 inch OLED display, and the connected 868MHz LoRa antenna.

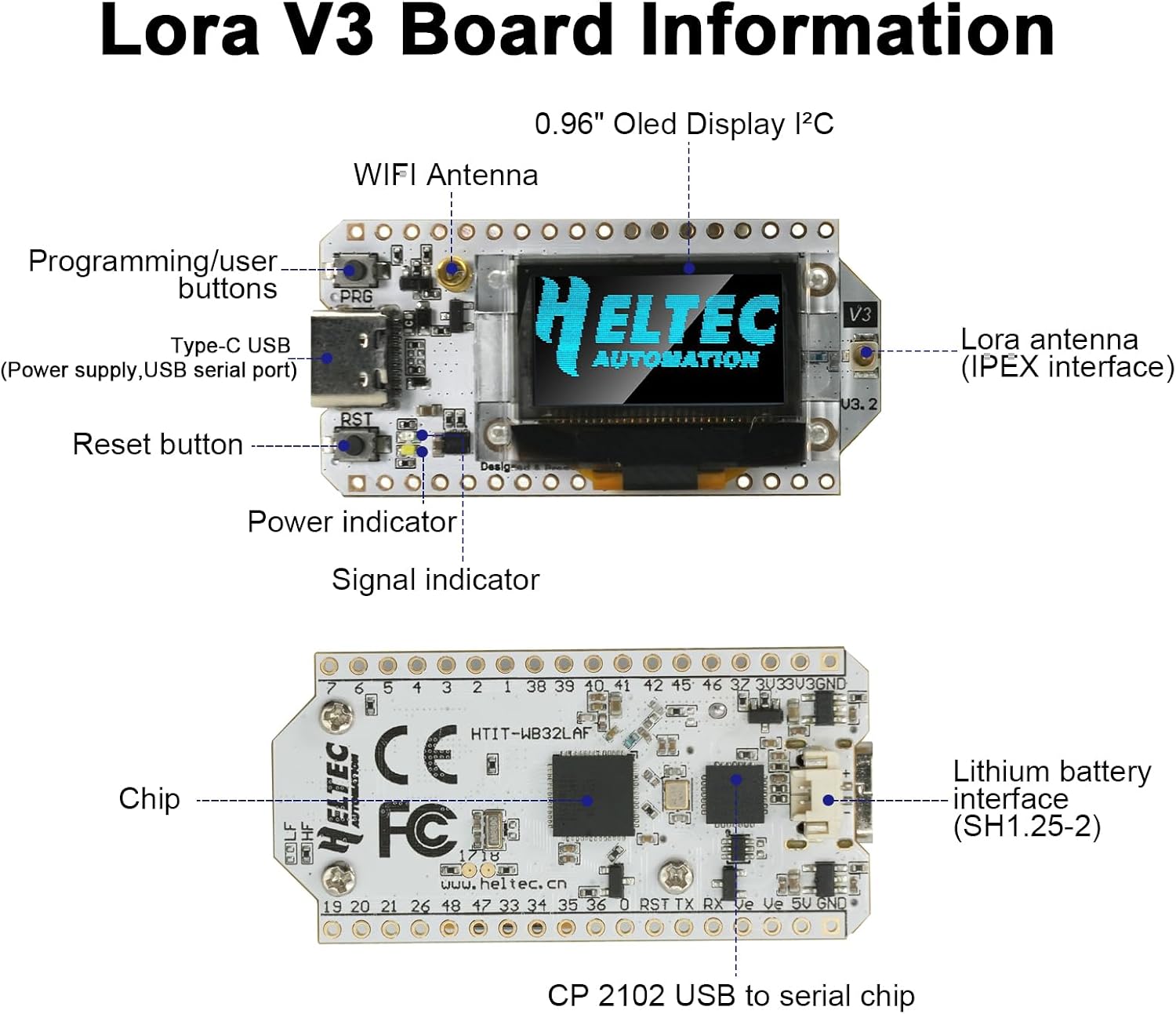

Figure 2.2: A detailed diagram of the RUIZHI ESP32 V3 LoRa Development Board, indicating key components such as the Type-C USB port, programming/user buttons, reset button, power indicator, signal indicator, WiFi antenna, LoRa antenna (IPEX interface), 0.96 inch OLED display I2C, main chip, and lithium battery interface (SH1.25-2).

Figure 2.3: This diagram illustrates the pin assignments for the RUIZHI ESP32 V3 LoRa Development Board, detailing Header J2 and Header J3 connections, including power, ground, GPIO, ADC/DAC, serial, and other functional pins.

3. ข้อมูลจำเพาะ

The following table outlines the technical specifications of the RUIZHI ESP32 V3 LoRa Development Board.

Figure 3.1: A table outlining the technical specifications of the LoRa V3 Board, including frequency, flash memory, processor, main control chip, LoRa chip support frequency band, open communication distance, computing power, WiFi support mode, development environment, working voltage, operating range temperature, UDP continuous throughput, USB interface chip, and dual-mode Bluetooth capabilities.

Figure 3.2: This image provides the physical dimensions of the RUIZHI ESP32 V3 LoRa Development Board, measuring approximately 47.92mm x 25mm, along with the dimensions of the 868MHz antenna and pin headers.

4. คู่มือการติดตั้ง

Follow these steps for initial setup of your RUIZHI ESP32 V3 LoRa Development Board.

1. เชื่อมต่อเสาอากาศ: Carefully screw the provided 868MHz LoRa antenna onto the IPEX connector on the board. Ensure it is securely fastened but do not overtighten.
2. เชื่อมต่อกับพีซี: Use a USB Type-C cable to connect the board to your computer. The board should power on, and the OLED display may show initial boot information.
3. ติดตั้งไดรเวอร์ USB: The board uses a CP2102 USB-to-serial chip. If your operating system does not automatically install the driver, download and install the appropriate CP2102 driver from Silicon Labs' official webเว็บไซต์.
4. เตรียมสภาพแวดล้อมการพัฒนา:
   • อาร์ดูอิโน IDE: Install the Arduino IDE. Add ESP32 board support by navigating to File > Preferences > Additional Board Manager URLs and adding https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json. Then, go to เครื่องมือ > บอร์ด > ตัวจัดการบอร์ด, search for 'esp32', and install the ESP32 by Espressif Systems package. Select the correct board (e.g., 'ESP32 Dev Module' or specific Heltec LoRa 32 V3 if available) and COM port.
   • แพลตฟอร์มไอโอ: Install VS Code and the PlatformIO extension. Create a new PlatformIO project and select the appropriate board configuration for ESP32-S3 with LoRa.
5. อัปเดตเฟิร์มแวร์: For Meshtastic compatibility, download the latest Meshtastic firmware for ESP32-S3 LoRa boards from the official Meshtastic website. Use the Meshtastic Flasher tool or PlatformIO to upload the firmware to your board.

5. คู่มือการใช้งาน

Once the firmware is successfully installed, you can begin operating your RUIZHI ESP32 V3 LoRa Development Board.

• เปิดเครื่อง: Connect the board via USB-C or a compatible lithium battery (SH1.25-2 interface). The OLED display will illuminate, showing the boot sequence and current status as defined by your loaded firmware (e.g., Meshtastic node information).
• จอแสดงผล OLED: The 0.96-inch OLED display provides real-time information such as signal strength, battery level, network status, and received messages, depending on the firmware.
• ปุ่ม: The board includes programming/user buttons and a reset button. Their functionality is determined by the loaded firmware. For Meshtastic, these buttons might be used for menu navigation or specific actions.
• การสื่อสาร LoRa: Ensure the 868MHz antenna is connected for optimal LoRa performance. The board will automatically attempt to join or form a LoRa mesh network based on the Meshtastic firmware configuration.
• WiFi และ Bluetooth: The ESP32-S3 chip supports WiFi and Bluetooth. These can be configured via firmware for various purposes, such as connecting to a local network for internet access or pairing with a mobile device for configuration and monitoring.

6. การบำรุงรักษา

Proper care and maintenance will ensure the longevity and reliable operation of your development board.

• การจัดการ: Always handle the board by its edges to avoid touching sensitive components. Electrostatic discharge (ESD) can damage electronic components, so use appropriate precautions.
• การทำความสะอาด: หากจำเป็น ให้ทำความสะอาดกระดานเบาๆ ด้วยแปรงขนนุ่มแห้ง หรือใช้ลมเป่าเพื่อกำจัดฝุ่น หลีกเลี่ยงการใช้ของเหลวหรือวัสดุที่มีฤทธิ์กัดกร่อน
• พื้นที่จัดเก็บ: เก็บกระดานไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป หากเก็บเป็นเวลานาน ให้ใช้ถุงป้องกันไฟฟ้าสถิต
• อัพเดตเฟิร์มแวร์: Regularly check for firmware updates for Meshtastic or your chosen development platform to benefit from new features, bug fixes, and performance improvements.

7 การแก้ไขปัญหา

ส่วนนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอและเสนอแนวทางแก้ไขที่เป็นไปได้

• Board Not Powering On / Black Screen:
  • Ensure the USB-C cable is fully inserted and connected to a working USB port.
  • If using a battery, verify it is charged and correctly connected to the SH1.25-2 interface.
  • Check if the power indicator LED on the board is lit.
• ความล้มเหลวในการอัพโหลดเฟิร์มแวร์:
  • Verify that the correct CP2102 USB driver is installed and the board is recognized by your computer (check Device Manager on Windows or ls /dev/tty* on Linux/macOS).
  • Ensure the correct COM port is selected in your IDE or flashing tool.
  • Try holding down the 'BOOT' or 'PRG' button (if available) while initiating the upload, then releasing it once the upload starts.
  • Confirm that you have selected the correct board type (e.g., ESP32-S3 Dev Module or specific Heltec LoRa 32 V3) in your development environment.
• No LoRa Communication:
  • Ensure the 868MHz antenna is securely connected to the IPEX connector.
  • Verify that the firmware is correctly configured for the 868MHz frequency band.
  • Check if other LoRa devices are within range and operating on the same frequency and network settings.
• หน้าจอ OLED ไม่ทำงาน:
  • Confirm that the firmware includes support for the 0.96-inch OLED display and that it is correctly initialized.
  • Ensure there are no physical damages to the display or its connection.

8. การรับประกันและการสนับสนุน

Warranty information for this product is not explicitly provided. For product support, technical assistance, or inquiries regarding potential defects, please contact the seller directly through your purchase platform. Refer to the manufacturer's (RUIZHI) official resources for general documentation and community support related to ESP32 and LoRa development.
