1. บทนำ
The StarTech.com NOTECONS02-VGA-MDP Portable Laptop Crash Cart Adapter transforms your laptop into a portable console for managing servers, PCs, ATMs, or kiosks. This device eliminates the need for a dedicated monitor, keyboard, and mouse when performing maintenance or troubleshooting on 'headless' systems. It provides a direct connection to the target system's video and input, allowing for BIOS-level control, file transfers, video capture, and screenshot functionality.
The adapter supports both VGA and Mini DisplayPort video inputs from the target system, offering versatile connectivity options for various environments.
2. เนื้อหาบรรจุภัณฑ์
ตรวจสอบว่าแพ็คเกจของคุณมีรายการต่อไปนี้:
- 1x USB Crash Cart Adapter (NOTECONS02-VGA-MDP)
- 1x Mini DisplayPort to VGA Adapter
- 1x USB-A to USB Mini-B Cable
- 1x Quick-Start Guide (not included in this digital manual)
Image: The package contents, showing the USB Crash Cart Adapter, Mini DisplayPort to VGA Adapter, and USB-A to USB Mini-B Cable.
3. สินค้าหมดview

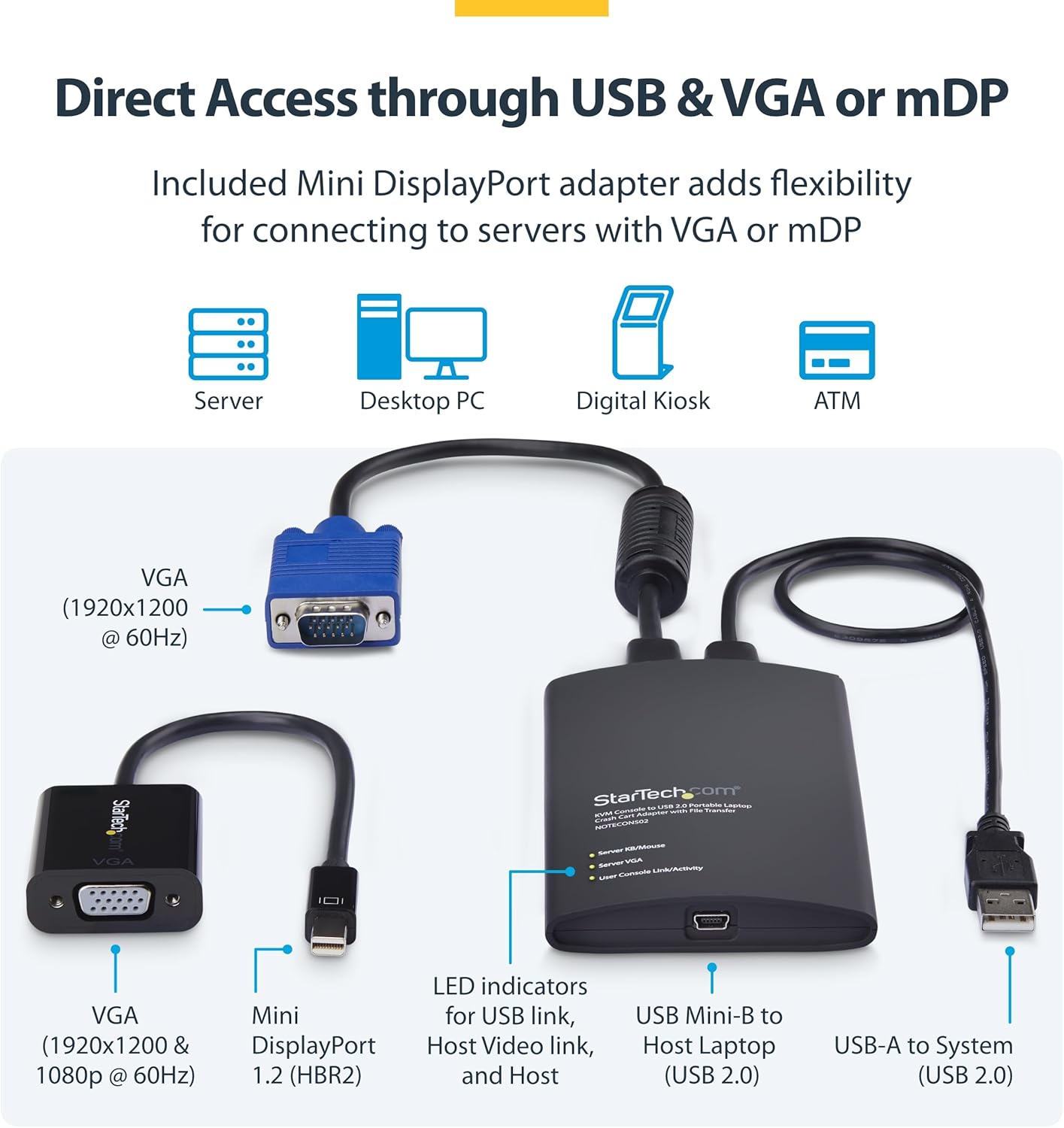

The USB Crash Cart Adapter features several ports and indicators for seamless operation:
- USB Mini-B Port: Connects to your laptop for data and power.
- สาย USB-A: Integrated cable connects to the target system for keyboard/mouse emulation and power.
- สายวีจีเอ: Integrated cable connects to the target system's VGA video output.
- Mini DisplayPort Adapter: Included for connecting to target systems with Mini DisplayPort video output.
- ไฟ LED แสดงสถานะ: Provide status for USB link, Host Video link, and Host connection.
ภาพ: รายละเอียด view of the adapter's components and connection points.
4. คำแนะนำในการตั้งค่า
Follow these steps to set up and connect your Portable Laptop Crash Cart Adapter:
- Install Host Software: Before connecting the adapter, install the necessary host software on your laptop. Ensure you download the latest drivers specifically for the NOTECONS02-VGA-MDP model from the StarTech.com website to ensure full compatibility and functionality.
- เชื่อมต่อกับแล็ปท็อป: Connect the USB Mini-B end of the included USB-A to USB Mini-B cable to the adapter. Connect the USB-A end of this cable to an available USB port on your laptop.
- Connect to Target System (Video):
- For VGA-enabled systems: Connect the integrated VGA cable from the adapter to the VGA output port on the target server, PC, or device.
- For Mini DisplayPort-enabled systems: Attach the included Mini DisplayPort to VGA adapter to the integrated VGA cable. Then, connect the Mini DisplayPort end to the Mini DisplayPort output on the target system.
- Connect to Target System (USB): Connect the integrated USB-A cable from the adapter to an available USB port on the target server, PC, or device. This connection provides power to the adapter and enables keyboard/mouse emulation.
Once all connections are made and the software is installed, your laptop should display the video output from the target system, allowing you to control it.
Image: Connecting the adapter to a server for portable management.
Image: The adapter provides direct BIOS-level control and is compatible with Windows, macOS, and Linux operating systems.
5. คู่มือการใช้งาน
After successful setup, the adapter provides several functionalities through its software interface:
5.1. BIOS-Level Control
The adapter provides immediate access to the target system's POST screen and BIOS. This allows for full configuration and troubleshooting of the attached PC or machine from your laptop. The adapter emulates your laptop's keyboard and mouse inputs, giving you full control.
Note: Mouse functionality may be limited in some BIOS/UEFI environments.
5.2. File โอนย้าย
The software interface facilitates bi-directional file transfers between your laptop and the connected target system. This feature is useful for transferring diagnostic tools, updates, or retrieving logs without needing external storage devices.
5.3. Video Capture and Screenshots
You can capture screenshots or record video of the target system's display directly through the adapter's software. This is valuable for documenting issues, creating training materials, or sharing troubleshooting information.
5.4. Display Scaling
The display window can be scaled to full screen mode or a smaller size without requiring scrolling, which aids in faster troubleshooting and a more comfortable viewการสร้างประสบการณ์
Image: The adapter enables efficient file transfers, screenshot capture, and video recording for effective troubleshooting.
6 การแก้ไขปัญหา
- ไม่มีสัญญาณวิดีโอ:
- Ensure all cables (USB and video) are securely connected to both your laptop and the target system.
- Verify that the correct video input (VGA or Mini DisplayPort) is selected on the adapter's software, if applicable.
- Confirm the target system is powered on and outputting a video signal.
- คีย์บอร์ด/เมาส์ไม่ตอบสนอง:
- Check the USB connection between the adapter and the target system. This connection provides input control.
- Ensure the host software on your laptop is running and properly recognizes the adapter.
- As noted, mouse function may be limited in some BIOS/UEFI environments. Try using keyboard navigation in such cases.
- ปัญหาไดร์เวอร์:
- If you experience unexpected behavior, ensure you have installed the latest device-specific drivers for the NOTECONS02-VGA-MDP from the StarTech.com webเว็บไซต์.
- Try uninstalling and reinstalling the drivers.
- ปัญหาเรื่องพลังงาน:
- The adapter is self-powered via the target system's USB connection. Ensure the target system's USB port is providing sufficient power.
- If using a USB hub, try connecting directly to a laptop USB port.
7. ข้อมูลจำเพาะ
| คุณสมบัติ | ข้อมูลจำเพาะ |
|---|---|
| หมายเลขรุ่น | NOTECONS02-VGA-MDP |
| ยี่ห้อ | StarTech.com |
| อุปกรณ์ที่รองรับ | ATM, Desktop, Headless System, Laptop, Rack Server |
| การใช้งานเฉพาะของผลิตภัณฑ์ | Laptop, PC, Server |
| ประเภทขั้วต่อ | Mini DisplayPort, Mini USB, USB Type A, VGA |
| สี | สีดำ |
| จำนวนพอร์ต | 1 |
| อินพุต Voltage | 5 โวลต์ |
| คะแนนปัจจุบัน | 0.5 Amps |
| ประเภทปลั๊กไฟ | No Plug (USB Powered) |
| ขนาดรายการ (ยาว x กว้าง x สูง) | 0.01 x 0.01 x 0.01 inches (approximate, refer to product for exact dimensions) |
| น้ำหนักสินค้า | 0.01 Pounds (approximate, refer to product for exact weight) |
| ยูพีซี | 065030922401 |
| ASIN | B0FC2XR9R4 |
8. การบำรุงรักษา
To ensure the longevity and optimal performance of your StarTech.com Portable Laptop Crash Cart Adapter, follow these general maintenance guidelines:
- การทำความสะอาด: Use a soft, dry cloth to clean the exterior of the adapter. Avoid using harsh chemicals or abrasive cleaners.
- พื้นที่จัดเก็บ: เก็บอะแดปเตอร์ไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
- การดูแลสายเคเบิล: Avoid bending or crimping the integrated cables excessively. Store cables neatly to prevent damage.
- การอัปเดตซอฟต์แวร์: Periodically check the StarTech.com website for updated drivers or software for your NOTECONS02-VGA-MDP to ensure continued compatibility and performance.
9. การรับประกันและการสนับสนุน
ผลิตภัณฑ์ StarTech.com นี้ได้รับการสนับสนุนโดย รับประกันจำกัด 2 ปี. For detailed warranty information, please refer to the official StarTech.com webเว็บไซต์หรือบัตรรับประกันที่รวมอยู่ในผลิตภัณฑ์ของคุณ
StarTech.com offers ความช่วยเหลือหลายภาษาฟรีตลอด 24 ชั่วโมง 5 วัน from experienced technical advisors. If you encounter any issues or require support, please visit the StarTech.com support page or contact their customer service directly. Ensure you have your product model number (NOTECONS02-VGA-MDP) and purchase details ready when seeking support.
For returns, a 30-day refund/replacement policy is typically offered by Amazon, the seller. Please check your purchase details for specific return instructions.
