Generic 36-Egg Fully Automatic Incubator

การแนะนำ

This manual provides detailed instructions for the safe and efficient operation of your Generic 36-Egg Fully Automatic Incubator. Please read this manual thoroughly before initial use to ensure proper setup, operation, and maintenance, which will contribute to successful hatching results.

คำแนะนำเพื่อความปลอดภัย

• ควรวางตู้ฟักไข่บนพื้นผิวที่มั่นคงและเรียบเสมอกัน
• Do not operate the incubator near water or in excessively humid environments.
• Keep the incubator out of reach of children and pets.
• โปรดถอดปลั๊กไฟก่อนทำความสะอาดหรือบำรุงรักษาใดๆ
• Do not attempt to modify or repair the incubator yourself. Contact qualified personnel for service.
• Ensure proper ventilation around the incubator to prevent overheating.

คุณสมบัติผลิตภัณฑ์

The Generic 36-Egg Fully Automatic Incubator is designed for efficient and reliable egg hatching with the following key features:

• การควบคุมอุณหภูมิอัตโนมัติ: Maintains a stable internal temperature for optimal embryo development.
• Automatic Egg Turning: Eggs are automatically turned every two hours to prevent embryo adhesion and promote even development.
• Integrated LED Candler: Allows for easy monitoring of embryo development without disturbing the incubation process.
• Humidity Alarm: Alerts the user to low or high humidity conditions, especially when the water level is low.
• สัญญาณเตือนอุณหภูมิเกิน: Notifies the user of excessively high temperatures to protect the eggs.
• การหมุนเวียนอากาศอย่างมีประสิทธิภาพ: Features a low-noise fan and circular hot air duct for uniform temperature distribution.
• Adjustable Egg Tray: Accommodates various egg sizes, including chicken, duck, quail, and parrot eggs.
• แหล่งจ่ายไฟคู่: Operates on 110V AC home power and supports 12V DC battery input for uninterrupted operation during power outagใช่
• Transparent ABS Material: Provides clear visibility of the temperature display and internal environment.

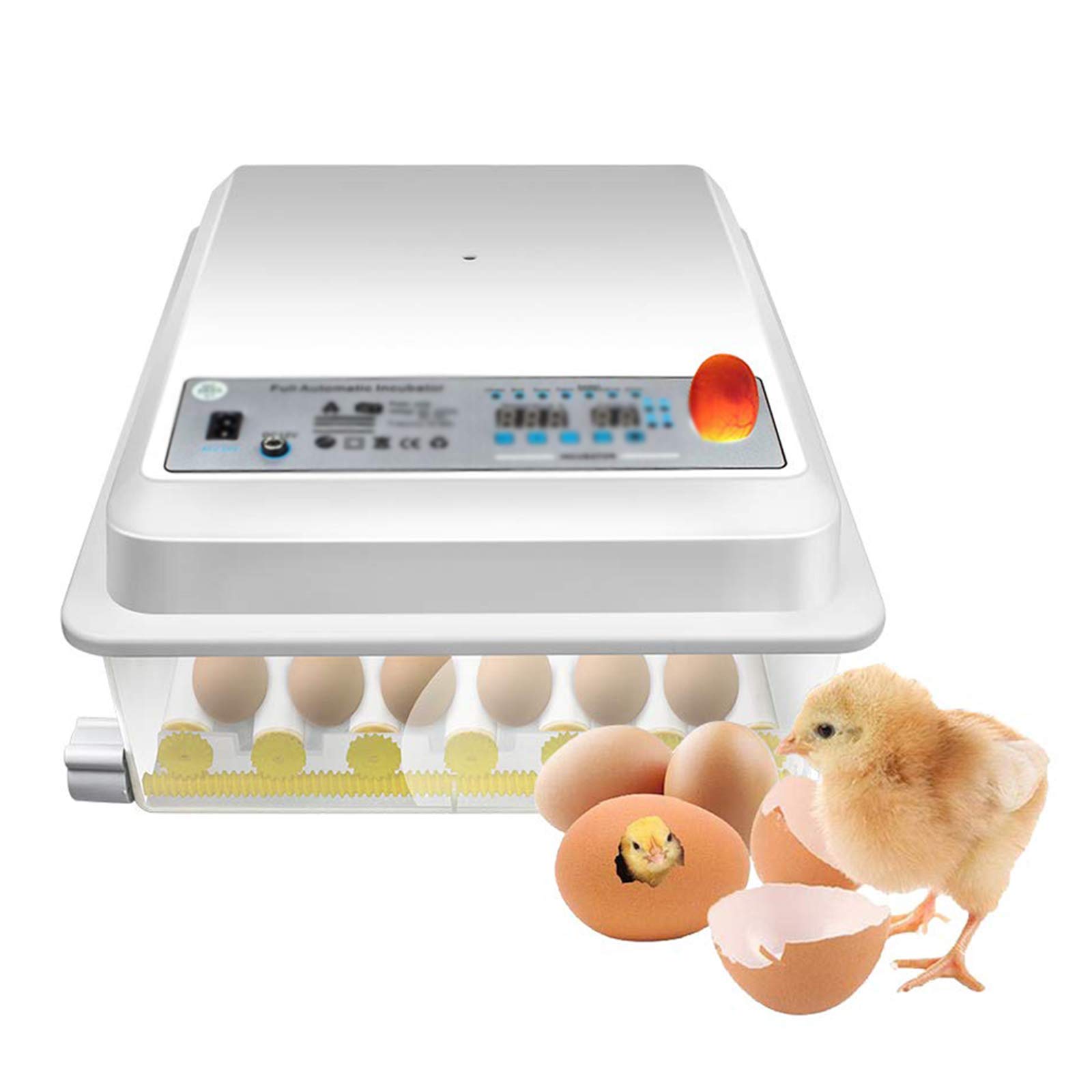

โอเวอร์view of the Generic 36-Egg Fully Automatic Incubator, highlighting key features such as automatic temperature control, efficient air guidance, variable capacity, adjustable shaft spacing, and a worm gear egg turning structure.

Diagram illustrating the internal mechanisms of the incubator, including the worm gear egg turning structure, the 360-degree roller tray for even heating, the high-power insulation fan, and the electric motor.

เนื้อหาแพ็คเกจ

เมื่อแกะกล่องแล้วโปรดตรวจสอบให้แน่ใจว่ามีสิ่งของต่อไปนี้ครบถ้วน:

• 1x Automatic Egg Incubator Unit
• 1x Power Line (110V AC)
• 1x คู่มือการใช้งาน

โครงสร้างผลิตภัณฑ์

Familiarize yourself with the main components of your incubator:

An exploded diagram detailing the main components of the incubator: the top cover host, the roller tray for eggs, the hatching net, and the sink wall for humidity.

1. Top Cover Host: Contains the control panel, heating element, and fan.
2. Roller Tray: Holds the eggs and performs automatic turning.
3. Hatching Net: Placed above the sink wall during the final stages of incubation for chicks to hatch onto.
4. Sink Wall: The base of the incubator, used to hold water for humidity control.

ข้อมูลจำเพาะ

• Egg Capacity: 36 standard chicken eggs (adjustable for various sizes)
• อินพุต Voltage: 110V AC (supports 12V DC battery input)
• อุณหภูมิสภาพแวดล้อมในการทำงาน: 0.1°C - 39.9°C (32.18°F - 103.82°F)
• วัสดุ: พลาสติก ABS
• Usable Range: Chicken, duck, goose, quail, pigeon, and other bird eggs.
• ขนาดโดยประมาณ (ยาว x กว้าง x สูง): 35.5 ซม. (13.97 นิ้ว) x 30.5 ซม. (12.00 นิ้ว) x 18.5 ซม. (7.28 นิ้ว)

An image showing the approximate dimensions of the incubator: 35.5 cm (13.97 inches) in width, 30.5 cm (12.00 inches) in depth, and 18.5 cm (7.28 inches) in height.

การตั้งค่า

1. การแกะกล่อง: Carefully remove all packaging materials and inspect the incubator for any damage.
2. การจัดวาง: Position the incubator on a stable, level surface in a room with a consistent ambient temperature, away from direct sunlight, drafts, or extreme temperature fluctuations.
3. การเติมน้ำ: Fill the water channels in the sink wall with clean, distilled water. The amount of water will influence humidity levels. Refer to specific humidity requirements for your egg type.
4. การเชื่อมต่อไฟฟ้า: Connect the provided power line to the incubator and then to a standard 110V AC electrical outlet. For backup power, connect a compatible 12V DC battery to the designated input.
5. การอุ่นล่วงหน้า: Allow the incubator to run for at least 20-30 minutes to stabilize the internal temperature and humidity before placing any eggs inside.

คำแนะนำการใช้งาน

1. การควบคุมอุณหภูมิ: The incubator automatically maintains the set temperature. The current internal temperature will be displayed on the control panel. Adjust the temperature as needed based on the specific requirements of the eggs you are incubating.
2. การจัดการความชื้น: Monitor the humidity display. Refill the water channels in the sink wall as necessary to maintain the desired humidity level. Higher humidity is typically required during the last few days of incubation (lockdown).
3. การวางไข่: Carefully place fertilized eggs onto the roller tray. Ensure the eggs are clean and free from cracks. Adjust the slot spacing on the roller tray if incubating different sizes of eggs.
4. Automatic Egg Turning: The incubator's automatic turning mechanism will rotate the eggs every two hours. This function is crucial for proper embryo development. Manual turning can also be initiated if desired.
5. LED Candling: Periodically use the integrated LED candler to observe the development of the embryos. This helps identify infertile eggs or those with arrested development.
6. ระบบสัญญาณเตือนภัย : Pay attention to any alarms for over-temperature or over-humidity. Address these conditions promptly by checking water levels, ambient temperature, or ventilation.

Hatching Guide

Successful hatching depends on various factors, including egg quality and environmental conditions. Here are general guidelines:

• Egg Selection: Use fresh, fertile eggs from healthy breeding stock. Store eggs pointed end down at 13-18°C (55-65°F) and 70-75% humidity for no more than 7-10 days before incubation.
• Incubation Period: The incubation period varies by species (e.g., chicken eggs: 21 days, duck eggs: 28 days, quail eggs: 17-18 days).
• Lockdown Phase: Approximately 3 days before the expected hatch date, stop the automatic egg turning. Increase the humidity by adding more water to the sink wall. Place the hatching net over the sink wall for the chicks to hatch onto. Do not open the incubator frequently during this period.
• Post-Hatch: Allow newly hatched chicks to dry and fluff up in the incubator for several hours before moving them to a brooder.

การซ่อมบำรุง

1. การทำความสะอาด: After each hatch, disconnect the power supply. Remove the roller tray and hatching net. Clean all internal components with a mild disinfectant solution. Ensure all parts are thoroughly rinsed and completely dry before reassembly or storage.
2. Water Channels: Regularly clean the water channels in the sink wall to prevent algae or bacterial growth.
3. พื้นที่จัดเก็บ: When not in use, store the incubator in a clean, dry, and dust-free environment.

การแก้ไขปัญหา

• Problem: Incubator not heating.
  สารละลาย: Check if the power line is securely connected to both the incubator and the electrical outlet. Ensure the ambient room temperature is within the specified working environment range.
• Problem: Temperature fluctuations.
  สารละลาย: Verify that the incubator is placed in a stable environment, away from drafts, direct sunlight, or air conditioning vents. Ensure the lid is properly sealed.
• Problem: Eggs not turning.
  สารละลาย: Confirm that the automatic turning function is enabled. Check for any obstructions on the roller tray that might be preventing movement.
• Problem: Humidity too low/high.
  สารละลาย: Adjust the water levels in the sink wall. For lower humidity, reduce water. For higher humidity, add more water. Ensure proper ventilation.
• Problem: Alarm sounding.
  สารละลาย: Identify the type of alarm (temperature or humidity) from the display. Address the underlying issue, such as low water, high ambient temperature, or improper lid sealing.

การรับประกันและการสนับสนุน

This product is covered by a standard manufacturer's warranty. For specific warranty terms, duration, or to obtain technical support, please refer to the documentation provided at the point of purchase or contact your retailer. If you have any questions regarding the operation or maintenance of your incubator, please reach out to the customer support channels provided by the manufacturer or seller. We are committed to assisting you.
