TESSAN Universal Travel Adapter and Voltagอี คอนเวอร์เตอร์

1. สินค้าหมดview

The TESSAN Universal Travel Adapter and Voltage Converter is designed to provide power solutions for your electronic devices while traveling internationally. This versatile product combines a universal travel adapter for dual-voltage devices and a voltage converter for high-power 220V appliances, ensuring compatibility in over 200 countries.

It features multiple AC outlets and USB ports, including a USB-C port, allowing you to charge several devices simultaneously.

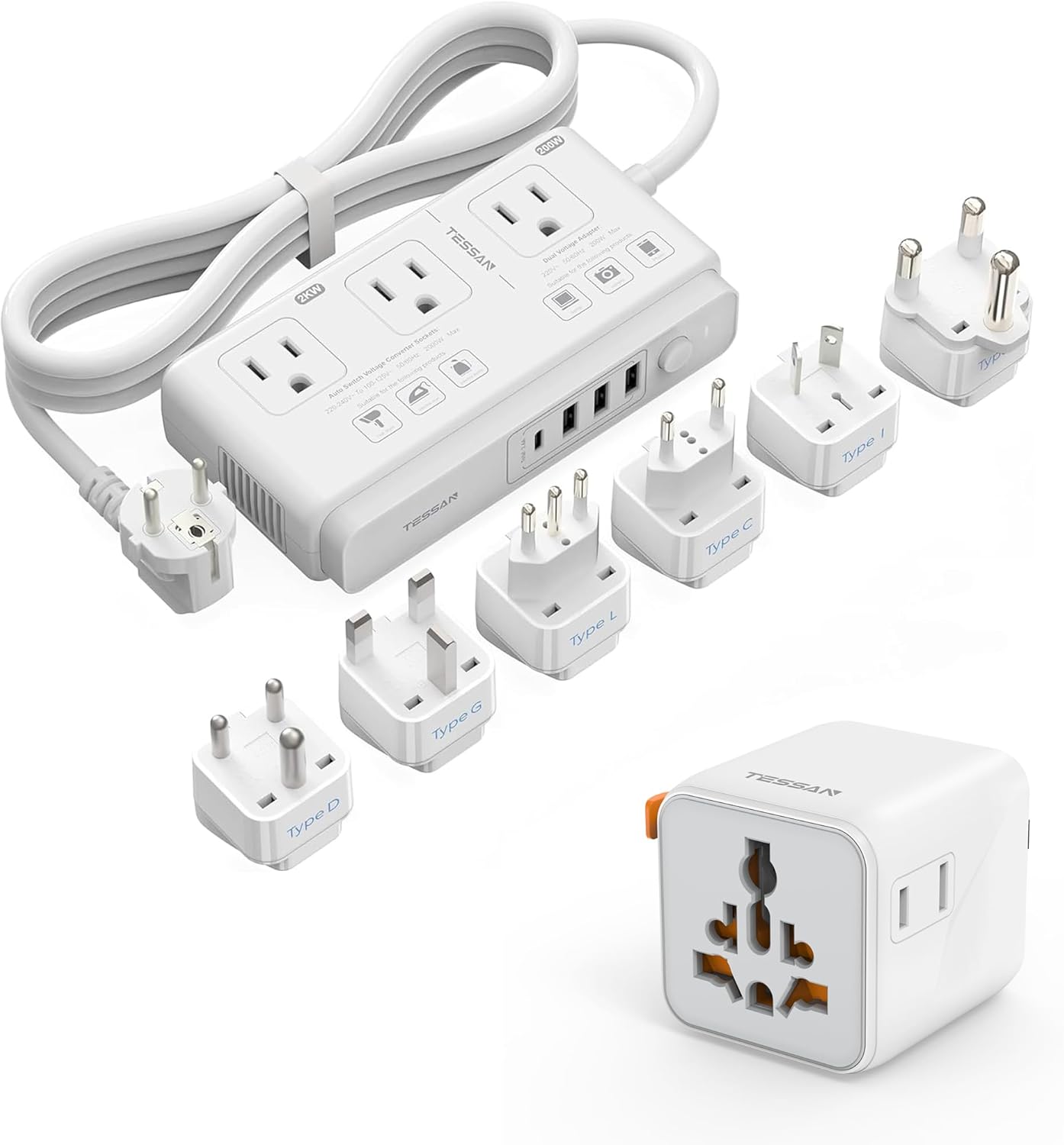

Image 1.1: The TESSAN Universal Travel Adapter and Voltage Converter, showcasing the main unit with multiple outlets and USB ports, alongside various interchangeable international plug adapters.

2. การตั้งค่าและความเข้ากันได้

Before connecting your devices, it is crucial to understand the different components and their intended use to ensure safe operation.

2.1 Understanding Plug Types

The product includes various international plug adapters to fit outlets in different regions:

• ประเภท C: Most of Europe (Italy, Spain, France, Germany)
• ประเภท G: UK, Ireland, Scotland, British
• ประเภทที่ 1: Argentina, Australia, Fiji, China
• ประเภท ก: Japan, USA, Mexico
• Type L: อิตาลี
• ประเภท D: India, Bangladesh, Maldives
• Type M: แอฟริกาใต้

The main unit also features a universal AC outlet compatible with various plug types (Type B, C, G, A, E/F, I, L, J, N, D).

Image 2.1: Visual guide to common international plug types (Type C, G, I, L, D, M) and their associated regions, illustrating the adapter's broad compatibility.

Image 2.2: Detailed illustration of the universal AC outlet on the adapter, demonstrating its compatibility with a wide range of plug types including Type L, J, N, D, E, F, B, A, I, C, and G.

2.2 การเชื่อมต่อเริ่มต้น

1. Identify the correct plug adapter for the country you are in.
2. Attach the appropriate plug adapter to the main unit of the TESSAN converter or the smaller travel adapter.
3. Plug the unit into the wall outlet.

3. คู่มือการใช้งาน

The TESSAN product functions in two primary modes: as a universal travel adapter for dual-voltage devices and as a voltage converter for high-power 220V appliances.

3.1 Adapter Mode (200W Max)

This mode is suitable for dual-voltage electronic devices (100V-240V, 50/60Hz) that do not require voltage conversion. These typically include:

• โน๊ตบุ๊ค
• สมาร์ทโฟน
• แท็บเล็ต
• กล้องถ่ายรูป
• หูฟัง
• เครื่องเล่นเกมคอนโซล

Use the AC outlets labeled for 200W or the USB ports for these devices. The smaller universal travel adapter (Product 1) also operates in this mode, providing a standard US 2-prong outlet and a versatile outlet for charging two devices simultaneously without blocking.

Image 3.1: The compact 2-in-1 universal travel adapter plugged into a wall outlet, demonstrating its ability to charge two devices simultaneously, such as a smartphone and a camera.

3.2 Converter Mode (2000W Max)

This mode is specifically for converting 220-240V (50/60Hz) foreign voltage down to 110V (60Hz) US voltage. It is designed for high-power heating appliances with simple mechanical motors, such as:

• กาต้มน้ำ
• เตารีดไอน้ำ
• เครื่องชงกาแฟ
• Electric Irons

Use the AC outlets labeled for 2000W for these appliances. Ensure your appliance's wattagอี ไม่เกิน 2000W.

Image 3.2: A visual representation of the 220V to 110V voltage conversion process, showing the TESSAN converter receiving 100-240V AC input and providing 110V AC output to a connected appliance like a kettle.

3.3 Simultaneous Charging (7-in-1)

The main converter unit is equipped with 3 AC outlets and 4 USB charging ports (3 USB-A, 1 USB-C). This allows for charging up to 7 devices simultaneously.

• USB-A ports: Up to 2.4A output per port.
• USB-C port: Up to 3A output.
• Total USB output: 3.4A/17W max.

Image 3.3: The TESSAN 7-in-1 power converter in use, demonstrating its capability to charge multiple devices simultaneously, including laptops, tablets, and smartphones, via its AC outlets and USB ports.

Image 3.4: A detailed diagram of the TESSAN converter's outlets, clearly distinguishing between the 200W dual voltage outlets for devices like cameras and laptops, and the 2000W voltage conversion outlets for high-power appliances such as kettles and irons, along with the USB charging section.

4. การบำรุงรักษา

To ensure the longevity and optimal performance of your TESSAN Universal Travel Adapter and Voltage Converter, follow these maintenance guidelines:

• การทำความสะอาด: ถอดปลั๊กอุปกรณ์ออกจากเต้ารับก่อนทำความสะอาด ใช้ผ้าแห้งนุ่มเช็ดทำความสะอาดภายนอก ห้ามใช้น้ำยาทำความสะอาดหรือวัสดุที่มีฤทธิ์กัดกร่อน
• พื้นที่จัดเก็บ: When not in use, store the adapter and its components in a cool, dry place, away from direct sunlight and moisture.
• การจัดการ: Avoid dropping the device or subjecting it to strong impacts. Do not attempt to disassemble or modify the unit.

5 การแก้ไขปัญหา

If you encounter issues with your TESSAN Universal Travel Adapter and Voltage Converter, please review ปัญหาและวิธีแก้ไขทั่วไปดังต่อไปนี้:

• ไม่มีกำลังขับ:
  • Ensure the adapter is securely plugged into the wall outlet.
  • ตรวจสอบว่าปลั๊กไฟใช้งานได้หรือไม่ โดยลองเสียบกับอุปกรณ์อื่นดู
  • Check if the power switch on the unit (if applicable) is turned on.
• อุปกรณ์ไม่ชาร์จ/ใช้งานไม่ได้:
  • โหมดไม่ถูกต้อง: Ensure you are using the correct AC outlet for your device. Dual-voltage devices (100V-240V) should use the 200W adapter outlets, while 220-240V heating appliances requiring conversion to 110V should use the 2000W converter outlets.
  • วัดtagอี ขีด จำกัด : อย่าให้เกินวัตต์สูงสุดtage for each outlet (200W for adapter, 2000W for converter).
  • วัดต่ำtagอุปกรณ์อี: Note that the 2000W AC sockets may not work for very low wattage electronic devices (0-5W) such as electric shavers or electric toothbrushes.
  • เล่มที่tagอีไม่ตรงกัน: The dual adapter socket (Product 1) does not convert voltage. Do not insert 100V-125V devices into the adapter socket if the input voltage is 220-240V, as this can damage the device.
  • โอเวอร์โวลtagการป้องกันอี: Electronic devices with built-in overvoltage protection may not be compatible with the converter. Always check the safety data sheet or data plate on your device.
  • Cable/Device Fault: Test your device and charging cable with another power source to rule out issues with the device or cable itself.

6. ข้อมูลจำเพาะ

7. การรับประกันและการสนับสนุน

For information regarding returns or warranty, please refer to the retailer's return policy. This product typically includes a 30-day return policy from the date of purchase.
